SATELLITE SOFTWARE

APT ( AUTOMATIC PICTURE TRANSMISSIONS ) RECEPTION FROM WEATHER SATELLITES CAN BE ACHIEVED WITH MODEST EQUIPMENT YOU WILL NEED TO KNOW  WHERE THE SATELLITES ARE TO LISTEN  TO THEM, THERE A VARIOUS PROGRAMS OUT THERE TO HELP YOU DO THAT. A SCANNER RECEIVER WILL GIVE YOU SOME RESULTS, BUT THE BANDWIDTH ON THE MAJORITY OF THEM IS TO NARROW SO IF YOU ARE REALLY INTERESTED IN RECEIVING THESE IMAGES YOU NEED TO PURCHASE A DEDICATED SATELLITE RECEIVER LIKE THE APT-6 SATELLITE RECEIVER

A VERY GOOD PROGRAM FOR DECODING THE SIGNAL FROM THE VARIOUS APT SATELLITES IS WXTOIMG WHICH I THINK HAS NOW BECOME FREEWARE

   WXTOIMG CAN BE DOWNLOADED FROM HERE

BELOW IS A TABLE OF NOAA  APT SATELLITES WITH THEIR FREQUENCIES THAT ARE STILL ACTIVE



NOAA - 15

APT

137.620 MHz

OK

NOAA - 18

APT

  137.9125 MHz

OK

NOAA - 19

APT

137.100 MHZ

OK

APT SATELLITE FREQUENCIES

137.300 MHz

137.400 MHz

137.500 MHz

137.620 MHz

137.800 MHz

137.850 MHz

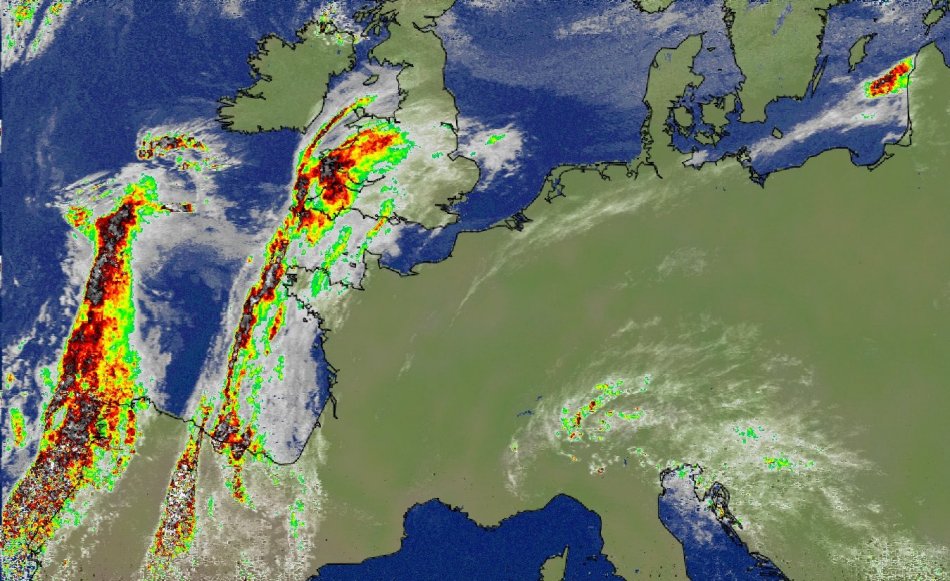

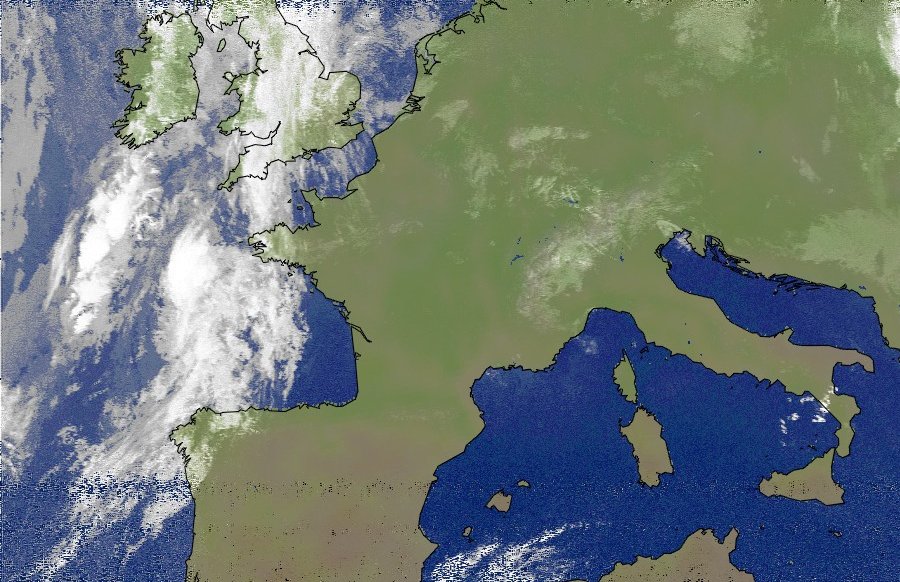

BELOW IS A IMAGE TAKEN FROM NOAA 19 THE SECOND IMAGE IS FROM NOAA 18 SHOWING BANDS OF RAIN

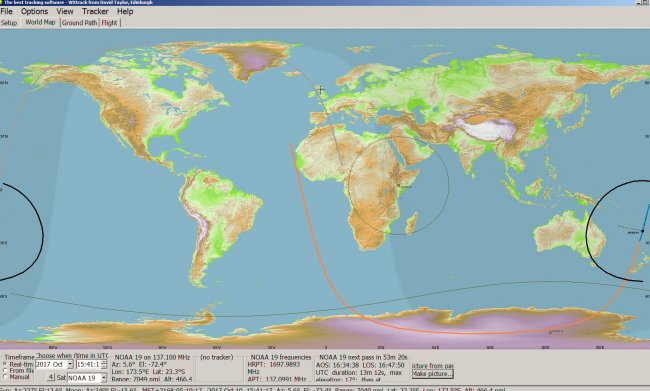

YOU WILL WANT TO KNOW WHERE THE APT SATELLITES ARE ( THOU WXTOIMG WILL AUTOMATICALLY START RECORDING WHEN THE SATELLITE IS WITHIN RANGE ) SO CHECK THE BELOW LINKS TO THE SOFTWARE TO ENABLE YOU TO DO THIS. BELOW IS A SCREEN SHOT OF WXTRACK



   WXTRACK

   GPREDICT

  BUILD YOUR OWN SAT ANT

RASPBERRY PI RE-VISTED

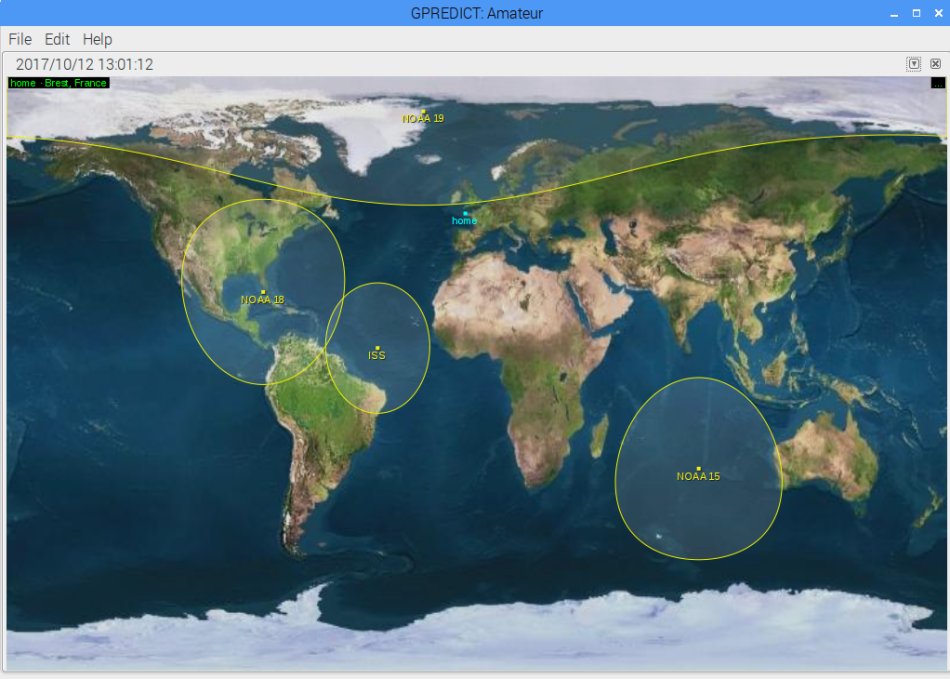

YOU WILL NEED TO KNOW WHERE THE SATELLITES ARE ( OR THE INTERNATIONAL SPACE STATION )  GPREDICT RUNS WELL ON A RASPBERRY AS WELL AS ON WINDOWS

   YOU CAN DOWNLOAD GPREDICT FOR THE RASPBERRY PI FROM HERE

   VISIT THIS PAGE TO SEE HOW TO COMPILE IT



NOW SOME BAD NEWS WHEREAS THE EXCELENT WXTOIMG PROGRAM CAN BE COMPILED ON A RASPBERRY PI,  IT CANNOT DECODE A 'LIVE' TRANSMISSION AS YOU ARE RELYING ON USING A SOUNDCARD DONLE TO GET AN AUDIO INPUT INTO THE RASPBERRY PI - WXTOIMG WANTS TO USE A SAMPLE RATE OF 11.025 KHZ ( 11KHZ ) WHEREAS THE SOUNDCARD DONGLE ONLY WORKS AT 44 KHZ. THE   IMAGES SIMPLY WILL NOT SYNC ( SEE THE RASPBERRY PI PAGE )

 THE GPREDICT PROGRAM WORKS EXTREMLY WELL ON A RASPBERRY PI

HOWEVER  IF YOU HAVE A BANANA PI YOU WILL HAVE MORE JOY, BUT YOU NEED TO DO A MODIFICATION TO THE PCB ( SEE THE WXTOIMG DOWNLOAD PAGE )  THE GPREDICT PROGRAM CAN ALSO BE COMPILED ON A BANANA PI ( RUNNING RASPERIAN )
