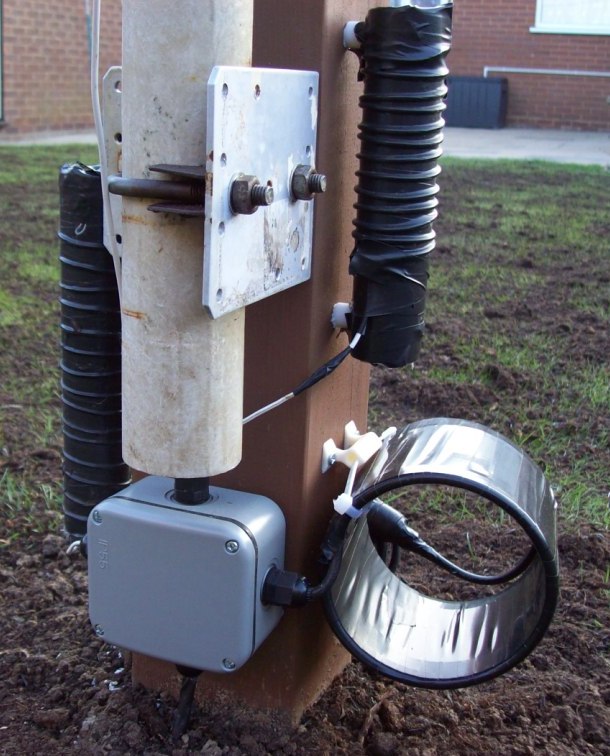

Five aerials are fed from a common feed point via the Ugly Balun, 21' of RG58 on a 4" diameter former. To the right is the 5/8 loading coil for 12m and to the left the 5/8 coil for 15m. The other 2 wires are the trapped 'L' for 80 & 40m and a 1/4 wave stub for 20m
More details here.
g4gvb_page001006.jpg g4gvb_page001005.jpg g4gvb_page001004.jpg g4gvb_page001003.jpg
Worked 240
Confirmed 213
