Lannemezan
Station, Southern France
The
following photos are courtesy of Terry Hughes, GM4DSO.
These were
taken in the mid 1950s.

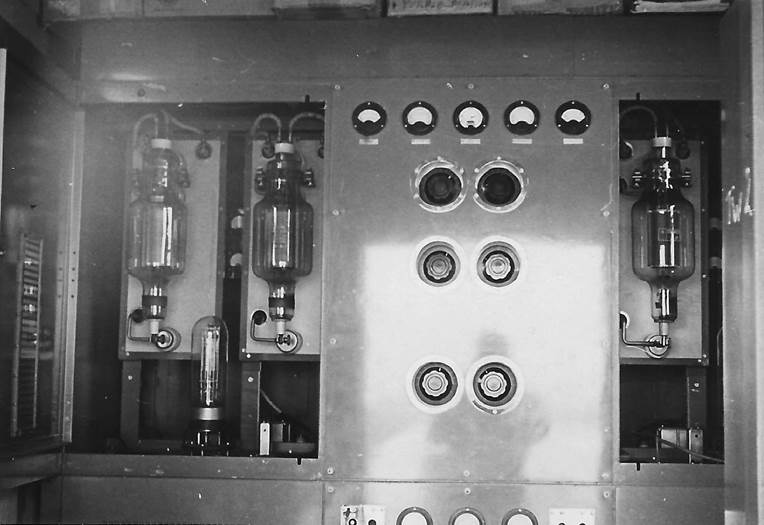

The transmitter at French chain slave station in
Lannemezan (probably the green station).
The transmitter
used large valves running at a high voltage.

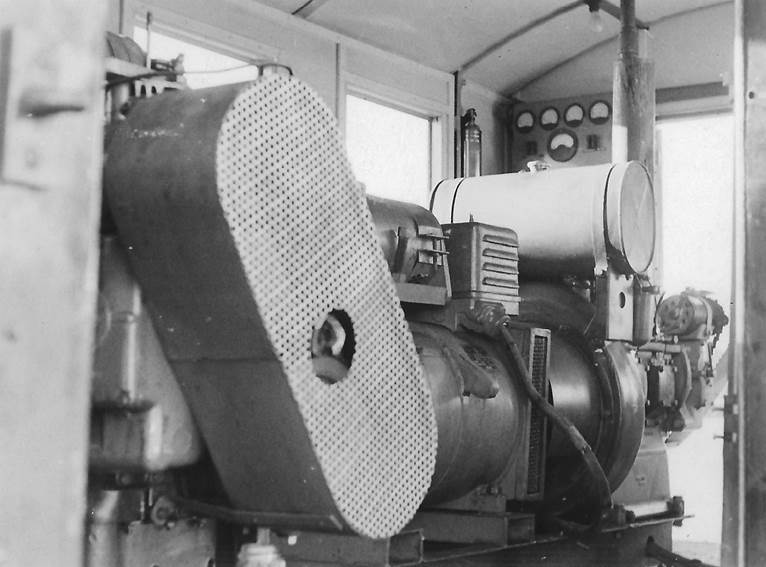

The diesel generator at Lannemezan
A view of the main waggon at Lannemezan
containing the transmitter and drive racks.
There were three wagons, the others being the
diesel generator and antenna tuning coil.

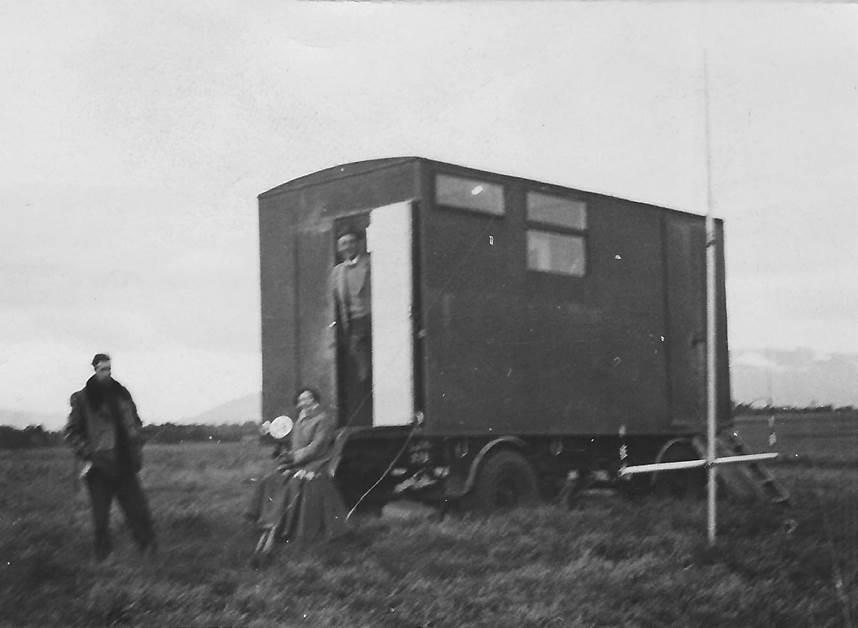

Another view of the main station cabin the
antenna shown is the receiver of the master f6 signal

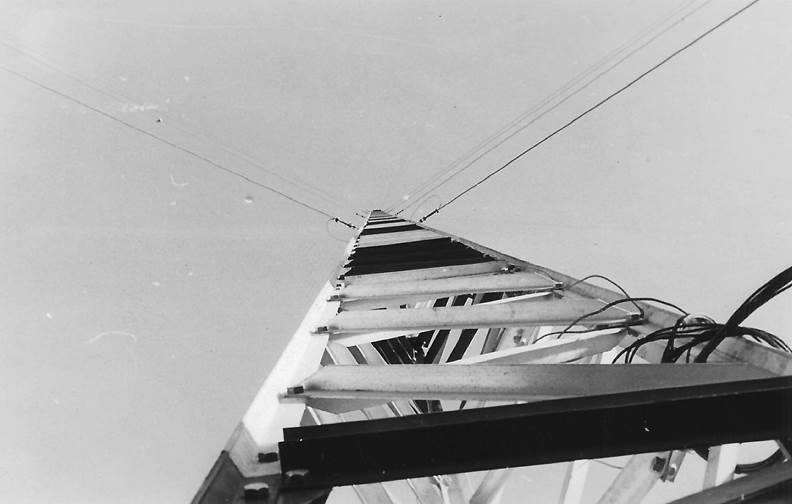

A view up the 300ft lattice mast at Llannemezan

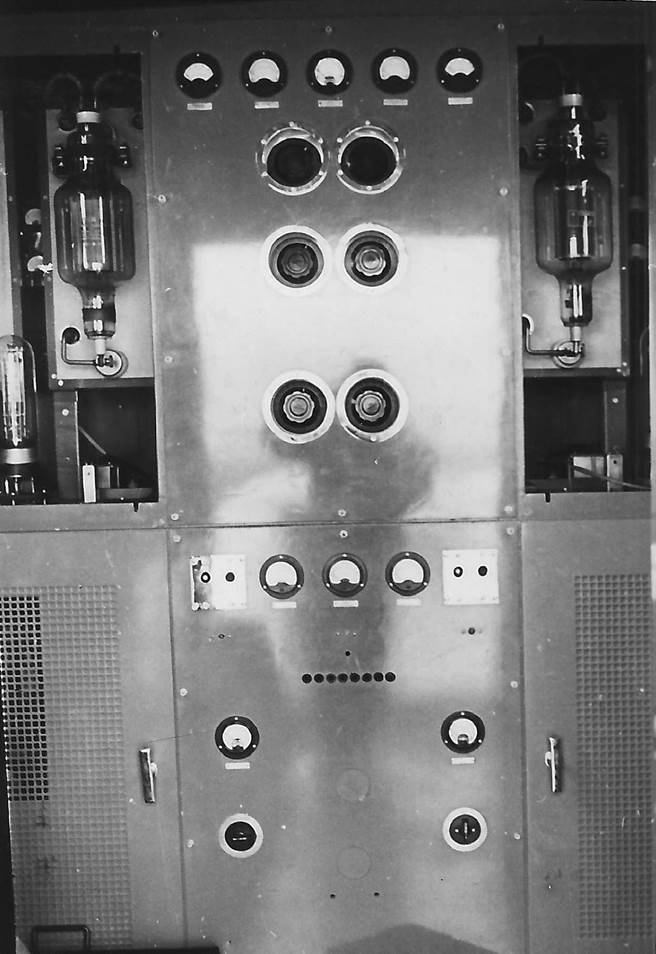

The transmitter at slave station Lannemezan

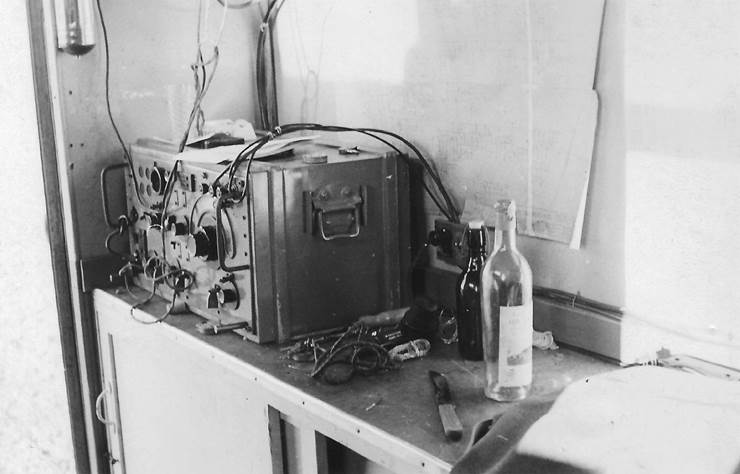

The ht set we used in Lannemezan to communicate with the master station
Looking into the transmitter waggon in Lannemezan

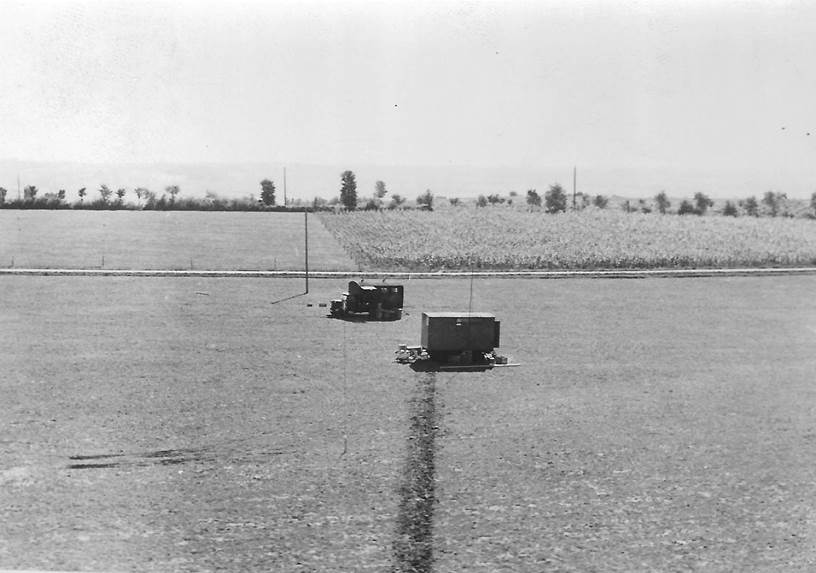

A view of the site from half way up the aerial
mast in Lannemezan
The diesel generator wagon in Lannemezan.
The fuel tank is high up on the left and the
spare drums of fuel are on the ground. A hand pump was used to fill the fuel
tank.
