RS-41 Transmitter, R-4 Receiver

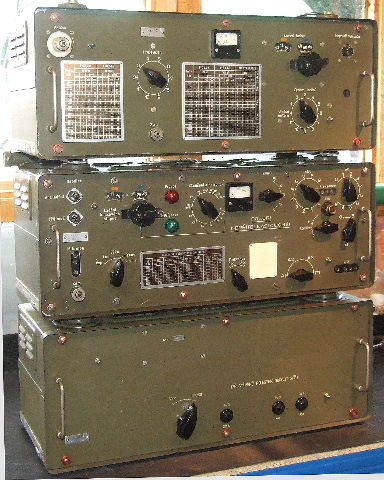

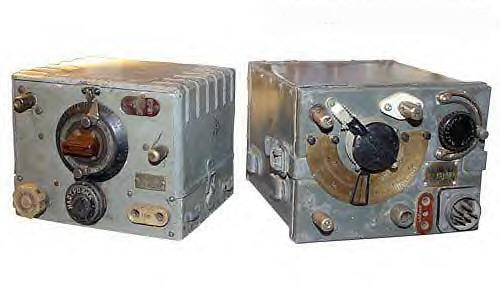

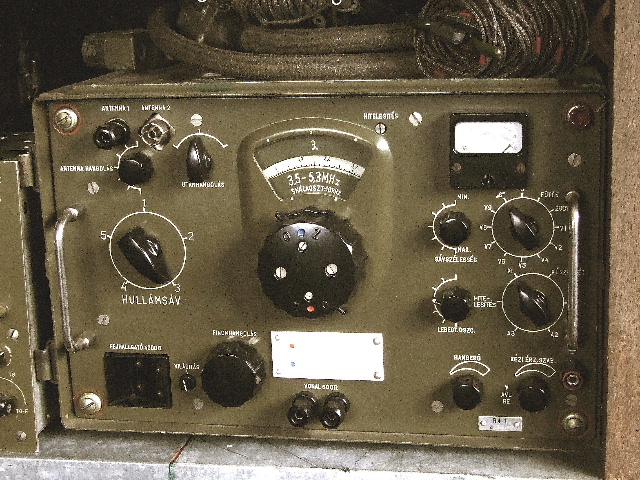

This Czech set, HF, 100W, 60's to the 70's. Tx on left, RS-41 with rx R-4 on right. Other kit and spares below.
US-P Receiver
War time Russian Aircraft set, also used in other services. 150 kHz to 12Mhz, with bfo, 8 valved superhet.
RSI-4T

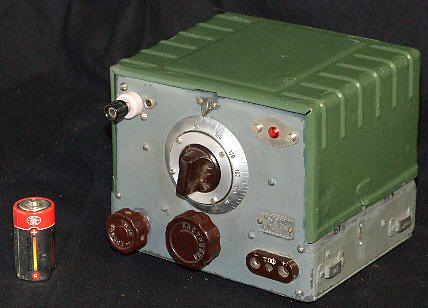

RSI-4T receiver, part of the 9R Russian tank set. This is a 6 valve AM only set tuning 3.4 to 6MHz.
Of course, I now have the rx, I now need the rest of the kit, transmitter, psu etc.
Either the transmitter as pictured below left or the combined tx and psu as pictured below right. If you have either available, please get in touch.
P-159 and RF-10
Additions here, P-159 VHF set and a RF10 vhf set.
The P-159 transistorised simplex VHF FM Russian Soviet Warsaw pact radio for moderate terrain. Used by frontier troops and
national-guard units. It covers 30 to 74.999 MHz, with an output power of 5 W and a range of 10 to 50 km. The R-159
has a 16 kbits/s data capability, and a 500 m remote-control facility. Operating temperature is -40 to +50�C.
Part of the communications family of the Russian BTR-80K APC Command Post vehicle (two sets). Approx 11 1/2" x 4" x 15 1/2".
Morse key to top. Complete with headset and antenna.
Manufactured by TESLA from Pardubice, the RF-10 is a compact VHF (44~54MHz) military transceiver that was used by the Czech army.
It is a fully transistorized solid-state design employing modular construction & frequency synthesis. The receiver is quite
sensitive at 0,5uV with 1W transmit RF output - a good compromise between battery consumption and range. It runs from a 6v 4Ah
NiCad battery pack whose cells will probably need replacing. The top of the battery pack is secured by screws which when removed,
allows easy access to the cells. Operation is very simple. Three knobs select operational frequency which is directly read out
in the three small windows. The mode switch has 6 modes � Off, Whisper, Low Volume with Squelch, Medium Volume with Squelch,
Hi Volume without Squelch & Battery Test.
P-128M

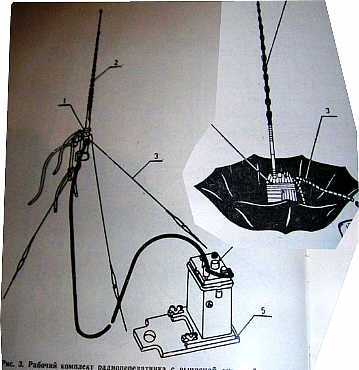

This is the P-128M Beacon set, dropped with cargo on a parachute and sends out a signal which can be tracked or DF'd by troops etc.
The set could have the whip mounted on it or, using an adaptor plate, mounted higher up for increased range in poor terrain.
..........................................................................................................................................Right is view through tuning window showing set goes upto 50Mhz.
Pictures showing the carry bag open and closed.
P-24
This little set is a single channel HF receiver, used it is believed by the Bulgarian Special Forces. Kit came in a nice carry bag with whip
antenna, earphone, long wire antenna, spare battery pack and small case holding 4 of the plug in frequency units.

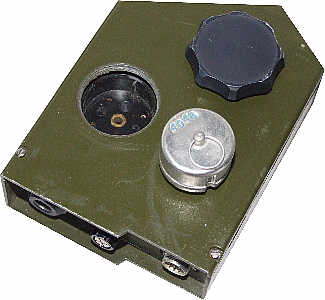

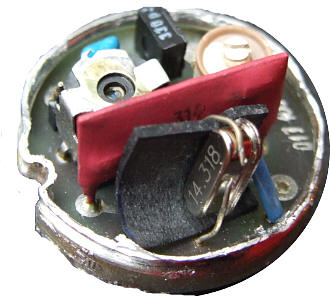

The channel is selected with a small plug in unit, pictured left. Right is a unit cut open revealing a crystal, an intergrated circuit
and coil and capacitors. For the marked 4048 kHz the crystal is 14.748 MHz, giving an i.f. of 10.7 MHz. I replaced xtal with one giving me
an 80 Mtr frequency and there is no difference in sensitivity so it might have a wideband front end.
P-407
Other recent additions here, P-407 VHF set, around 50 to 60MHz with rebroadcast facility and connection for a land line,

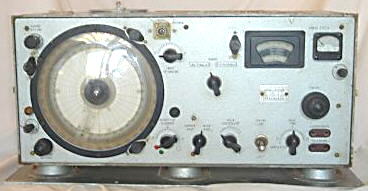

and a Russian DF set, Long Wave, still to be identified.

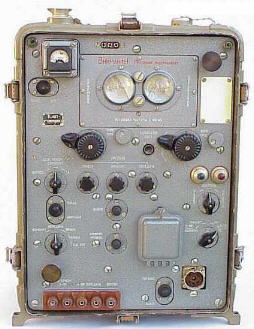

Soviet R-407M was developed as single channel full duplex radio-relay for either 2 or 4 wire connection. It was primary
used in combination with other communication equipment either as an emergency link or during set-up of a station.
The equipment is valved throughout. Frequency range 52-60MHz. RF 1 Watt. Mod FM R/T only. Channel spacing 50kHz.
Powered by two sets of 2.4V NiCad batteries. AF bandwidth 0.3-3.4 kHz. Ringing tone 30-50Hz.
P-143
Recent addition, P-143 HF manpack, SSB/CW/AM. Similar role to the Syncal 30 etc.
R-143 , also called "Bagulnik" comes from the former UDSSR. It is a modern, solid state portable HF transceiver,
used in many ways- also by special forces and as spyradio. There are R-143 with foreign lettering.
Modulation: AM, CW, SSB. HF output: 10 W Channel spacing: 1 KHz. Frequency control: Synthesizer.
Sensitivity: 2 uV / 20 db. Powered by: 12 or 24 V. Measuremants and weight: 350 x 310 x 105 mm; 11 kg.
RBM-1
Russian RBM-1 transmitter receiver. Still awaiting a good cleaning though.
Covers 1.5 to about 6 MHz, AM and CW, 0.3 and 1Watt, needs 200v for tx, 80v for rx and 2.5v for heaters.
Now working with a battery pack, 589 from PA0 with 100ft long wire.
..................................................................................................................Right: (1978) Stanica Kielce Scout Operation Bieszczady 40 SP7JWZ/8
10RT-26

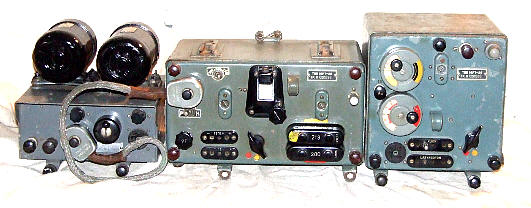

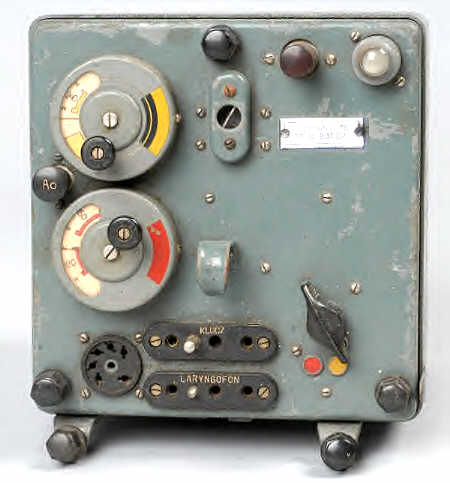

Tank set, this is a post war version of the 10RT war time set, 10RT-26, receiver, transmitter and psu. Tunes 3.75 to anbout 6MHz,
runs of 26v, either continuos tuning or two xtal controlled
channels, the small black oblong things bottom right of rx are the xtal units.
13-P

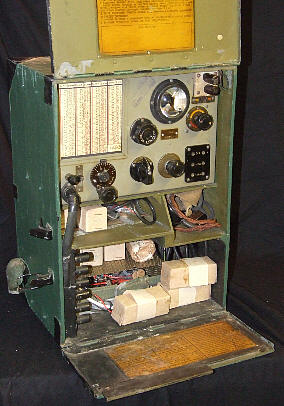

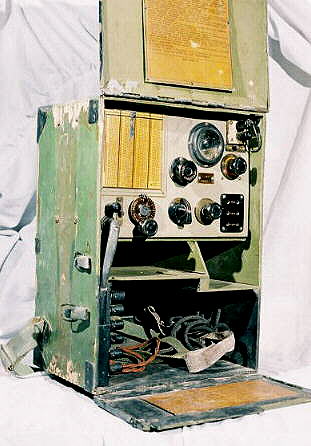

WW2 set, model 13-P (note: symbol "P" in Russian is equiv to a R in English). Similar to Brirish WS18 but this
set uses a single valve in the tx, an SO-257. Batteries housed in the lower part of the case.
as the set
arrived
Fig 1

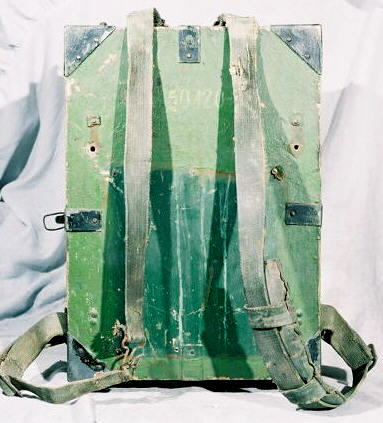

back of
case with straps
Fig 2
restored
front of
set
Fig 3

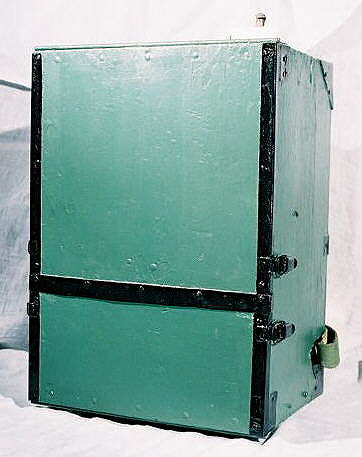

outside of
case
Fig 4
A7b
New arrival A7b (right) in case, similar to 13P already in the collection.
A7b and P-805
LEFT: A7B Infantry/Artillery manpack VHF FM transceiver, 24 to 28.0 MHz, F3. Manufactured from late 1944.
Output power 1 W. Powered by two BAS-80 dry batteries and 2NKN-10 rechargeable battery.
RIGHT: Transmitter R-805 (RSB-5) "Dnepr". Model 1946. AM,CW ; 3,5-12 MHz. Output power around 250 W. Used by Soviet Army after WW2.
Produced in the Nizhny Novgorod Radio Works and others Russia plants
P-147 and P-311
LEFT: A Russian P-147, paratroopers set, small, vhf, very cute !! Runs off a couple of 9v batteries, around 50MHz.
RIGHT: P-311 hf rx. R-311("Omega").AM/CW, coverage 1 to 15 MHz in five ranges. Model about 1960-70. Aleksandrov Radio Works, SU.
P-105 and P=109
P-109
P-105
The Russian low band vhf FM sets, P-109 and P-105. Soviet (Warzaw Pakt) army radio transceiver R-109m. Model about 1964.
(10 tube, 5 transistors). Made in "Post Box B-8865" plant, Voronezh or Aleksandrov Radio Works. Russia.
P-326 and RP2M
LEFT: The hf receiver, P-326. Operation is a little difficult, not a nice rx to play with
RIGHT: The RP2M receiver, It is Yugoslavian, an all transistor rx tuning 2 to 12 MHz. It was made in the
"Elektronska industria" town called Ni�. It is a double conversion superhet with first i.f. at 1.78 MHz and second at 280 kHz.
The RP-2M is the RX from yugoslavian model of the AN/GRC-9.
RUP-15
This Yugo set, the RUP-15 or PD-8 covers 2 to 12MHz, gives ssb, cw and AM, 15W pep, and runs off a 12v battery supply. Frequency selection
by dial up means and 1kHz resolution. 500kHz i.f., with crystal filter etc. Very nice set to operate.
P-104 and P-123
P-104
P-123

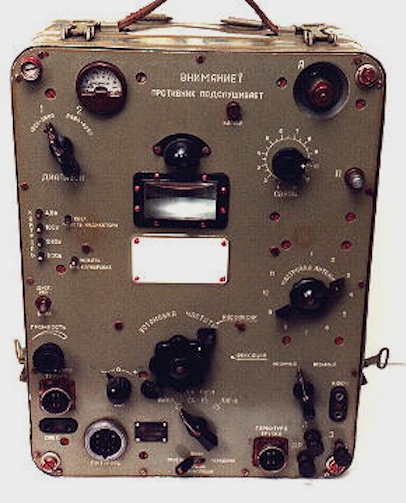

P-104 HF transmitter receiver, based on a German design I believe. Nice to operate.
The P-123 tank set, solid and indestructable. FM-transceiver R-123M. Used in tanks and armored vehicles, or together
with P-105M, 108M, 109M, 113, 114, 126 etc. Operating modes: voice transmission, duty reception. Coverage frequency
20 to 51,5 MHz in two ranges. 14-28 km comunication range in moving mode and max 70 km range fixed. Tuning is the optical
system, where the frequency display is reflect to a glass plate. Manufactured in Sarapoul, Voronezh Radio Works and
probably in others USSR Radio Works too.
P-107
LEFT: The (R)P-107 VHF transceiver. There were valve and transistor (P-107T) versions of this set.
RIGHT: The P-107M manpack set.
R-107, R-107T, R-107D, R-107M. The R-107 transceiver is one of the newest additions to Soviet communications. It is a man-packed frequency
modulated transceiver which operates with in a frequency range of of 20 - 52 MHz. This radio uses two bands, Band One is 20-36 MHz and Band
Two is 36-52 MHZ. The set uses the standard Kulikov antenna, a combined rod ( 2.7 meter ) or a travelling wave ( 40 meter doublet ).
It has both continuous tune and up to four pre-set frequencies. Power for the set is supplied by two rechargeable KNP-20 2.4 volt batteries.
The R-107 weight of 16.9 Kg. The set has a power output of 1 watt and a range of 4 miles with a whip antenna, 5 miles with a combined rod
antenna and 16 miles with a travelling wave antenna. The set can be used as a radio relay station and can be remoted by using the
standard field telephones. The set is designed for communications up to company level. R-107M (latest variant of R-107):
power output is 5W, FM or CW, a Morse key can be attached to the top of transceiver.
RM-31

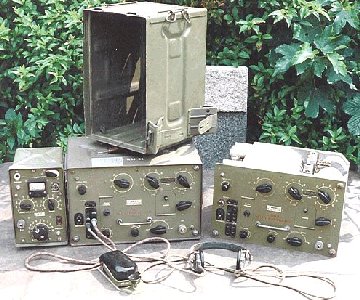

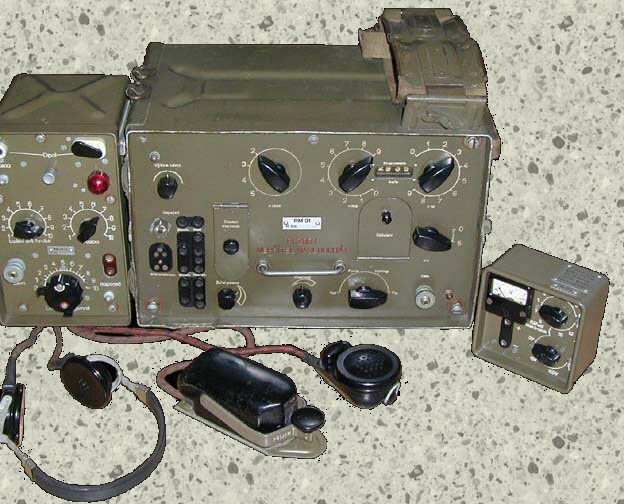

LEFT: A Czech made hf transceiver, the RM-31, a very nice set to use. Strange key though, you need to pull the tapper UP to switch between tx and rx.

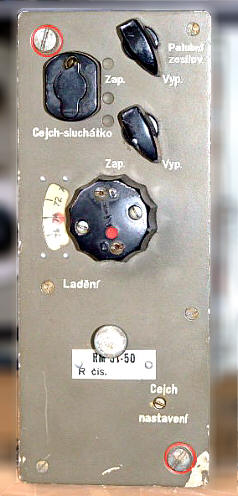

It took me hours to figure this trick out ! NEXT to it. RM31-50, similar number but different beast, VHF rx/tx.
............................................... RIGHT: RF11 set, complete in its box.
P-1262A

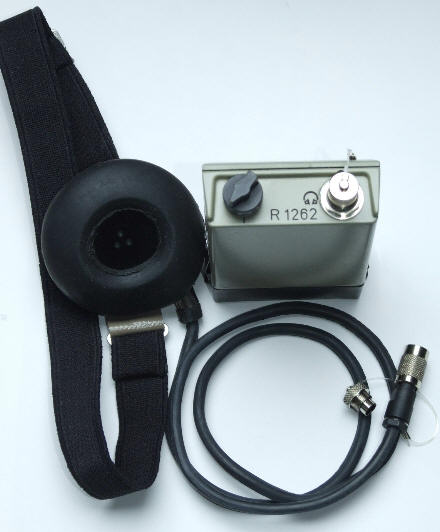

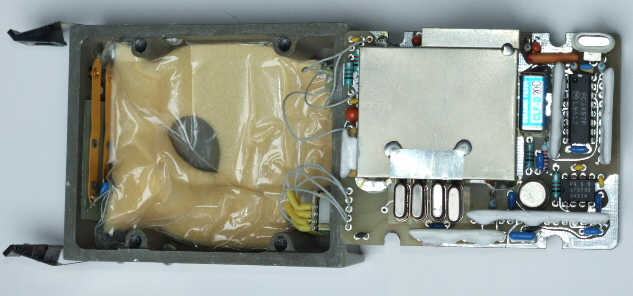

The R-1262, Fig. 5, is a 4 channel 30 to 80 MHz VHF FM receiver weighing just 350g and measuring 128 by 70 by 30mm.
The set came with its headphones, two clip on 9volt rechargeable batteries and a small handbook containing a
block diagram and operating instructions. The actual country of origin is not known but the handbook is written in Hungarian.
The set might be Hungarian made or from the Comm Block collective. The receiver is a double conversion design,
10.7 MHz and 455 kHz intermediate frequencies. The set came fitted with 4 channels, around 33, 42, 70 and 71 MHz.
the rf section of the set automatically tunes to match the crystal selected.
More to come, page still under construction
Send an e-mail to: Ben Nock, G4BXD
(If link does not work on your PC then send email to: [email protected] )
********* Pictures by G4BXD are G4BXD copyright ********
|
|
|
|
|
|
arrived Fig 1 |
case with straps Fig 2 |
front of set Fig 3 |
case Fig 4 |
A7b
New arrival A7b (right) in case, similar to 13P already in the collection.
A7b and P-805
LEFT: A7B Infantry/Artillery manpack VHF FM transceiver, 24 to 28.0 MHz, F3. Manufactured from late 1944. Output power 1 W. Powered by two BAS-80 dry batteries and 2NKN-10 rechargeable battery.
RIGHT: Transmitter R-805 (RSB-5) "Dnepr". Model 1946. AM,CW ; 3,5-12 MHz. Output power around 250 W. Used by Soviet Army after WW2. Produced in the Nizhny Novgorod Radio Works and others Russia plants
P-147 and P-311
LEFT: A Russian P-147, paratroopers set, small, vhf, very cute !! Runs off a couple of 9v batteries, around 50MHz.
RIGHT: P-311 hf rx. R-311("Omega").AM/CW, coverage 1 to 15 MHz in five ranges. Model about 1960-70. Aleksandrov Radio Works, SU.
P-105 and P=109
|
|
|
|
|
|
P-326 and RP2M
LEFT: The hf receiver, P-326. Operation is a little difficult, not a nice rx to play with
RIGHT: The RP2M receiver, It is Yugoslavian, an all transistor rx tuning 2 to 12 MHz. It was made in the "Elektronska industria" town called Ni�. It is a double conversion superhet with first i.f. at 1.78 MHz and second at 280 kHz. The RP-2M is the RX from yugoslavian model of the AN/GRC-9.
RUP-15
This Yugo set, the RUP-15 or PD-8 covers 2 to 12MHz, gives ssb, cw and AM, 15W pep, and runs off a 12v battery supply. Frequency selection by dial up means and 1kHz resolution. 500kHz i.f., with crystal filter etc. Very nice set to operate.
P-104 and P-123
|
|
|
|
|
|
P-107
LEFT: The (R)P-107 VHF transceiver. There were valve and transistor (P-107T) versions of this set.
RIGHT: The P-107M manpack set.
R-107, R-107T, R-107D, R-107M. The R-107 transceiver is one of the newest additions to Soviet communications. It is a man-packed frequency modulated transceiver which operates with in a frequency range of of 20 - 52 MHz. This radio uses two bands, Band One is 20-36 MHz and Band Two is 36-52 MHZ. The set uses the standard Kulikov antenna, a combined rod ( 2.7 meter ) or a travelling wave ( 40 meter doublet ). It has both continuous tune and up to four pre-set frequencies. Power for the set is supplied by two rechargeable KNP-20 2.4 volt batteries. The R-107 weight of 16.9 Kg. The set has a power output of 1 watt and a range of 4 miles with a whip antenna, 5 miles with a combined rod antenna and 16 miles with a travelling wave antenna. The set can be used as a radio relay station and can be remoted by using the standard field telephones. The set is designed for communications up to company level. R-107M (latest variant of R-107): power output is 5W, FM or CW, a Morse key can be attached to the top of transceiver.
RM-31
LEFT: A Czech made hf transceiver, the RM-31, a very nice set to use. Strange key though, you need to pull the tapper UP to switch between tx and rx. It took me hours to figure this trick out ! NEXT to it. RM31-50, similar number but different beast, VHF rx/tx.
............................................... RIGHT: RF11 set, complete in its box.
P-1262A
The R-1262, Fig. 5, is a 4 channel 30 to 80 MHz VHF FM receiver weighing just 350g and measuring 128 by 70 by 30mm. The set came with its headphones, two clip on 9volt rechargeable batteries and a small handbook containing a block diagram and operating instructions. The actual country of origin is not known but the handbook is written in Hungarian. The set might be Hungarian made or from the Comm Block collective. The receiver is a double conversion design, 10.7 MHz and 455 kHz intermediate frequencies. The set came fitted with 4 channels, around 33, 42, 70 and 71 MHz. the rf section of the set automatically tunes to match the crystal selected.
More to come, page still under construction
