The full Equipment used at G3ZJO - G4YKE. back to page

black 35cm dish The 'little black dish', with bowtie feed and Westflex 103 cable.

grey 35cm dish The grey dish, with a small diameter solid coax feed.

access point Access point in its lead box.

bowtie Bowtie feed ready for Westflex 103 feeder and then encapsulation.

bowtie assembly 'Kit of parts' ready for assembly

Extras alternative feed methods and antennas for 2.4Ghz.

beercan feed Alternative feed for the grey dish with the original LNB and its arm.

Horn antenna Horn antenna made from two beer cans, a good portable antenna.

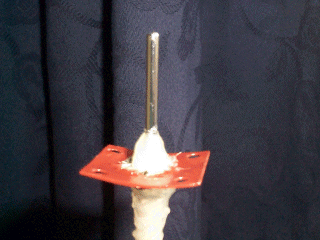

1/4wave probe A quarter wave length probe with a fixing plate for feeding the 'Cantenna'.
