The Site

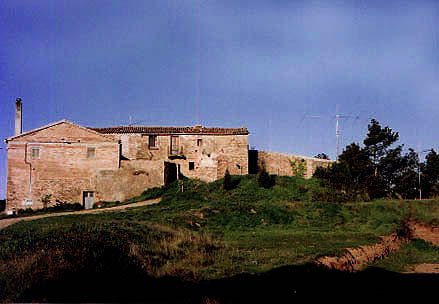

The BYO contest Site Improved!!

From left to right:

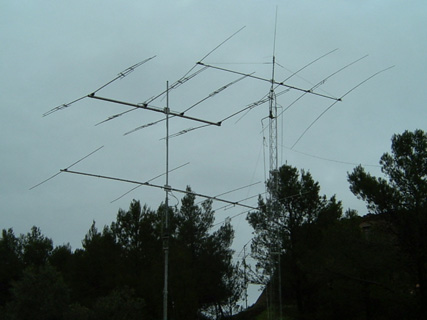

  • 5 elements 10m appear a little bit over the roof
  • 5 element 15m

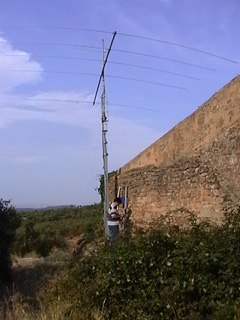

  • 3 elements 15m
Antennas

2001
  • 10m system: 5 element + 4 elements + Vertical (not in photo) all mixed by stackMatch.
  • 2003Mister EA3IN antenna system for 15m: 5 + 3 elements yagi, the last one fixed to Europe.

2003

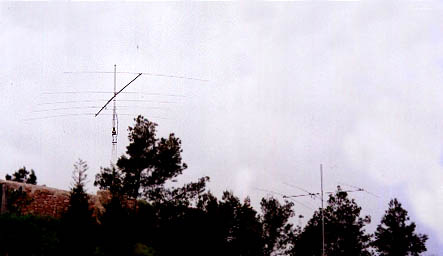

In front of you the 10m yagi and the mult antena (KLM KT-34), behind it the 20m tower with the antenna and the 160m and 80m inverted V dipols, and to the bottom, between trees the 40m dipol and the 15m antenna (5 el. yagi).



Working

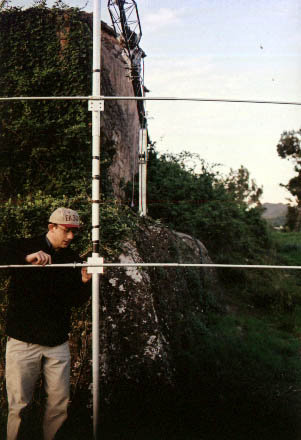

  • Myselft looking for the reason of high SWR ratio in the 15m yagi, finally the problem was the conectors (PL's. ) ###?¿^^!!! (half contest time looking for it)
  • Another point of view of the same antenna (mast folded) with EA3IN conecting the system.
