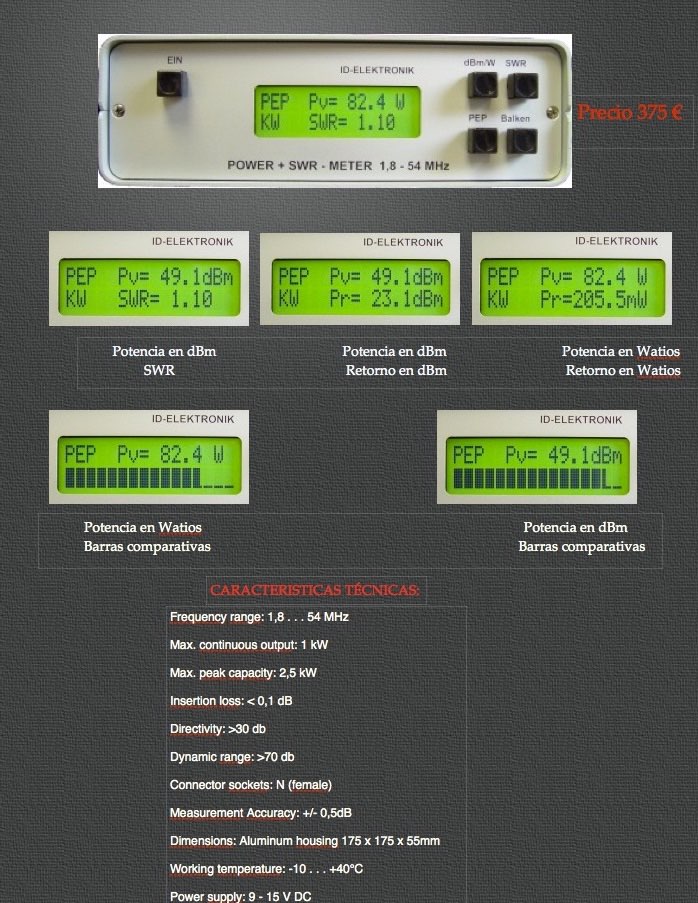

Potencia en dBm                                    Potencia en dBm                                 Potencia en Watios

                  SWR                                                 Retorno en dBm                                  Retorno en Watios

Frequency range: 1,8 . . . 54 MHz

Max. continuous output: 1 kW

Max. peak capacity: 2,5 kW

Insertion loss: < 0,1 dB

Directivity: >30 db

Dynamic range: >70 db

Connector sockets: N (female)

Measurement Accuracy: +/- 0,5dB

Dimensions: Aluminum housing 175 x 175 x 55mm

Working temperature: -10 . . . +40°C

Power supply: 9 - 15 V DC

            Potencia en Watios                                                                                            Potencia en dBm

            Barras comparativas                                                                                        Barras comparativas

CARACTERISTICAS TÉCNICAS:

  Precio 375 €
