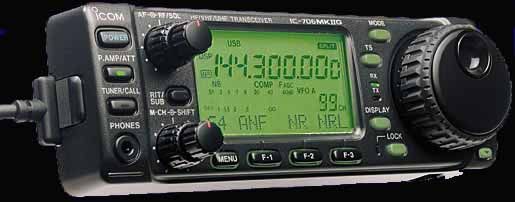

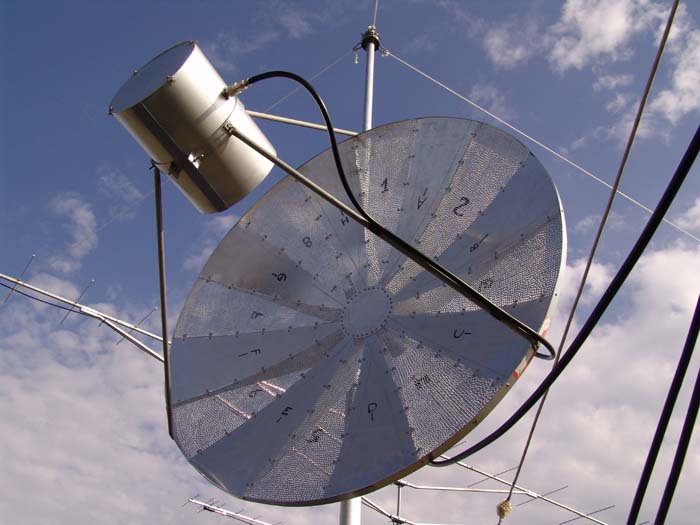

FI ICOM 706 MKIIG











The optimal power output  is a 500 mw for  trasverter in 144.200 MHz to 1.296200 GHz, frequency range 1.296 - 1.298 GHz .

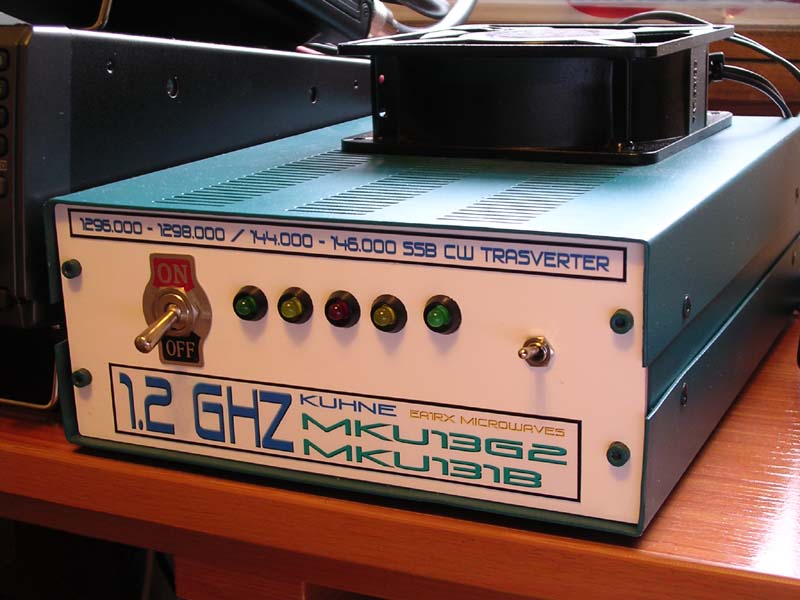

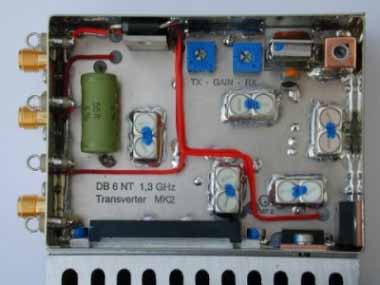

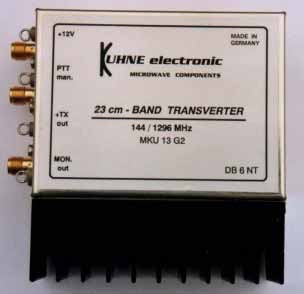

23 cms Band  trasverter KHUNE MKU 13 G2




RX-gain: 21 dB   NF max: 0.7 dB

tras-2.jpg (92158 bytes)  tras-3.jpg (75183 bytes)  tras-4.jpg (93955 bytes)  khune3.jpg (13539 bytes)  khune-2.jpg (18171 bytes)  khune-1.jpg (19064 bytes)

The  power adapted  for amplifier is of 1.3 w , box, frontal panel, and N silver conectors they have been recycled of the scrap iron.

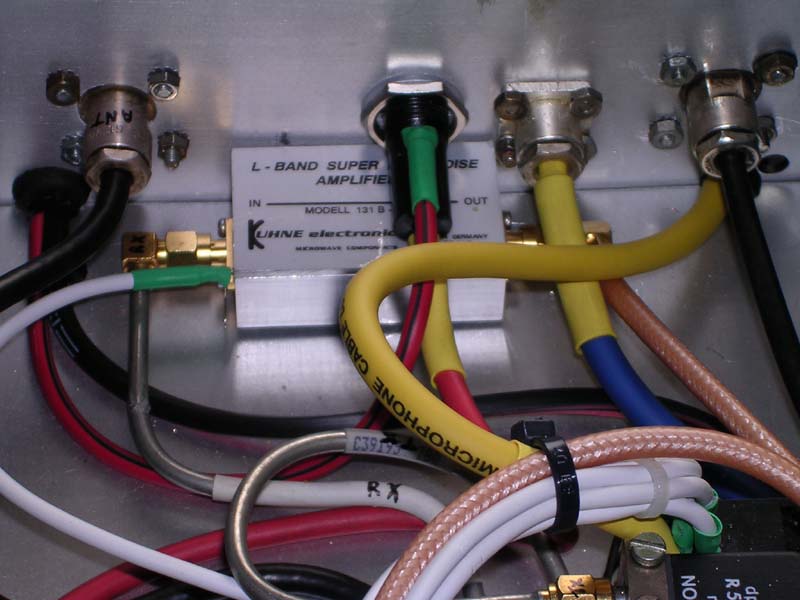

23 cms Band low noise preamplifier KHUNE MKU 131 B


  Gain dB: 20 dB

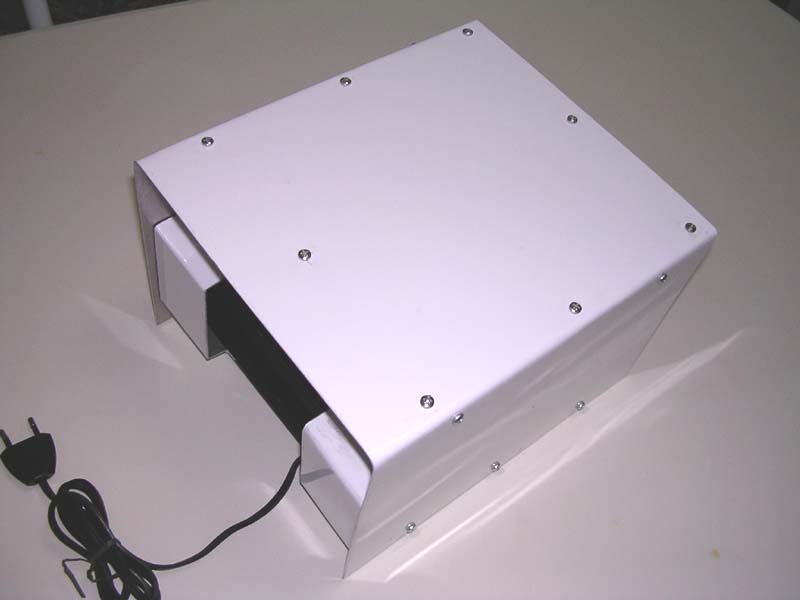

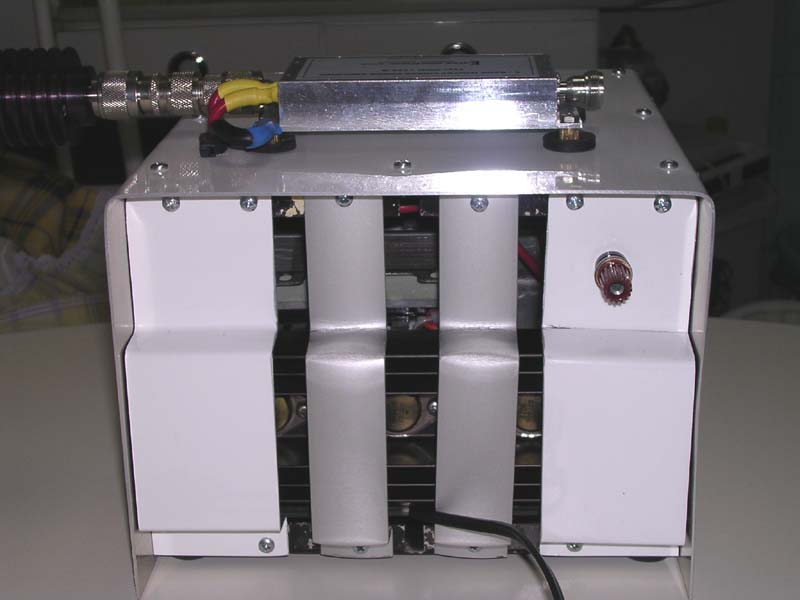

23 cms Band amplifier KHUNE MKU 1330A


  +26  voltage

amp-2.jpg (66785 bytes)  amp-7.jpg (90544 bytes)  amp-3.jpg (53527 bytes)  amp-4.jpg (51143 bytes)  amp-5.jpg (35767 bytes)  amp-6.jpg (80464 bytes)




relay of high quality, suport frequencis of up to 2 GHz.




constructed with silver BNC conectors

23 cms Band  55 elements Yagi antenna F9FT


  Gain dB: 20 dB

antena-2.jpg (37965 bytes)  antena-3.jpg (69801 bytes)  antena-4.jpg (55588 bytes)  antena-5.jpg (59860 bytes)

My but sincere gratefulness to the two people who helped me

 at any moment with my station of 1,2 GHz,

 EA1KV and EB1DEY thanks thanks thanks................
