RX-Converter RF-amplifier with FET BF256C, Mixer with MOSFET BF961 Oscillator Crystal 22MHz, one stage |
50MHz-Transverter 10m/6m from DK7ZB
This transverter was built in 1994, a discription in three parts (german language) for DOWNLOAD as PDF-files. Circuit, printed-boards and layouts in the files!
The English translation is made by DL5DBM, Anwar, the owner of this homepage.
GERMAN VERSION
--
Diese Seite als PDF, Lesen Teil 1, Lesen Teil 2, Lesen Teil 3
--
--
ENGLISH VERSION
--
This page as a PDF-Feil, Read Part 1, Read Part 2, Read Part 3
--
--
|
|
RX-Converter RF-amplifier with FET BF256C, Mixer with MOSFET BF961 Oscillator Crystal 22MHz, one stage |
|

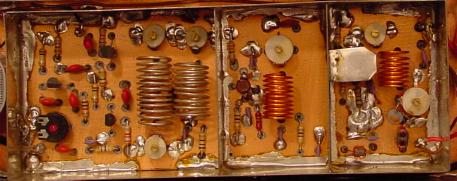

TX-Mixer Push-pull 2x BF256C, amplifier BF961, driver 2N4427, output 300mW |
|
|
|

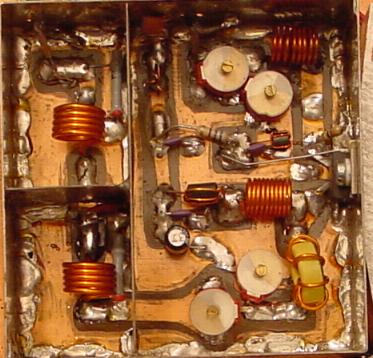

Linear-PA 300mW input, max. 6W output Transistor 2SC1306 Left filter for 50MHz |
|

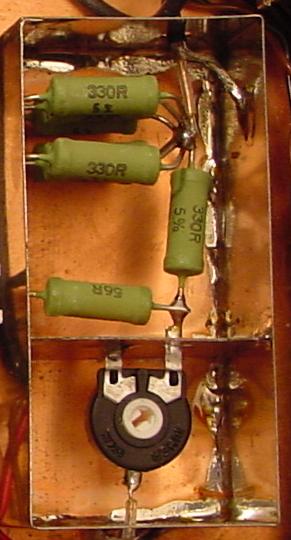

Drive-Attenuator Input level can be reduced from 5W at 28MHz to a level of about 100mV/50Ohm for the TX-mixer. The used TRX is a FT-890. |
|
--
