A 70cm Big Wheel Antenna

(C) DL4MEA 08/1998

07.08.1998    creation
21.12.1998    article from UKW-Berichte added

D: Für den 70cm-Teil der Bake DB0FAI benötigen wir dieses 70cm-Big-Wheel.

Das Gehäuse ist eine Transportdose für Obstkuchen.


E: This is a 70cm big wheel antenna which is needed for our beacon DB0FAI.

The enclosure is a carrying case for cakes.



(click on the pictures to get them in higher resolution)

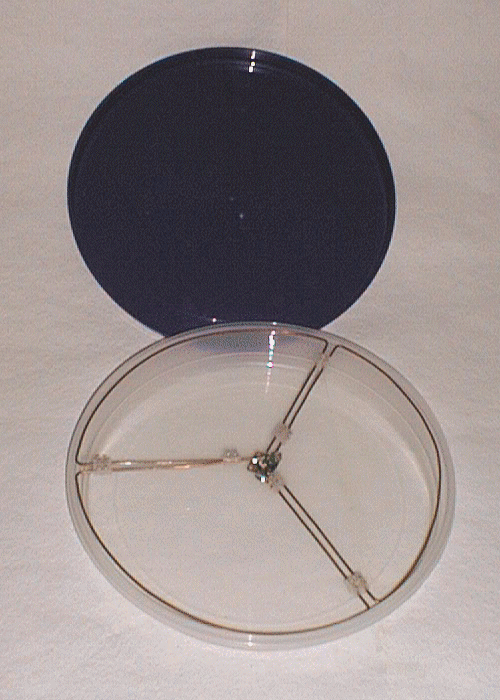

The big wheel itself


It fits into the cabinet
Center feed construction

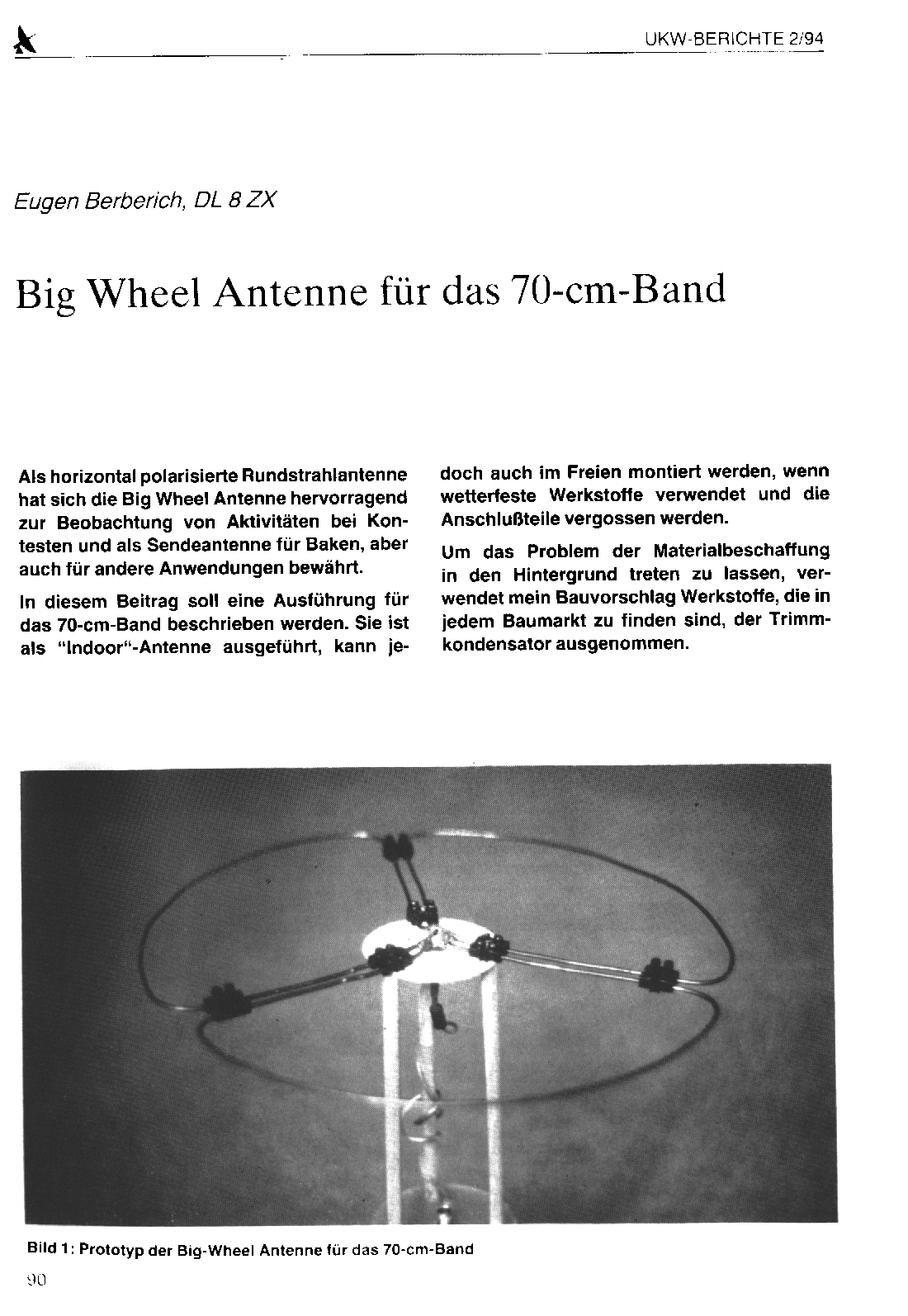

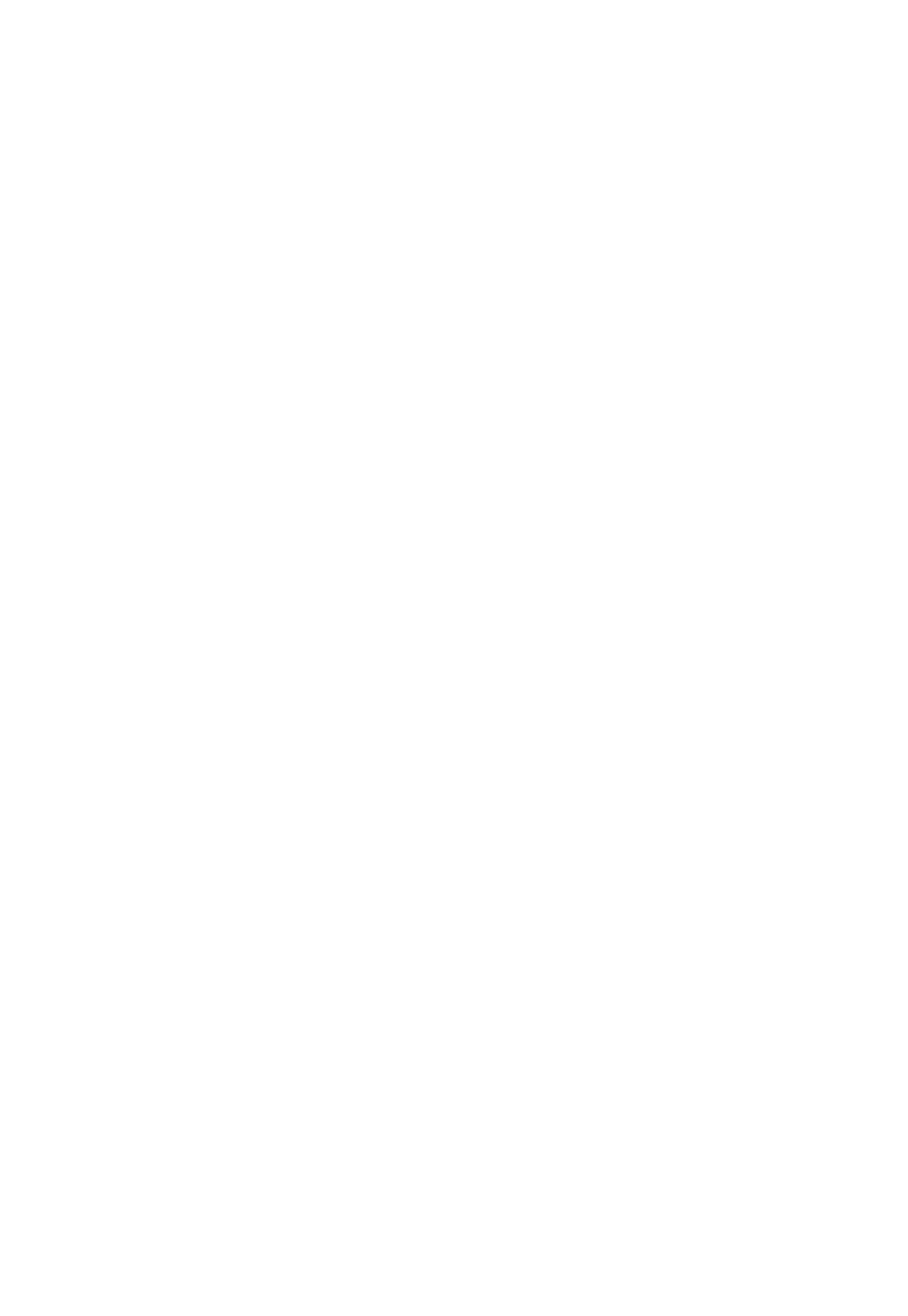

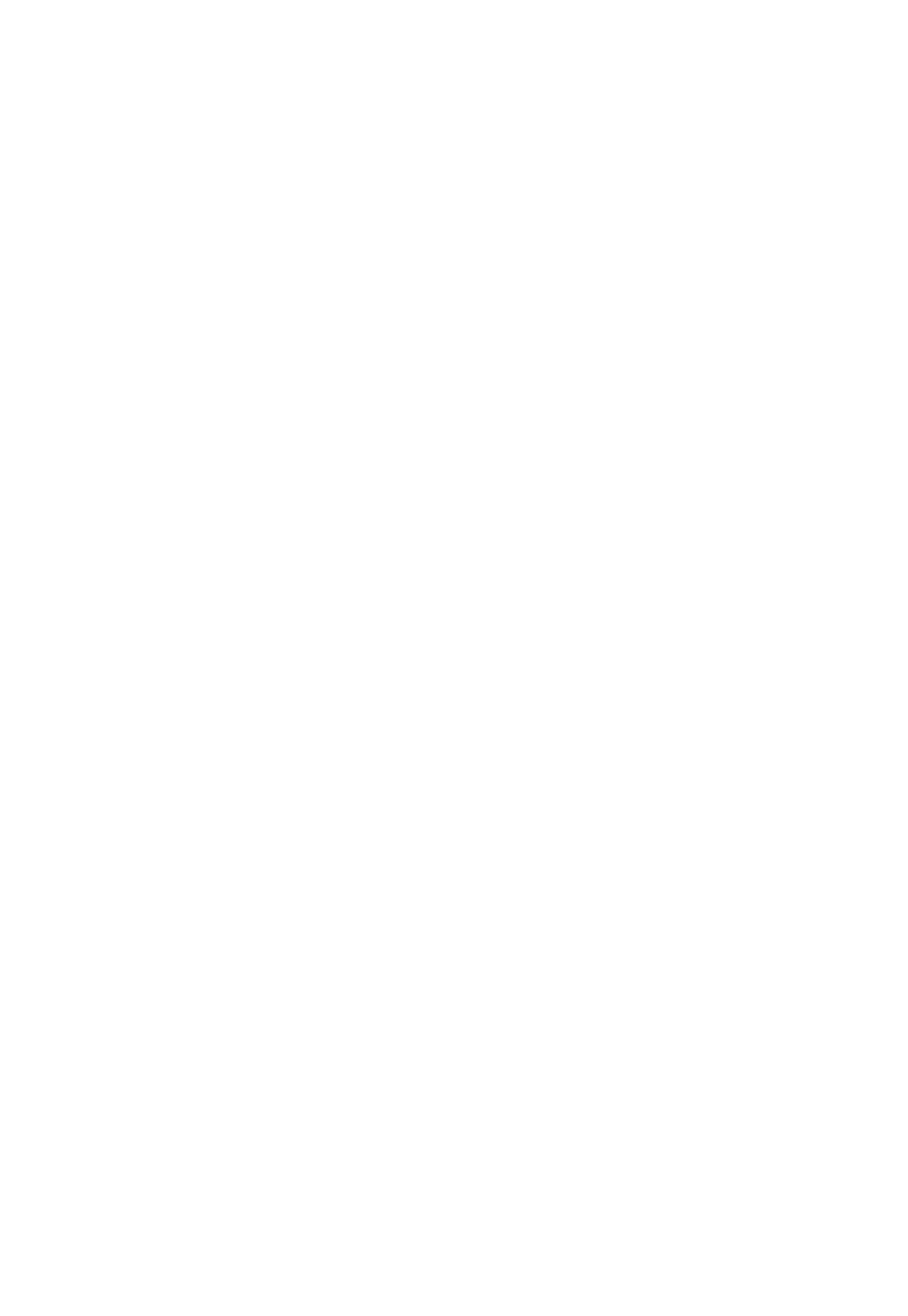

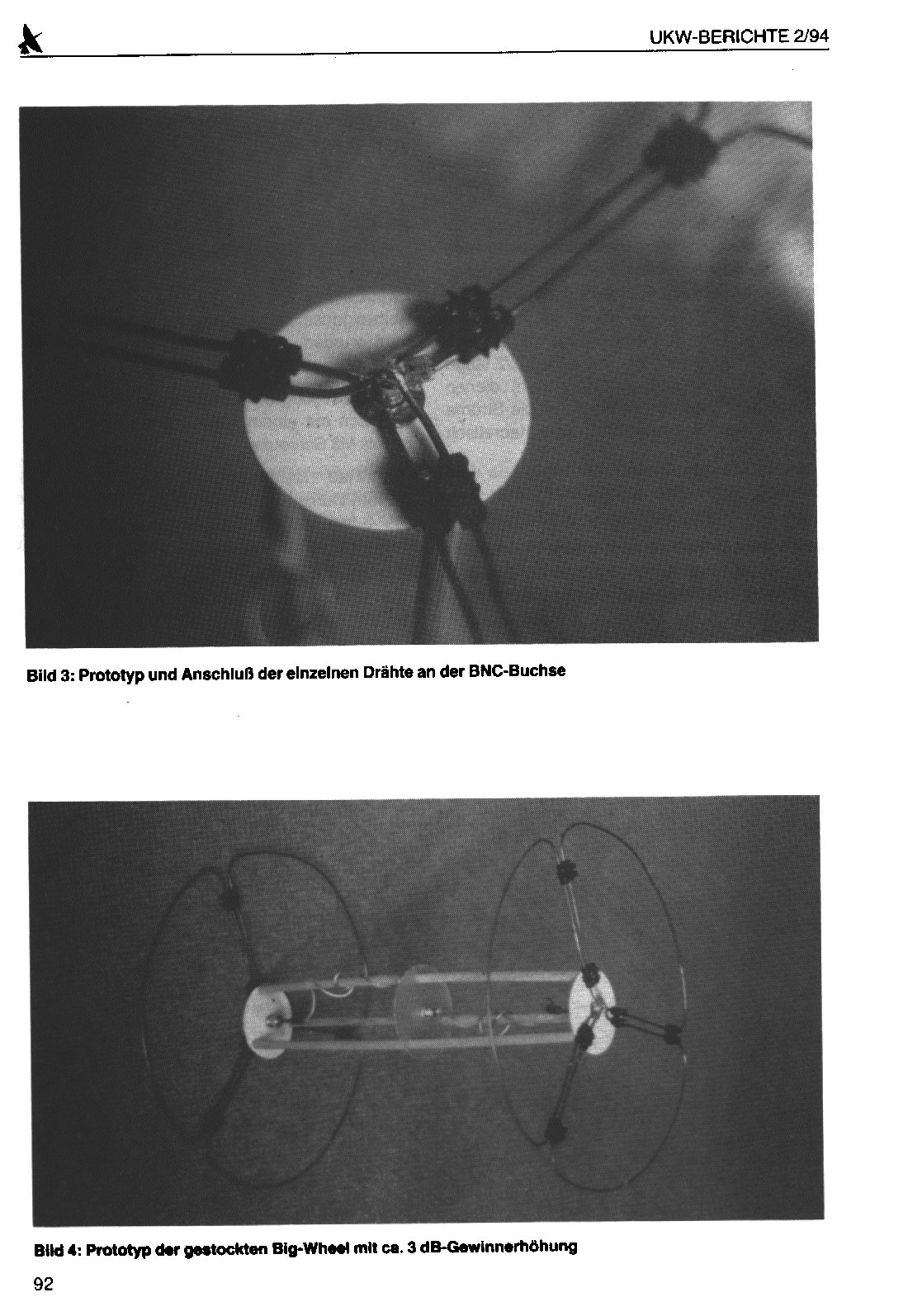

D: Die Beschreibung der Antenne stammt aus der Zeitschrift "UKW-Berichte".

E: This antenna was originally described in the "VHF Communications".
