A 1296MHz 2* 2*2C39 Power Amplifier

(C) DL4MEA 02/1998

18.02.1998    creation
09.07.1998    RIG pictures added

D: Zwei gekoppelte Endstufen mit jeweils 2 Stück 2C39 erzeugen ca. 400W HF.

E: Two coupled PAs with each 2 times 2C39 deliver around 400W RF.




Picture: All parts are silver plated

Übrigens... Ein kompletter Teilesatz ist noch da, bei Interesse bei mir melden...

BTW... There is still one complete set available, if you are interested, just drop a note...



Picture: The complete unit before silver platening

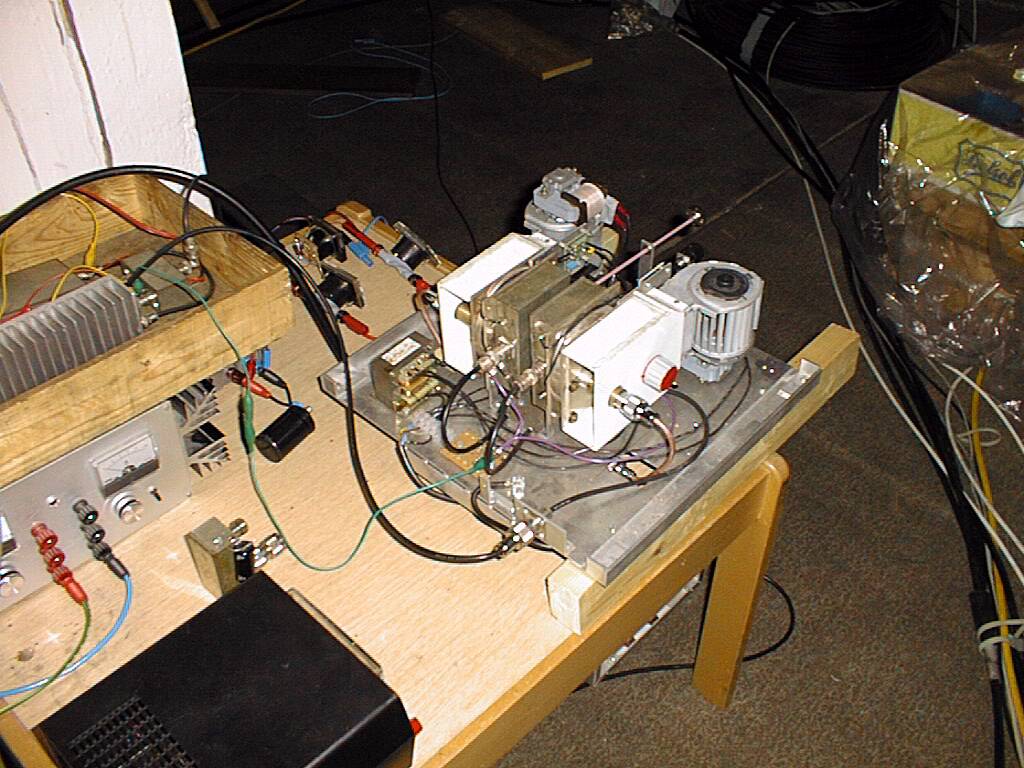

Picture: Unit in operation

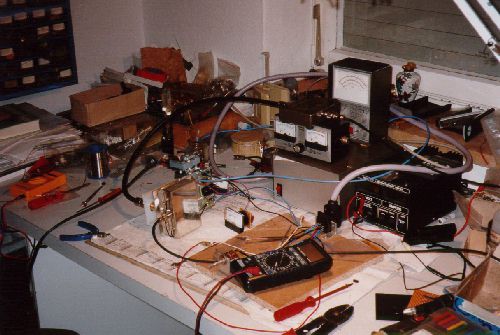

Picture: Test setup

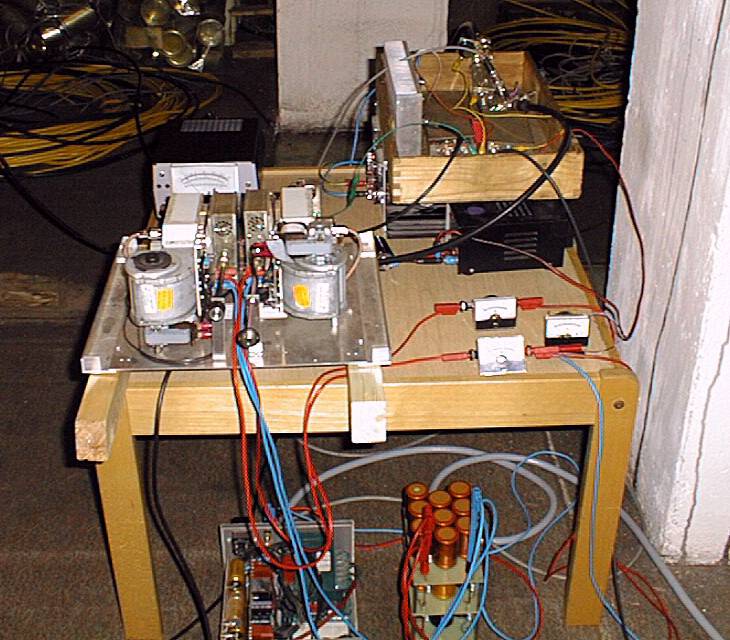

D: Und so ist alles aufgebaut: Ein Tisch im Dachboden mit meinem 23cm-Transverter und der Sendeendstufe. Unter dem Tisch das Netzteil und eine große Kondensatorbatterie, die den viel zu kleinen Trafo stützen soll. Im dritten Foto erkennt man den Fuß meiner 70cm und 23cm Tropo-Antenne. Da manchmal Wasser durchkommt, steht dieser in einer Waschschüssel. Diese wiederum ist undicht, also wird das Wasser in einer Chemieschale aufgefangen und ab und zu geleert.

E: This is how all is assembled: A table just below the roof with my 23cm transverter and the power amplifier. Below the table you will see a battery of capacitors which should support the much too small transformer.
