Magnetic Loop Antenna

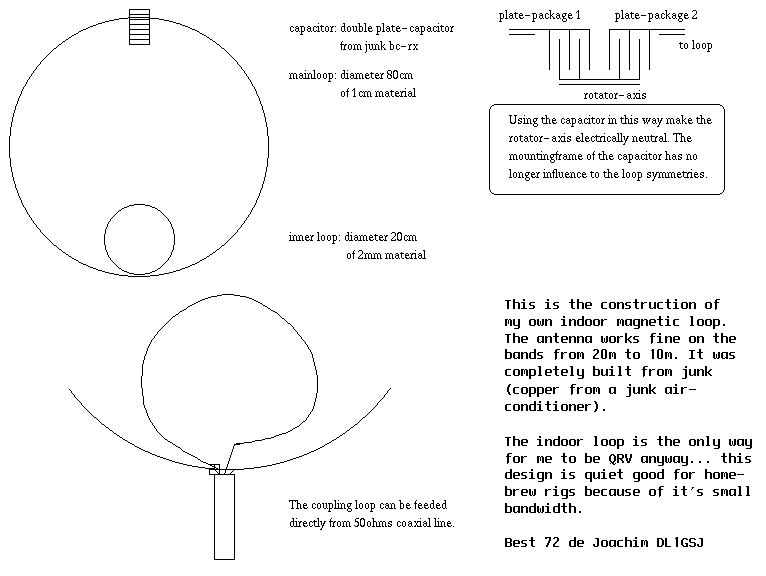

As there are many pages descibing how and why this kind of antenna is working, I will skip all explanations. Just have a glance at the pisctures.


This is the contemporary way the device is setup in my shack. Mainly the loop is used for the local 10m repeater DF0HHH. In addition to the loop, the 10m FM station consists of a HT running 1W RF output.
