Construction Details

4-El.-28-Ohm 0,35m

5-El.-28-Ohm 0,65m

6-El-28-Ohm 0,85m

7-El-28-Ohm 1,0m

9-El.-28-Ohm 1,5m

10-El.-28-Ohm 2,0m



7-Element-

28-Ohm-Yagi

for 70cm



The 8 x 7-Element-

Contest-group

by

Dirk,  ON5GS

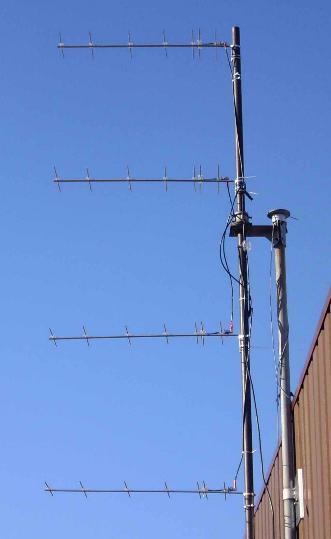

Left: The 4x7-Element-Group of  Werner, DJ9KH

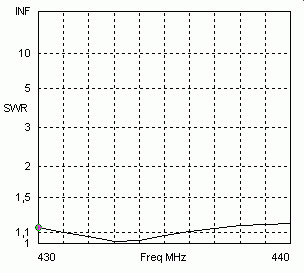

The SWR of a single Yagi

Gain 432MHz = 10,5 dBd

3dB-angle hor = 42,8

3dB-angle ver = 49,4

Feedpoint 28 Ohm at 433MHz

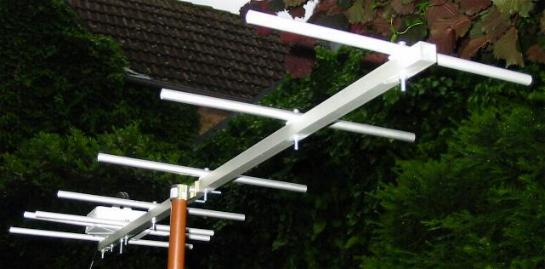

The Yagi

built by DH3FAW

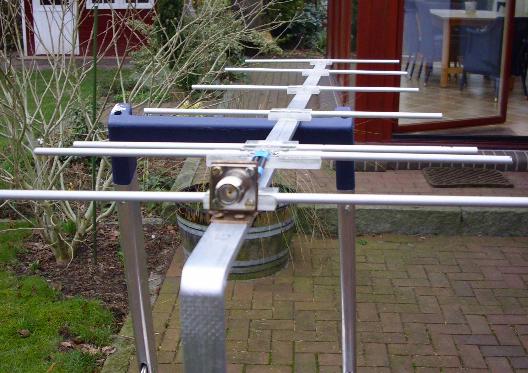

Werner,  DJ9KH

has mounted the socket behind the reflector.The boom consists of flat aluminium and will be arranged in front of the mast.



Element

Elementposition

10mm

8mm

Ref

0mm

342mm

343mm

Rad

105mm

328mm (10mm)

D1

155mm

306mm

310mm

D2

305mm

293mm

297mm

D3

520mm

284mm

288mm

D4

770mm

285mm

289mm

D5

960mm

275mm

280mm

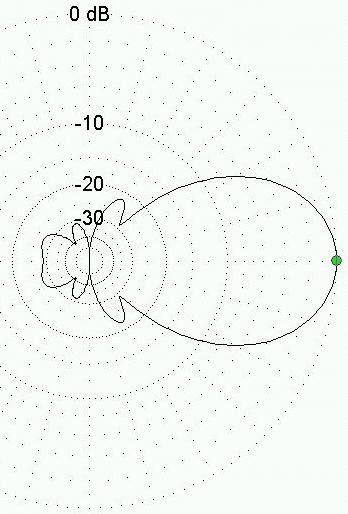

Horizontal pattern at 432 MHz

Vertical pattern at 432 MHz
