3-Element-20-m-Yagi with 28 Ohm
Boom 5,40 m
 |

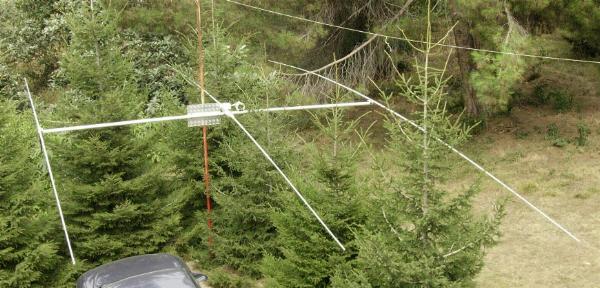

The 3-El.-28-Ohm-Yagi built by Ahmet, TA7R |

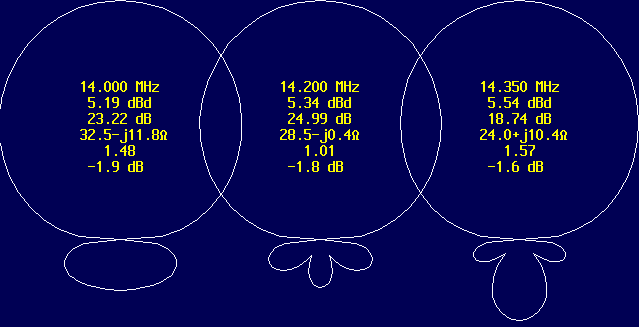

Short data for the Yagi at the begin, in the middle part and at the end of the band

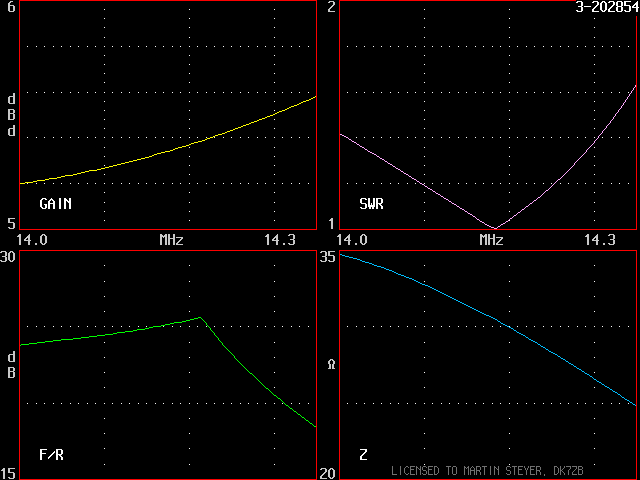

Plot with the NEC-II-reference of YO7.2 by K6STI
The meaning of the data :
Frequency, gain, F/R, radiation resistance (impedance), SWR and loss against a theoretical defined maximum- gain-Yagi with the given boomlength. Remember that this gain is only available with very low impedance and extrem low bandwidth!
Elements of the 20m-28-Ohm-Yagi, lengths for one
element-half:
|
|
30X2mm |
25x2,00mm |
20x1,5mm |
16x1,5mm |
Position |
|
Ref |
1,00m |
1,50m |
1,50m |
1,555m |
0m |
|
Rad |
1,00m |
1,50m |
1,50m |
1,235m |
2,50m |
|
Dir |
1,00m |
1,50m |
1,50m |
0,905m |
5,40m |

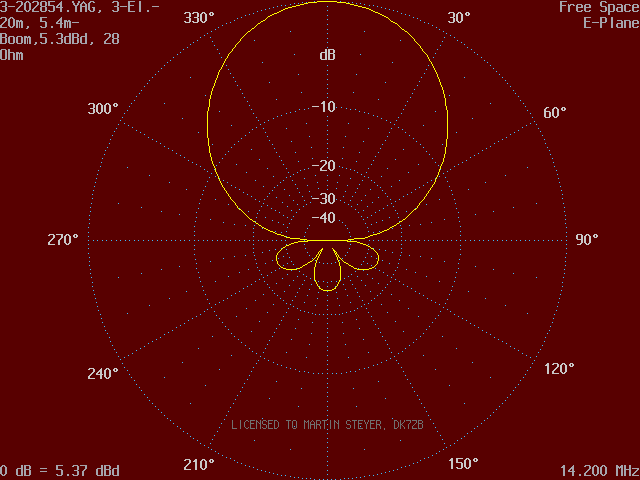

Azimuth-diagram (horizontal pattern):

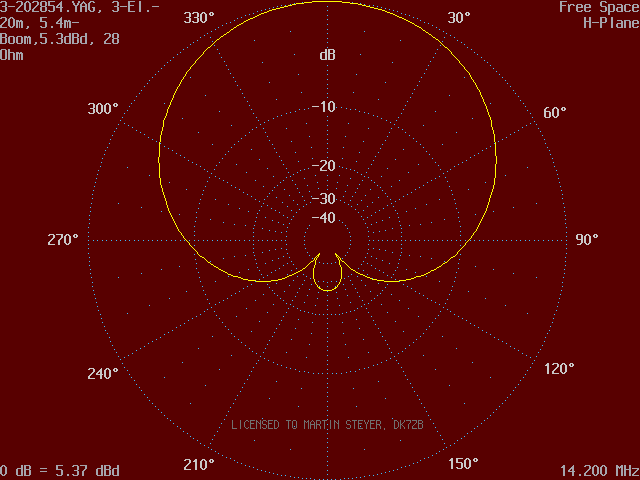

Elevation-diagram (vertical pattern):
