13-Ele.-28-Ohm-DK7ZB-Yagi (8,70m Boom)

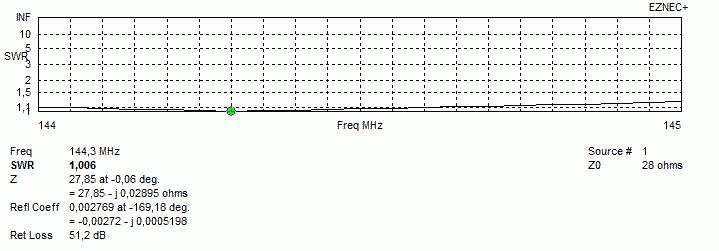

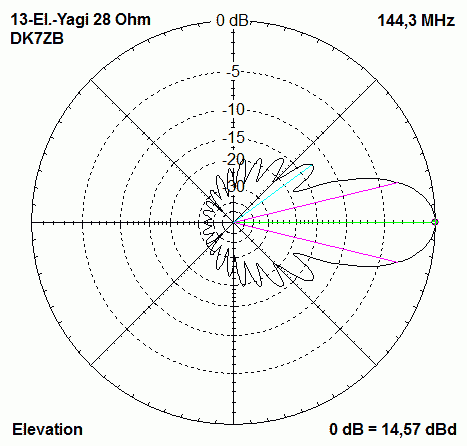

14,57 dBd gain, F/B > 33 dB, great bandwidth

The Yagi built by Chris, PA2CHR, as EME-Cross-Yagi

DX-pedition EA6/PA2CHR: 690 QSOs in May-2016 from JN20, JN10 and JM29

In the background a 6-El.-DK7ZB-70-MHz-Yagi

Element currents in the Yagi

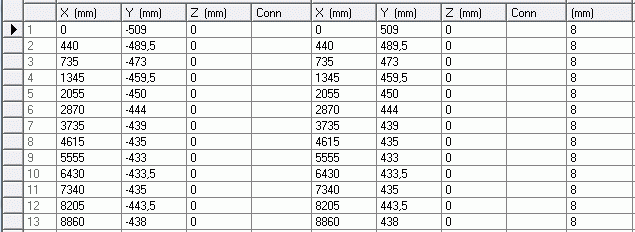

Lengths and positions of 8-mm-Elements (X = position, Y = element halves)
