Navilock BR-305 GPS
About BR-305 | |
The
NaviLock BR-305 is a lowcost WAAS/EGNOS compatible GPS receiver with
serial port. Originally it is deliverd with a DIN plug. You can easily cut
off the plug and replace it with a SUB-D connector. The wiring information can be found here. I bought mine in Germany via www.fortknox.de. It was the cheapeast dealer in DL at that time (June2004). For all features check the NaviLock webpage. |
|
disassembly instruction | |

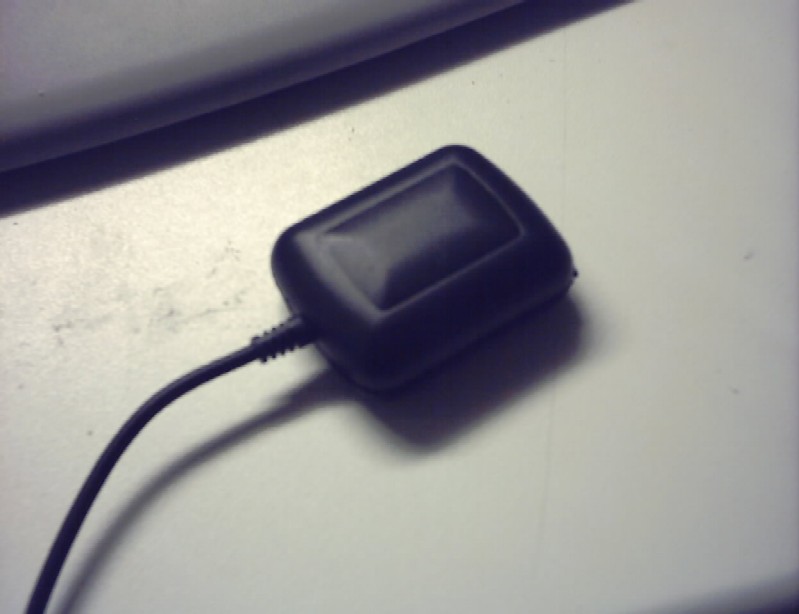

The receiver is ~6x5x2cm of size. Thats small enough for most of the cases. But if you like to disassemble the unit as i did follow the instruction below. |
|

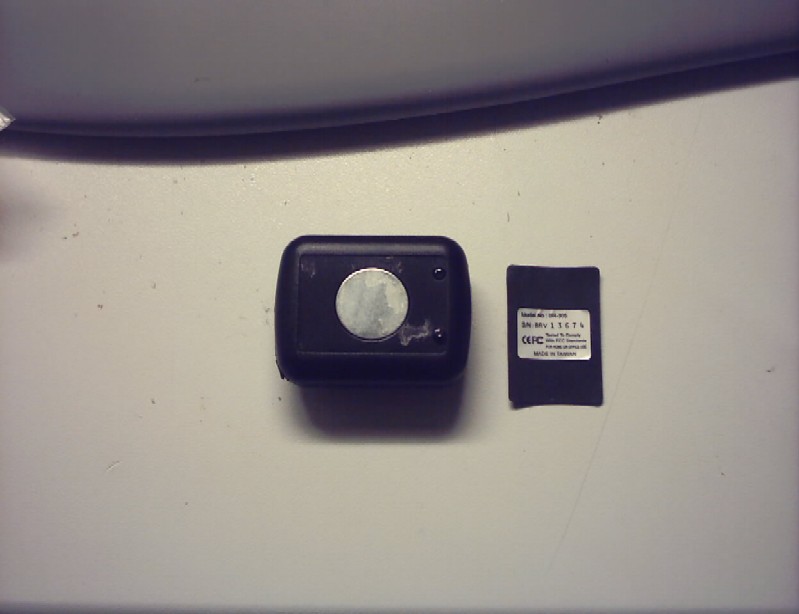

Remove the rubber from the backside. There are two small srews you have to remove. Open the housing by slightly pulling on the cable. | |
You can also remove the antenna from the receiver if you like. The two parts are only solderd on two corners. Then you have a really small and lightweight GPS receiver you can integrate in your devices (Im using mine togeter with the PocketTracker). | |
