Controller for Nokia 7650 cell phone
LCD Display, 176 *208 pixel, 4096 colors

Despite nobody seems to own the appropriate documentation, it is possible to use the big cheap color LCD displays of the Nokia series 60 cell phones for home brew projects. I don't even have the docs and it was a rough and painful way, but now it works.

  x2                    Some examples                       x5

  x9                                 x8                               x4

(click to the pictures above)

A brief overview about the controller solution:

The Nokia 7650 LCD has a host interface which consists of an 8 bit bidirectional data bus and some control pins. Due to the unknown on-board controller instructions set, an image for the display is put together in the RAM area of an external controller (LPC2106, an ARM7TDMI-S). After the new image has been completed in RAM, a high speed data transfer from the LPC2106 image RAM to the display takes place. It lasts about 23ms.

Each pixel can be controlled by 12 bit to get a specific color. Each pixel of the existing 36608 pixel can be controlled individually. There is no color table, but there is a direct relation between a 12 bit value and a specific color.

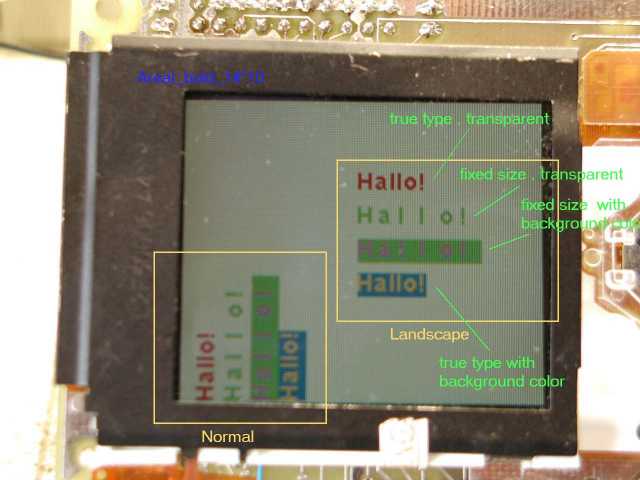

The current controller SW supports upright and landscape character display. The  characters can optional be displayed in transparent mode or with an own background color. Also characters can be displayed in a fixed raster or optionally in a "floating"raster.

There is a character set generator SW by Fabian Thiele. The font format of the LCD7650 controller is compatible to this tool. Each character can consist of an own color. Multi-color for single character (each pixel a different color) is not supported.

The 7650 controller (LPC2106) offers optional cursor support.

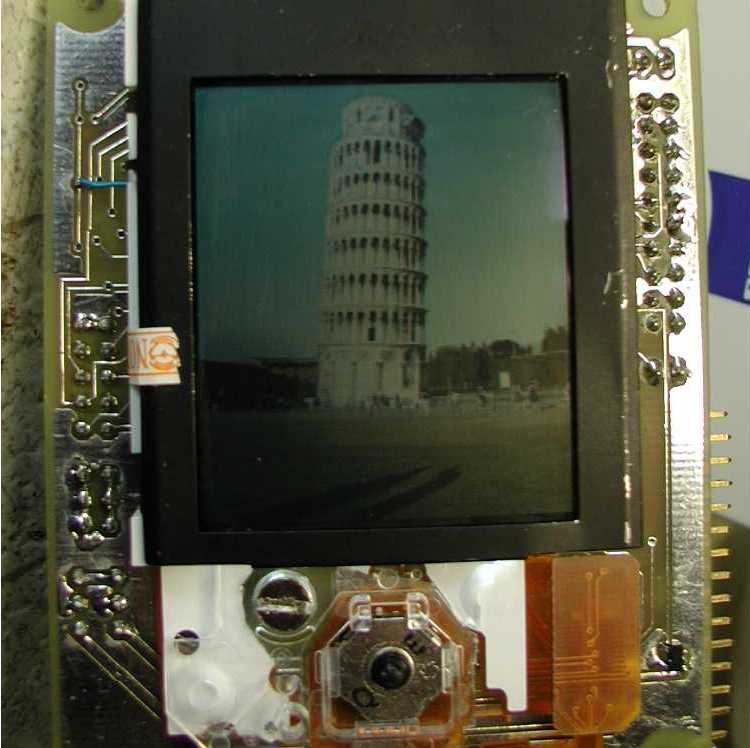

Pictures can be displayed if they are delivered in an appropriate format. There is a converter which translates a picture in a fitting format (C-style), which can be integrated in the SW or transfered to the controller via the external connection.

The connection to the host can either be RS232, RS232-TTL, I2C or SPI. Both last mentioned connections are not implemented yet.

There is an own instruction set for communication between the LCD-Controller and  the host. Several graphic functions (draw lines, draw rectangular, circles etc) are already implemented. A PC tool is available which allows to test all available functions via a RS232 connection.

For home brew applications often some keys are needed. The current SW supports the existing rocker as well as 8 additional keys.


 176 * 208 pixel , 4096 colors (12 bit)
Connectivity  RS232 , RS232(TTL), I2C,SPI
Keys, Rocker  LCD rocker is supported, as well as additional keys
Character set  3 fixed, 1 loadable, GLCD FontCreater2 compatible
Direction  Upright and landscape (rocker right hand)
Character  fixed size, float size, transparent w/o background color, w/ back ground color
Cursor  Optional cursor support.
Graphic  lines, rectangular, circles , round corners, fill
Picture  Tool available for converting BMP to RGB (C style) ***
Update rate  around 23 ms , independent on instruction
Test tool PC (Visual Basic) test tool PC7650 available
ISP Tool  ISP tool by Philips
Protocol  Protocol documentation available soon
Voltage  5V, 60 mA ( max 110 mA , depending on back light intensity)

The story about the design  and the development can
be read here.
(in German only)   germanflag

Schematics of the Controller  pdf ( around 460KByte)

 (click to the pictures)

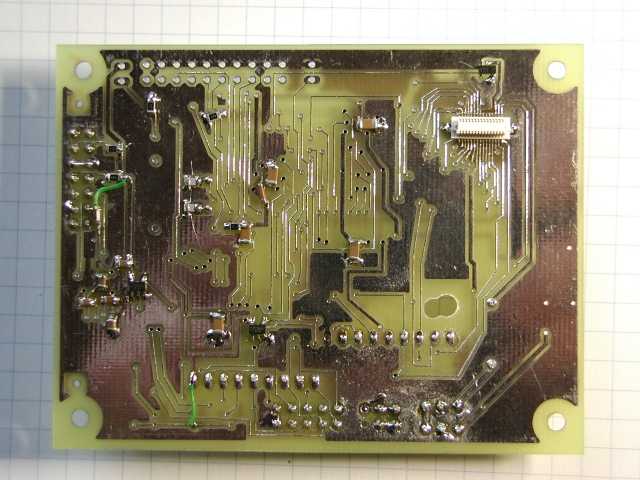

lcd7650button   Controller bottom view

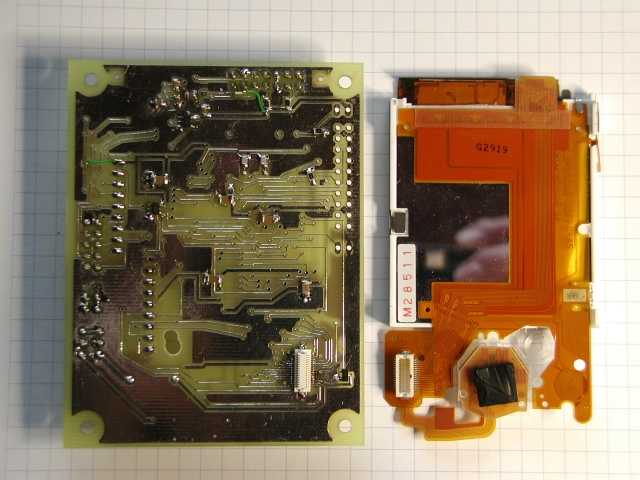

lcd7650top1  Controller top view with separated display

lcd7650top  Controller top view

lcd7650   Controller top view with mounted display

NOKIA 7650 Display LPC2106 Controller Source Code

Due to a lot of people asked me for information about my
Nokia7650 controller, I'm now sharing the source code for non commercial user. Read the information about Copyright and support in the main source!

Download the sources here
(zipped 23 KByte)

pictool1    pictool2    Tool Bmp2RGB ***
                                                                Download Tool (460 KByte)

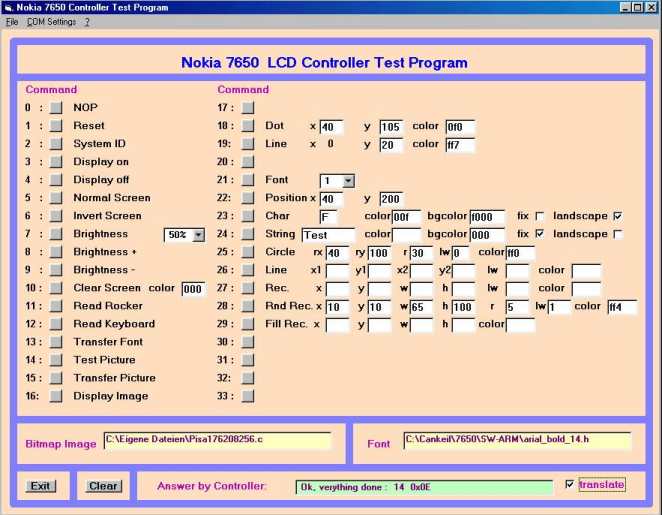

tt1            tt2         PC-Test Tool PC7650

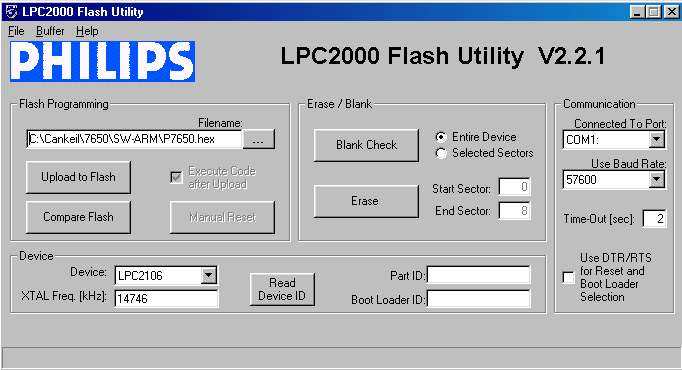

isp     Download Philips ISP tool

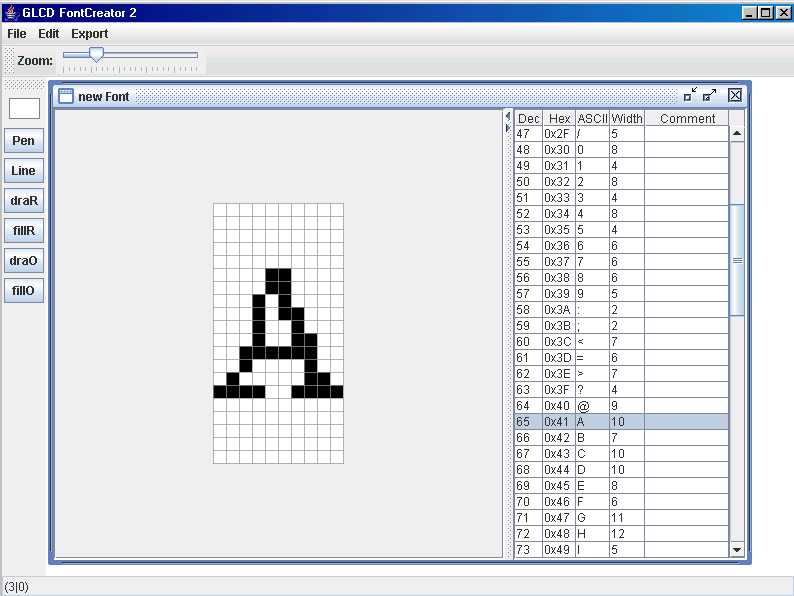

glcd     GLCD FontCreator2 by Fabian Thiele
                                 (Java virtuel machine needed)

*** based on a program by an unknown Japanese speaking SW developer. All sources could be found on
       the web. Modified by DK7NT. Thanks to Reinhard Weiss  for translation.
