Characteristic performance:
| 3dB bandwidth | 135,700...137,800 kHz | min. |
| ripple | 1 dB | max. |
| insertion loss | 7 dB | typ. |
| shape factor (60 dB : 6 dB) | 2,7 | typ |
| Selectivity: | ||
| @ 40 dB | +-3,0 kHz | typ |
| @ 60 dB | +-4,5 kHz | typ. |
| @ 80 dB | +-6,5 kHz | typ. |
| Ultimate attenuation | 90 dB | min. |
| Filter order (poles) | 6 | |
| Termination Input / Output | 50 Ohm | |

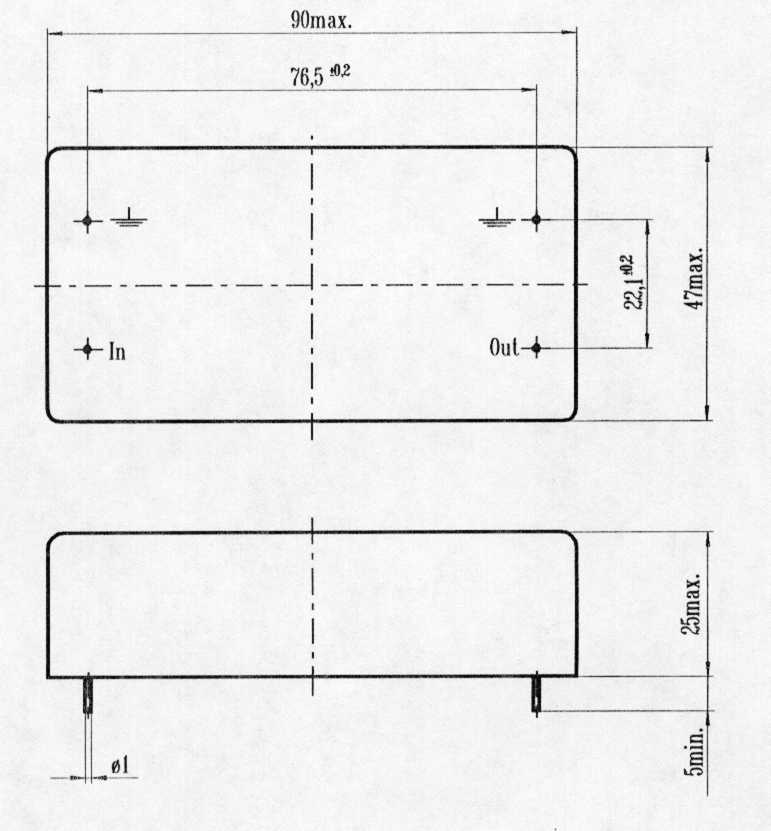

| Enclosure size (LxWxH) | 90 mm x 47 mm x 25 mm | |
| Operating temperature range | -10°C ... +60°C | min |
|

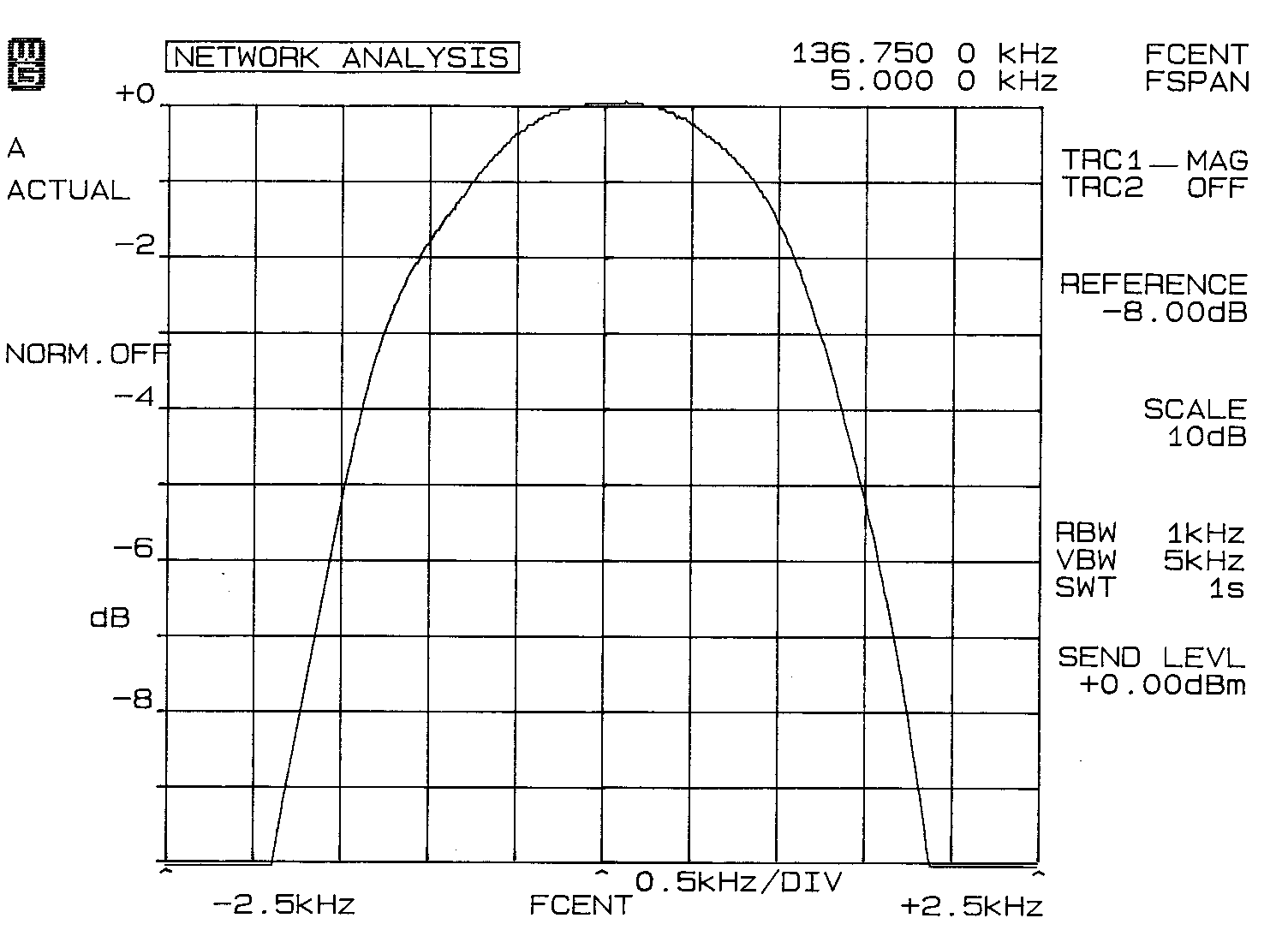

Pass band response:
|

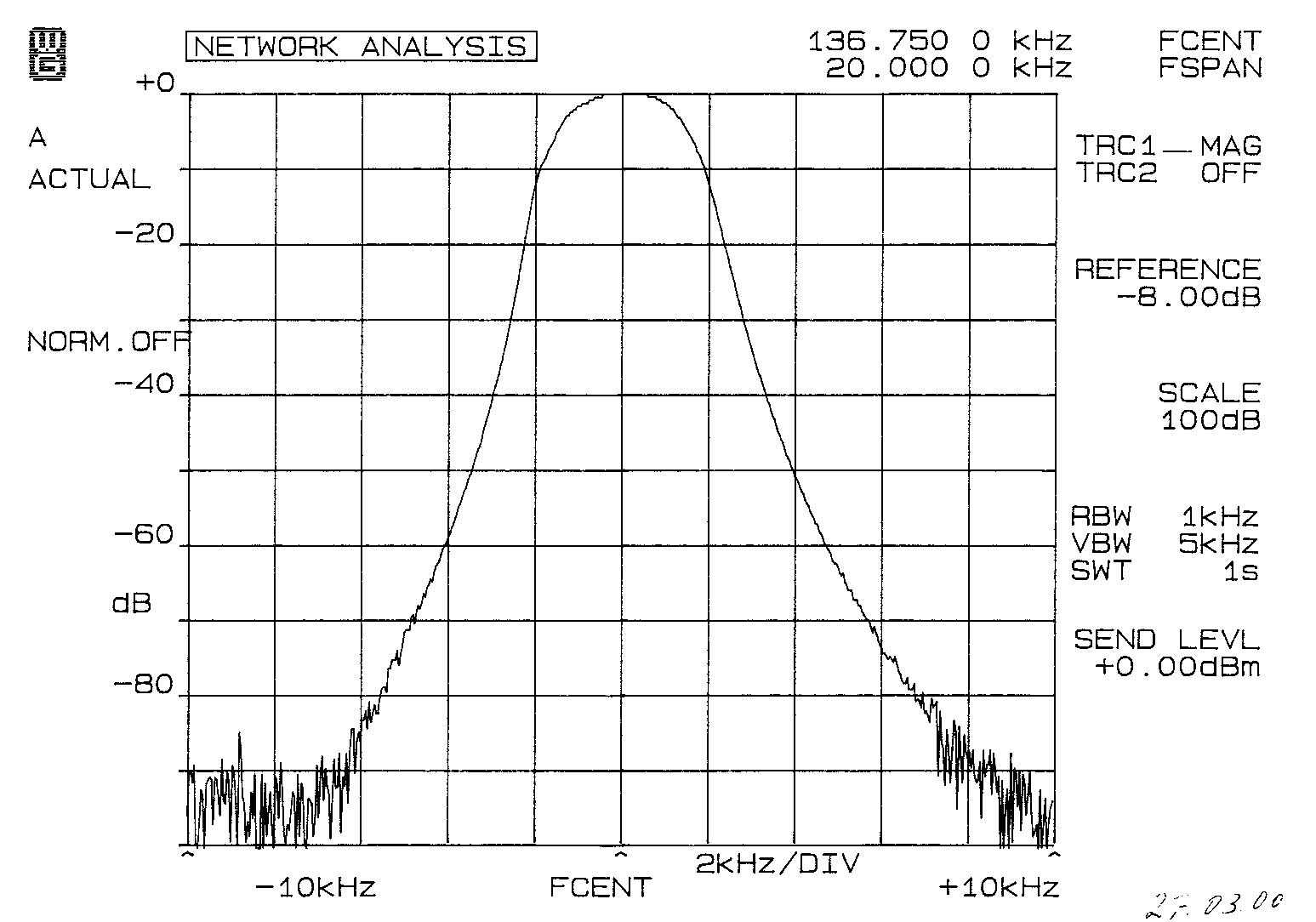

Stop band response:
|
Download LF136-06 Data sheet (PDF 47 kB)
