List of Initial QSOs and SWL reports by DD7PC on 47 GHz
|
Nr |
DATE |
TIME (UTC) |
CALLSIGN |
LOC |
TX |
RX |
Mode |
REMARKS |
QRB/km |
||
|
1 |
14/01/2012 |
10:34 |
DF4PV/b -DD7PC |
JN49ax-JN49ax |
599 |
/ |
CW |
DF4PV installed
my TX as beacon at his QTH – many thanks for the effort!
( Listen )
|
<1 |
||
|
2 |
03/02/2012 |
13:00 |
DF4PV/b – DD7PC/p |
JN49ax-JN49ax |
59+9 |
/ |
CW |
Direct, nothing
in front of both dishes
|
1.3km |
||
|
3 |
04/02/2012 |
12:00 |
DF4PV/b -DD7PC |
JN49ax-JN49ax |
539 |
/ |
CW |
via reflection on tower “Bismarkturm”
|
3.7km |
||
|
4 |
09/02/2012 |
18:54 |
DF4PV/b – DD7PC/p |
JN49ax-JO40ab |
549 |
/ |
CW |

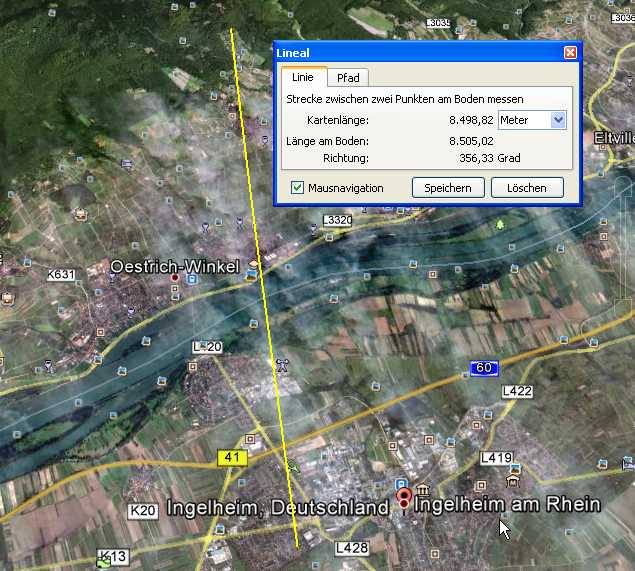

Portable from JO40ab (Hallgartener Zange), best ODX
now…
|
9km |
||
|
5 |
03/11/2012 |
15:00 |
DF4PV/b-DF4PV/p |
JN49ax-JN39 |
579 |
/ |
CW |
http://www.youtube.com/watch?v=lqmme1d_zJw |
20km |
||
QSO complete
|
QSO not complete |
Beacon
swl report |
|
||||||||

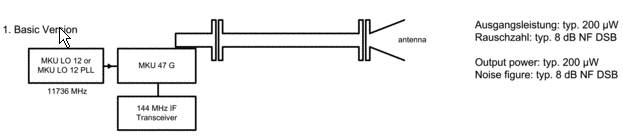

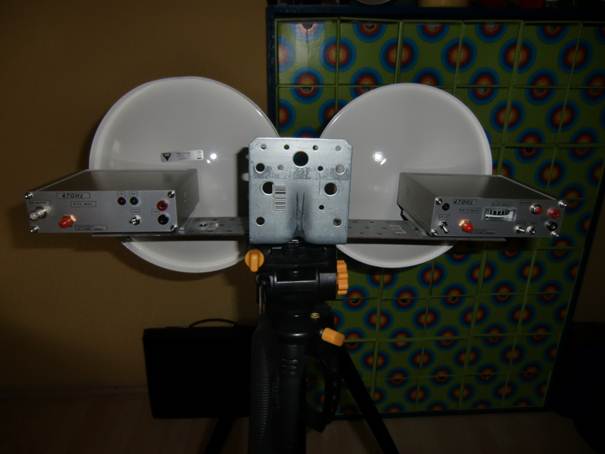

47GHz Station
setup DD7PC

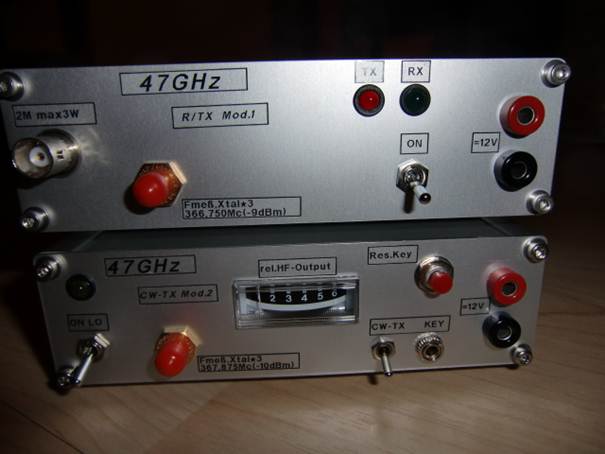

47GHz RX
47GHz CW-TX
In
my CW-TX is an unknown TX module from DB6NT installed:
(right box, behind the 24GHz-LO)
47GHz Bake
all Modules constructed by Jürgen, DC0DA!
