List of QSOs
by DD7PC on 24 GHz
|
Nr |
DATE |
TIME (UTC) |
CALLSIGN |
LOC |
TX |
RX |
Mode |
REMARKS |
QRB/km |
||
|
1 |
04/07/2009 |
21:37 |
OZ1ALS-1 20048.100MHz |
JO44XX |
539 |
nil |
CW |
My Loc was "JO44QS80"
audio
sample of OZ1ALS: dd7pc_10ghz_files\oz1als_24ghz_040709_2337.mp3 (with
my simple transverter setup 8db NF) |
44 |
||
|
2 |
25/06/2010 |
07:20 |
DF4PV/p |
JN49ax |
59+ |
59+ |
SSB |
>>> TNX my first 24GHz QSO J <<<
Trv. DF4PV: 32cm dish, DB6NT Transverter with HEMT PA (3dB NF+Pout
35mW)
Trv. DD7PC: 32cm
dish, DB6NT Transverter (1-st. Filter) Pout 0.4mW >3.5dB NF
|
2 |
||
|
3 |
29/07/10 |
07:48 |
DL7QY |
JN59bd |
54s |
nil |
CW |
Yeees, 1st Rainscatter signal received
(QY - 7W, 70cm)
|
177 |
||
|
4 |
27/08/10 |
14:35 |
DL7QY |
JN59bd |
57s |
hrd |
CW |
hrd, but my signal to weak for QSO!!!
|
177 |
||
|
5 |
27/08/10 |
15:16 |
DL7QY |
JN59bd |
56s |
nil |
CW |
DL7QY several times heard on this day
|
177 |
||
|
6 |
23/05/12 |
17:15 |
DL7QY |
JN59bd |
58s |
57s |
QY in SSB / PC in
CW |
via scp JN49jl, 59+ on 3cm,
QY 7W, PC
2.8W+48cm
|
177 |
||
|
7 |
19/06/12 |
13:55 |
DB6NT |
JO50ti |
52s |
52s |
CW |
scp JO40fg, 59s SSB on 3cm, 5W + 1.2m dish
|
259 |
||
|
8 |
05/07/12 |
15:15 |
DH1VY |
JN39kf |
56s |
59s |
SSB |
0.5W, 70cm ufb
|
118 |
||
|
9 |
05/07/12 |
17:17 |
DH1VY |
JN39kf |
53s |
57s |
SSB |
2nd QSO with no real scp between us,
signals a bit down, but amazing long SSB QSO!
|
118 |
||
|
10 |
15/07/12 |
18:00 |
DH1VY |
JN39kf |
53s |
55s |
SSB |
again ufb
|
118 |
||
|
11 |
26/07/12 |
09:37 |
DB0ZDF/B |
JN49cx |
51 |
/ |
CW |
via reflection 315 degree
our new
beacon live since 25.7.2012! |
12 |
||
|
12 |
24/05/13 |
12:45 |
DH1VY |
JN39kf |
52s |
56s |
SSB |
long QSO with no QSB! 55 on 10GHz with just my horn
antenna.
|
118 |
||
|
13 |
20/06/13 |
08:10 |
LX1DB |
JN39CO |
57s |
55s |
SSB |
on 10GHz vy gd with just my horn, then CW on24Ghz and
at the end ufb in SSB
|
138 |
||
QSO complete
|
QSO
not complete |
Beacon swl report |
|
||||||||

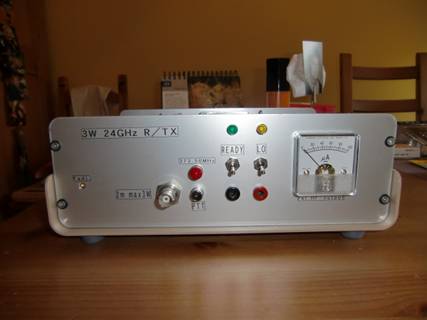

Aug 11:

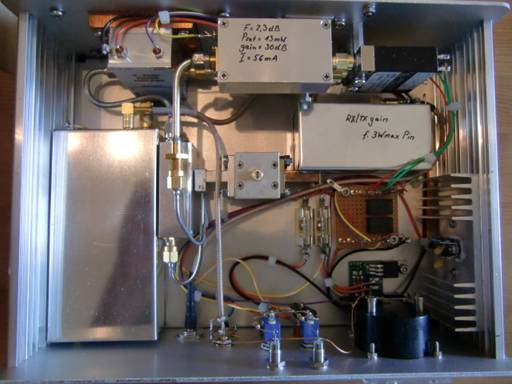

Bought a new
Transverter from Jürgen, DC0DA. As usual beautiful design and technical
construction….
2.8W on the
dish! Looking forward to the next rain scatter season in 2012…
July 10:
purchased from
DC0DA my 2nd 24GHz Transverter. Ready to go with 35mW Pout:
9, 3cm and 24GHz antenna (DD7PC, JN49ax)
May 09:
my small

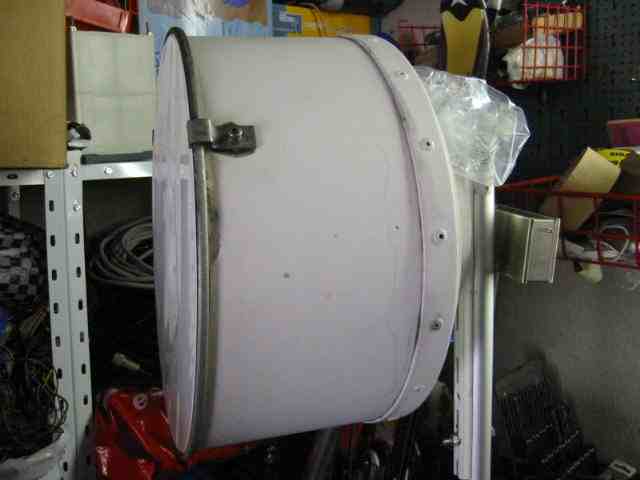

experimental setup on 24GHz: Andrew
dish 32cm, 35dB with DB6NT MKU24GA+LO Transverter, 0.2mW SSB, ~8db
NF DSB (since August with OE9PMJ Filter, so now ~3.5db NF)
Motivated from
the good result of DH1VY using an equal small setup (www.dh1vy.de/22885.html), i tried my
1st steps on 24GHz in the July 2009 Microwave contest from the QTH of
my brother in Flensburg. I was very happy to hear OZ1ALS in CW 539
(unfortunately nil from my side).

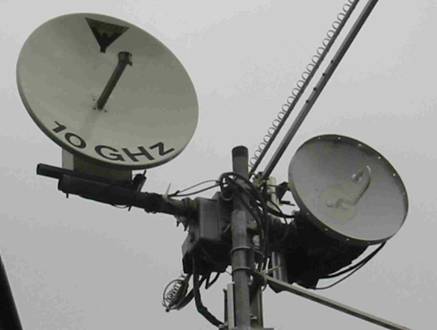

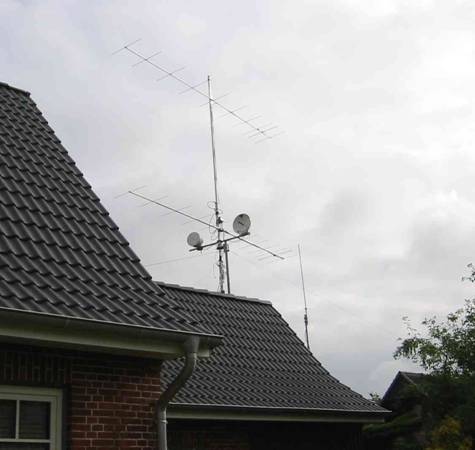

2m, 3cm + 24GHz in July contest at JO44QS80
