The vertical DK7ZB-Duoband-Dipole for 2m/70cm

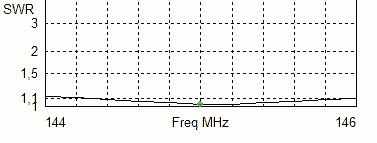

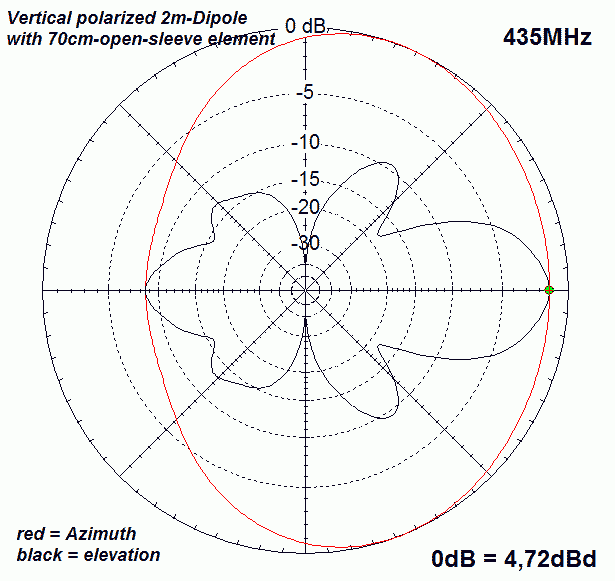

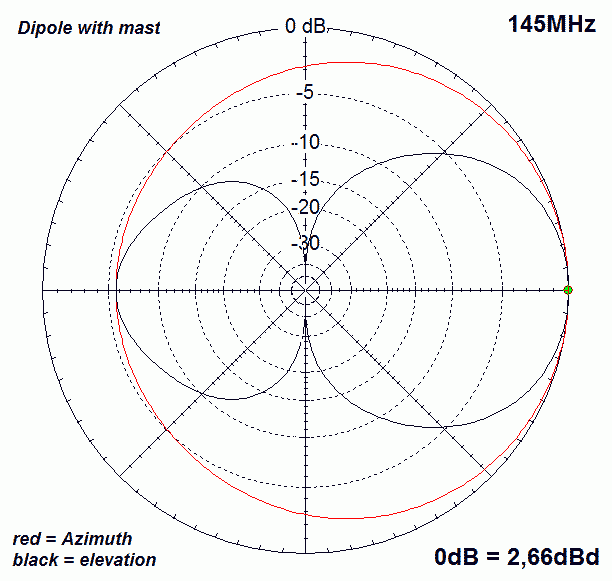

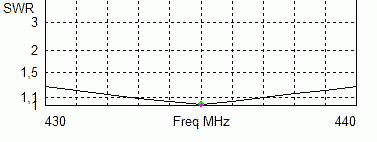

This dipole for 2m with an open-sleeve- element for 70 cm must be mounted in front of a mast. Otherwise the feedpoint impedance for 2 m is 72 Ohm and not 50 Ohm. The mast acts as a reflector. Gain on 2 m is 2,6 dBd and on 70 cm is 4,6 dBd. The elements are made of 10x1 mm aluminium tubes. Do not use other diameters!

The radiator has a length of 936 mm from tip to tip with 10 mm spacing. The choke has 5 turns of RG174 on 25 mm.

Position of the elements are measured from center of element to outer side of the mast.

horizontal rule

Element (10mm)

Position

Length

2m-Dipole

280mm

936mm (tip to tip)

70cm-open-sleeve-element

307mm

316mm

horizontal rule

horizontal rule

horizontal rule

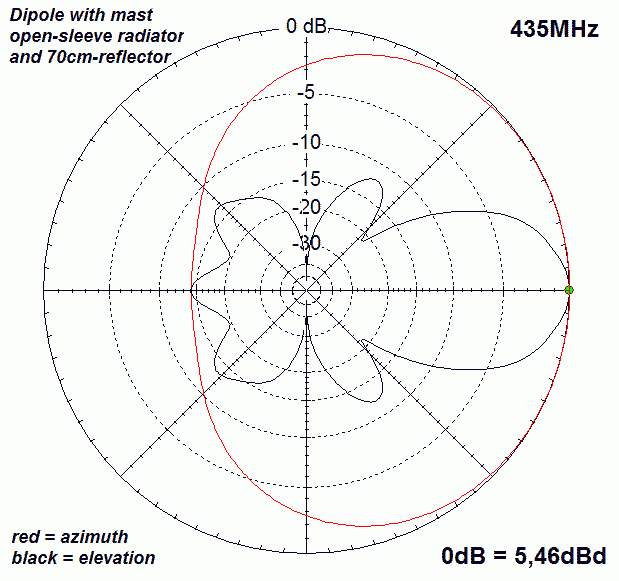

For a better pattern on 70 cm we should add a 70-cm-reflector. So we come to a vertical polarized 2-Element-Yagi for 70 cm.

The gain increases to 5,4 dBd on 70 cm, on 2 m we have no changes.

The 70-cm-open-sleeve-element must get a new length and an other position.





horizontal rule

 Element

Position

Length

70cm-Reflector

150mm

324mm

2m-Dipole

280mm

936mm (tip to tip)

70cm-open-sleeve-element

309mm

313mm
