17-Element-28-Ohm-DK7ZB-Yagi for 432MHz
Antenna built bei Attila, DL1NUX Further details on www.dl1nux.de
Interesting details by F5ETM

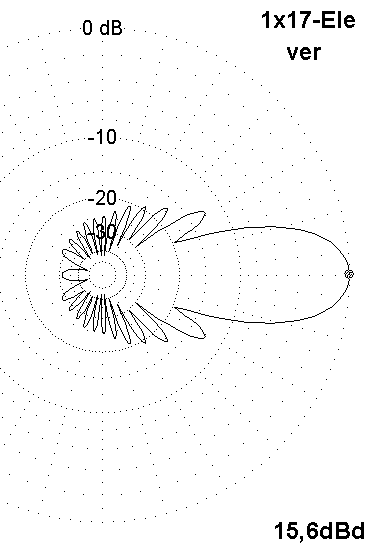

Gain 15,6 dBd 3-dB-angles: 23,6° hor 24,4° ver
|
2x17-Ele. EME at FG4KH |
 |
|
|

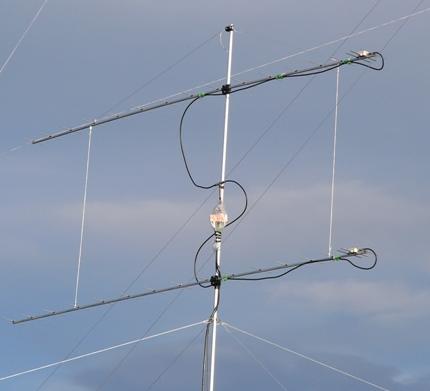

2x17-El. stacked by Jindra, OK1NOR (JO80FG, 1099m asl) Winner UHF contest 2006 single op. on
|

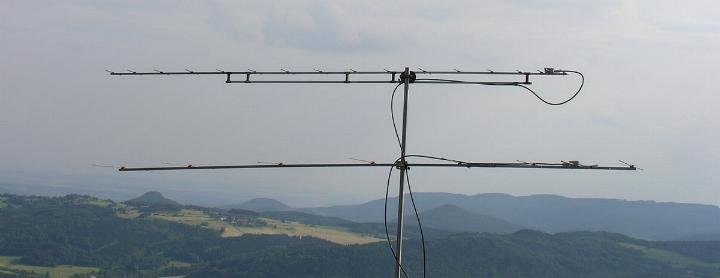

17-El.-432MHz + 8-El.-2m by Michal, OK1VM
|
Element |
Element-Position |
Element-Length (8mm) | Element-Length (6mm) |
| Ref | 0 mm | 336 mm | 337 mm |
| Rad | 115 mm | 322 mm (12mm) |
325 mm(12mm) |
|
D1 |
175 mm |
307 mm | 312 mm |
|
D2 |
345 mm |
293 mm | 298 mm |
|
D3 |
570 mm |
286 mm | 291 mm |
|
D4 |
840 mm |
279 mm | 284 mm |
|
D5 |
1125 mm |
275 mm | 280 mm |
|
D6 |
1425 mm |
272 mm | 277 mm |
|
D7 |
1725 mm |
271 mm | 276 mm |
|
D8 |
2025 mm |
270 mm | 275 mm |
|
D9 |
2325 mm |
268 mm | 273 mm |
|
D10 |
2625 mm |
267 mm | 272 mm |
|
D11 |
2925 mm |
267mm | 272 mm |
|
D12 |
3225 mm |
265 mm | 270 mm |
|
D13 |
3525 mm |
269 mm | 274 mm |
|
D14 |
3795 mm |
269 mm | 274 mm |
|
D15 |
4020 mm |
265 mm | 270 mm |
|
|
|
|
4x17-Element vertically stacked Stacking distance 1,75m
Gain without stacking losses 21,7dBd
3dB-angles: 24,0° hor 5,0° ver |
 |

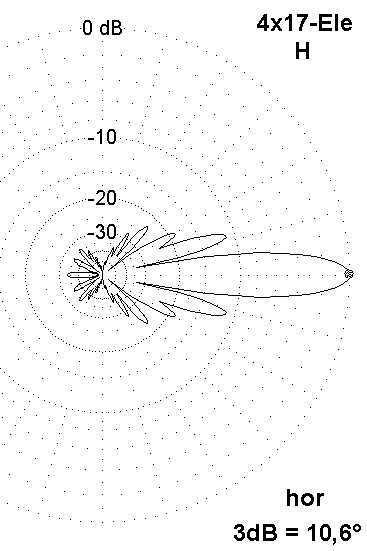

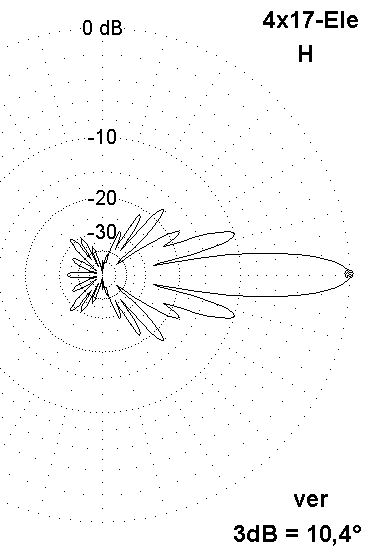

4x17-Element stacked in H-configuration
Stacking distances horizontal 1,55m, vertical 1,65m Gain without stacking losses 21,5dBd
|
|
|
