Construction Details

2-El.-12,5-Ohm (0,40 m)

2-El.-28-Ohm (0,60 m)

3-El.-12,5-Ohm (1,90+2,20 m) new

3-El.-28-Ohm (1,90 m)

3-El.-28-Ohm (2,50 m)

4-El-12,5-Ohm (2,90 m)

4-El-12,5-Ohm (3,60 + 4,00 m)

5-El.-28-Ohm (4,50 m)

5-El-12,5-Ohm (6,00 m)

5-El-18-Ohm (6,00 m)

6-El.-28-Ohm (7,20 m)

7-El.-28+50Ohm (9,20+7,75 m) 8-El.-28-Ohm (12,30 m) 9-El.-28-Ohm (14,00 m)
4-El-28+50-Ohm (2,20 m) 5-El-50-Ohm (4,30 m) new 6-El-50-Ohm (6m+7,20 m) new

3-Element-28-Ohm- Yagi with 2,50m-Boom

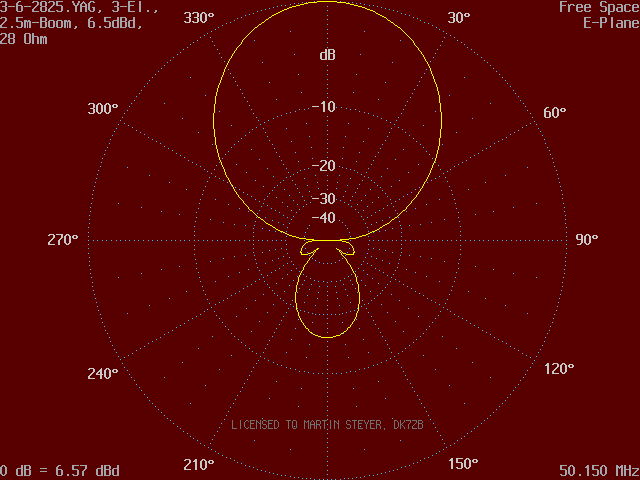

Short data: Gain 6,5dBd, F/B >15dBd, bandwidth 500KHz (49,9-50.4 MHz) at SWR < 1.5

Elements 12mm

Match with 2 x lambda/4-75-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.

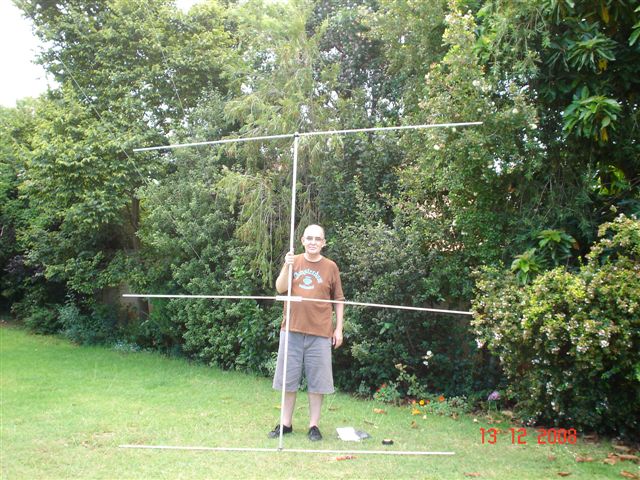

Etienne, ZS6Y with his new antenna

Element

Element-position

Element-length

Ref

0mm

2940mm

Rad

1320m

2810mm

Dir

2500mm

2660mm
