3-Element-15-m-Yagi with 28 Ohm
Boom 4,00 m

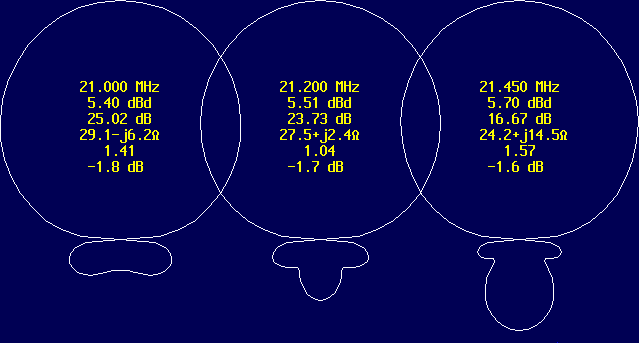

Short data for the Yagi at the begin, in the middle part and at the end of the band
Plot with the NEC-II-reference of YO7.2 by K6STI
 |
The meaning of the data : Frequency, gain, F/R, radiation resistance (impedance), SWR and loss against a theoretical defined maximum- gain-Yagi with the given boomlength. Remember that this gain is only available with very low impedance and extrem low bandwidth!
|
|
The 3-El.-28-Ohm-Yagi built by Alex, IK5PWB |
 |
 |
Mechanical details of the Yagi built by IK5PWB
You see that a lot of individual solutions for the construction is possible! |
|
The 3-El.-15-m-Beam built by Andy, M0CTR On the day he finished the beam he worked CE0Y/DK7ZB in CW.... |
 |
 |

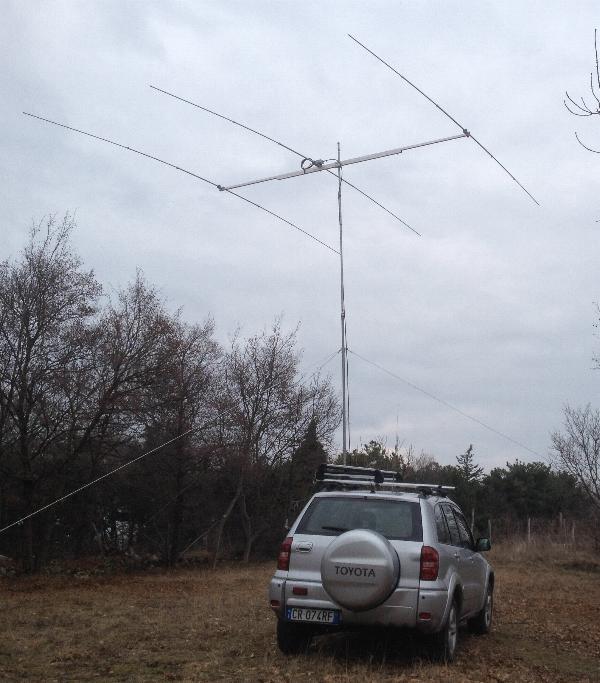

Yagi built by Sebastian, IN3FOX |
Elements of the15-m-28-Ohm-Yagi, lengths for one
element-half:
|
|
20x1,5mm |
16x1,5mm |
12x1mm |
Position |
|
Ref |
1,00m |
1,00m |
1,70m |
0m |
|
Rad |
1,00m |
1,00m |
1,485m |
1,69m |
|
Dir |
1,00m |
1,00m |
1,255m |
3,95m |

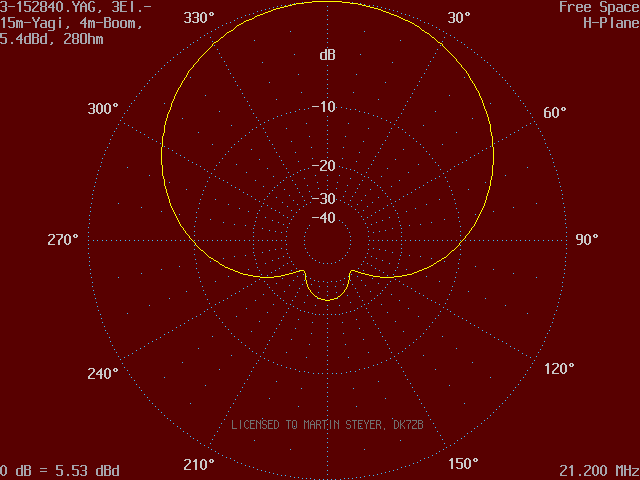

Elevation-diagram (vertical pattern):
