4-Element-28Ohm-Yagi (0,82m-Boom)

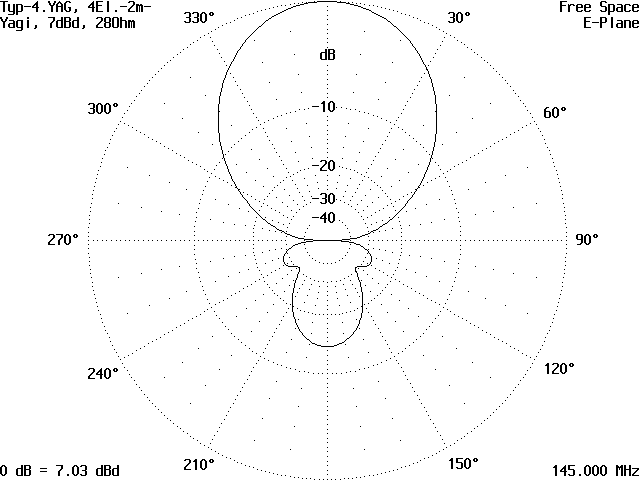

This Yagi has a higher gain of 7dBd and moderate bandwidth, but only 15dB F/B

Element-Distances

Ref-Rad   Rad-Dir1 Dir1-Dir2

315mm

170mm 335mm

Element-Lengths, Radiator always 10mm, mounted with Polyamid-clamps above the boom

Element diameter Reflector Radiator (10mm) Director 1 Director 2

10mm

1004mm 953mm 932mm 908mm

8mm

1007mm 953mm 938mm 914mm

6mm

1010mm 953mm 944mm 920mm
