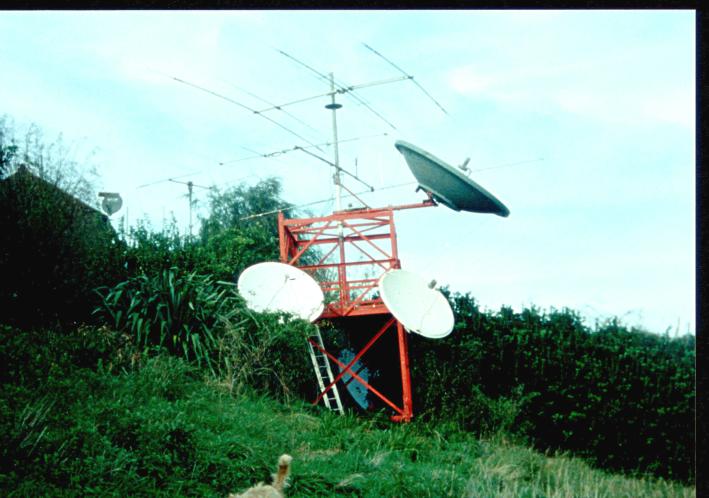

-The 2 white dishes ar for WX-sat and Inmarsat,1.80 meter each , the grey 3 meter is for 2,4ghz.Above are the VHF/6 meters ones, and above is the HF tribander Explorer 14.The aluminium mast at the center is 11cm diameter,and telescopic .

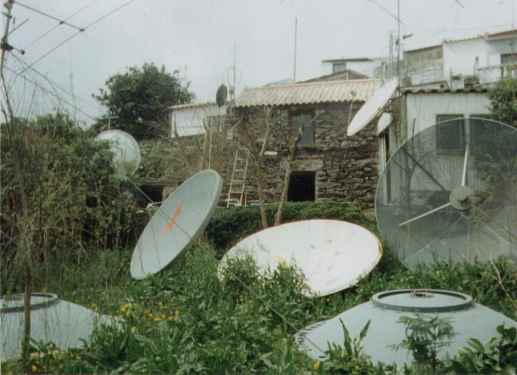

Above , as you can see i have found the seed that make grew parabolic dishes.

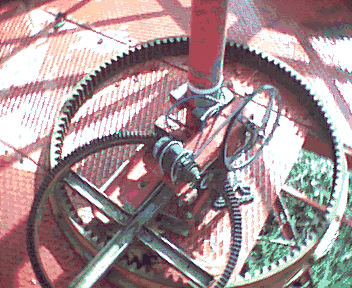

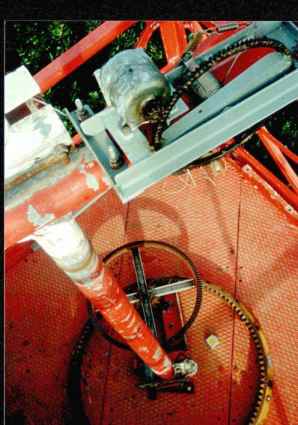

On the right,the rotor. The bigger wheel is 1,4 meters diam from a concrete truck.You can see a metric tape(5m) near the center to give the scale :) (Right-click on the picture and "save target as"to get an animation -640kb-).

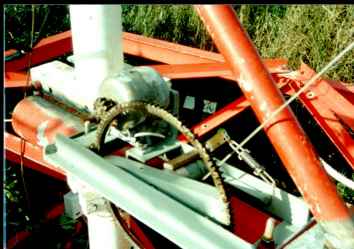

On the left is the elevation motor.It is just a winch i have built.
