WORLD BAND RECEIVER

Roadstar TRA-2350P

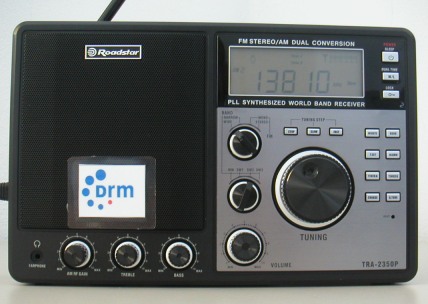

This is a Roadstar receiver  TRA-2350P with AM /FM and Short Wave.
He as a PLL Synthezized World Band with dual conversion.
Have one conversion  IF 455kHz for the converter  455kHZ/12kHZ
that it allows to receiver DRM/LSB/USB/CW with aid Dream.

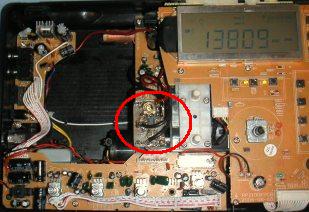

I put the converter inside  the receiver and now output IF is 12 kHz for the decoder.

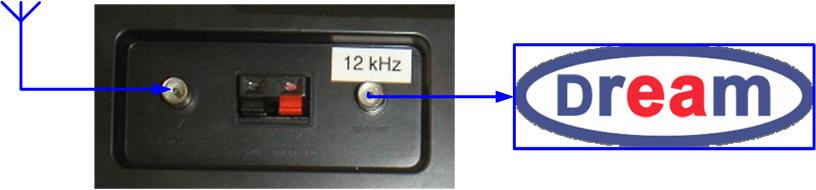

I put the converter inside of the receiver and now output IF 12 kHz for decoder.

Here you can see another solution about this.
