CN8HB's Spectrum Display (2.02.1)


This program displays the Audio Spectrum of any signal applied to the line input of the Audio Card.

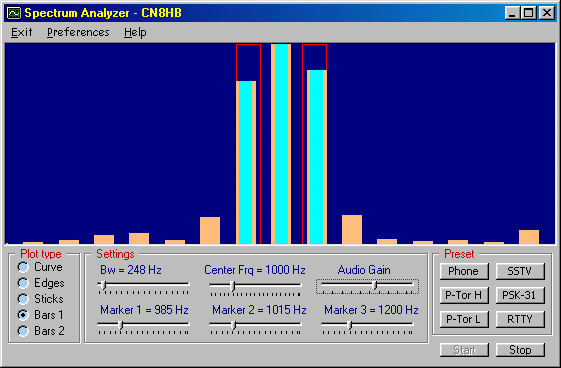

Main Display in PSK31 mode

Features :

  • Display of Audio Spectrum
    of the line input.
  • Color indication of Mark/Space
  • 3 Markers user adjustable
  • 6 Marker presets for common
    digital modes
  • 5 display styles
  • Marker Tracking of the CW pitch with CAT-1000-MP



Download now


RTTY 2125 / 2295 Hz Display

Pactor 2 Display


Credits :

The design of this program has been made possible thanks to the release of the code of ctSpectrum Analyzer v2.0 by Murphy McCauley.

It is the Visual Basic source for a simple audio spectrum analyzer... reads data from the soundcard's input, FFTs it, and displays it.
A compiled version of this application is available on http://www.constantthought.com

Murphy can be reached at [email protected]  (Put "[ct]" in Subject)


Download HBSpectro.zip (14.6 Ko) (Version 2.02.1)

Download ctSpectrum Analyzer v2.0 Murphy's Readme file (1.6 Ko)

If you cannot start the program, you may have to install the VB6 runtime
for this to work. You may Download VBRUN60.EXE (1.05 Mo)

Please report bugs and your suggestions to [email protected]
