The finest audio quality and exceptional signal purity mark the performance
of this world class HF transceiver. Featuring a built-in DSP and MOS-FET final
section, this unit combines technical excellence with operating ease.
|

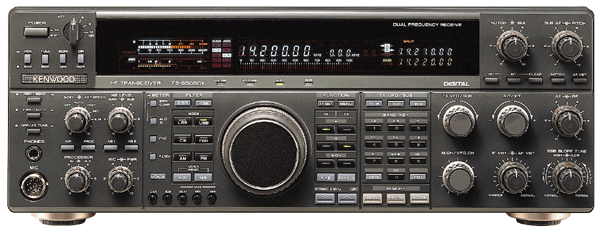

Click on the picture for a bigger one |
|
 |
|
| Antenna Impedance | 50 ohms |
| Dimensions (W x H x D) | 402 x 141 x 400mm (15.83 x 5.55 x 15.75 in) |
| Frequency Stability | ±0.5 x 10-6 (-10°C - 50°C) |
| Memory Channels | 100 |
| Mode | J3E (SSB), A1A (CW), A3E (AM), F3E (FM), F1D (FSK) |
| Operating Temperature Range | -10 - 50°C (14 - 122°F) |
| Power Consumption Receive | 110W |
| Power Consumption Transmit | 850W |
| Power Requirement | 120/220V AC ±10% |
| Power Requirement Europe | 230V AC ±10% |
| Power Requirement UK, Australia | 120/240V AC ±10% |
| Power Requirement USA, Canada | 120V AC ±10% |
| Weight (approx.) | 23kg (50.7 lbs) |
 |
|
| Audio Output Impedance | 8 ohms |
| Audio Output Power | 1.5W (8 ohms at 10% distortion) |
| Circuitry Main | Quadruple/Triple conversion system |
| Circuitry Sub | Double conversion system |
| Frequency Range | 100kHz to 30MHz |
| IF Rejection | More than 70dB (1.8-30MHz) |
| Image Ratio | More than 80dB (1.8 - 30MHz) |
| Intermediate Frequency 1st IF | Main: 73.05MHz |
| Intermediate Frequency 1st IF | Sub: 40.055MHz |
| Intermediate Frequency 2nd IF | Sub: 10.695MHz |
| Intermediate Frequency 2nd IF | Main: 8.83MHz |
| Intermediate Frequency 3rd IF | Main: 455kHz |
| Intermediate Frequency 4th IF | Main: 100kHz |
| Notch Filter Attenuation | More than 45 dB |
| RIT Variable Range | ±9.99kHz |
| Sensitivity AM | 100kHz-150kHz:
Less than 25µV 150kHz-490kHz: Less than 10µV 490kHz-1.62/1.705MHz: Less than 32µV 1.62/1.705-30MHz: Less than 2.0µV |
| Sensitivity FM | 28MHz-30MHz: Less than 0.5µV |
| Sensitivity SSB, CW, FSK | 100kHz-150kHz:
Less than 2.5µV 150kHz-490kHz: Less than 1µV 490kHz-1.62/1.705MHz: Less than 4µV 1.62/1.705-30MHz: Less than 0.2µV |
| Squelch Sensitivity FM | 28MHz-30MHz: Less than 0.32±V |
| Squelch Sensitivity SSB,CW,FSK,AM | 100kHz-150kHz:
Less than 6.3±V 150kHz-490kHz: Less than2.5±V 490kHz-1.62/1.705MHz: Less than 10±V 1.62/1.705MHz-30MHz: Less than 0.32±V |
 |
|
| Carrier Suppression | More than 50dB |
| Frequency Range 10m band | 28.0 to 29.7MHz |
| Frequency Range 12m band | 24.89 to 24.99MHz |
| Frequency Range 15m band | 21.0 to 21.45MHz |
| Frequency Range 160m band | 1.8/1.81(europe)/1.83(belgium) - 1.85(belgium)/2.0MHz |
| Frequency Range 17m band | 18.068 to 18.168MHz |
| Frequency Range 20m band | 14.0 to 14.35MHz |
| Frequency Range 30m band | 10.1 to 10.15MHz |
| Frequency Range 40m band | 7.0 to 7.1(europe)/7.3MHz |
| Frequency Range 80m band | 3.5 to 3.8(europe)/4.0MHz |
| Frequency response | 100 to 3100Hz (variable) |
| Maximum Frequency Deviation | Wide: Less than ±5kHz Narrow: Less than ±2.5kHz |
| Microphone Impedance | 250 ohms to 600 ohms |
| Modulation AM | Low level modulation |
| Modulation FM | Reactance modulation |
| Modulation SSB | Balanced modulation |
| Output Power AM | 40W |
| Output Power SSB, CW, FSK, FM | 150W PEP |
| Spurious Radiation | Less than -40dB |
| Unwanted Sideband Suppression | More than 60dB |
| XIT Variable Range | ±9.99kHz |
