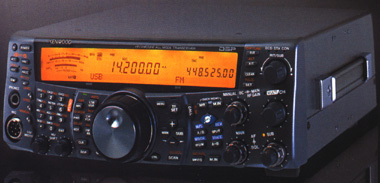

The Kenwood TS-2000 is an all band HF/VHF/UHF transceiver with
exceptional features and versatility. Wide band Main HF reception includes:
30 kHz-60 MHz. On VHF/UHF you get: 142-152 and 420-450 MHz. 1240-1300
MHz is featured in the TS-2000X model. Sub band (AM/FM modes only) reception
includes: 118-174, 220-512 MHz. Output is 100 watts on HF, 6 meters and
2 meters. 50 watts for 440 MHz. This radio comes with a Kenwood hand mic.
Kenwood also offers a version called the TS-2000X which has the
1.2 GHz option factory installed.
The TS-B2000 is a 'silver-box' computer-control version of the
TS-2000 radio. Click here to view the TS-B2000.
TS-2000 Specifications
Versions
| Order # |
Model |
Coverage |
Comment |
| #1978 |
TS2000 |
HF/VHF/UHF |
Standard version |
| #1937 |
TSB2000 |
HF/VHF/UHF |
PC version |
| #2797 |
TS2000X |
HF/VHF/UHF/1.2 GHz |
1.2 GHz Installed |
|
Features
|
- IF DSP Main Band
- AF DSP Sub Band
- HF by V/U, V by V
- U by U and V by U
- PCT Packet Cluster Tuning
- Transverter Frequency Display
- 5+1 Antenna Ports
|
- Built-in TNC (1200/9600)
- Built-in Auto Tuner 1.9-54 MHz
- Built-in keyer with 3 Memories
- High Stability TCXO
- RC-2000 Optional Mobile Controller
- Backlit Front Panel
- 300 Memories (290 Alpha)
|
Options | Options with Photos
| Order # |
Item |
Description |
| #3296 |
ARCP-2000 |
Radio Control program. (Supplied with TS-B2000). Click here to
view screen.
Requires: Win 95/98, Pentium 135 or higher, CD Drive, Mouse, RS-232C,
6 MB RAM & 5 MB HD. |
| #2195 |
DRU-3A |
Digital recording unit. |
| #0954 |
DIN 13 |
Male 13 pin DIN plug for ACC 2 Jack on back panel |
| #1724 |
LF-30A |
Low pass filter |
| #0248 |
MB-430M2 |
Mobile mounting bracket. |
| #0368 |
MC-60A |
A deluxe desk mic with preamp (8 pin). |
| #1026 |
MC-80 |
Desk mic (8 pin). |
| #1870 |
MC-90 |
DSP-compatible desktop mic (8 pin). |
| #4143 |
PG-2Y |
Extra DC power cord 13 feet (4 meters). |
| #0391 |
PG-2Z |
Extra DC power cord 6.5 feet (2 meters). |
| #4273 |
KPS-15 |
Switching power supply 13.8 VDC at 23 amps. |
| #2816 |
PS-53 |
Heavy duty power supply delivers 13 VDC at 20 amps. |
| #2687 |
RC-2000 |
Mobile Controller kit. Includes controller, DC cable (23.1ft/7m),
Mic ext. cable (16.5ft/5m), Speaker Ext. cable (16.5ft/5m), RC2000
Cable (16.5ft/5m), RC2000 bracket, TS2000/B2000 Mounting bracket,
Filters for mic and speaker lines & hardware. |
| #0692 |
SP-23 |
Add this all metal matching speaker for improved fidelity and
clarity. |
| #1349 |
SP-50 |
Add this mobile speaker for improved fidelity and clarity. |
| N/A |
UT-20 |
1.2 GHz all mode module. 10 watts. (UT-20 is included in the TS-2000X
model).
Purchase and installation direct from Kenwood required. |
| #2702 |
VS-3 |
Plug-in voice synthesizer option announces the frequency. |
|
