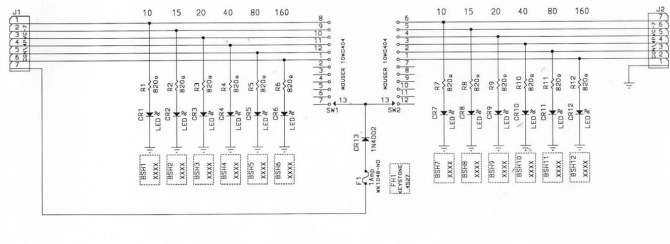

Measurement |
14Mhz |
30Mhz |
50Mhz |
Comment |
|
Radio to Radio Isolation |
-82 dB |
-80 dB |
-77 dB |
signal inserted in one port to antenna buss, second radio
port measured |
|
Radio to Antenna Isolation |
-60 dB |
-55 dB |
-50 dB |
signal connected to antenna on one side, then opened for
measurement |
|
Insertion Loss Radio to any Antenna port |
.05 dB |
.05 dB |
.2 dB |
signal inserted into antenna port and measured at radio port |
|
SWR Radio to any Antenna port |
1:1 |
1:1 |
1.15:1 |
|
|
Power Rating all modes CW, SSB, RTTY |
5 KW |
5 KW |
3 KW |
This measurement is calculated not made |
