AF6J
San Jose, CA
The data presented here is from a HP Z3801A
GPS Receiver with Motorola Timing2000 Antenna
20ft elevation.
To learn more about the software which generates this data, please visit K8CU at:
www.realhamradio.com
Power-on time
Days Hrs Mins Secs
Days Hrs Mins Secs
HEWLETT-PACKARD,Z3801A,3542A07522,3543-A. Life count: 14295
------------------------------- Receiver Status -------------------------------
SYNCHRONIZATION ............................................. [ Outputs Valid ]
SmartClock Mode ___________________________ Reference Outputs _______________
>> Locked to GPS TFOM 3 FFOM 0
Recovery 1PPS TI +9.1 ns relative to GPS
Holdover HOLD THR 1.000 us
Power-up Holdover Uncertainty ____________
Predict 1.5 us/initial 24 hrs
ACQUISITION ............................................ [ GPS 1PPS CLK Valid ]

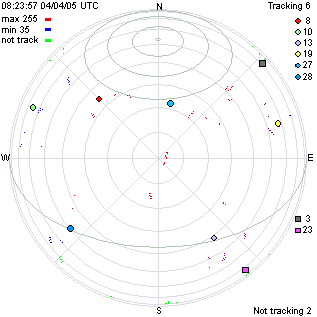

Satellite Status __________________________ Time ____________________________
Tracking: 6 Not Tracking: 2 LOCAL 00:23:54 04 Apr 2005
PRN El Az SS PRN El Az 1PPS CLK Synchronized to UTC
8 56 315 208 3 19 48 ANT DLY 54 ns
10 25 292 55 23 17 142 Position ________________________
13 49 145 194 MODE Hold
19 33 74 148
27 68 13 255 LAT N 37:15:47.639
28 41 231 140 LON W 121:53:26.116
ELEV MASK 10 deg HGT +64.80 m (MSL)
HEALTH MONITOR ......................................................... [ OK ]
Self Test: OK Int Pwr: OK Oven Pwr: OK OCXO: OK EFC: OK GPS Rcv: OK
