IF Filter Selector

Comparison of DSP (IC-756Pro II) and analogue (IC-765) IF filters
IC-756Pro II		IC-765

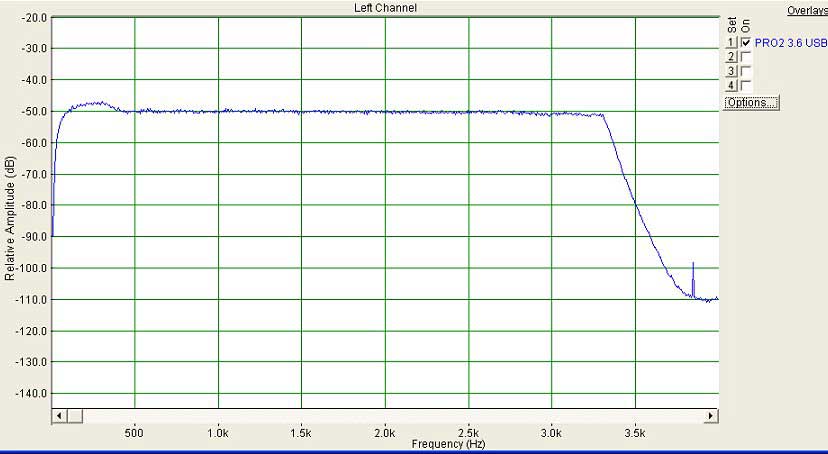

PF	3.6 USB
	2.4 USB	2.4 USB

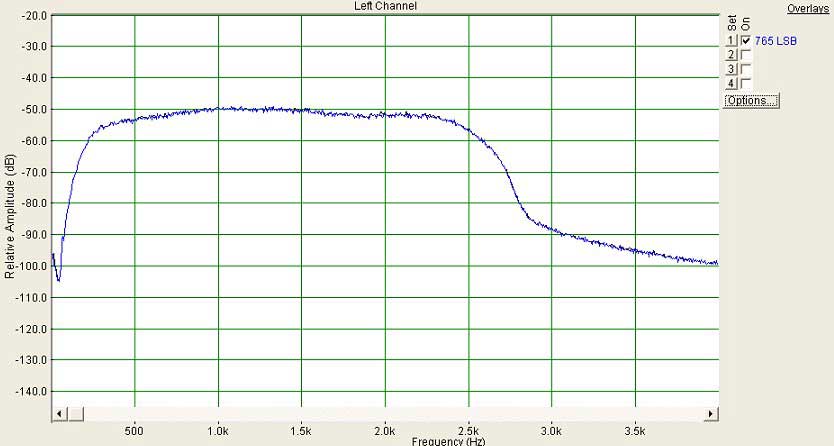

	2.4 LSB	2.4 LSB
	1.8 USB

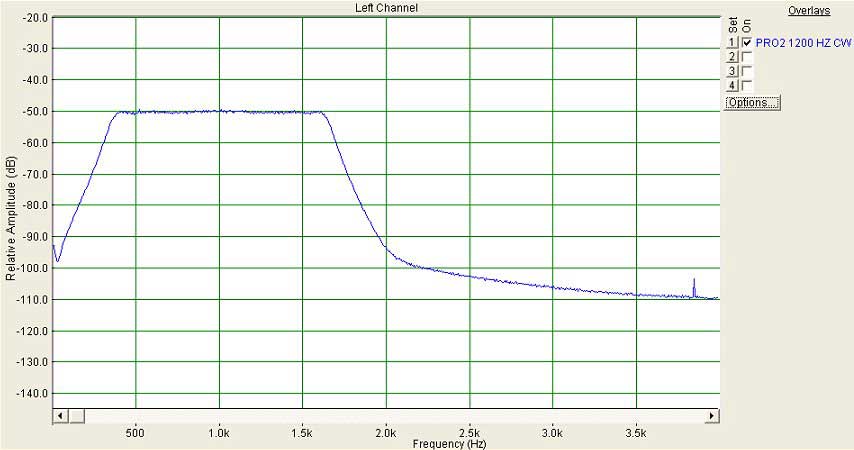

	1.20 CW
BPF	0.50 CW	0.50 CW

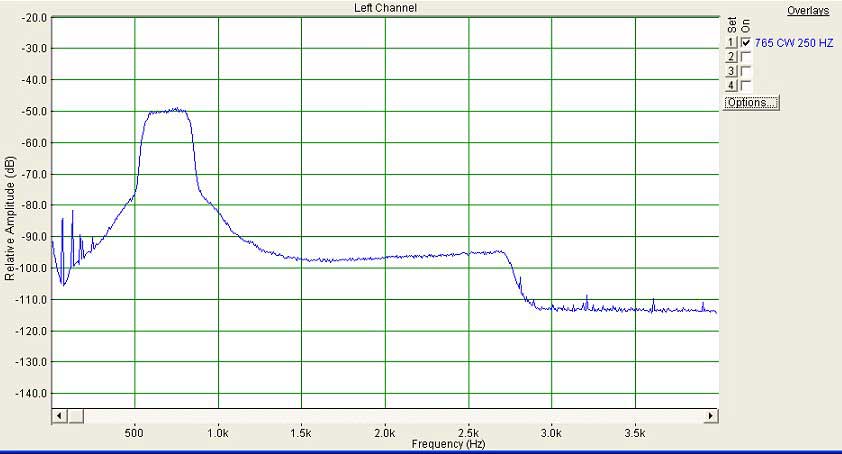

BPF	0.20 CW	0.25 CW

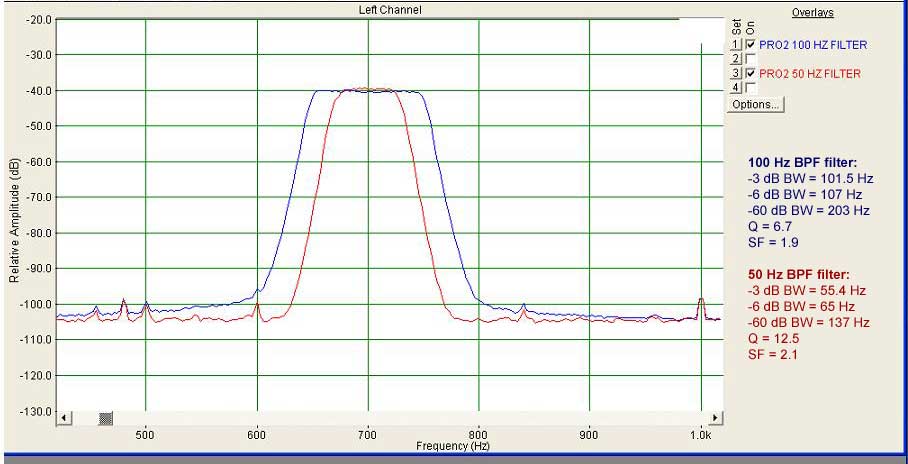

BPF	0.10 CW

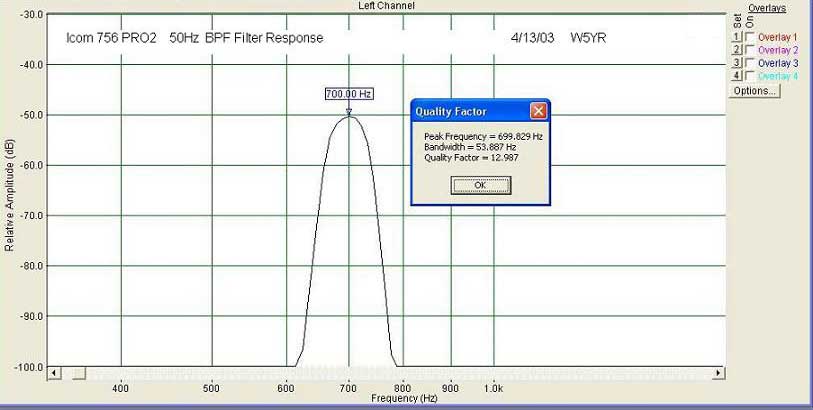

*BPF*	0.05 CW

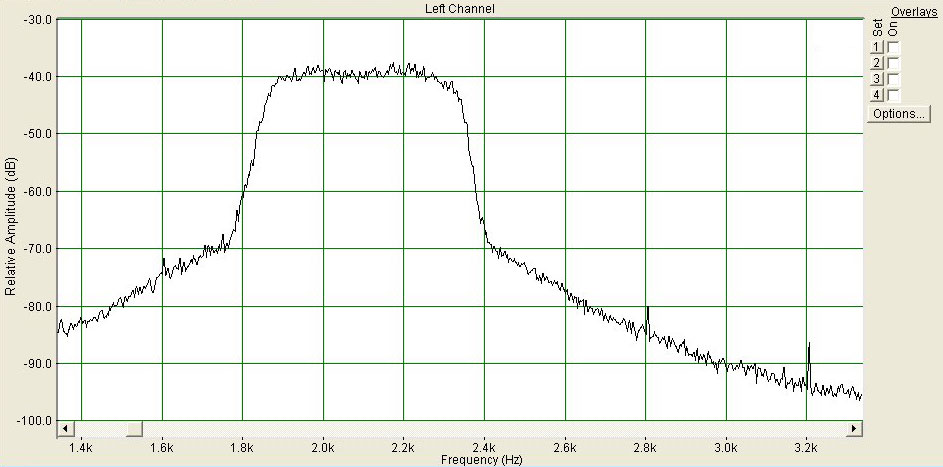

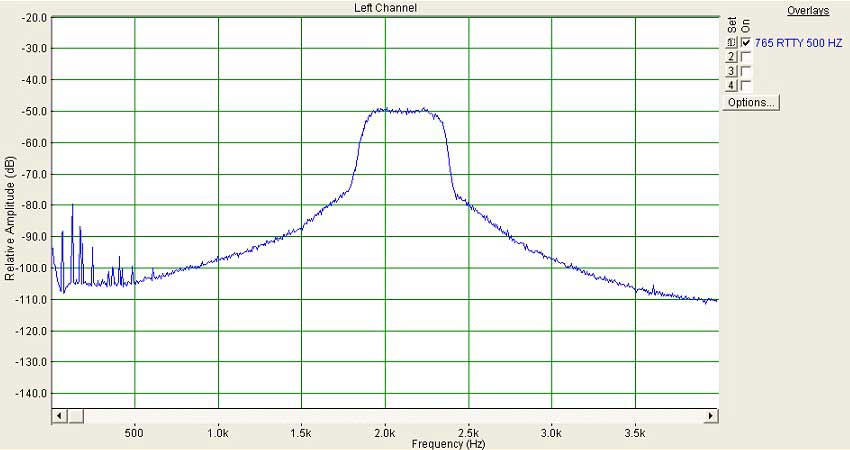

	0.35RTTY	0.5 RTTY
TPF	0.35RTTY	0.5 RTTY

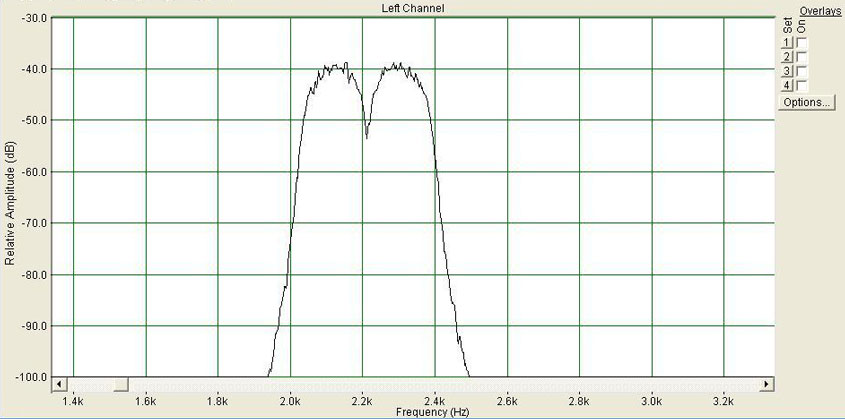

TPF	0.35 RTTY 746PRO
*BPF*	0.5 CW 746P/756P2
