IC-7700 Manual Notch Test

Contributed by Dave Shirk KI4KQ

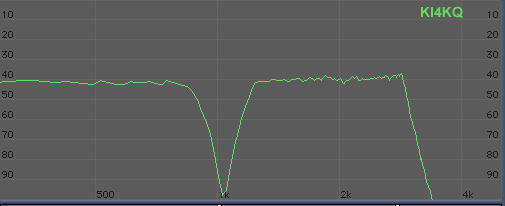

Fig.1. Manual Notch NAR: 200 Hz at -10 dB, 170 Hz at -20 dB.
Fig.1. Manual Notch NAR: 200 Hz at -10 dB, 170 Hz at -20 dB. Image: KI4KQ.

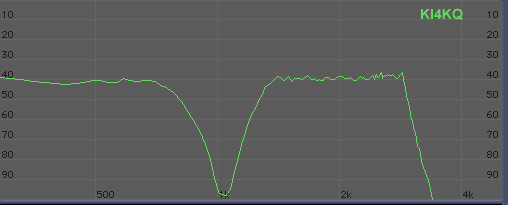

Fig.2. Manual Notch MID: 350 Hz at -10 dB, 285 Hz at -20 dB.
Fig.2. Manual Notch MID: 350 Hz at -10 dB, 285 Hz at -20 dB. Image: KI4KQ.



Fig.3. Manual Notch WIDE: 500 Hz at -10 dB, 420 Hz at -20 dB.
Fig.3. Manual Notch WIDE: 500 Hz at -10 dB, 420 Hz at -20 dB. Image: KI4KQ.
Copyright  2008 D. Shirk KI4KQ. All rights reserved. Last revised: 06/16/18.
