Earth Moon Earth - Moon bounce Project phase-1:  25 January 2013

I have installed pre amplifiers above roof top junction box and sequence controllers are at my shake. I'm monitoring weak signal from Moon using WJT65 mode on 2 meter and 70 cm.

EME - Moon bounce

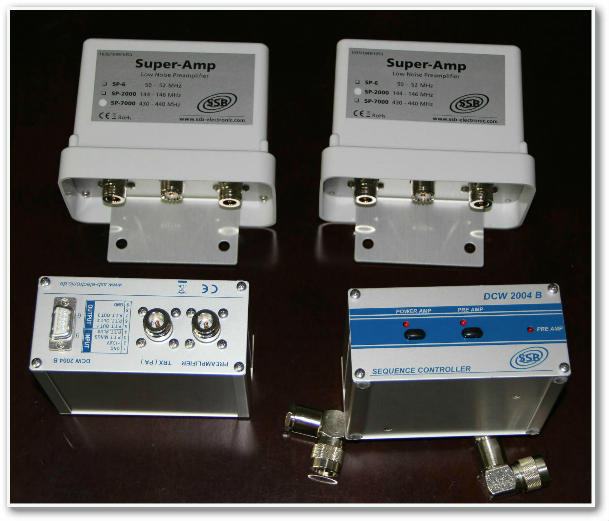

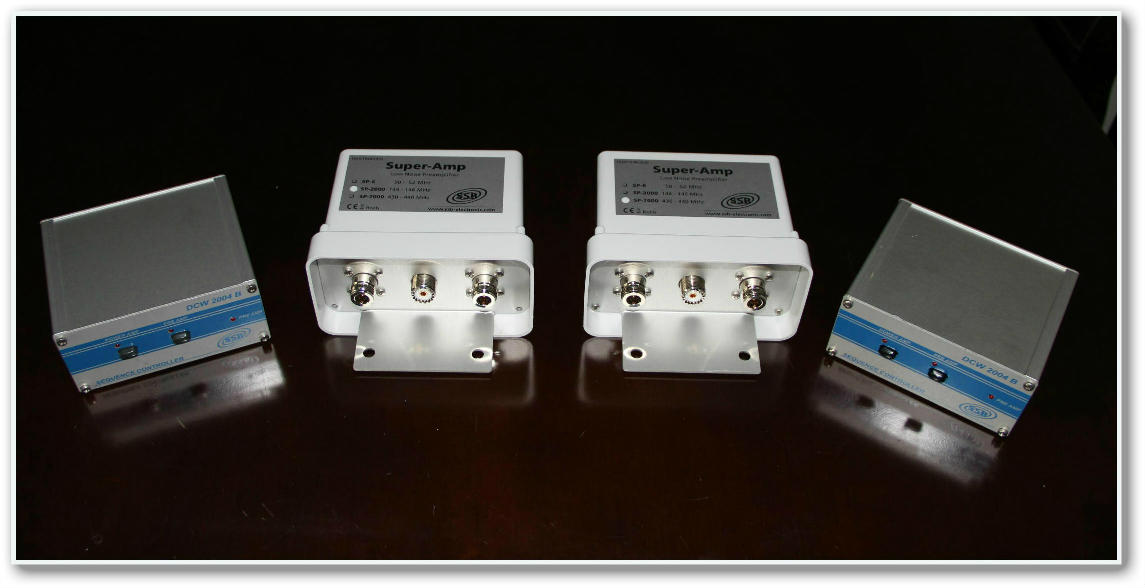

Pre-amplifier and Sequence controller from SSB Electronics.







Super-Amp  SP-2000 for 2 meter and SP-7000 for 70 cm





 DCW-2004 B Sequencer for both 2 meter and 70 cm.


Fittings and installation

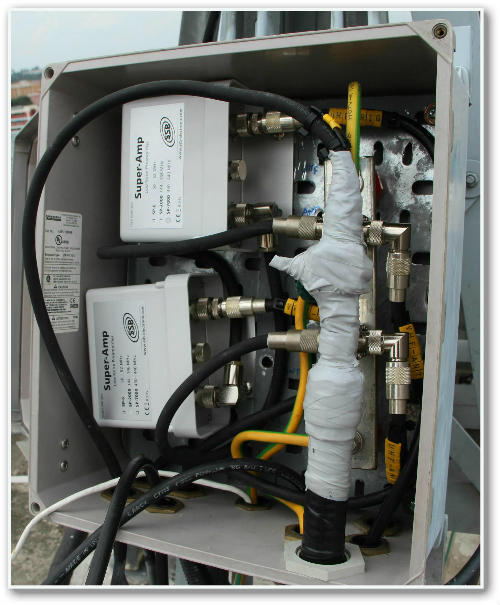

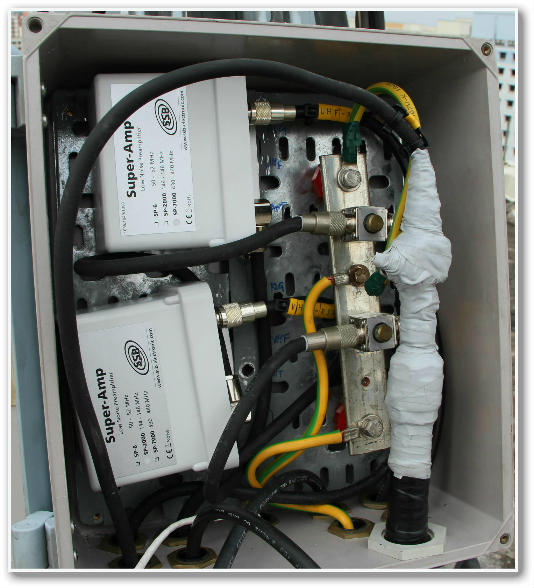

Mast mount fittings and connectors.                                          Pre amp. is installed inside the fiber box.                       Serge arrester is in-between Antenna and Per-amp.











Installation

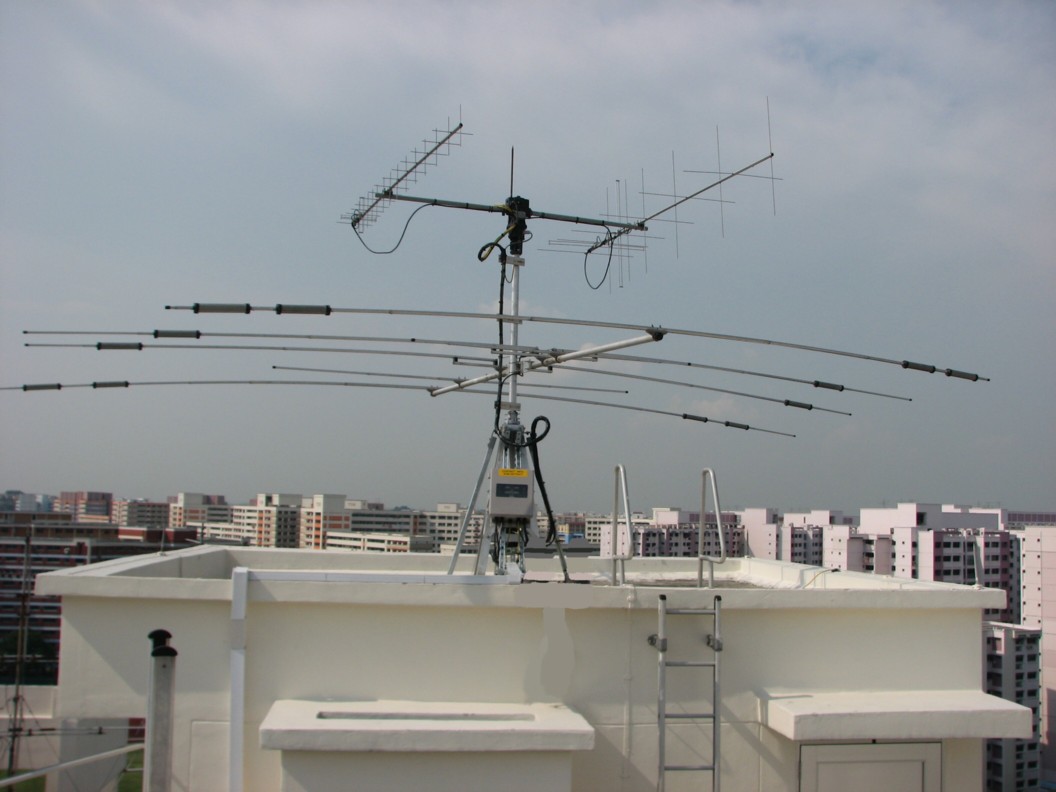

      14 and 30 element circular polarized yagi.                                   Sequencer is mounded under the table.                                          Antenna selector for  isolation.













SWR Test


                  2 Meter SWR including pre amp                                                                    70 cm SWR
