Hillview Gardens Amateur Radio Club

A N T E N N A S

---

Main Tower
The view of the main tower at Hillview Garden Amateur Radio Club

Cushcraft 40-2CD 40m Beam at 75 ft, rotatable fully

Cushcraft 20CD4 20m Monobander at 65 ft, rotatable fully

Inverted-V for 80m at 62 ft, legs are north to south

Inverted-V for 160m at 60 ft, legs are east to west

Rafflesia Tower

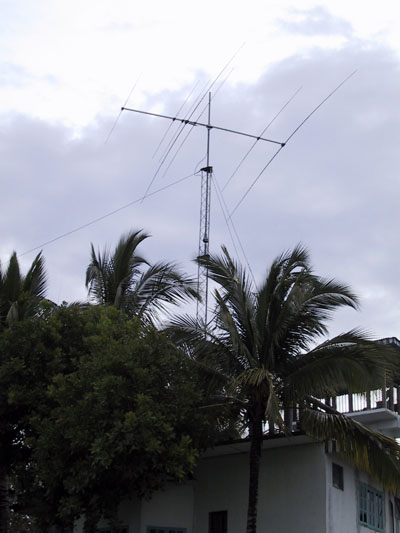

The C3 antenna on top of Rafflesia tower

Force-12 C3 10-15-20m Triband Beam at 50 ft, rotatable fully

6m Tower

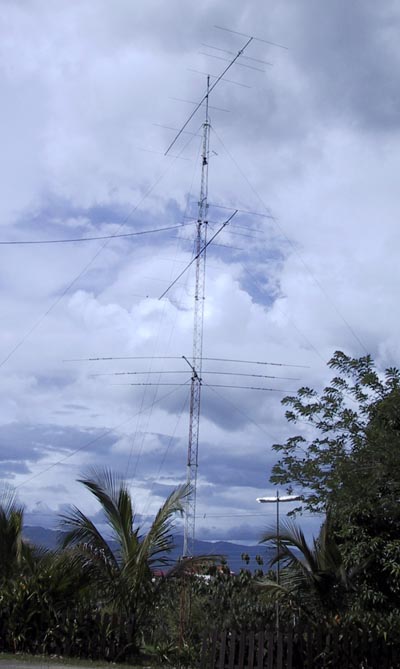

The stacked 6M7JHV antennas on the 65 ft guyed tower

M2 6M7JHV 6 meter 7-el Beam at 68 ft, rotatable fully

M2 6M7JHV 6 meter 7-el Beam at 45 ft, fixed EU

WX0B Stackmaster switch for 6-meter

Cushcraft A3W 12-17-30m WARC Beam at 30 ft fixed North

Additional

Butternut HF9V Vertical at ground level

In Storage

Cushcraft A505 6m 5-el Beam

Cushcraft A3S 10-15-20m Triband Beam

HyGain TH3 10-15-20m Triband Beam

International Antenna Corp 80m Double Bazookas Antenna

80m BigSig 3/2 wave Loop

---
