Moxon  14 MHz

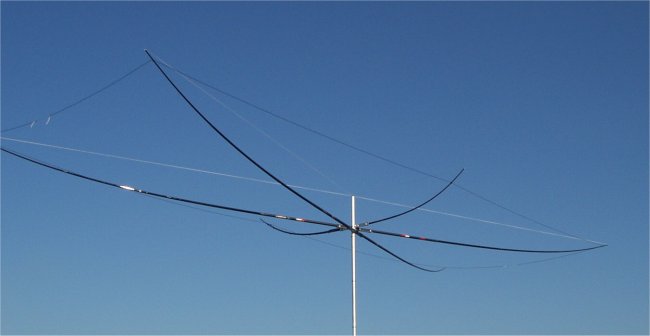

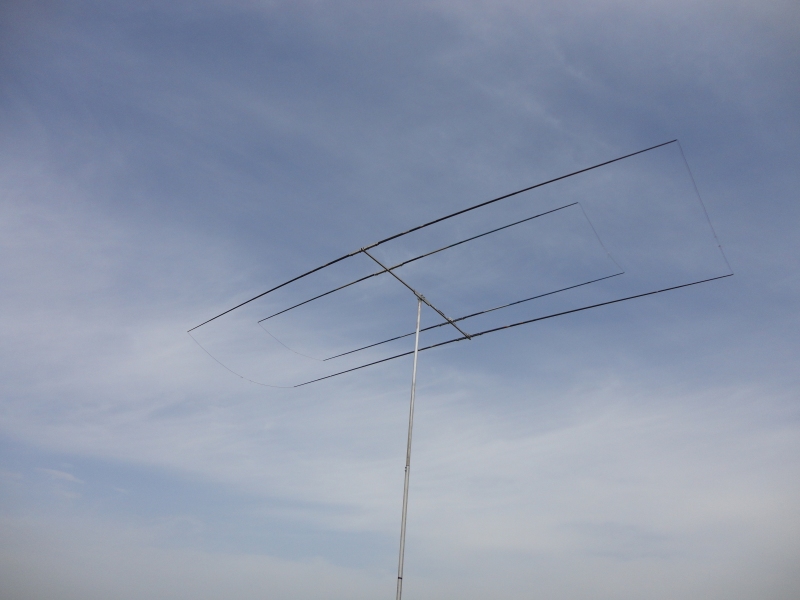

 Moxon   14, 21 MHz   (Yagi  style)

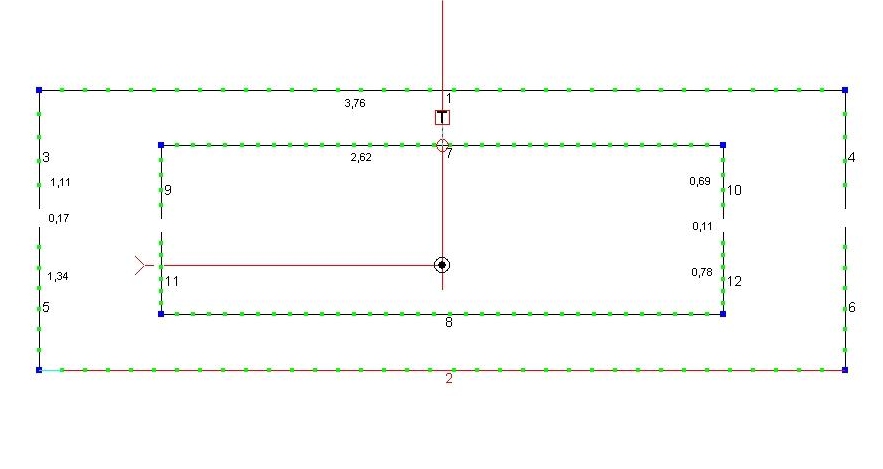

- All dimensions are in meters

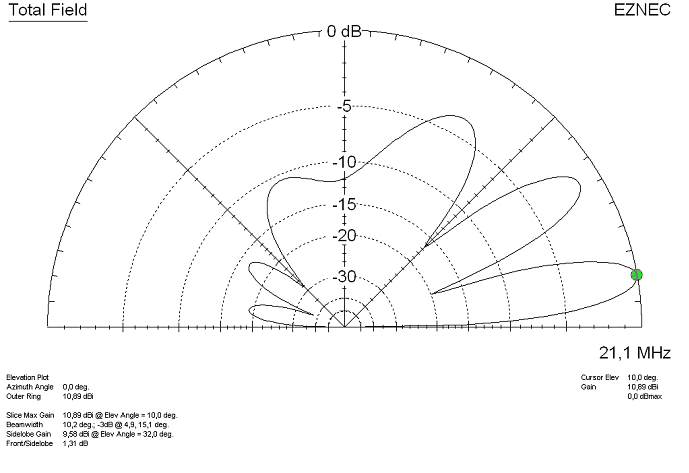

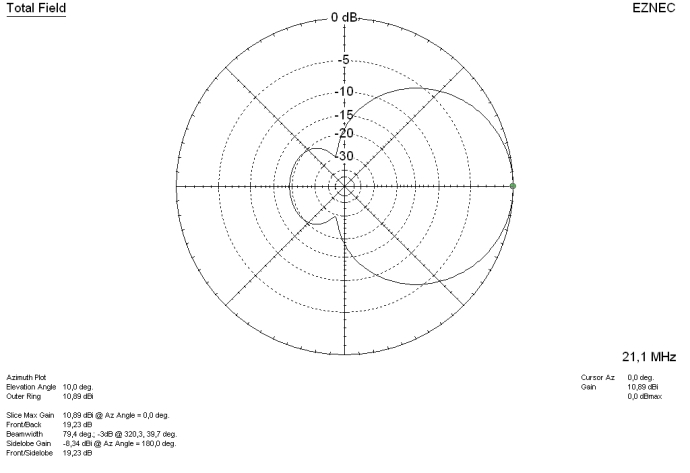

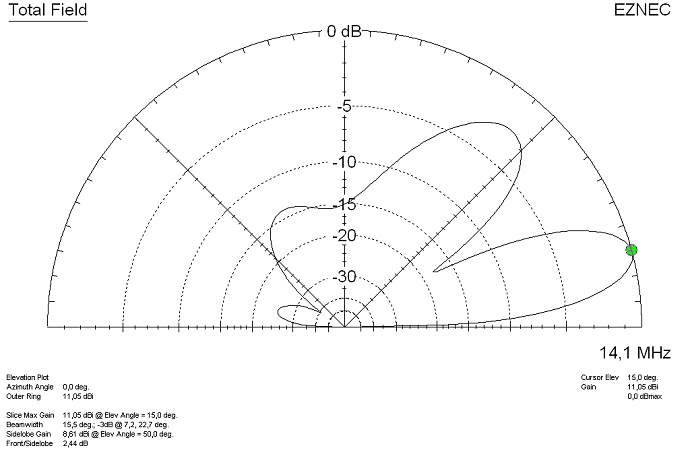

- Moxon is modeled using EZNEC 5.0
- Height is cca 20 meters above the ground

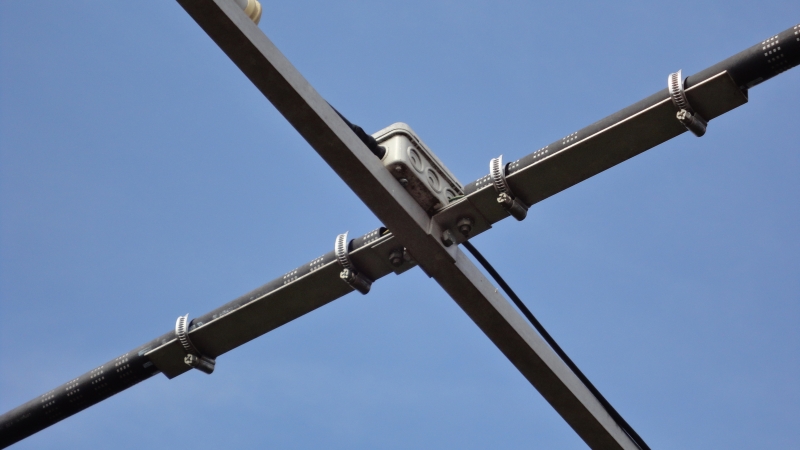

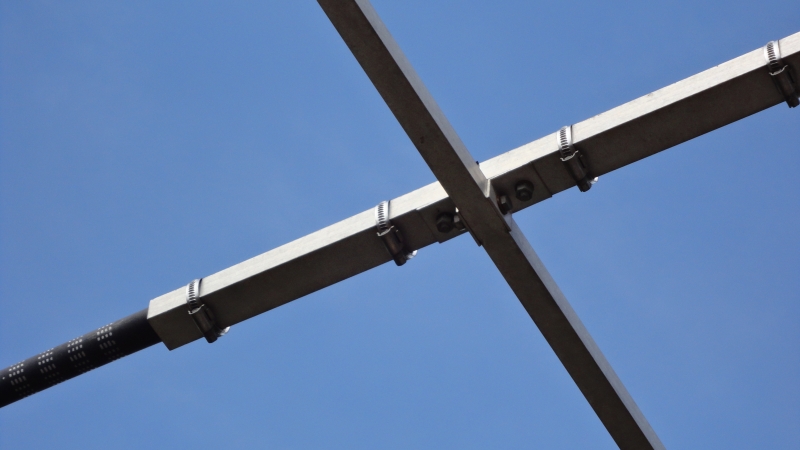

- Wires are Cu 1 mm, isolated, inside the fiberglass poles
- Feeder is HyperFlex 5

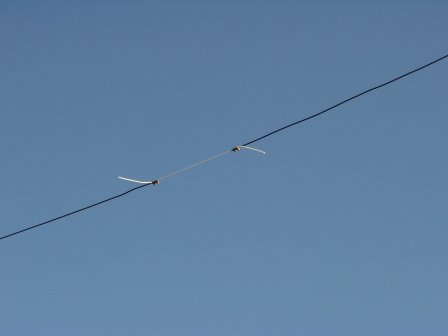

- Line between radiators is RG-58
   Although the line is not symmetric, with a little help of 5 snap on ferrite beads, unbalance of the system is quite acceptable

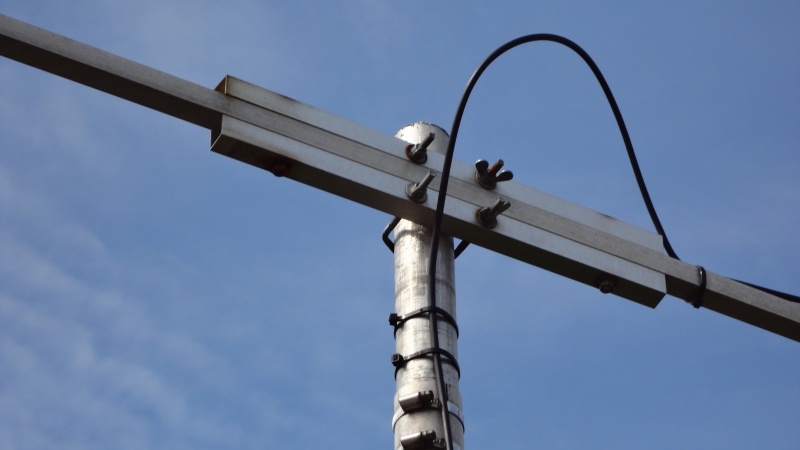

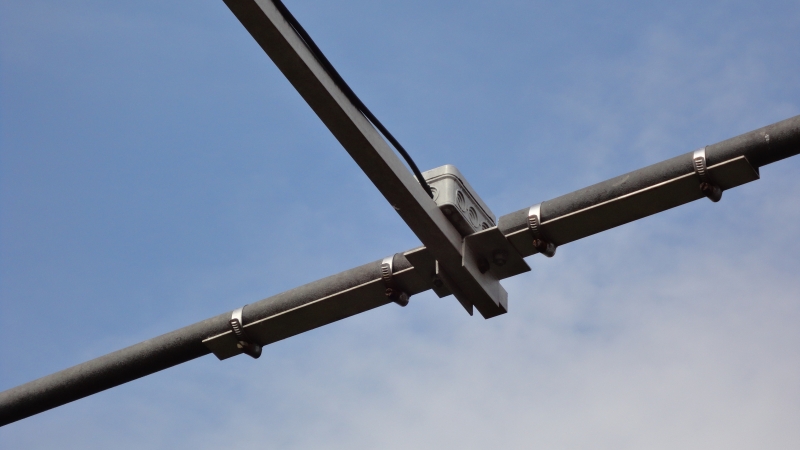

- Balun is Palomar BA-58

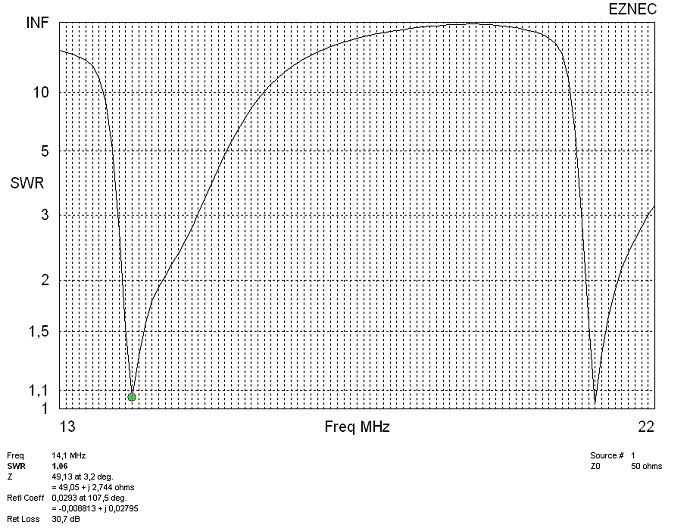

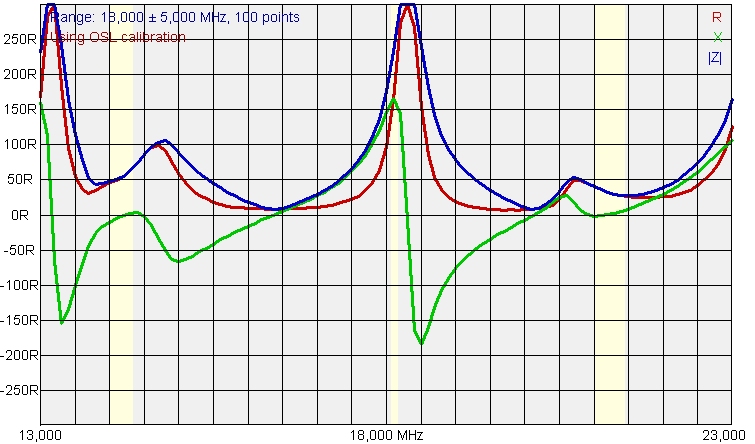

- SWR was measured with Rigexpert AA 54 (very close to model)
- Small correction was needed only on 21 MHz

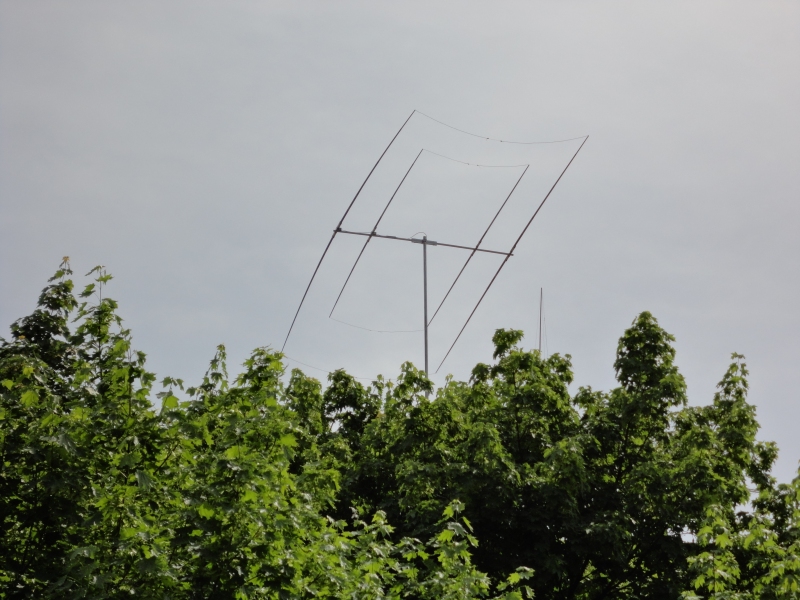

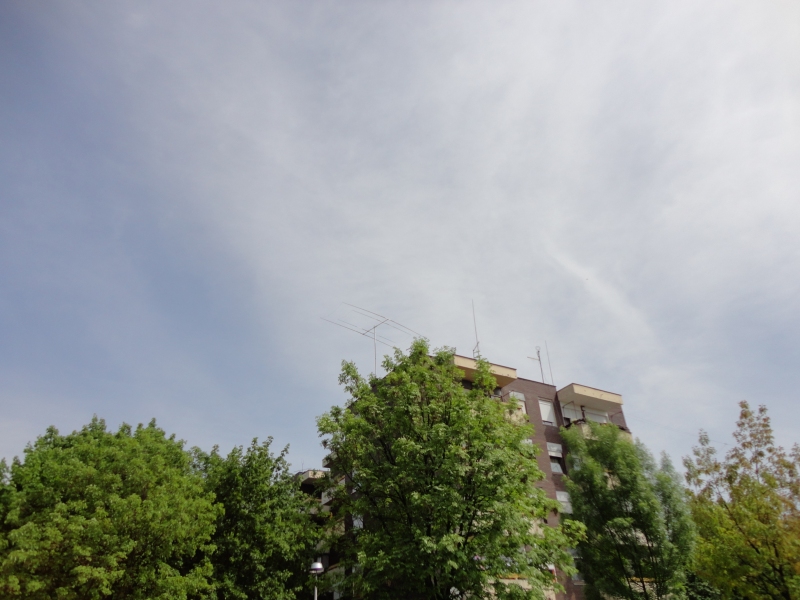

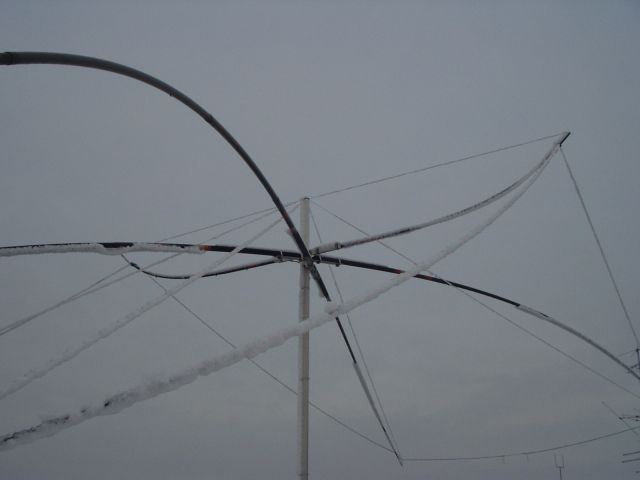

          My Moxon is on the top of the 4 store building (5 m above the flat roof)

          It looks nice and works nice ...
