OMNIDIRECTIONAL 5-BAND-DIPOLE
FOR 20M TO 10M

Page (and Antenna) under construction!




First experiments with 20m - Dipole only
the antenne weighs less than 2 Kilos without tower and mesures 2.6m x 2.6m

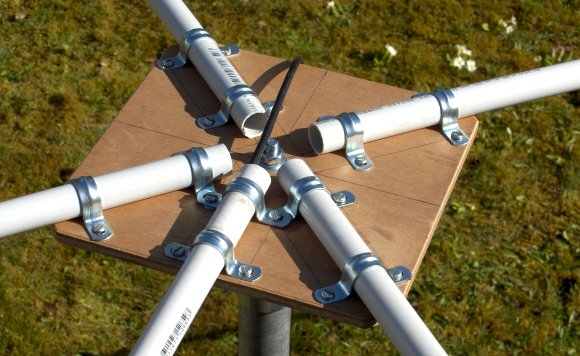

Central hub, waterproof plywood and brackets for installation tubes 20mm


240-Ohm Feeder-Cable Folded Dipole and Choke Balun

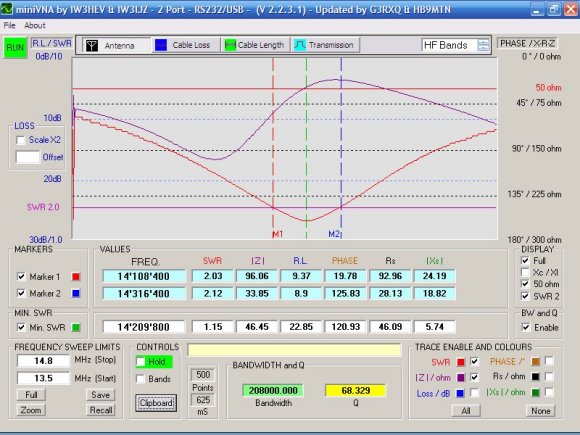

SWR and Z-values measured with MiniVNA
(note bandwidth of 200kHz)


(almost) round horizontal Pattern, 4nec2-Simulation, 14.2 MHz, 10m/ground


vertical Pattern, 4nec2-Simulation, 14.2 MHz, 10m/ground

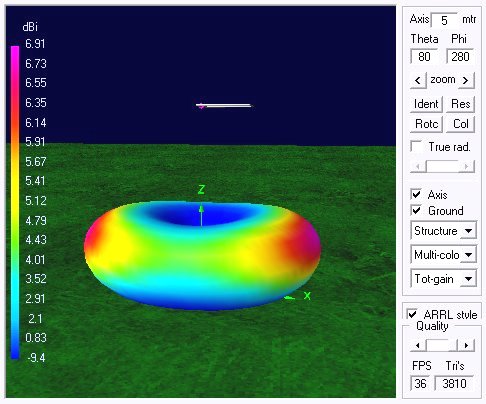

3D Pattern, 4nec2-Simulation, 14.2 MHz, 10m/ground



See also the Web Site of Stephen R. Webb, G3TPW!
