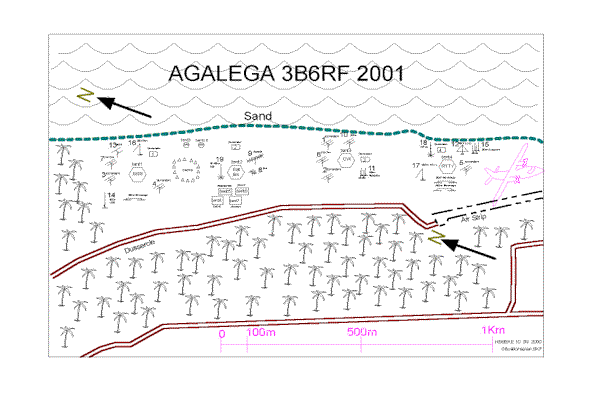

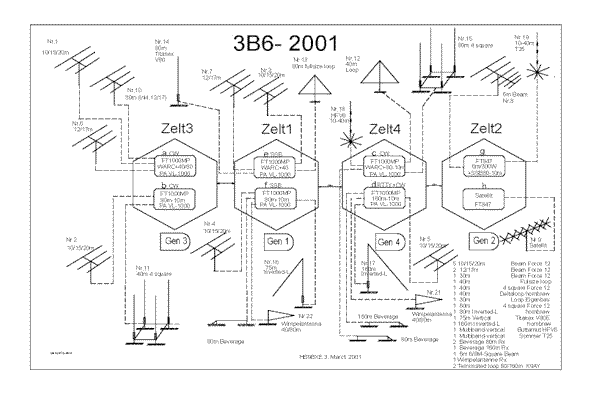

The Agalega Antenna layout

Antennas: totally 27

5 x Beam 10/15/20m Force12
2 x Beam 12/17/m Force12
1 x Beam 30/m Force12
1 x 4square 40m, Comteck Force12
1 x 4square 80m, Comteck Force12
1 x Vertical 75m V80E Titanex
1 x Vertical 160m V160 Titanex
1 x Delta loop 30m, full size homebrew
1 x Delta loop 40m, full size homebrew
1 x Delta loop 80m, full size homebrew
1 x Vertical HF6V Butternut
1 x Vertical T25 Sommer
1 x 7ele Beam 10m homebrew
1 x 6m Beam ZX Wimo
1 x 160m Beverage CW homebrew
2 x 80 m Beverages CW/SSB homebrew
2 x 80/160m terminated loops CW/SSB K9AY
2 x 40/80m pennant antennas CW/SSB homebrew

Filter: totally 56

TX Band pass filters 48 items
RX Filter, XTAL & LC 18 items
most homebrew by HB9BQI/HB9ABO/G3KHZ

Our Equipment Transceiver:

• 6 FT 1000 MP
• 2 FT 847

• 6 VL 1000 + Power supply
• 1 Power supply

• 4 Diesel Generator, a 5.4 kW
• 800 Liter Diesel

Last update: April 7, 2001
