Homebrew HF Trap Dipole for 10,15,20,40,and 80 meters

I have kept a photo diary while making this antenna  I will list the items used and title each column.

The parts required for this antenna will be :-

2 x 1-1/2" ABS Solvent Weld straight connectors

4 x 3/4" ABS Solvent Weld straight connectors

2 x 1" fibre Glass tube 2 1/2" long (as ABS not available in 1" size)

36" hard drawn copper for bridles

70ft of 13 amp electrical cable

2 x dog bones

1 x dipole centre

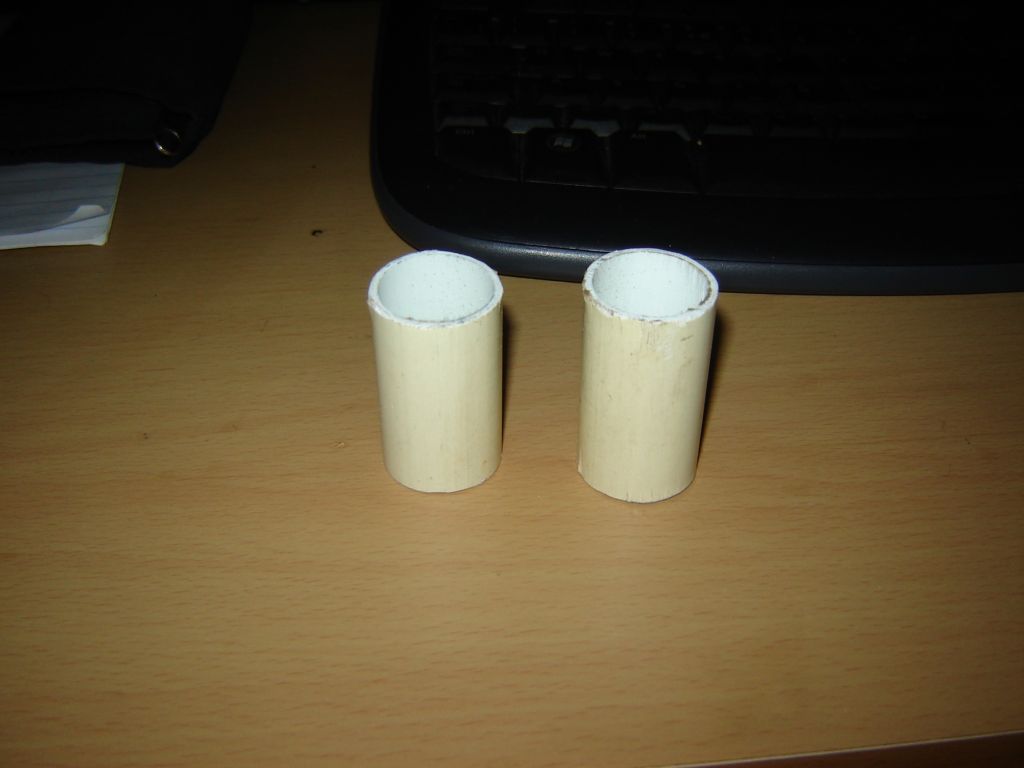

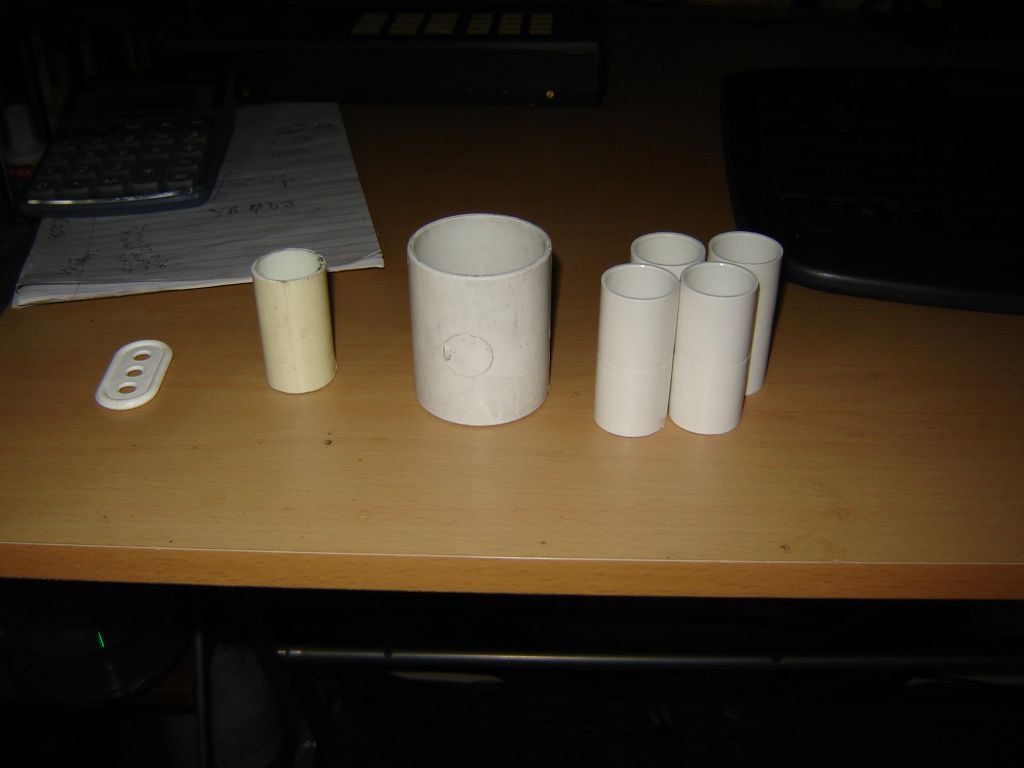

Photo 1 is the stock of abs straight connectors please note the 1" fibre glass formers as 1" abs is not available.

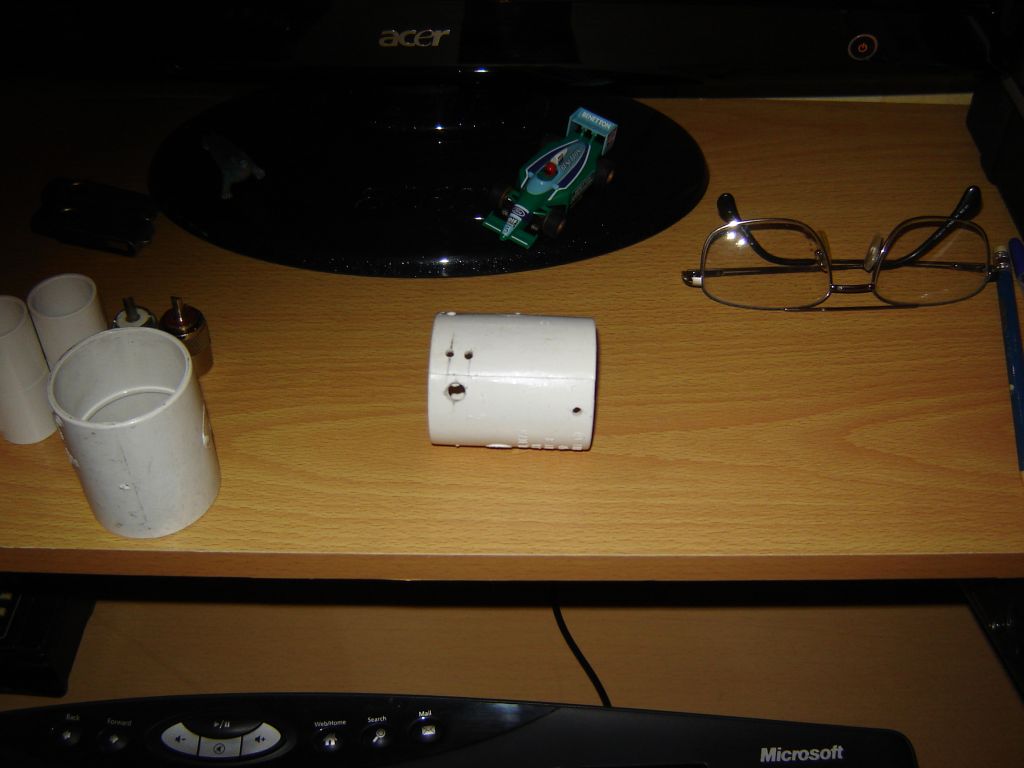

Photo 2 is the 1-1/2" former which was marked and drilled for the coax entry tie wraps and bridle fitting

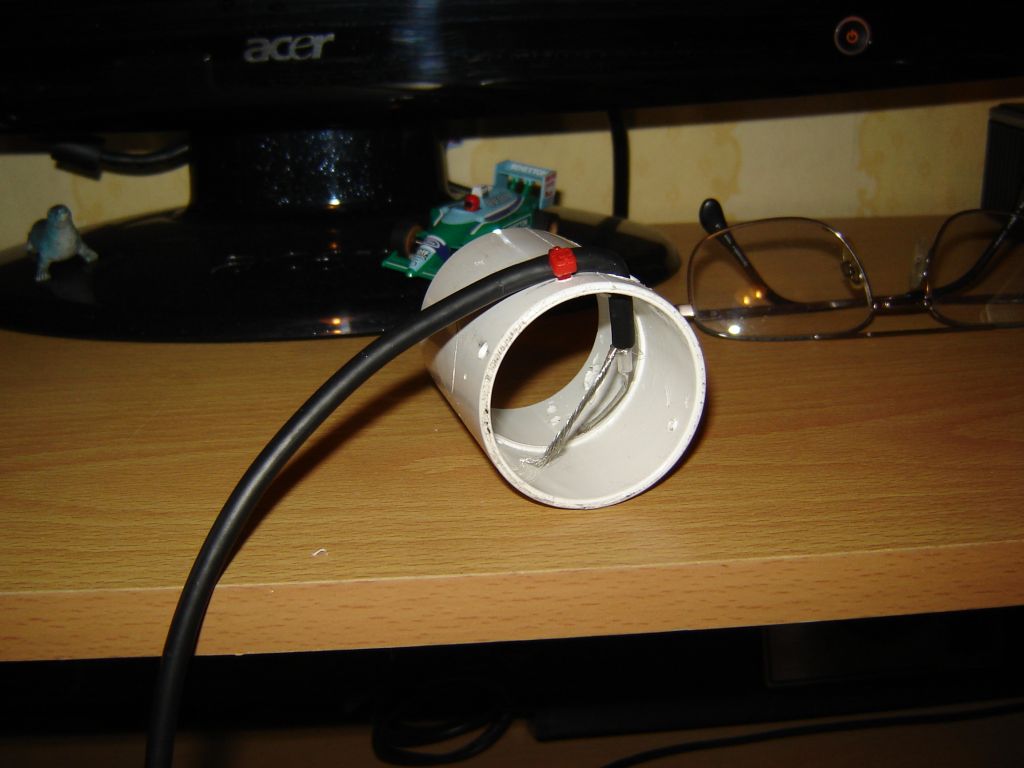

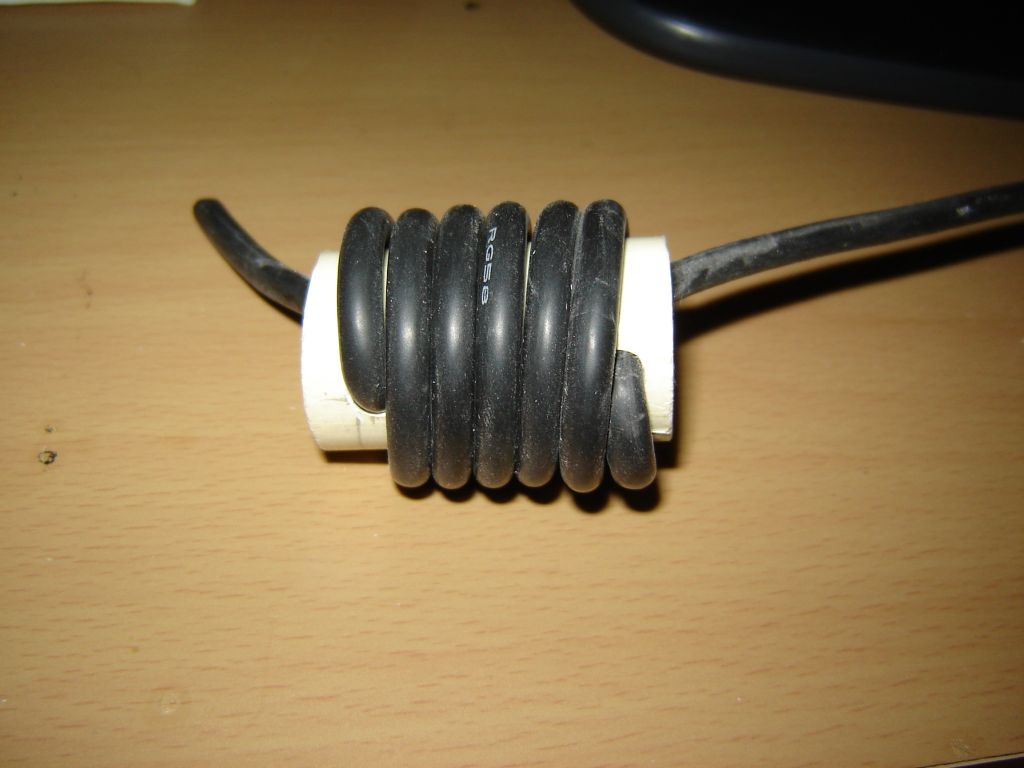

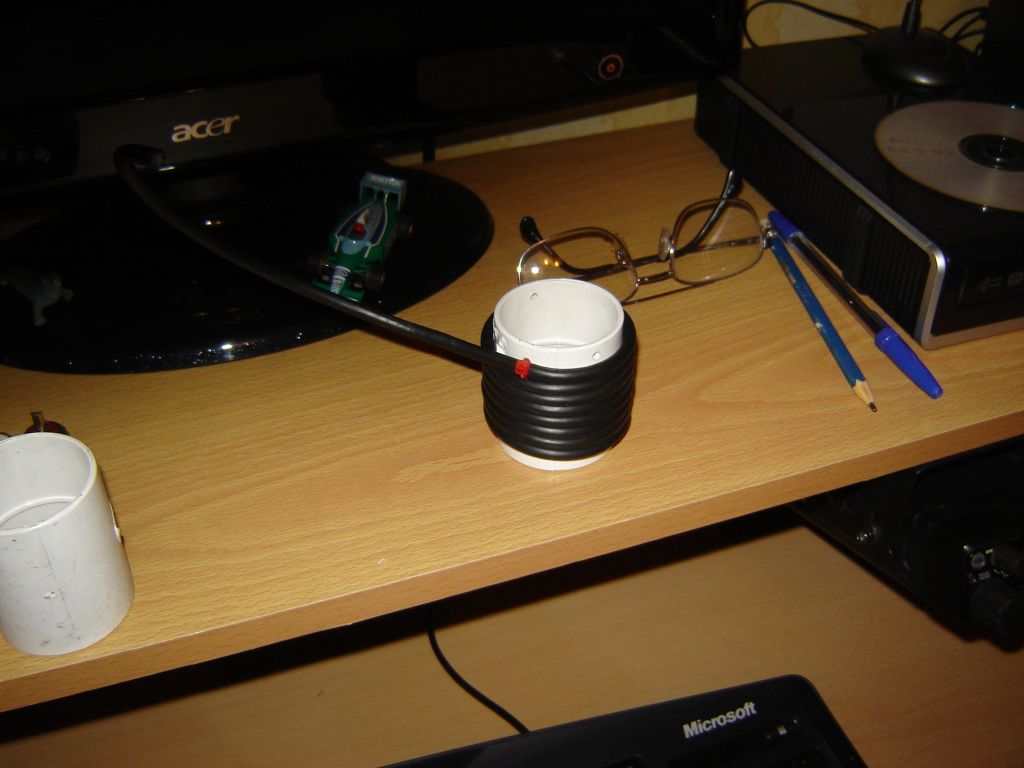

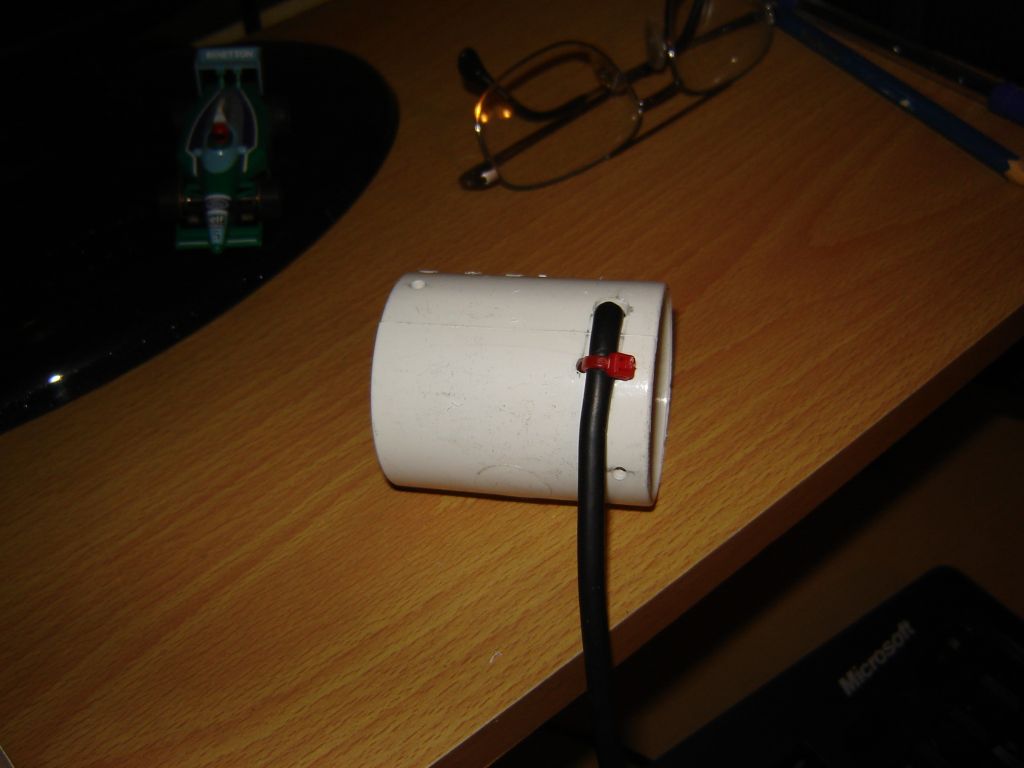

Photo 3-7 is the start of the coax windings and fixings with tie wraps

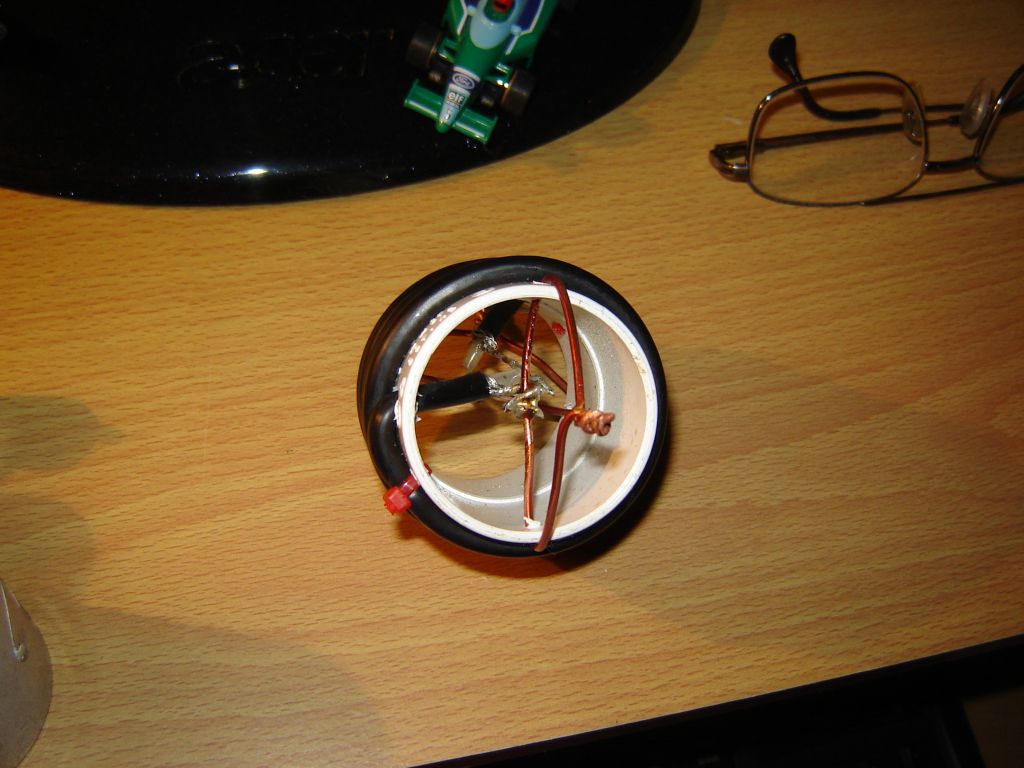

Photos 8 and 9 show the bridle fitting and the wire connections the coax inner to coax outer inside the former

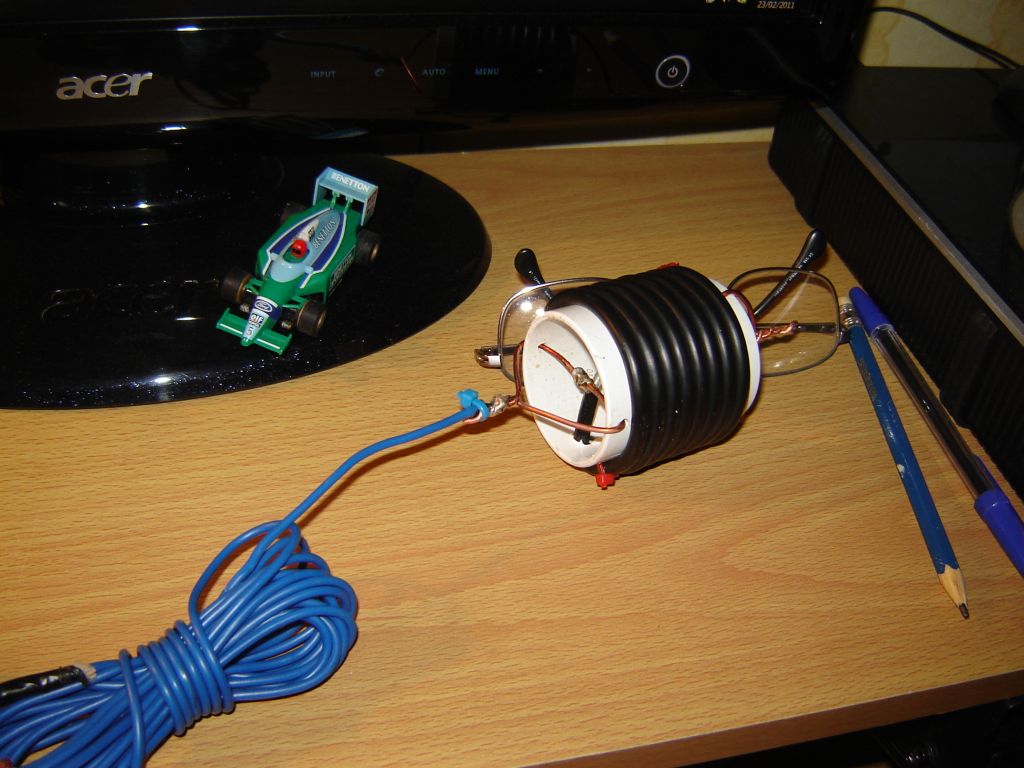

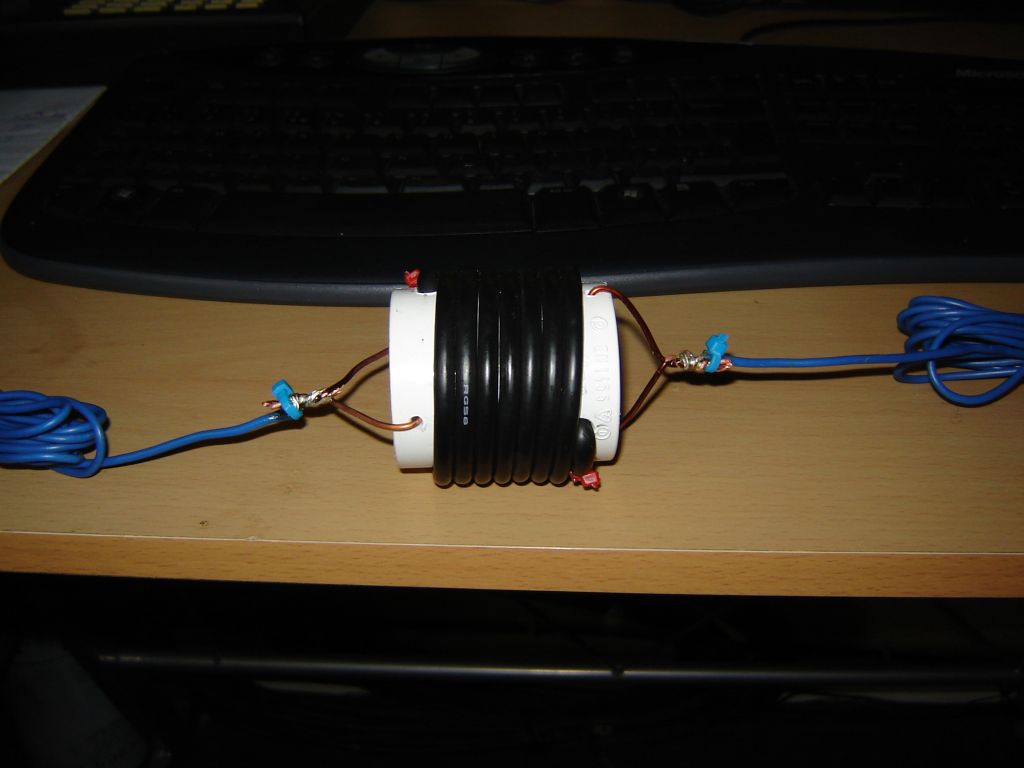

Photos 10 and 11 show the fitting of element wire to the bridle

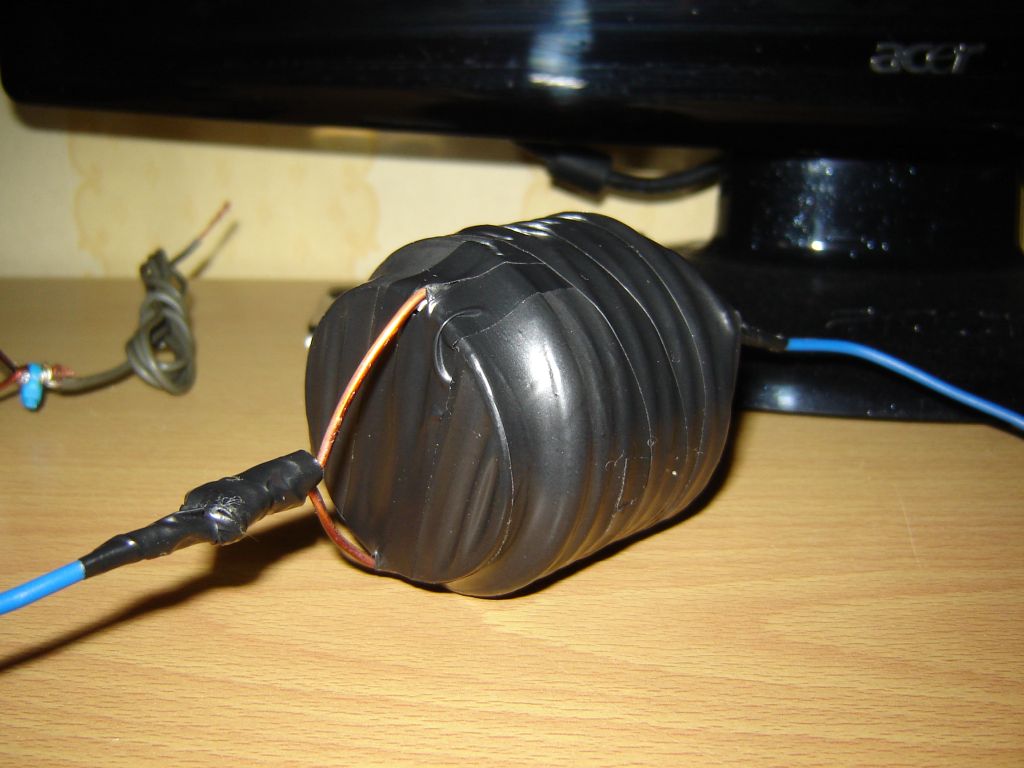

Photo 12 is the waterproofing of the built trap for external use as the dipole may be fitted into the loft

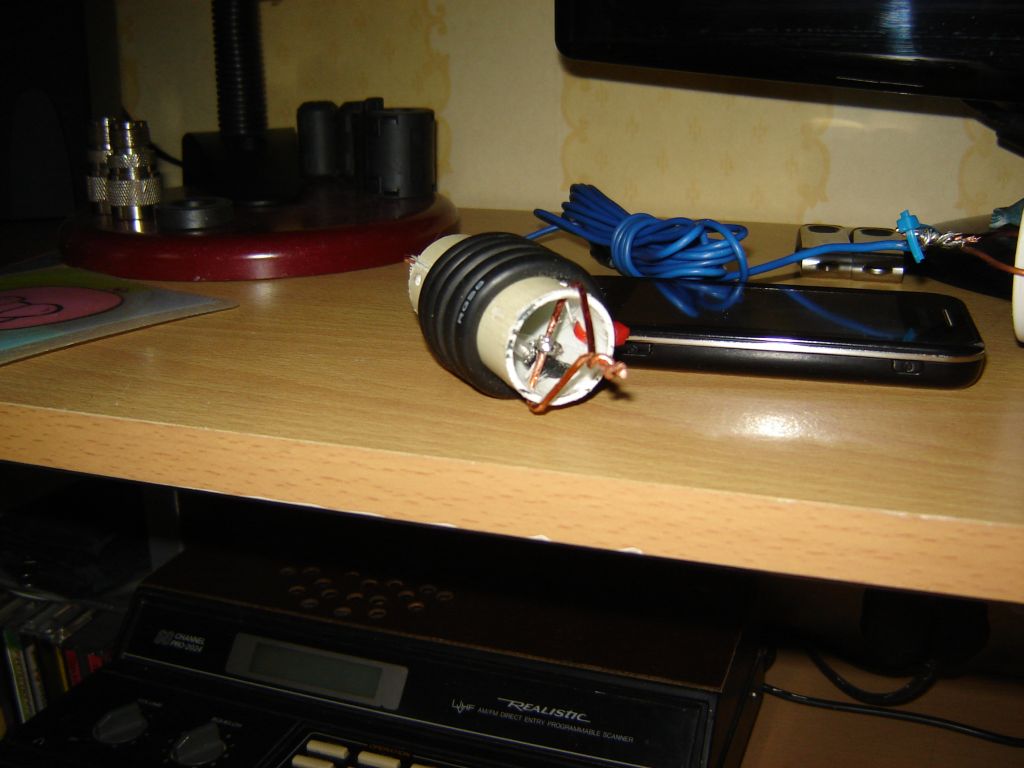

Photos 12 and 13 show the construction of the 1" fibre glass trap

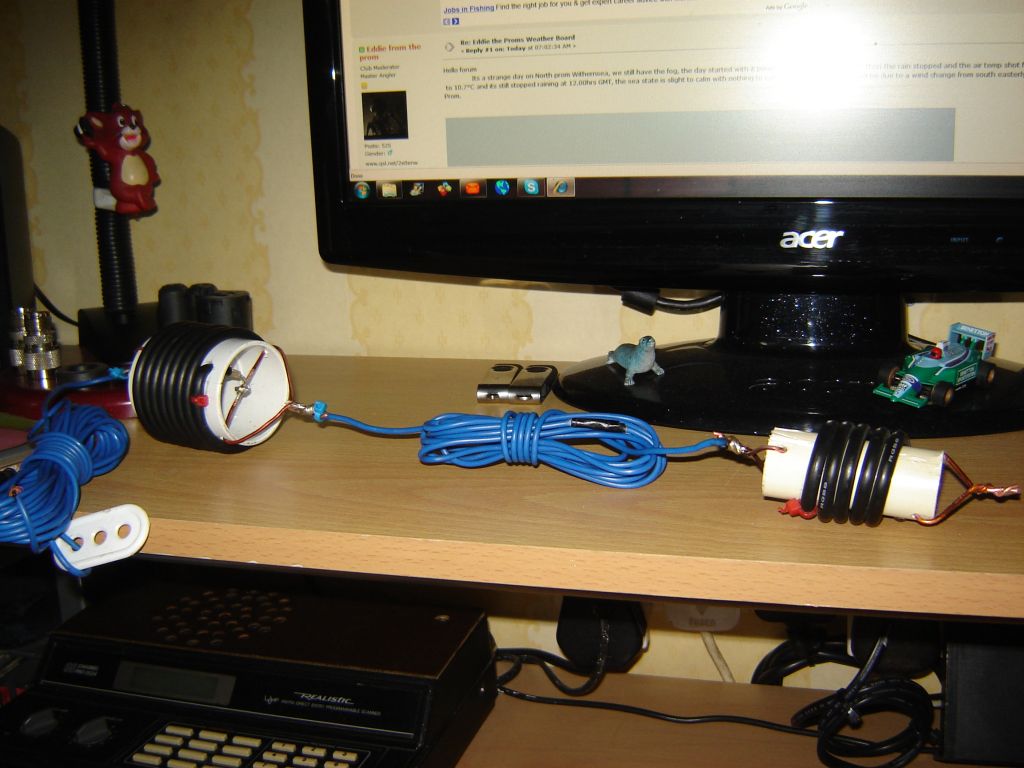

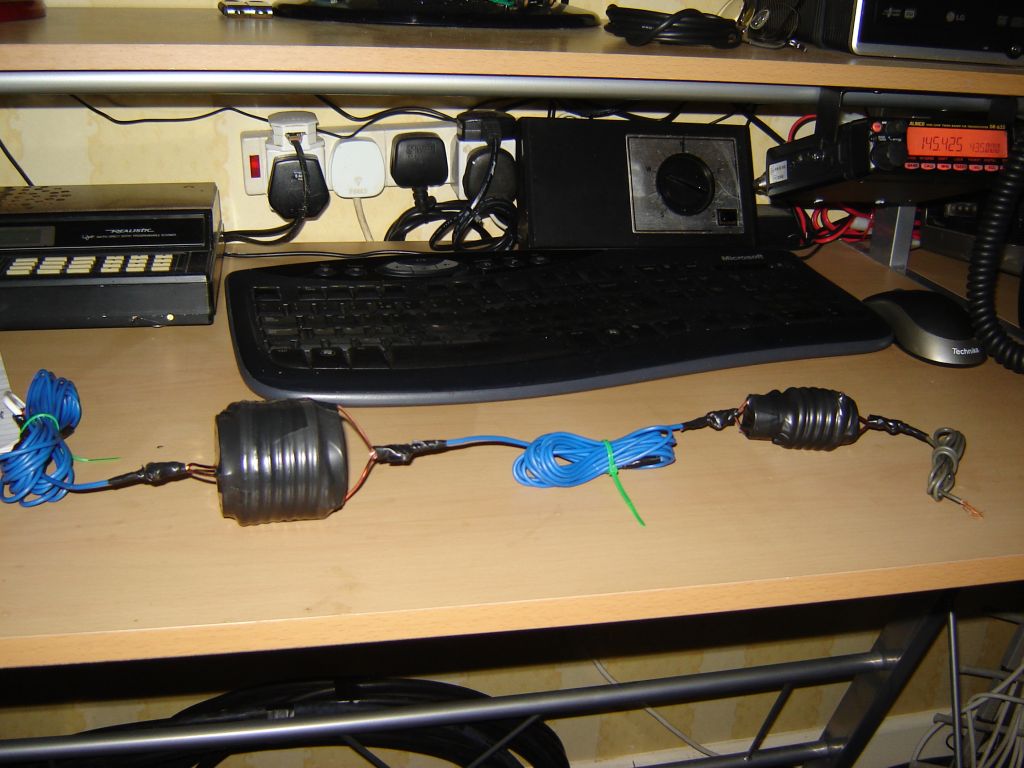

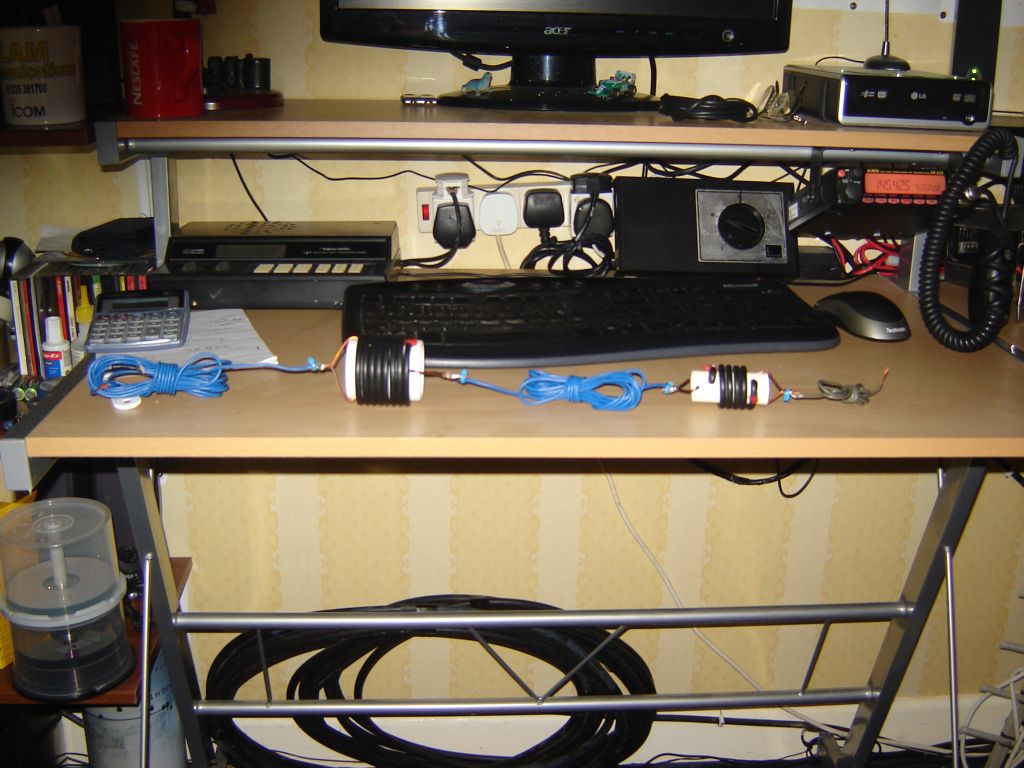

Photos 14-17 show the traps fitted on the dipole element wire.
