Nissan RE4R01A Transmission Pinouts

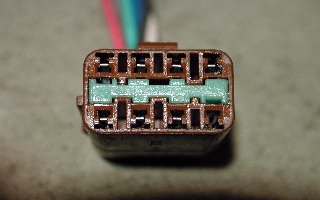

Nissan RE4R01A Socket
Nissan RE4R01A Plug

This Socket is on the Transmission Loom
and on the Tester's Computer side.

This Plug is on the Vehicle's Computer Loom
and on the Tester's Transmission side.

  1     2     3     4
  5     6     7     8
  4     3     2     1
  8     7     6     5
Pin Use Socket
Wire Colour 		Plug
Wire Colour 		1st
Gear		 2nd
Gear		 3rd
Gear		 4th
Gear
1 Solenoid "B" Yellow Green On On Off Off
2 Solenoid "A" Green Green/Black trace On Off Off On
3 Overrun Solenoid * Grey Green/Yellow trace Off
4 Pressure Solenoid + Red Green
5 Lockup Solenoid Blue Green/Red trace Off Off Off On
6 Temp Sensor White Green/White trace
7 Temp Sensor Black Yellow/Red trace
8 4WD Temp Switch
* Activates Upon Various Throttle Openings
* Note: Apply power to Overrun Solenoid (To be Off)
+ Pulse Modulation Controlled By Computer
