Power amplifiers for "lazy builders"



New!

Simple HF design philosophy on VHF bands!

You hate complicated machine work? Strip lines and other specifically VHF/UHF "stupidities" drive you crazy? You don't have PTFE sheet? You want to build VHF/UHF power amplifier but you are too lazy to deal with complicated mechanical works? You don't like to read text given in article together with schematic and layout diagrams? You are very good and experienced PA builder, although others don't think so? If amplifier works, credit goes to you, if don't, blame goes to others? You don't want to waste your talents on ordinary PA designs? If it is so, you are on the right place, and these designs are "your cup of tea"!



Important notes:

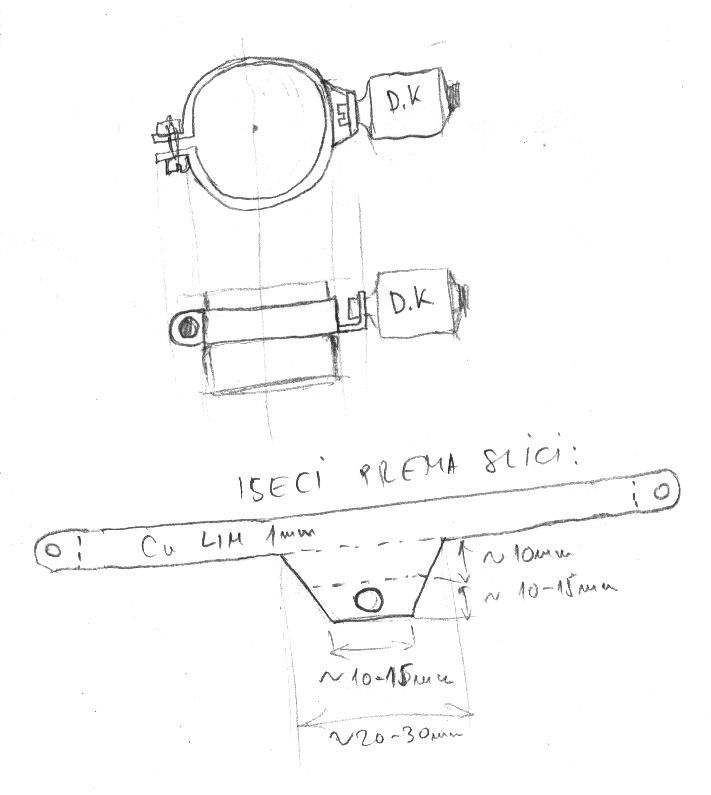

All connections between RF parts, and also connections to ground MUST BE as short as possible! This is VHF, not HF, in spite that designs may looks like HF! Hi! See mechanical layout of PA designs below!

If input circuit trimmers, need to be at maximum or minimum capacity during adjusting, it is necessary to change the length of the cable between the exciter and the amplifier itself. The optimal length of the cable should be determined experimentally to obtain adjustment with approximately the calculated values of capacitances. This experimentally determined cable should always be used when operating the amplifier. A change of exciter could occasionally require a new length of cable to be determined.



New! Not yet published in magazines



50+70 MHz

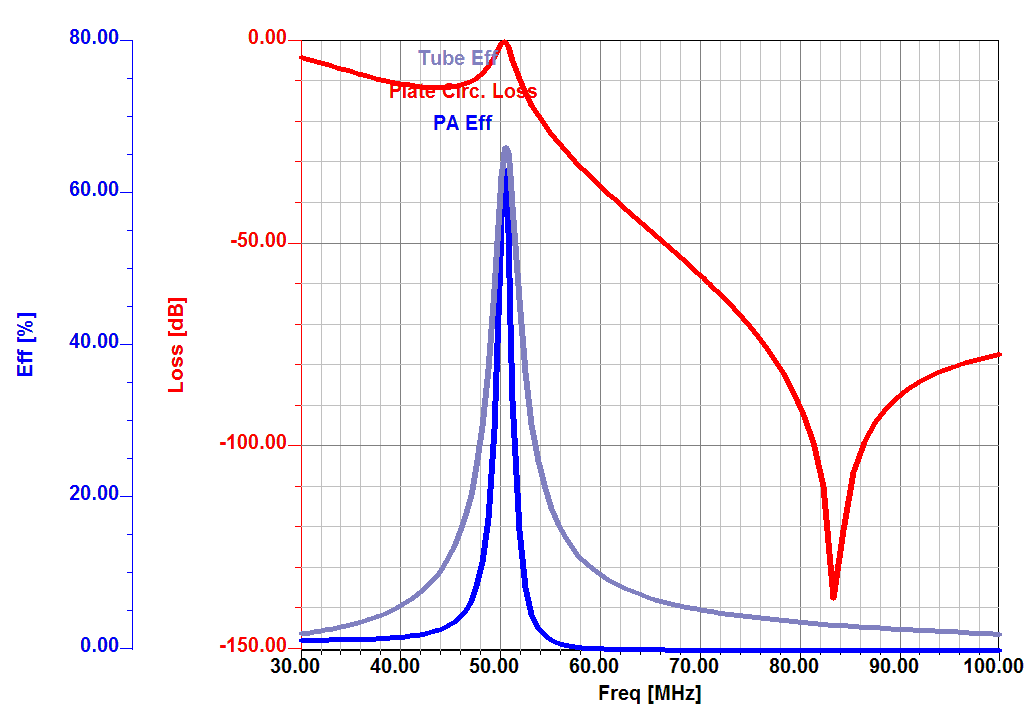

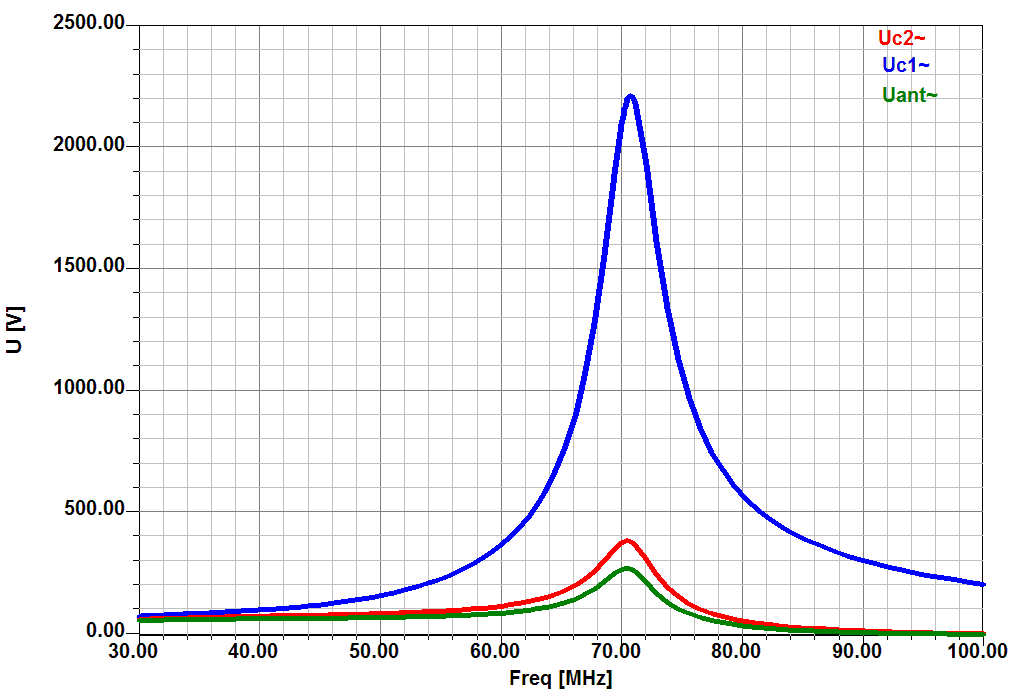

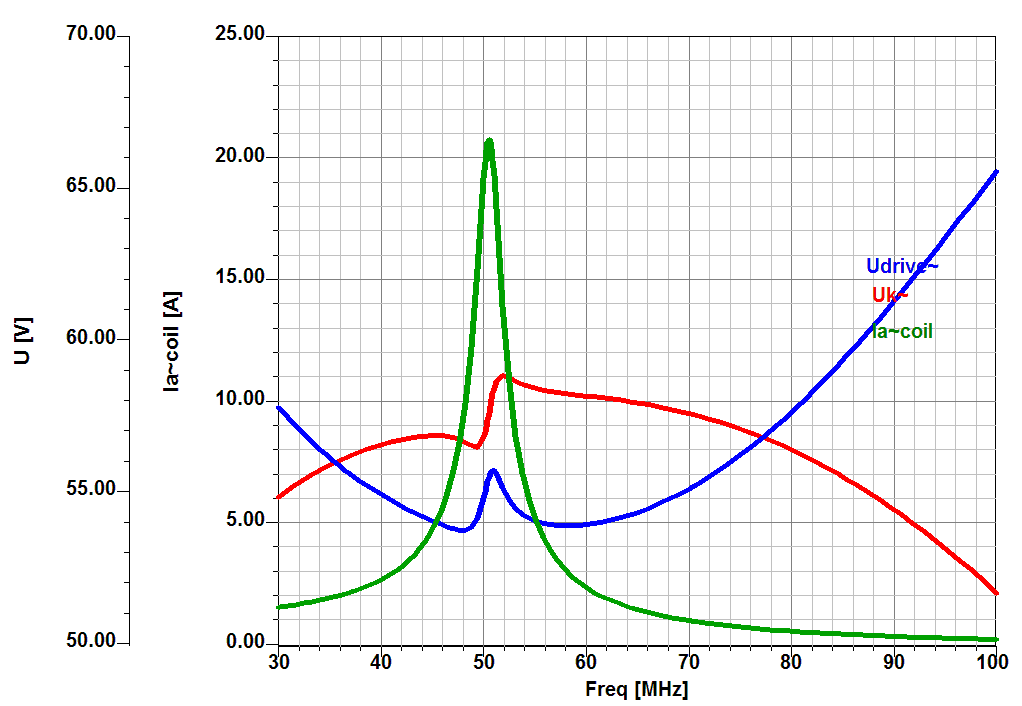

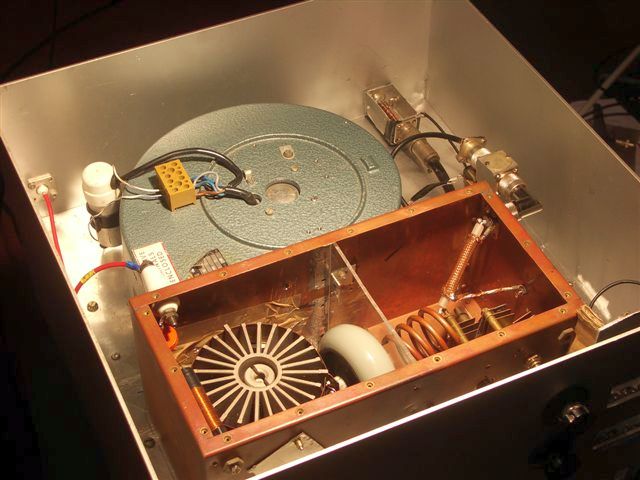

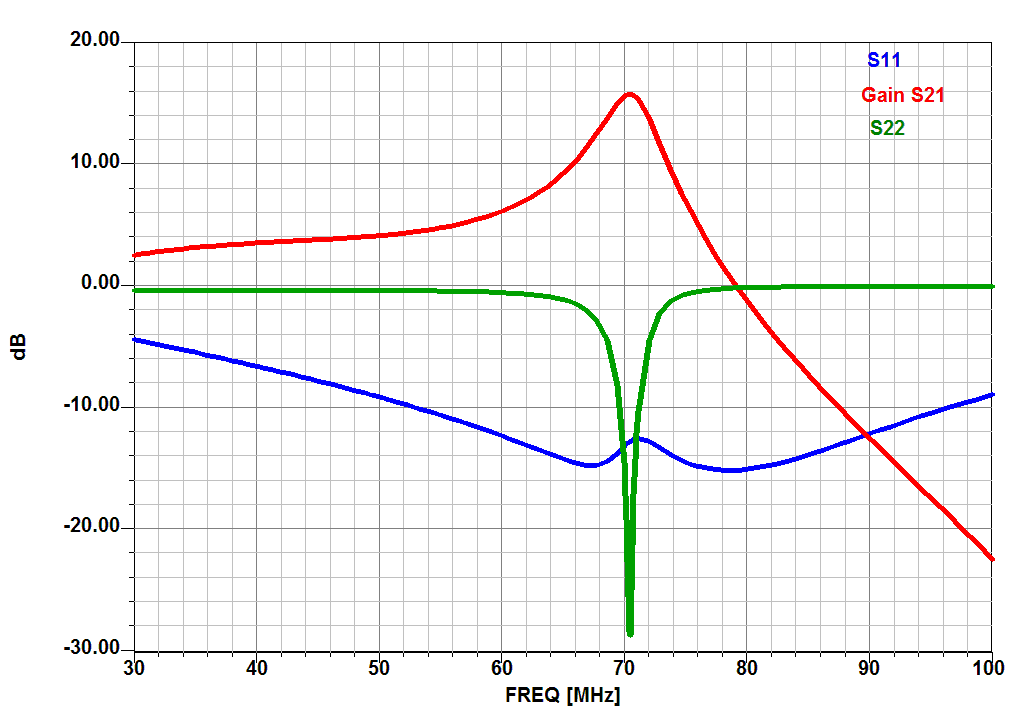

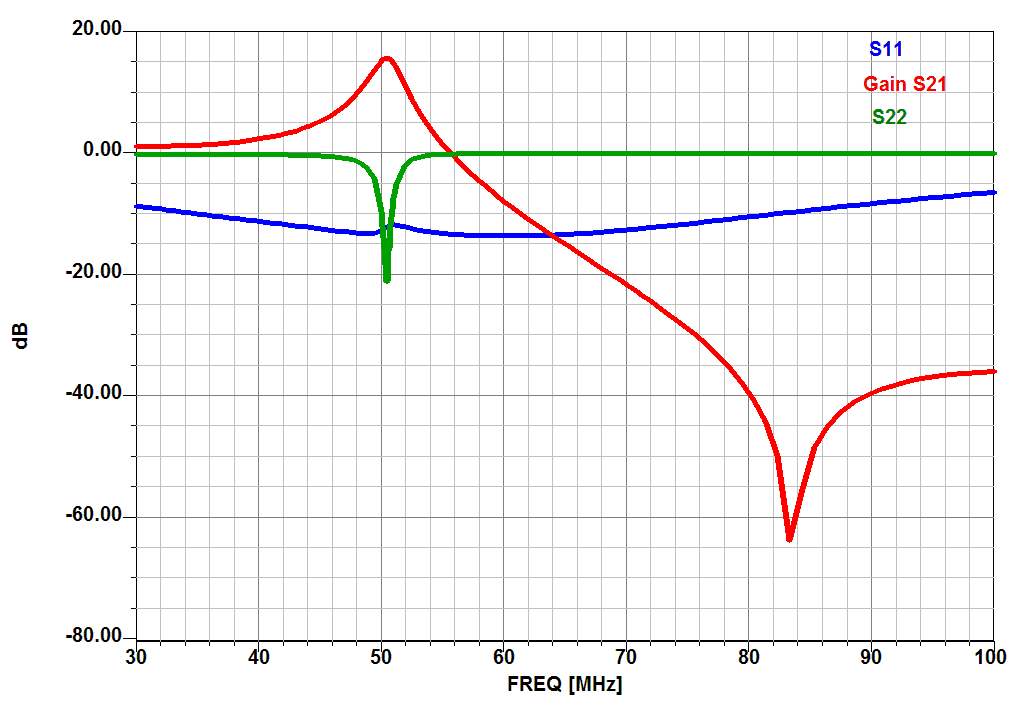

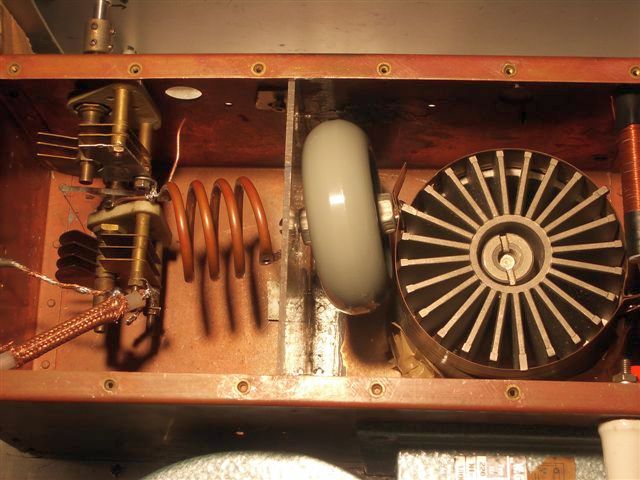

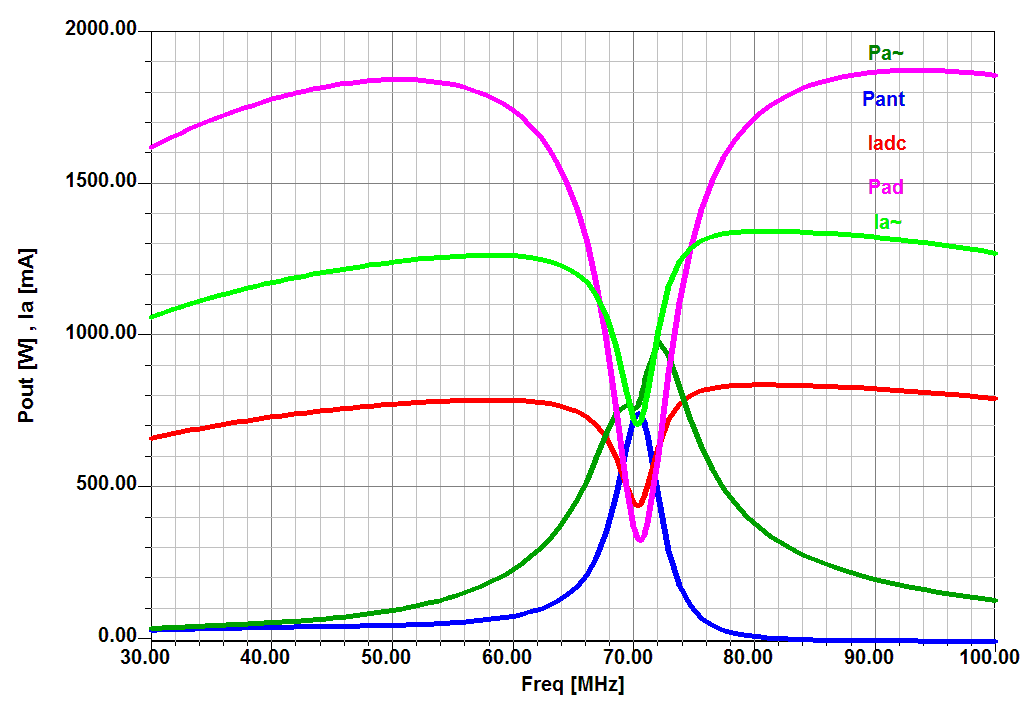

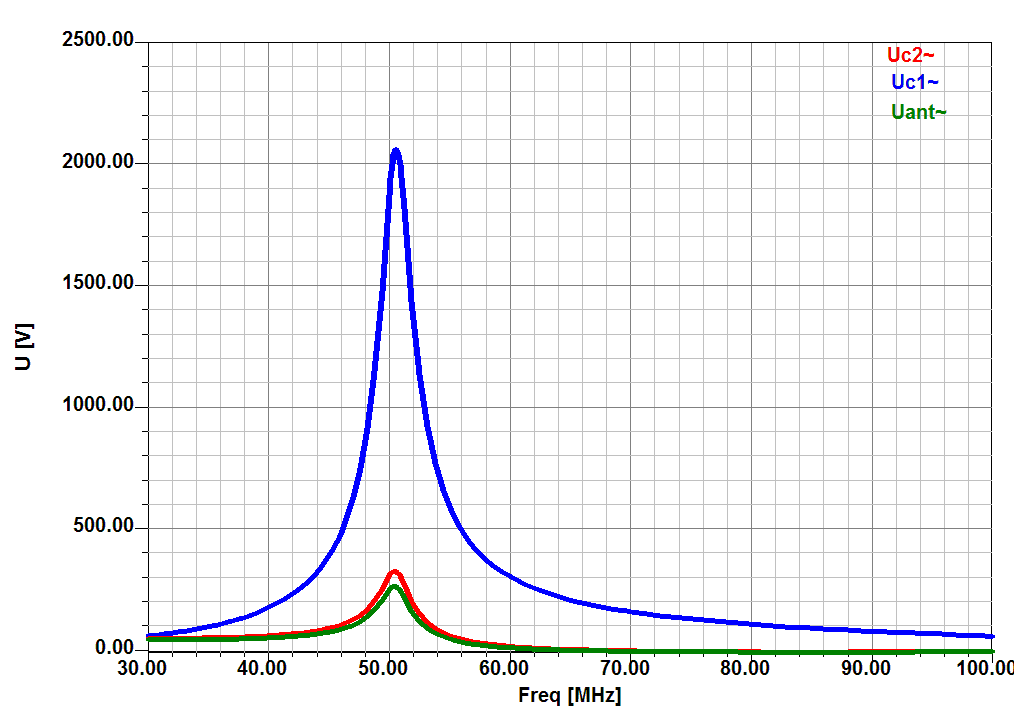

1xGI7B or 1xGI46B 6m+4m Lazy Builders Duobander PA       New!

6m

4m

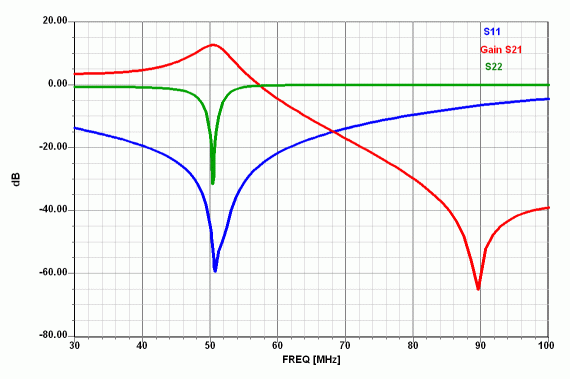

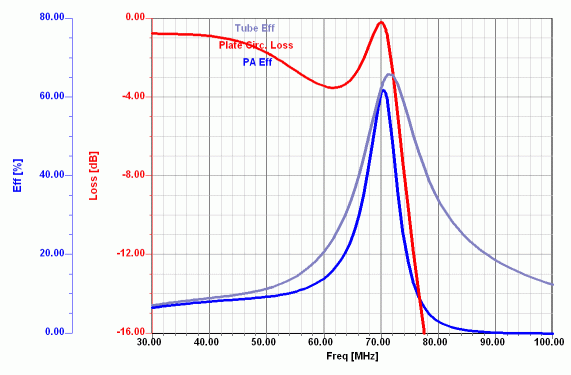

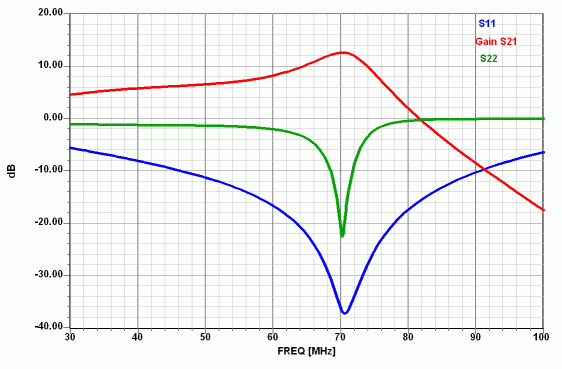

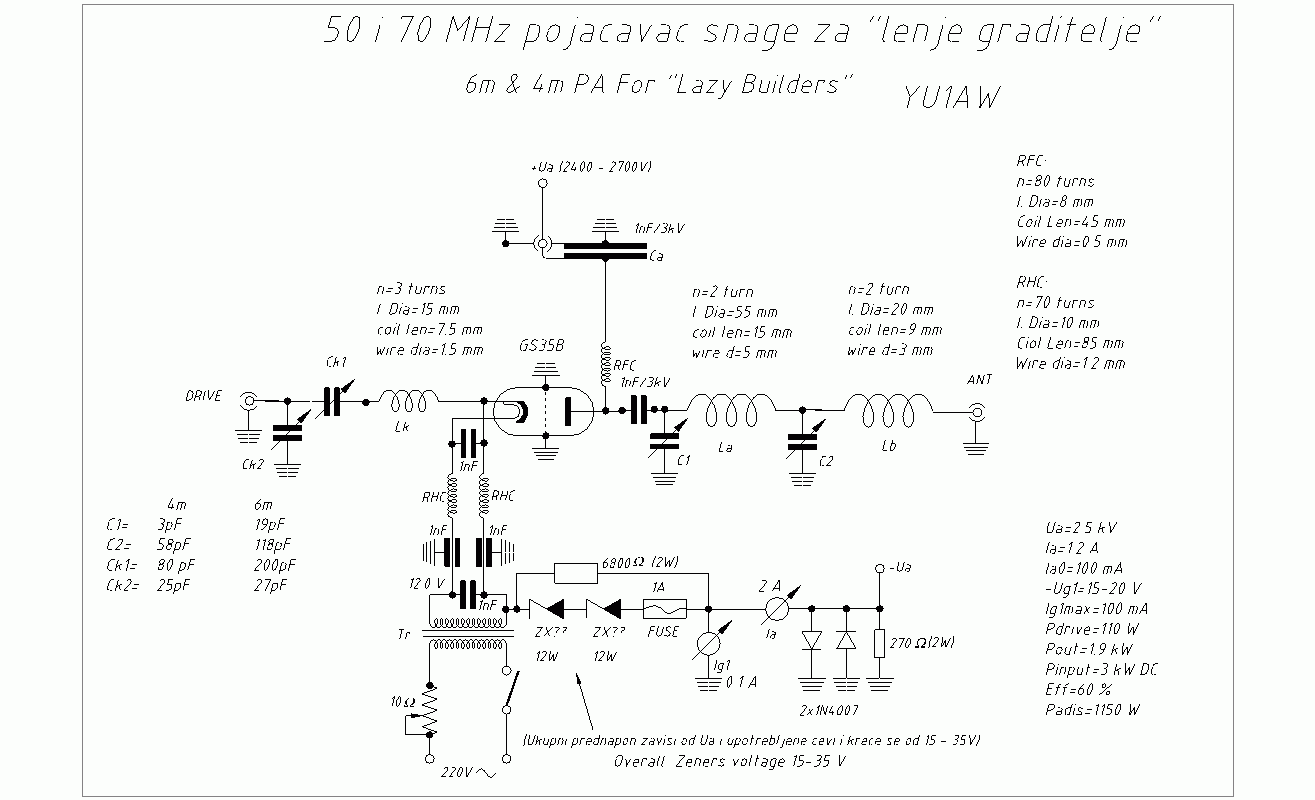

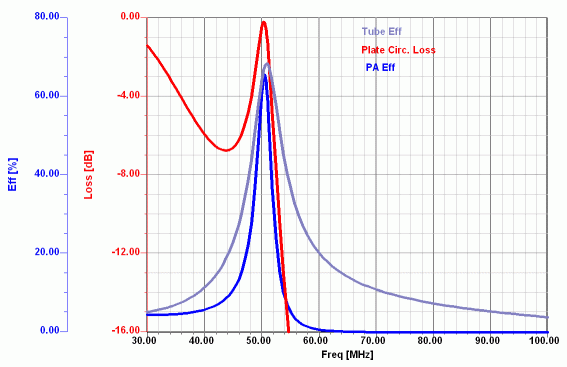

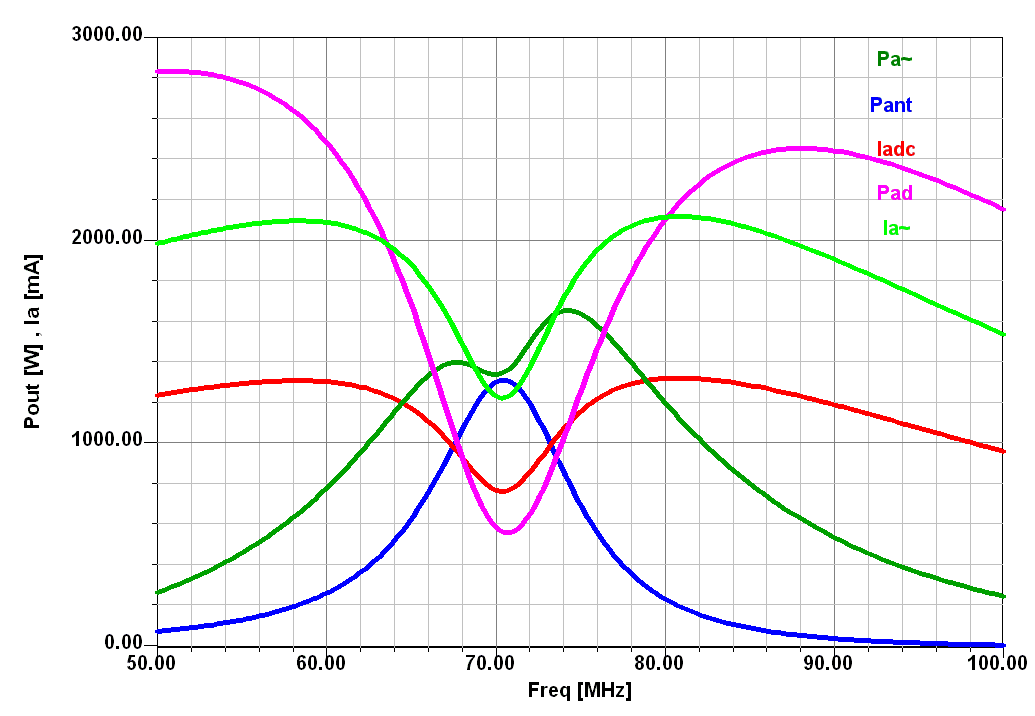

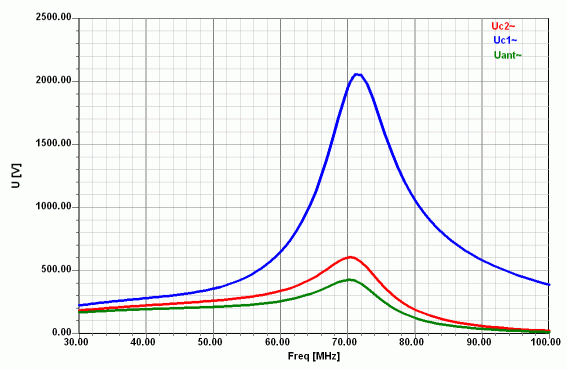

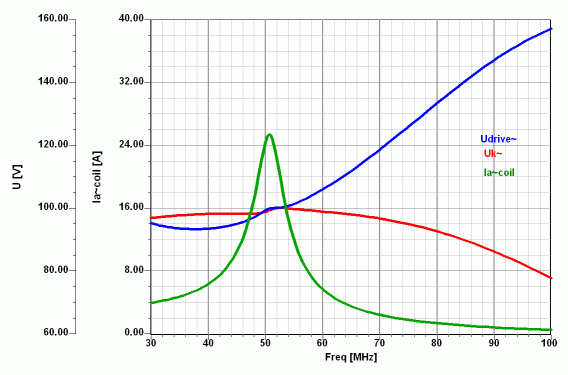

1xGS35B 6m+4m Lazy Builders Duobander PA       New!



6 m

4 m








144 MHz

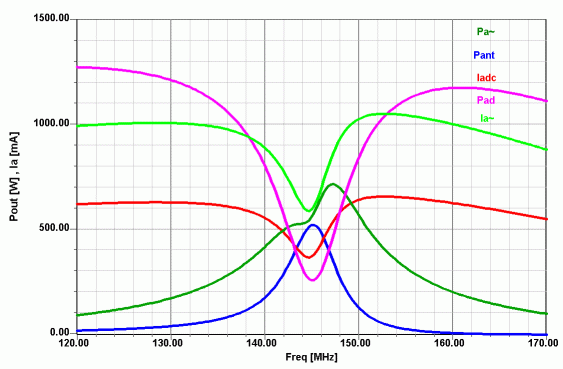

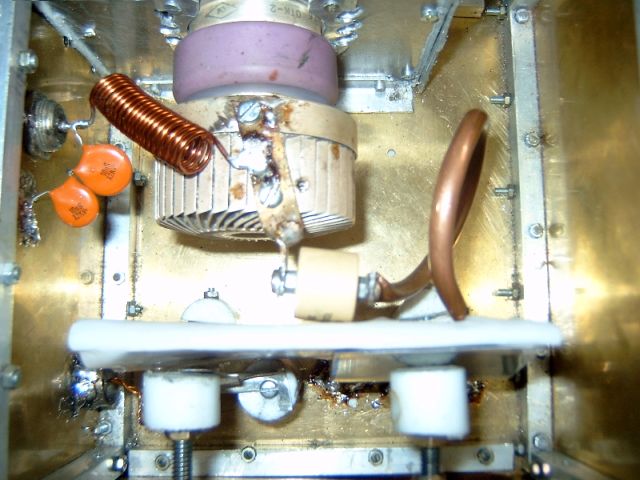

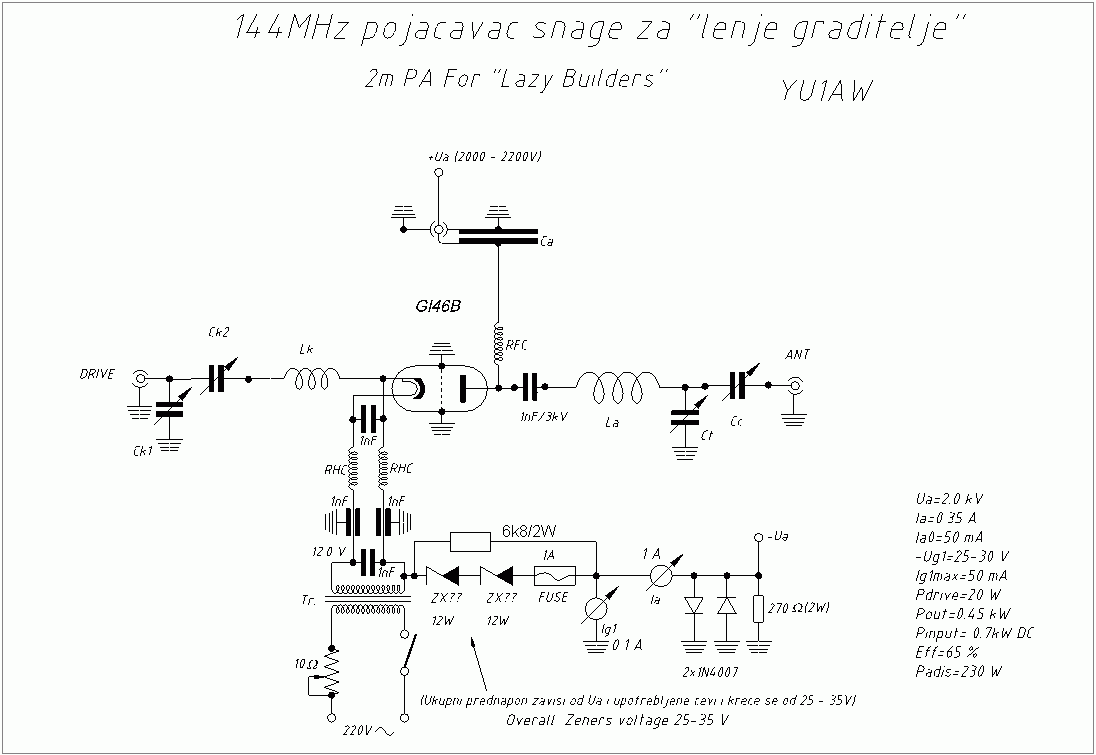

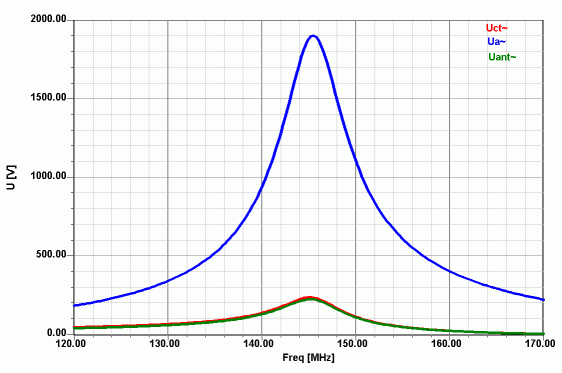

1xGI46B 2m Lazy Builders PA      Data         New

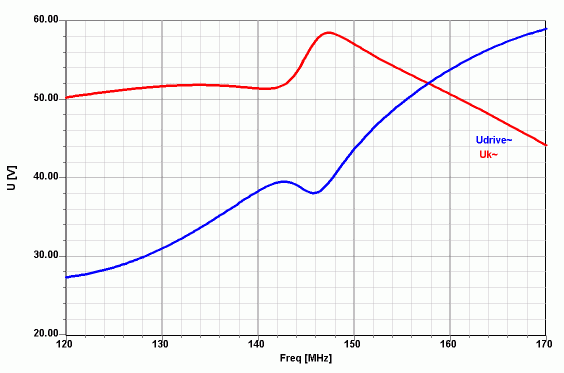

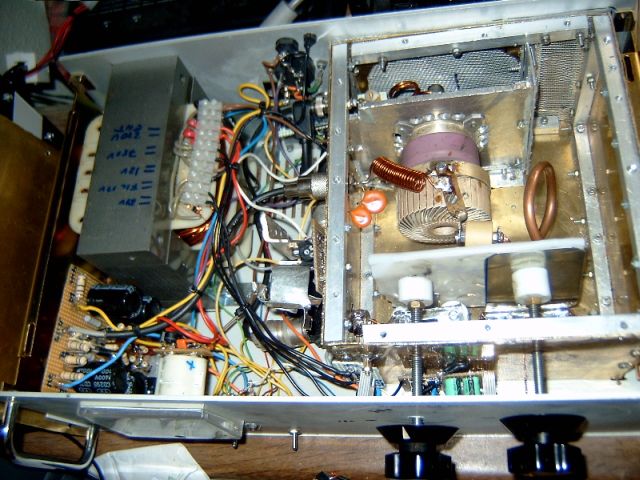

Built by Uge, EA7HG

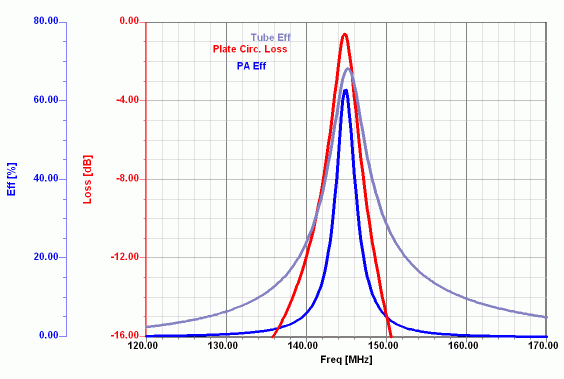

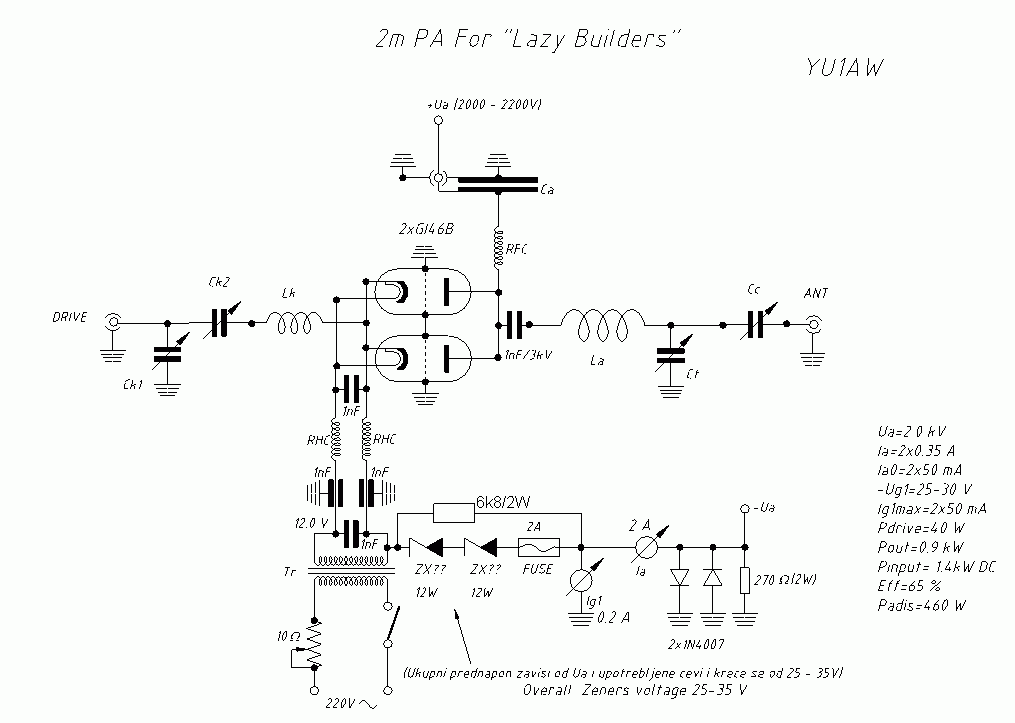

2xGI46B 2m Lazy Builders PA      Data         New

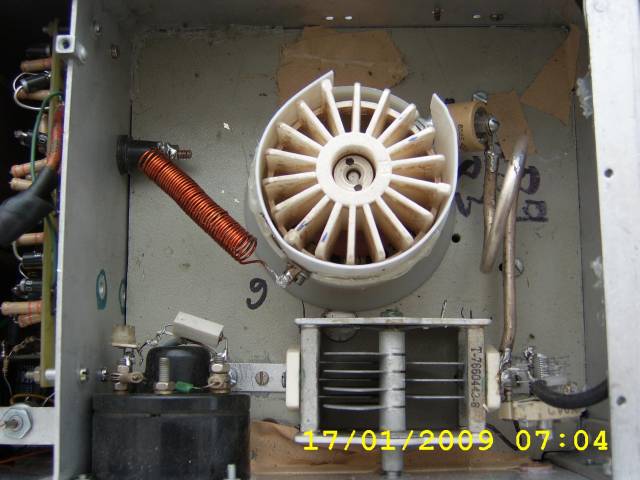

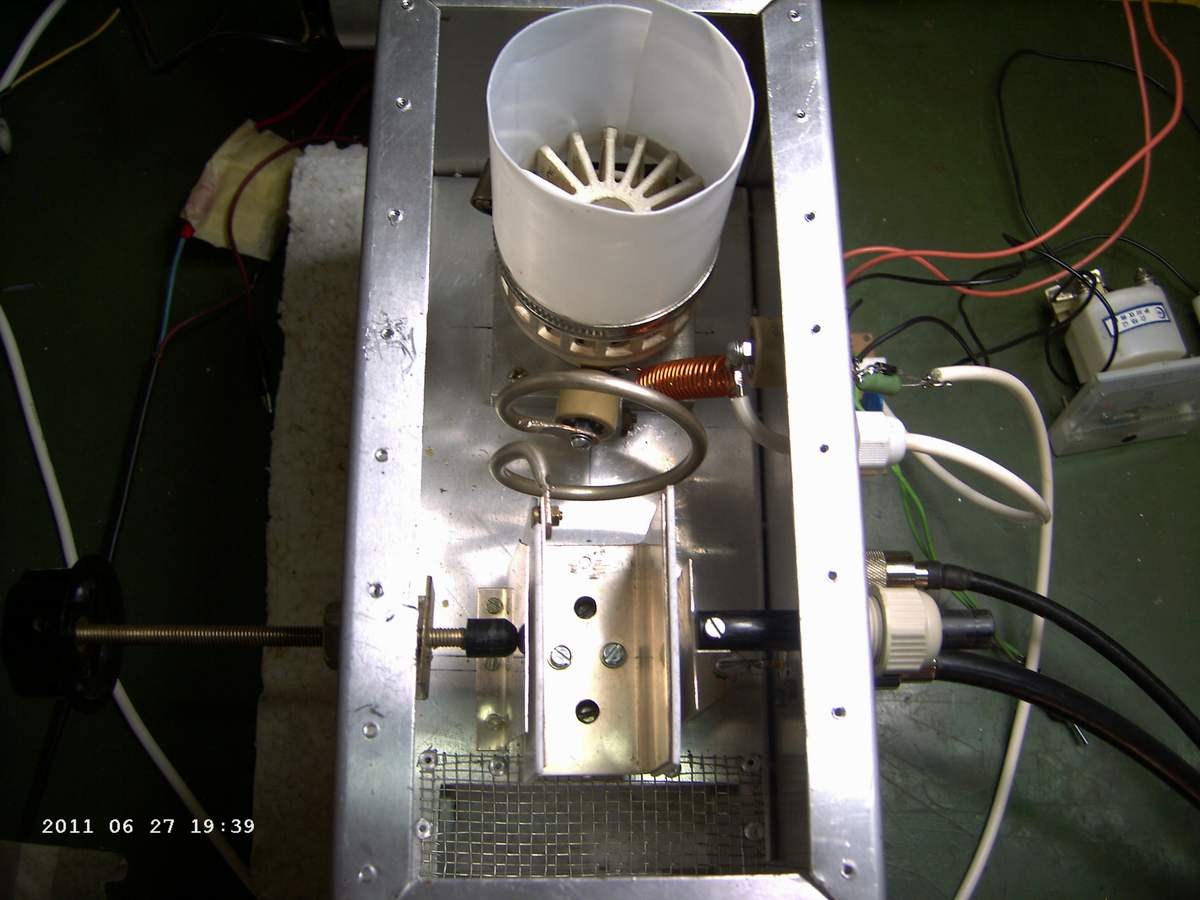

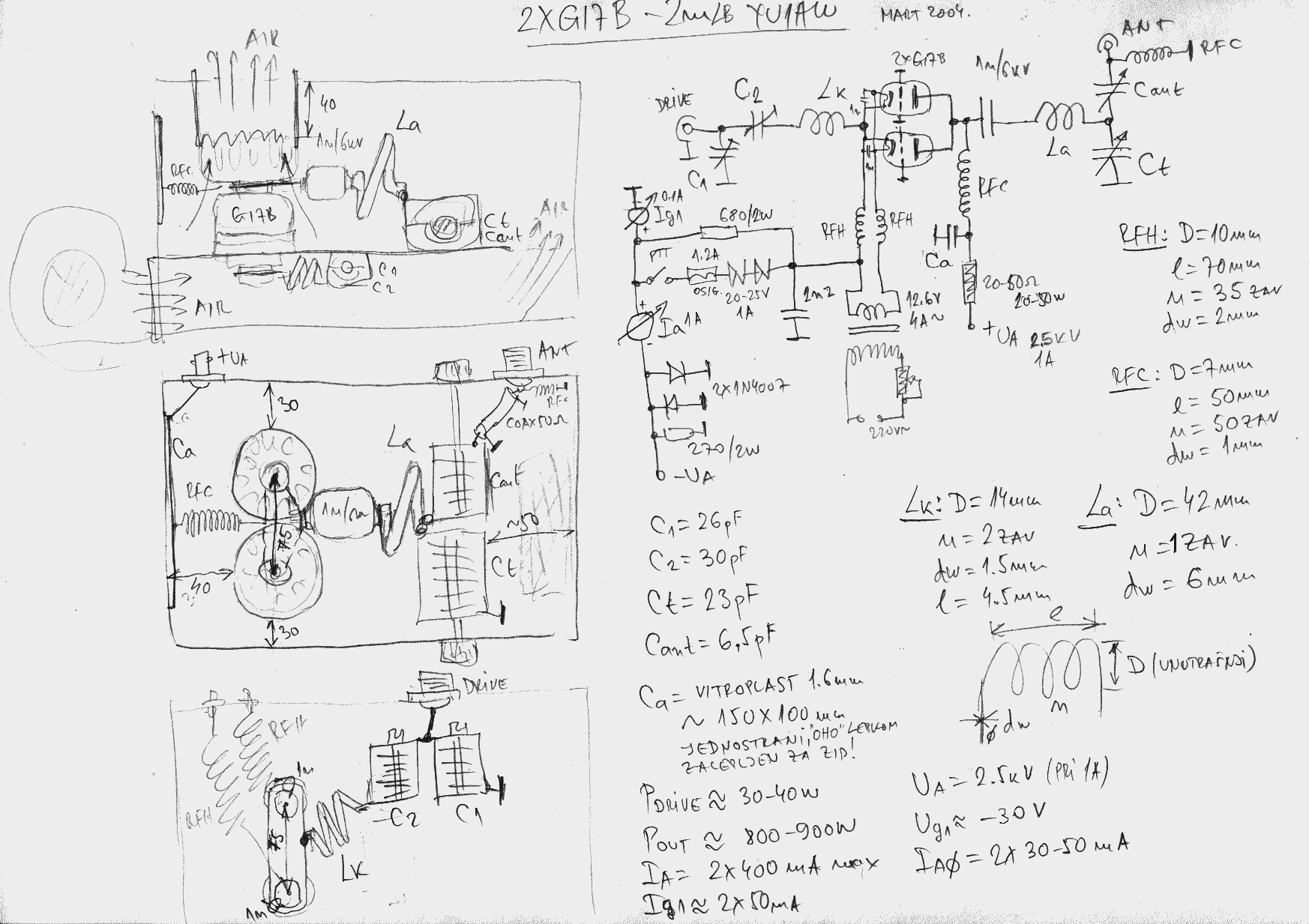

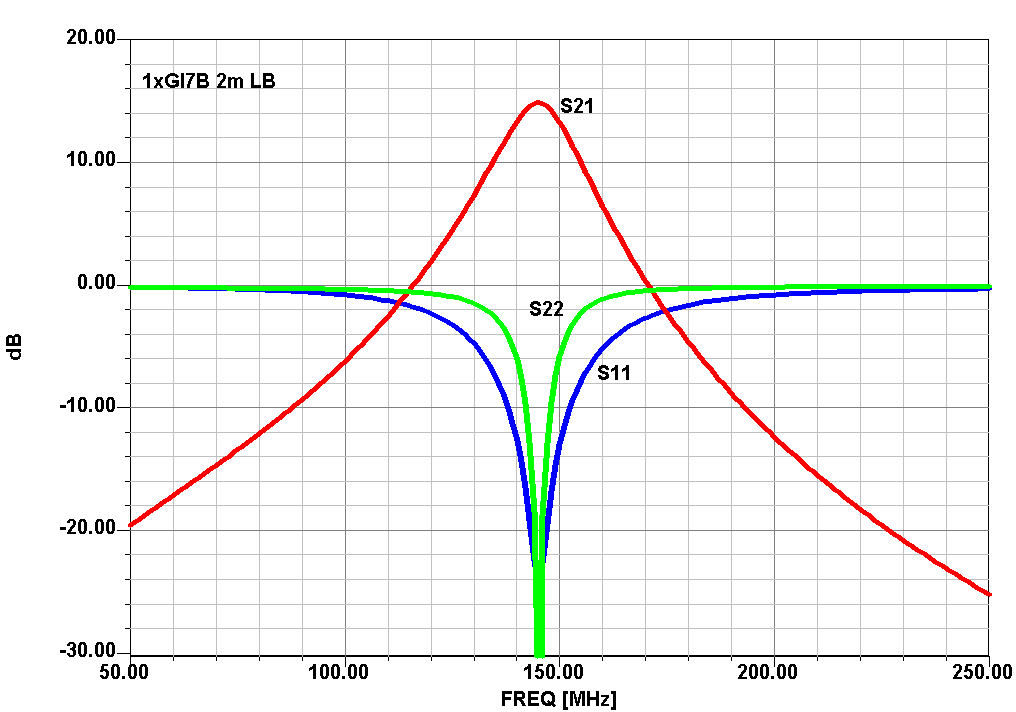

1xGI7B 2m Lazy Builders PA             1    2    3

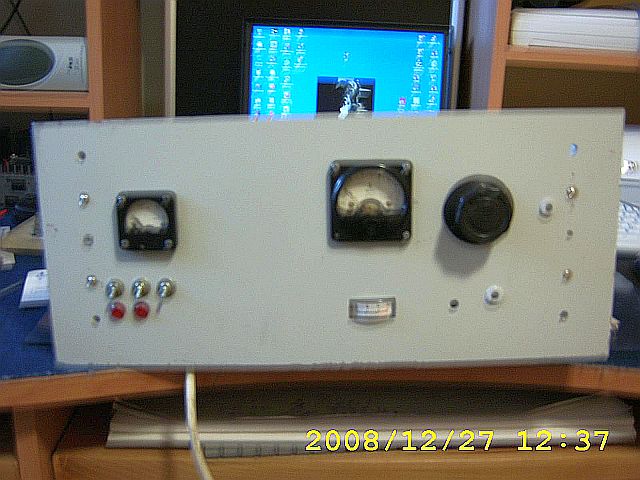

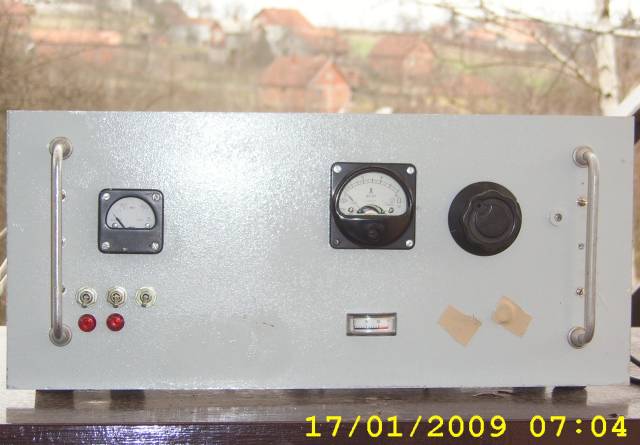

Built by Ratko, YU1NR



Built by Tony, CT1FUU

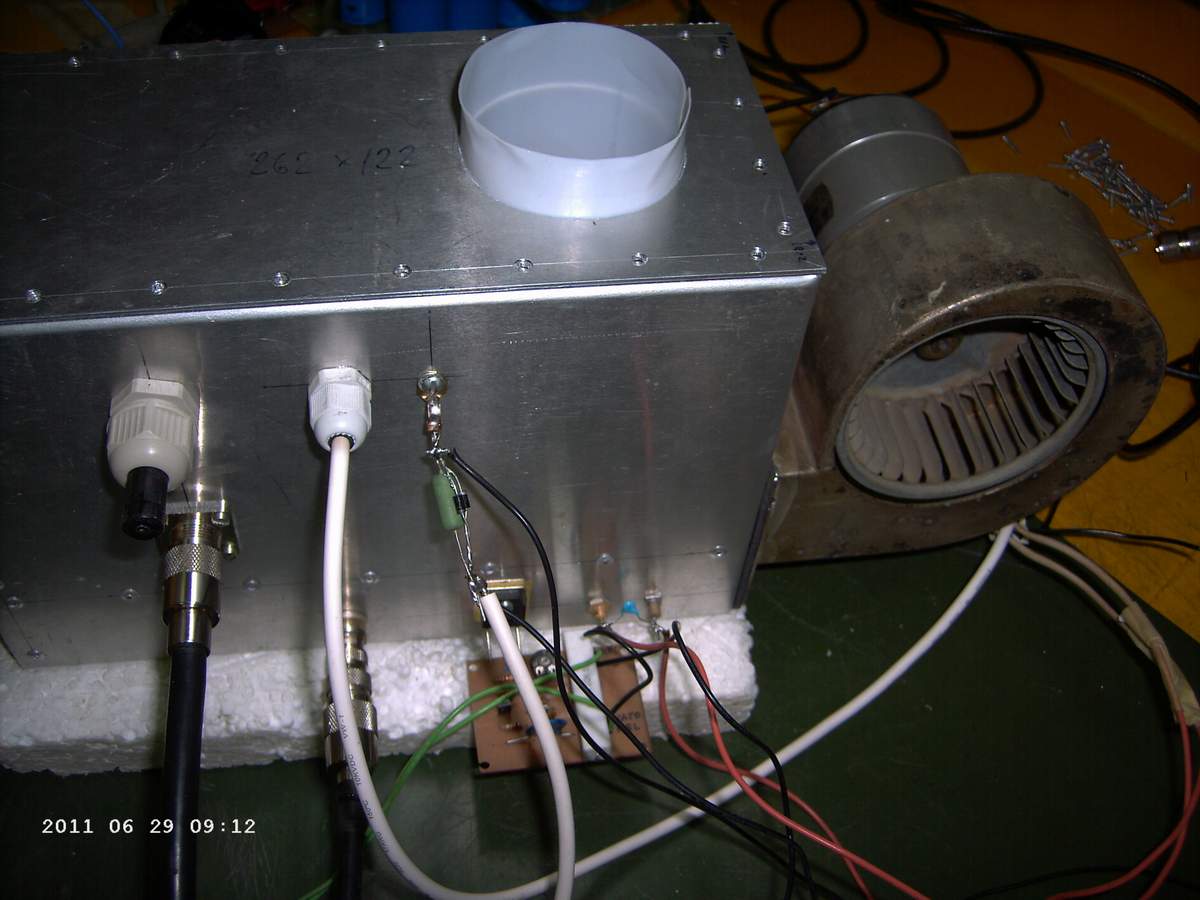

Built by: Ljubiša, E73LM

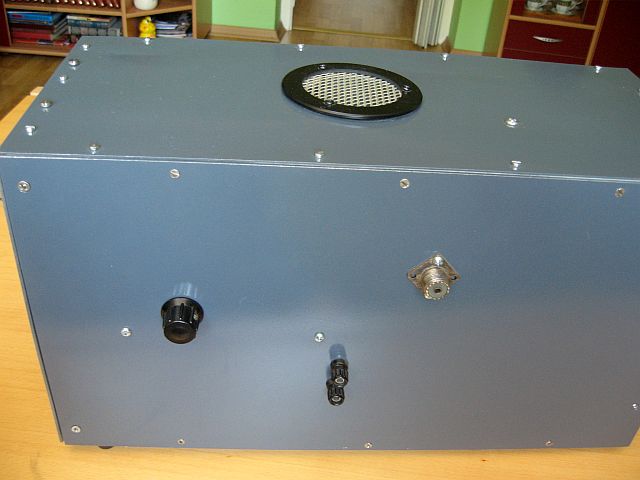

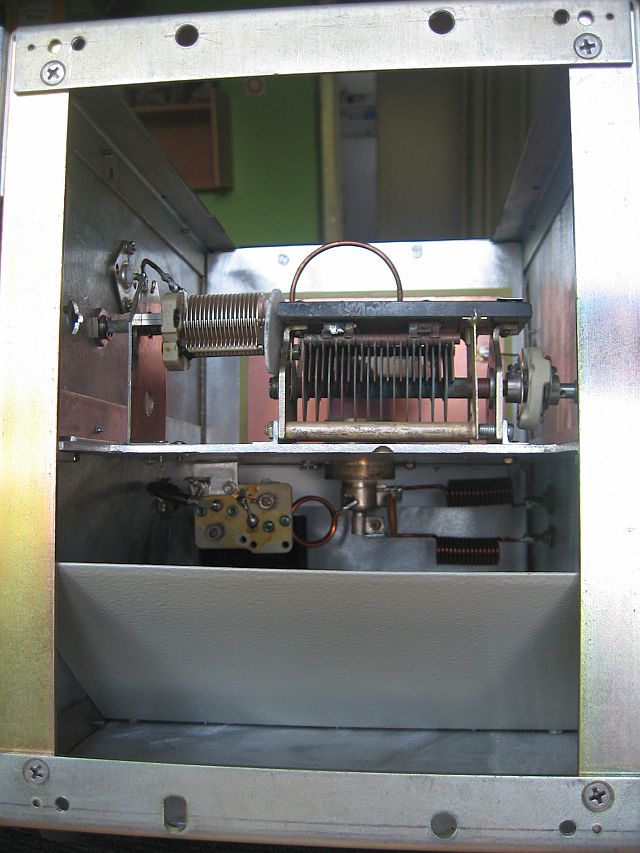

Built by: Zoran, YT5VA

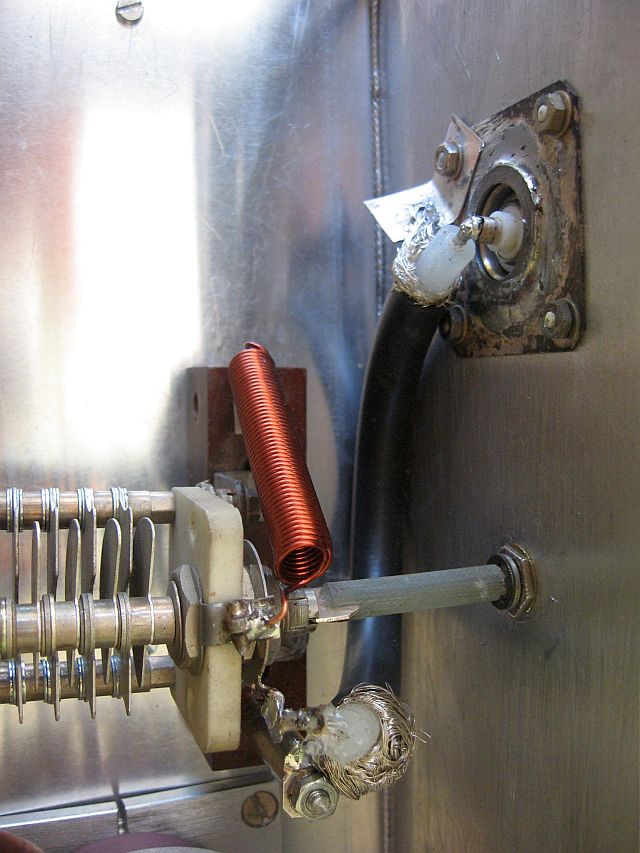

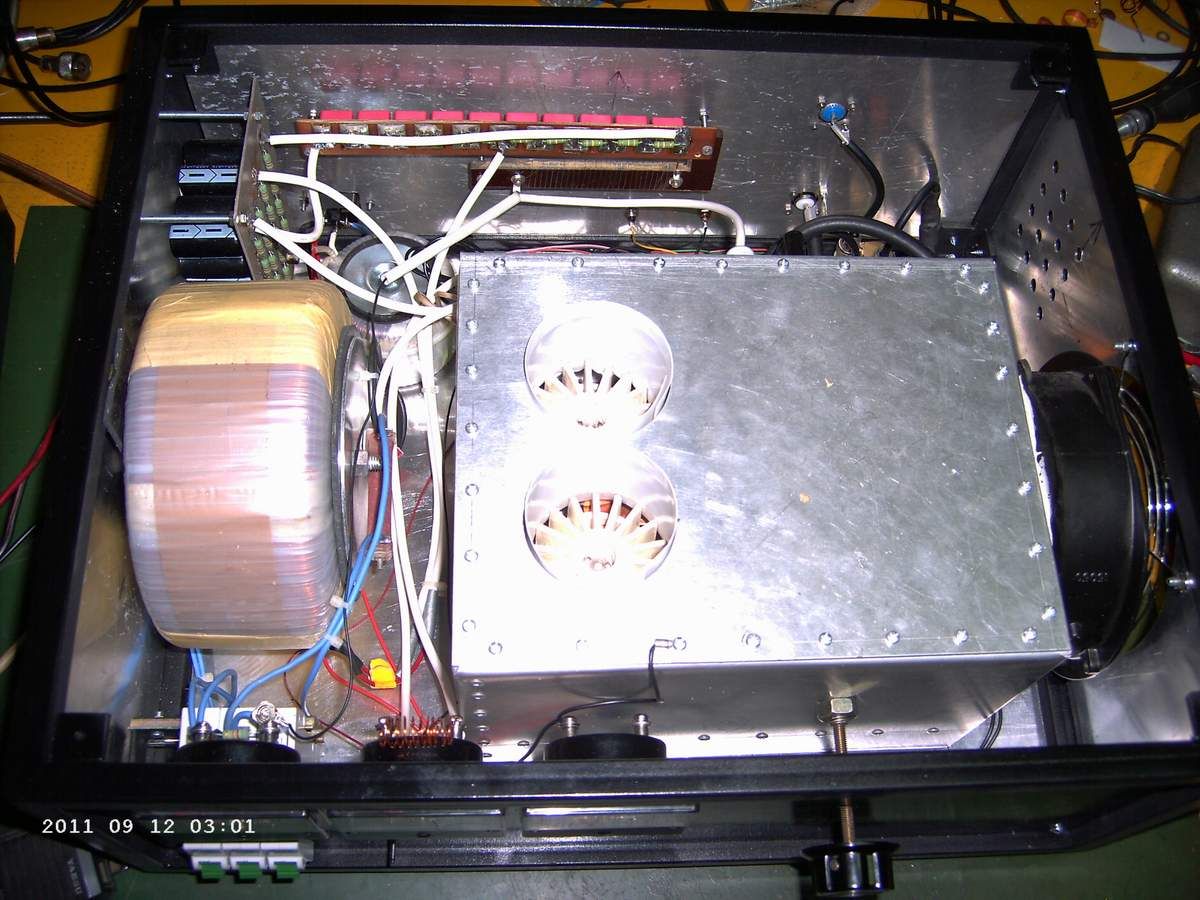

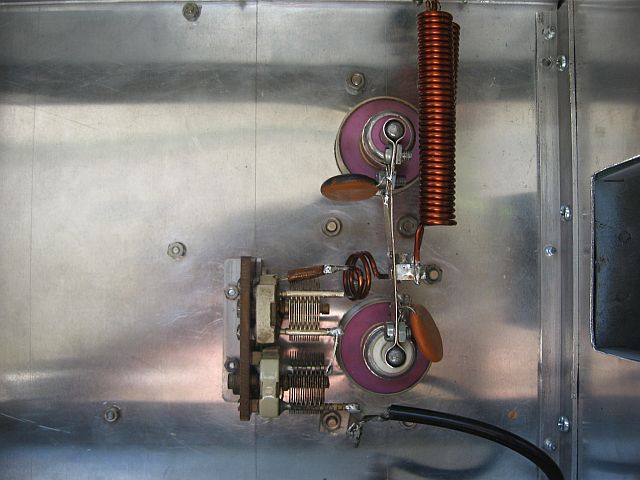

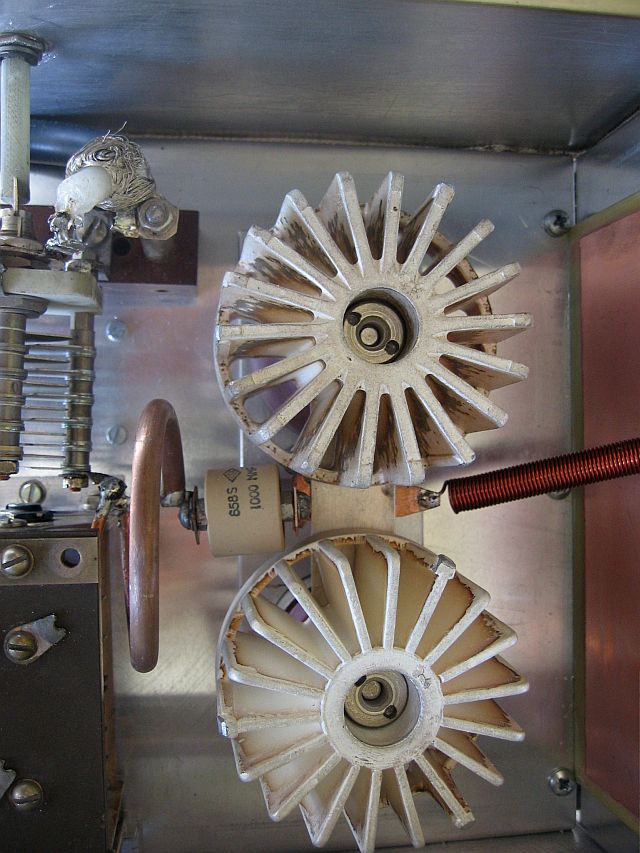

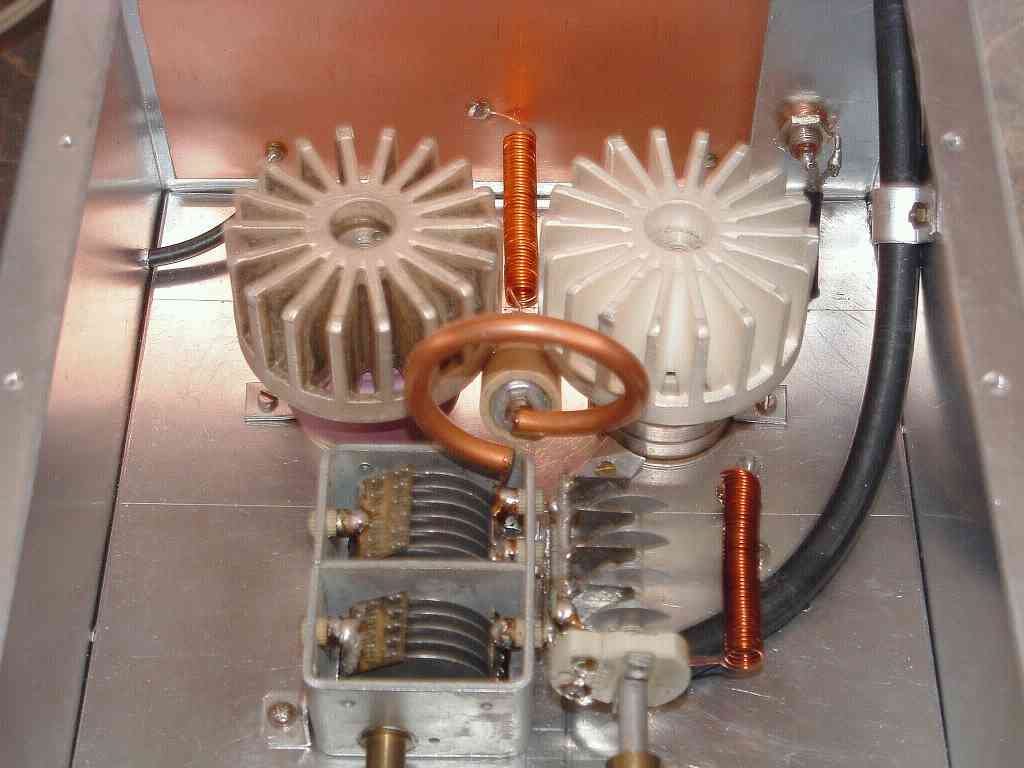

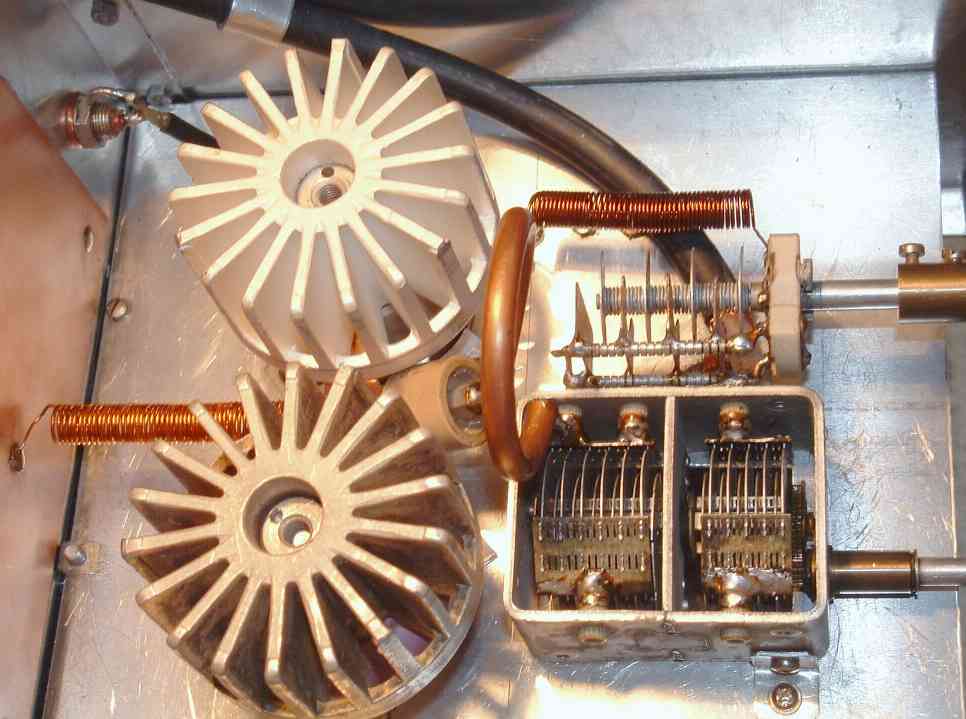

2xGI7B 2m Lazy Builders PA             1    2    3





Built by Saša, YU1EO

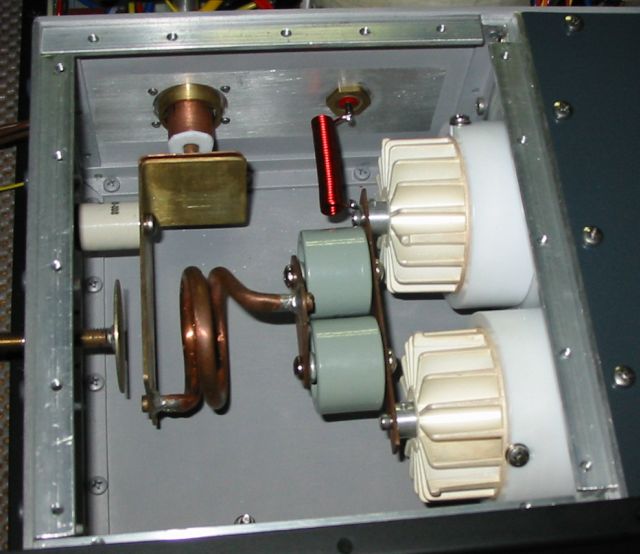

Built by Glenn VK4BG

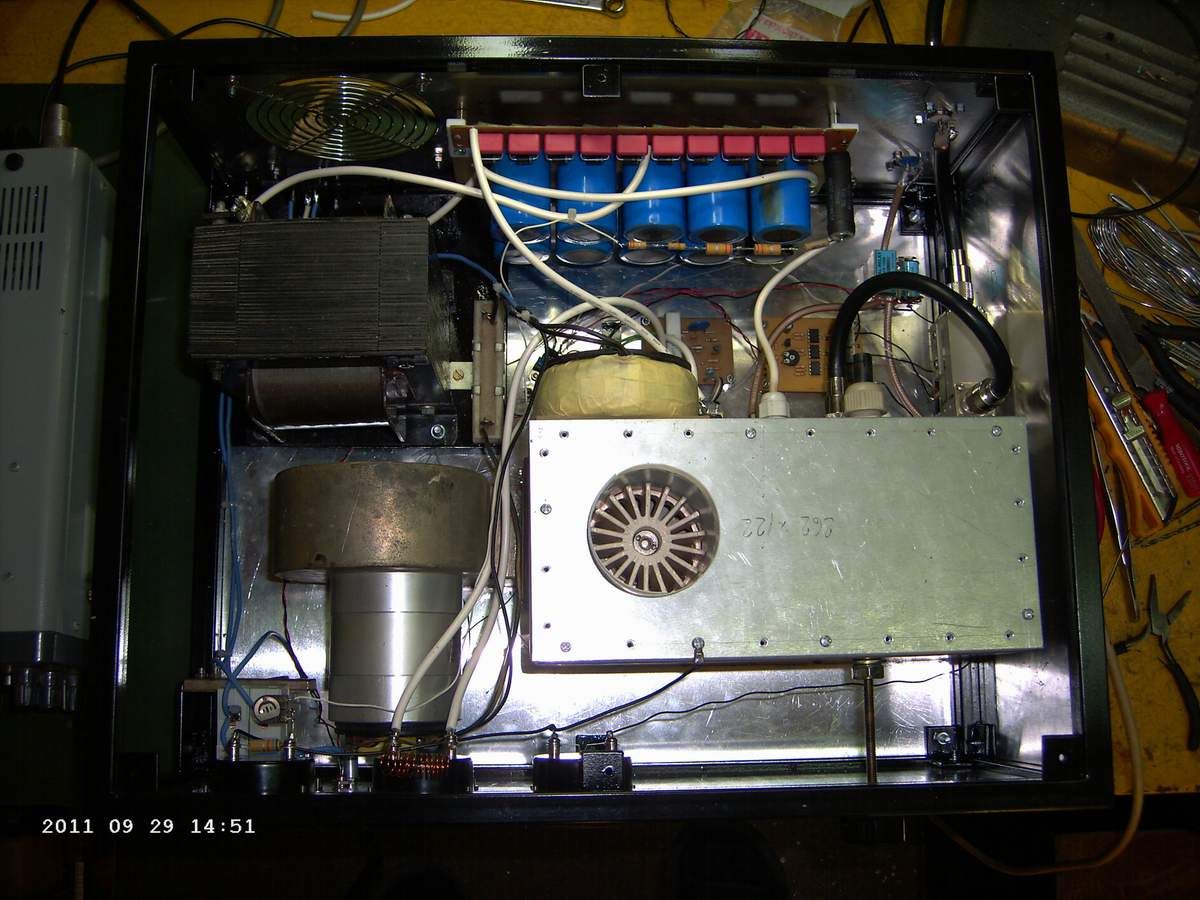

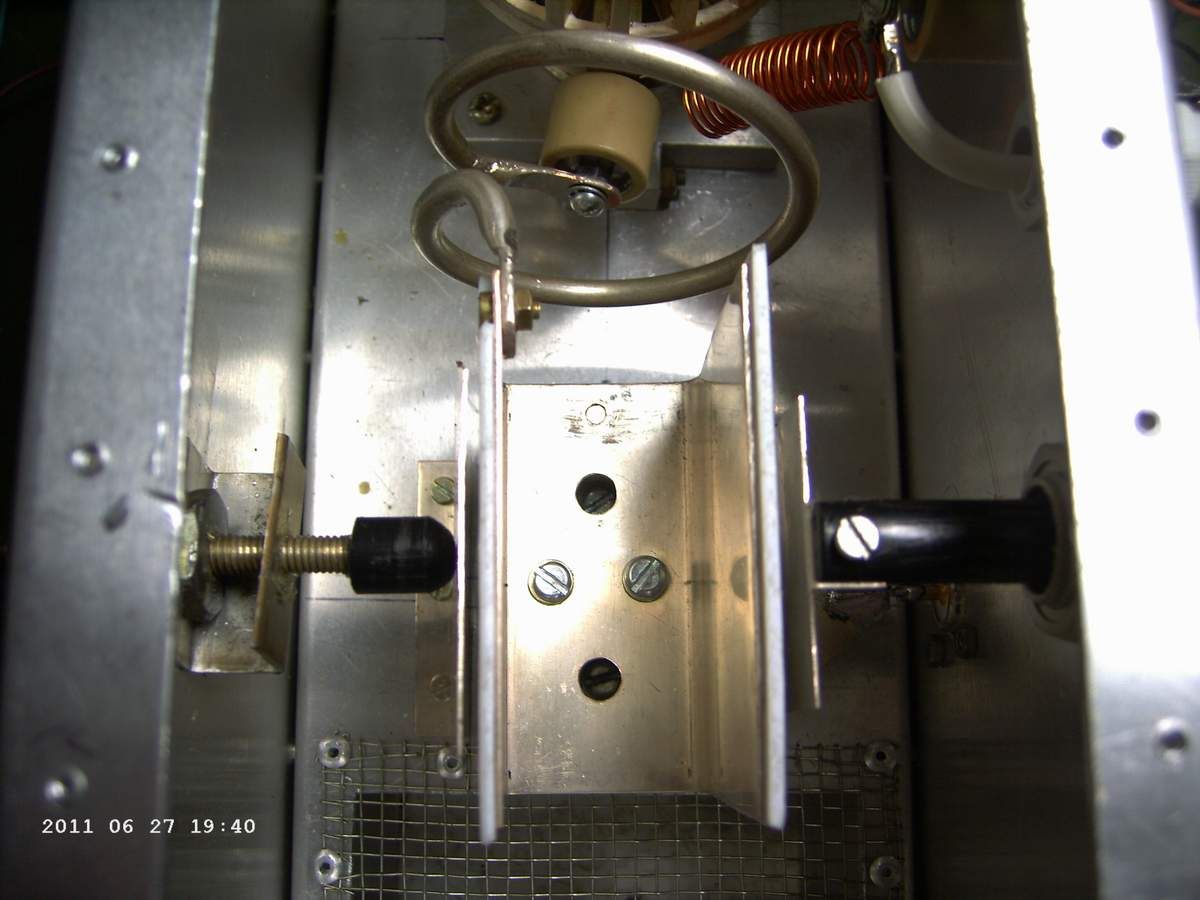

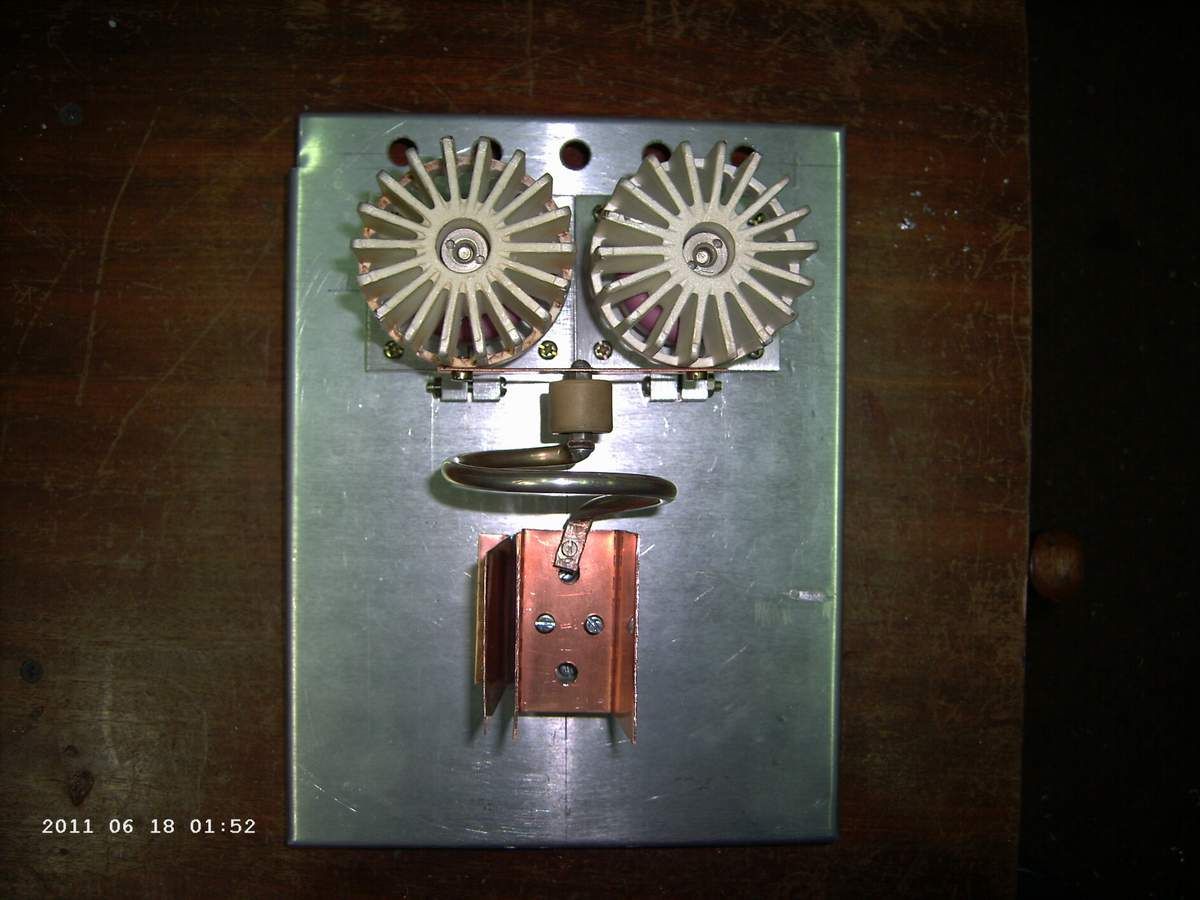

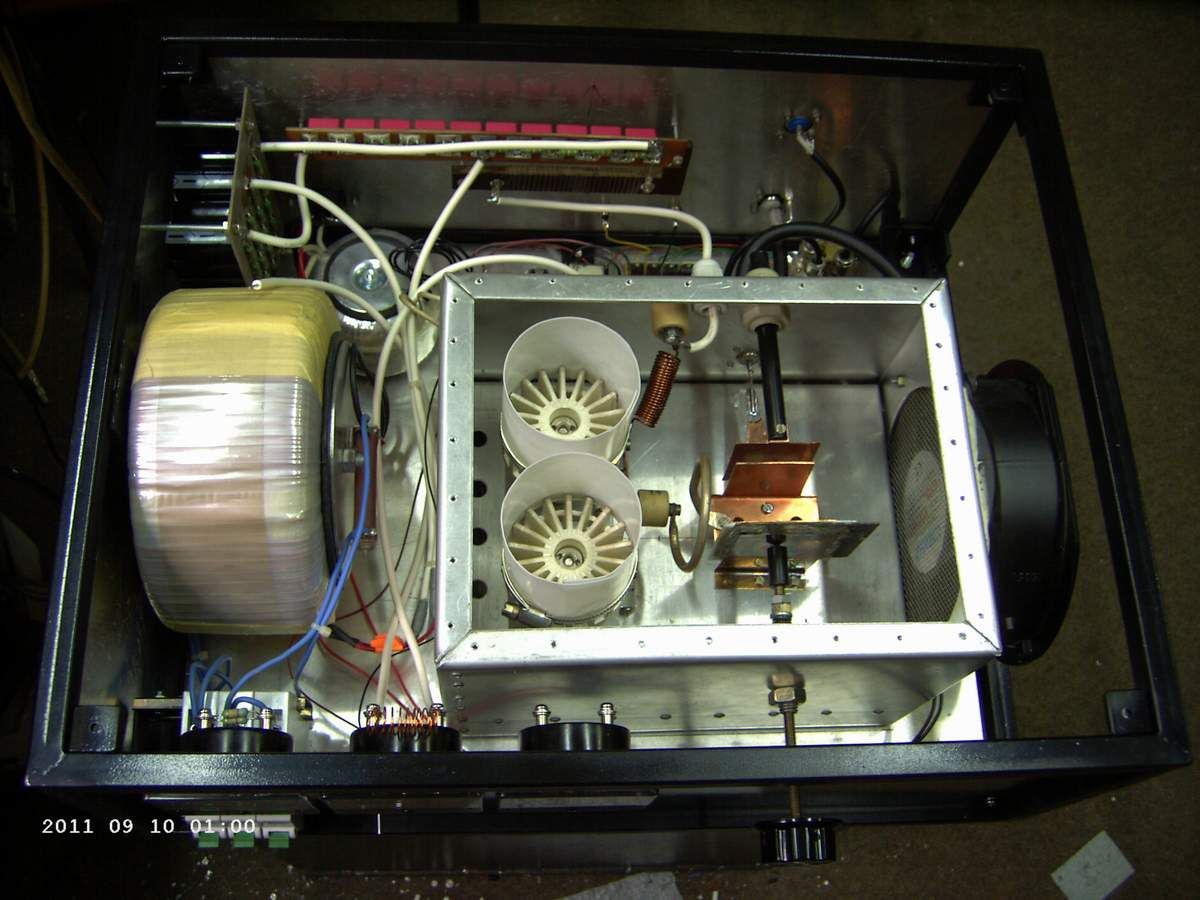

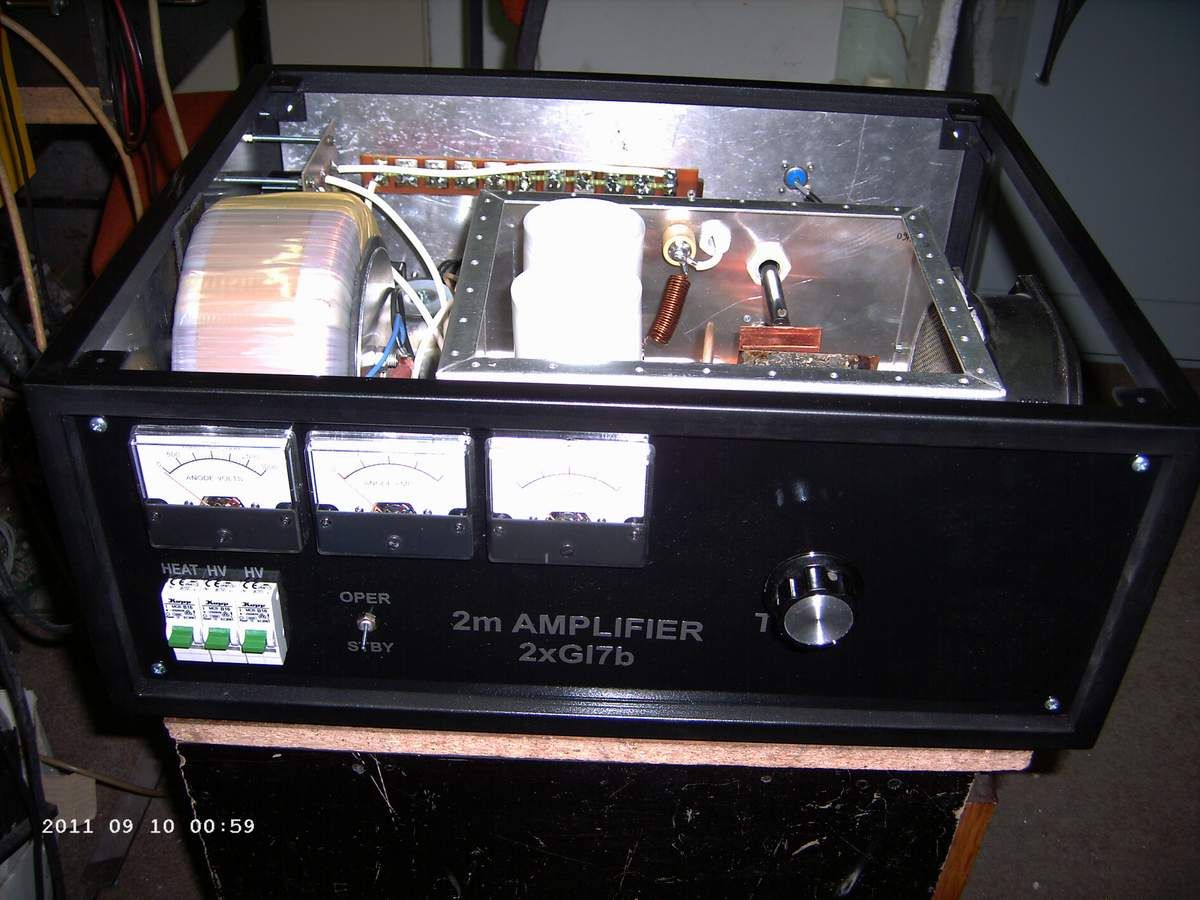

Built by Ljubiša, E73LM

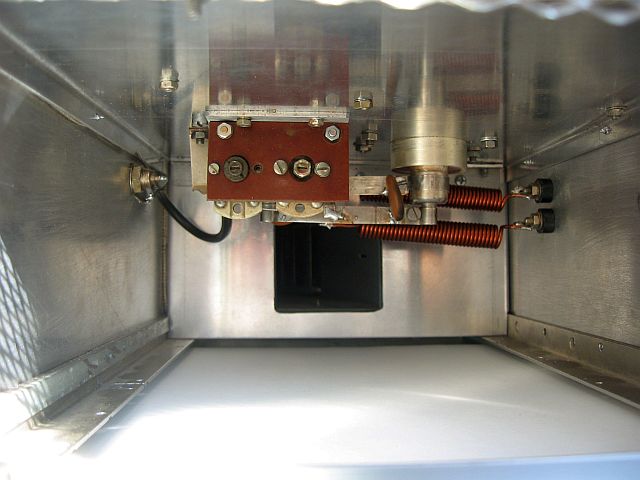

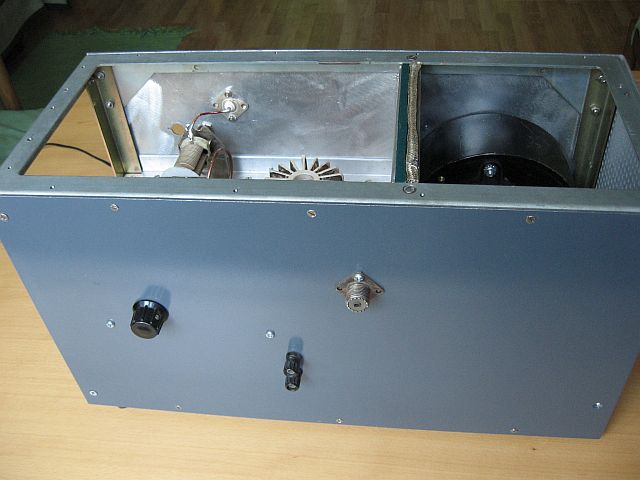

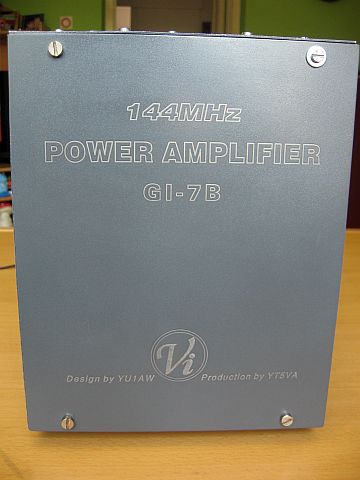

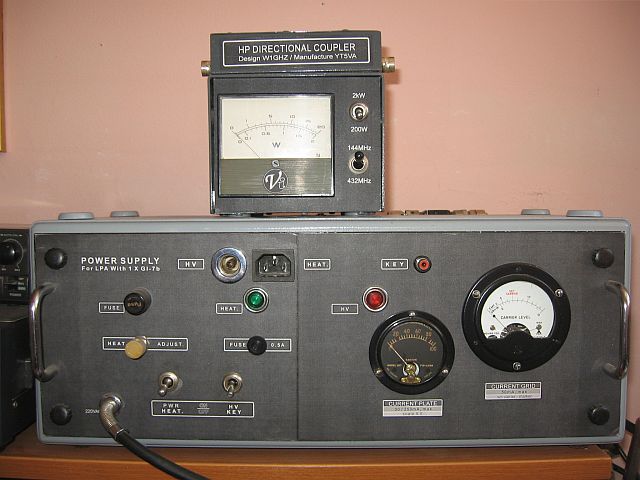

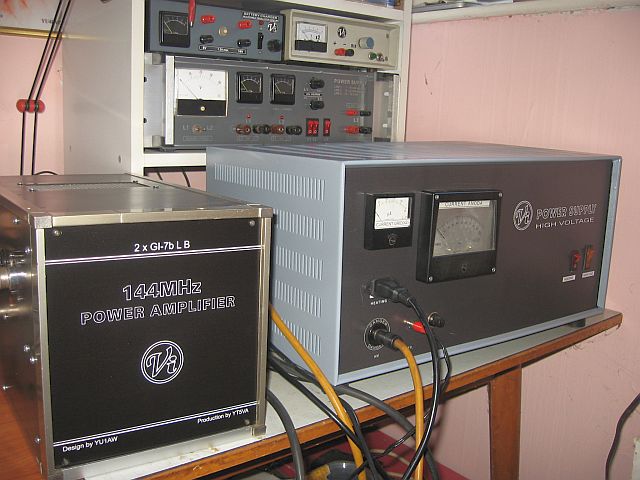

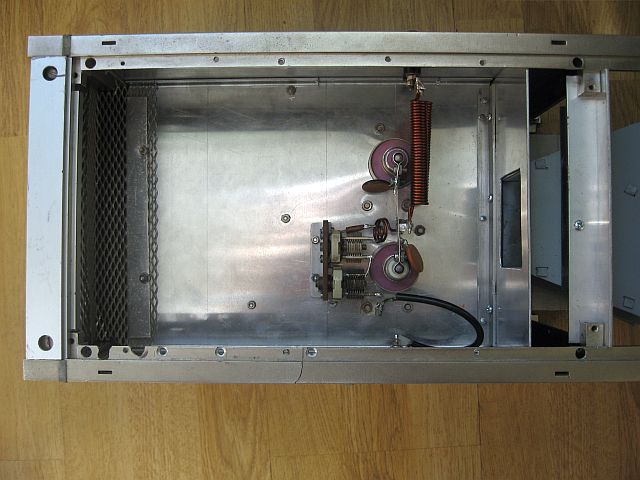

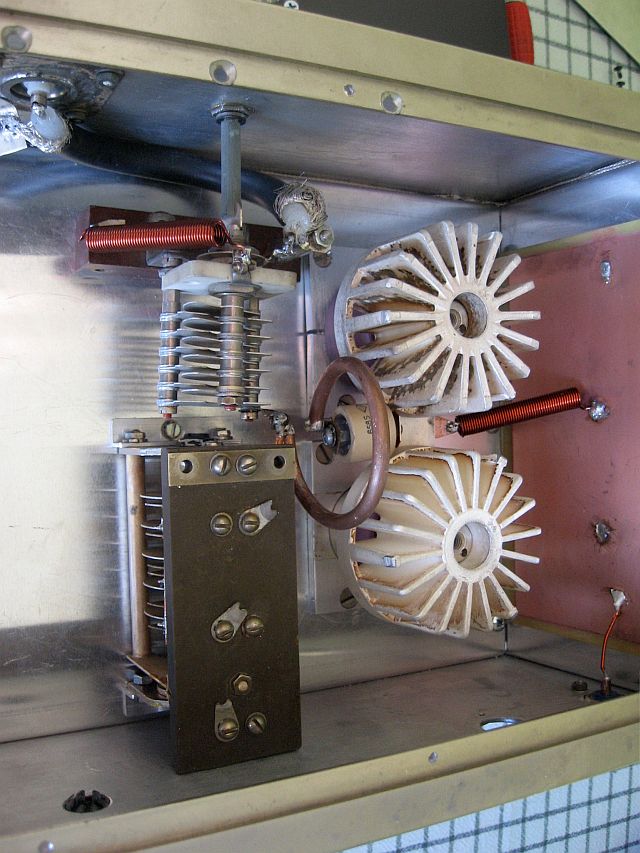

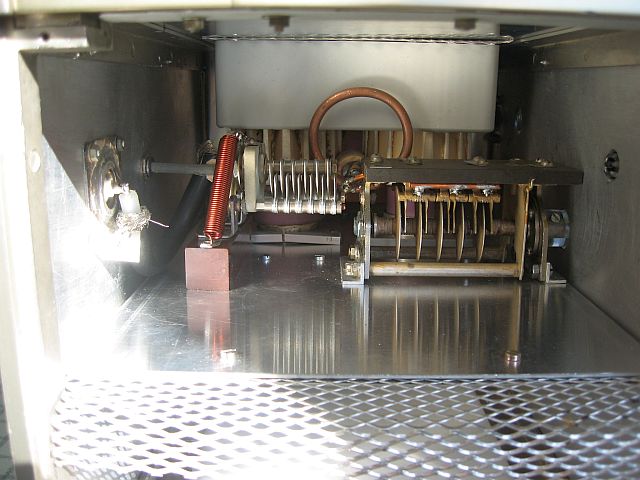

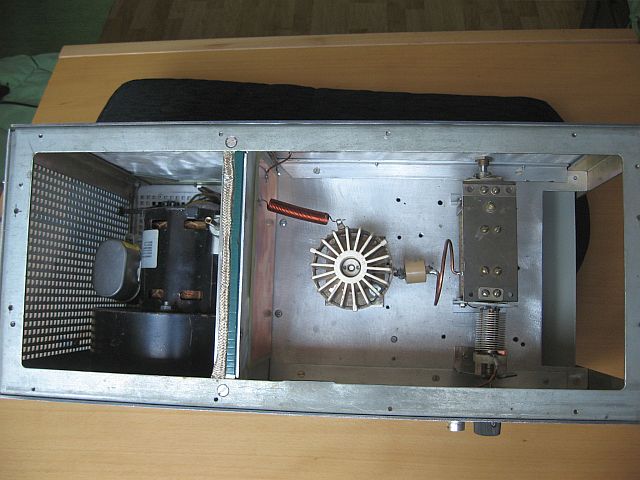

Built by Zoran, YT5VA

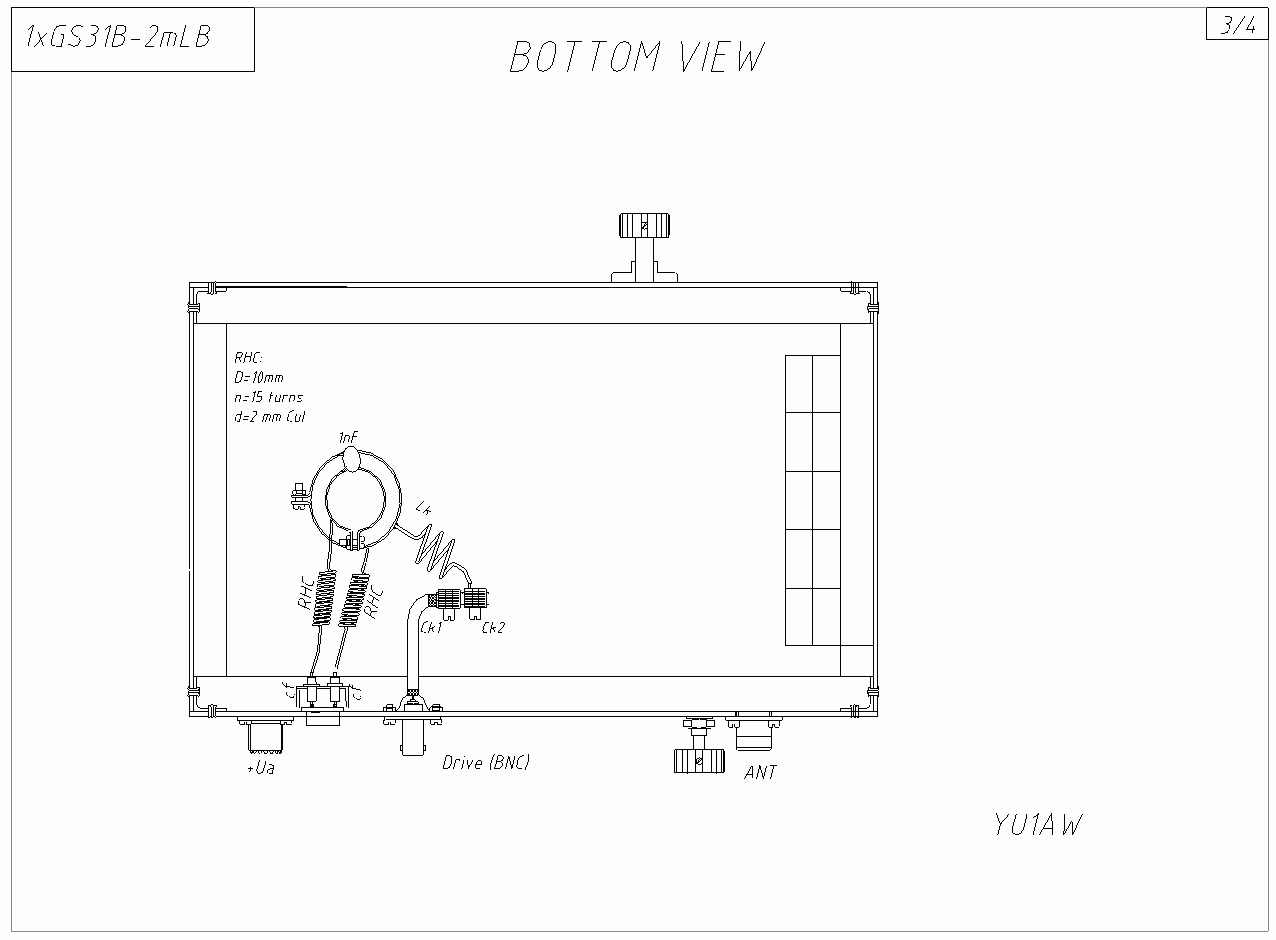

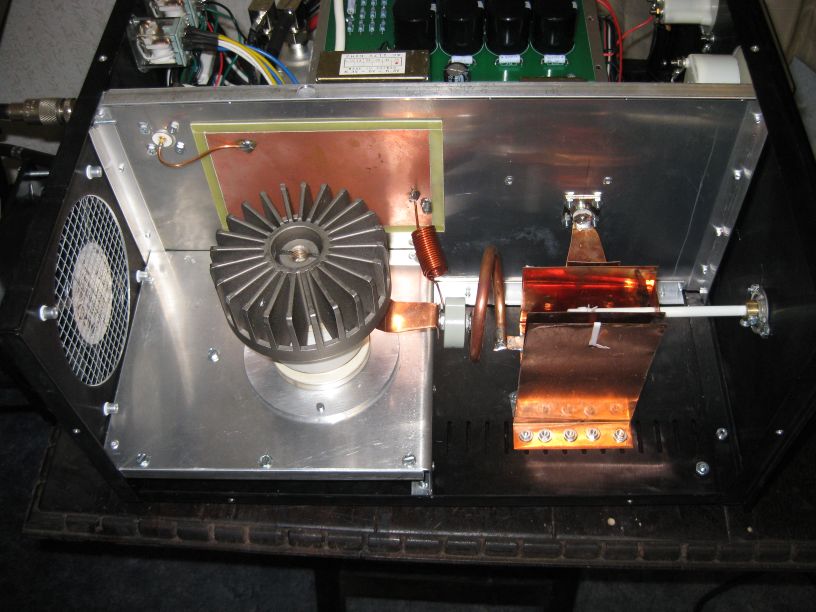

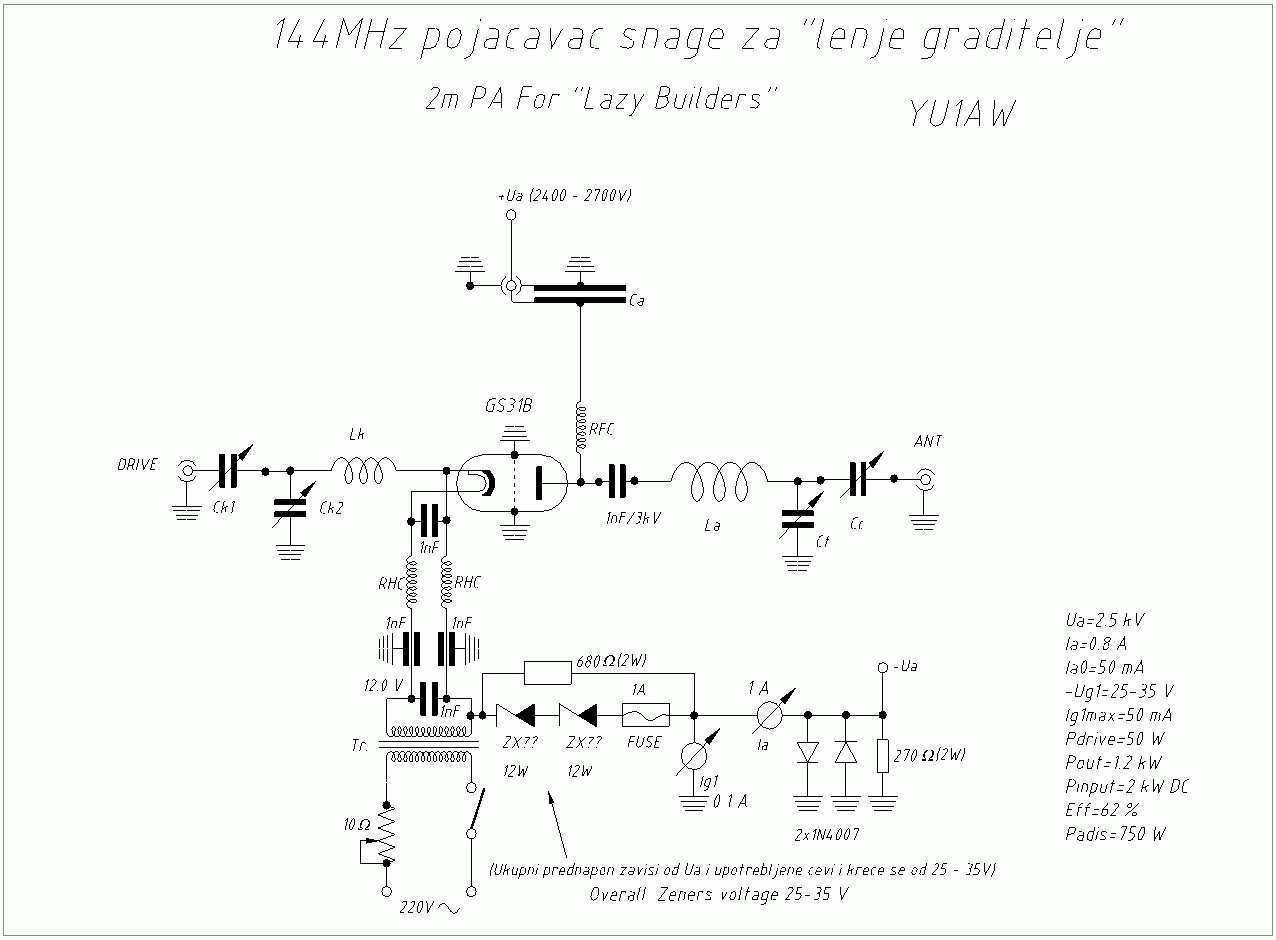

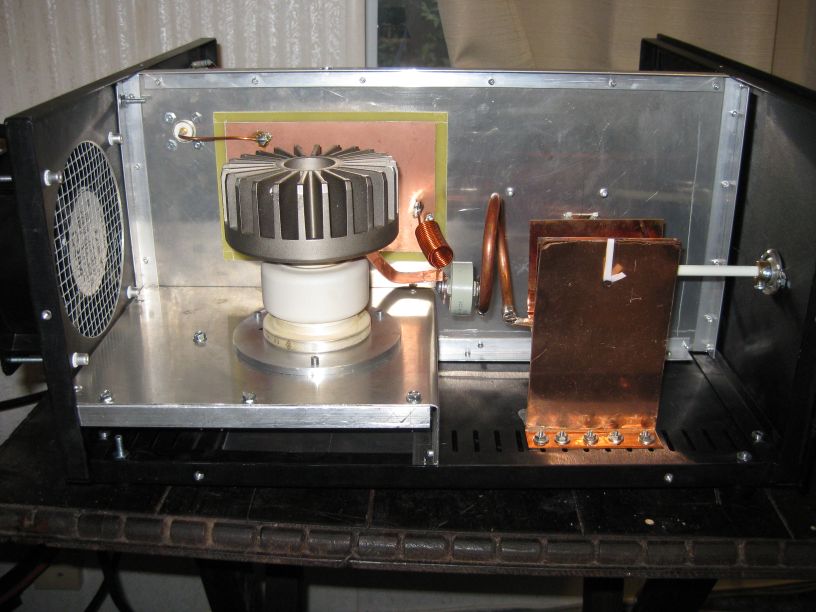

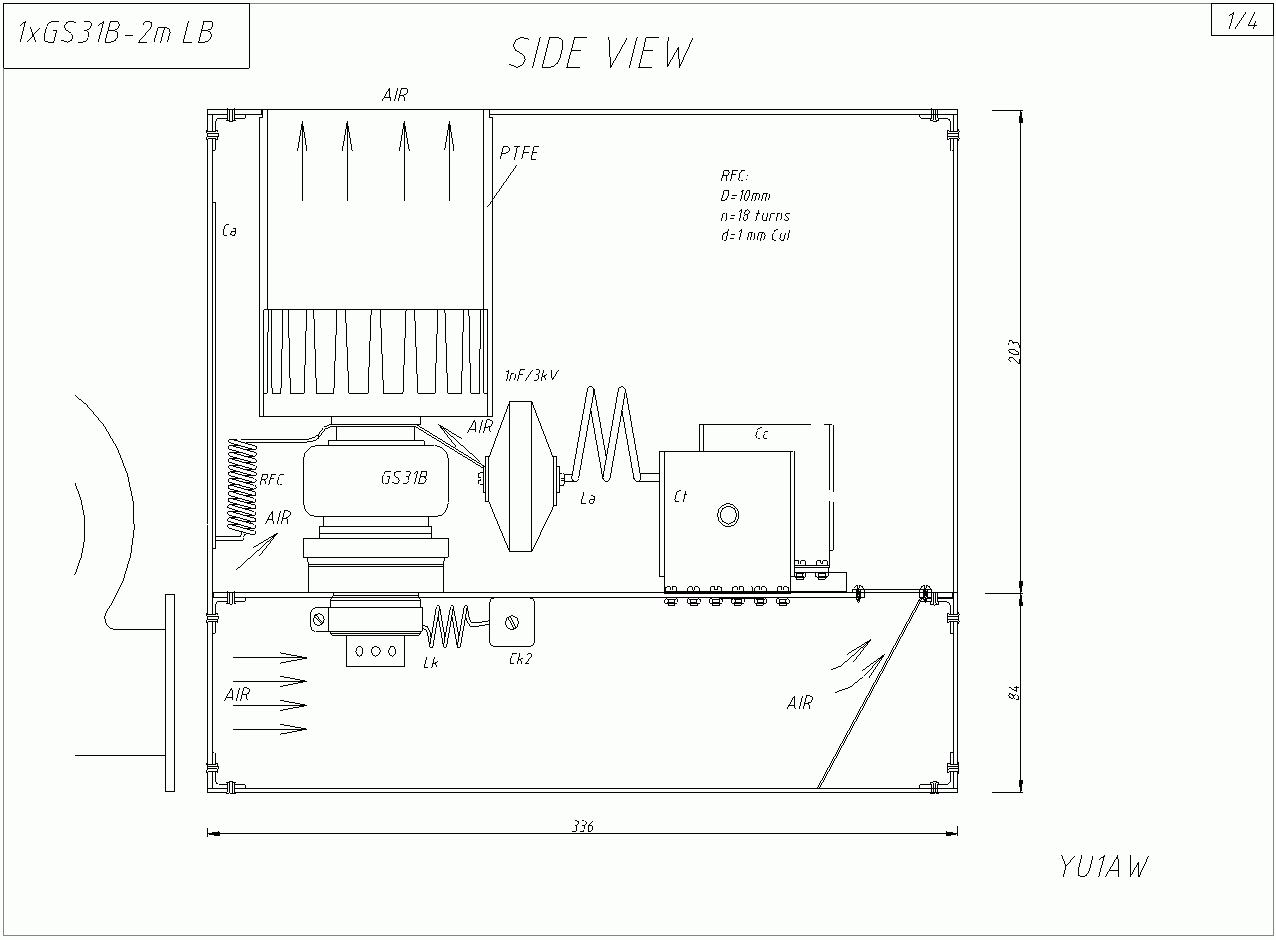

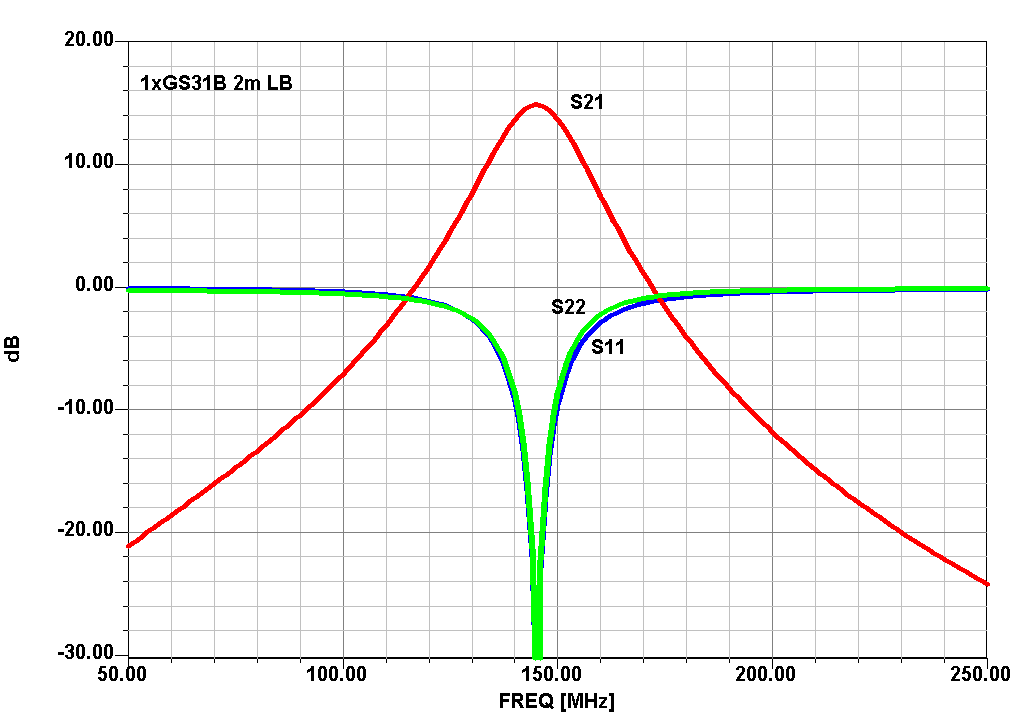

1xGS31B 2m Lazy Builders PA         1    2    3    4    5    6    7



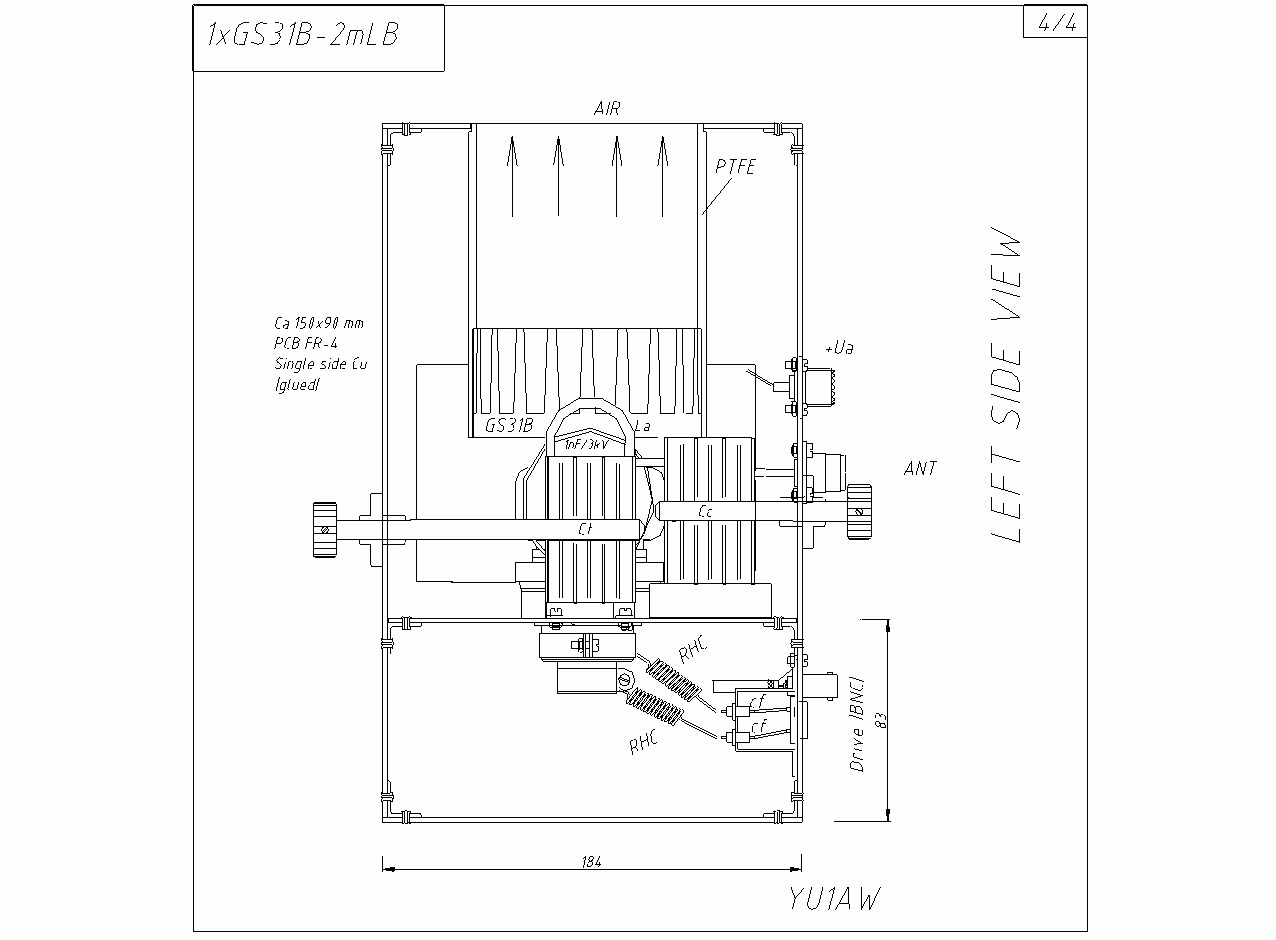

Built by Carey, KC5GTT

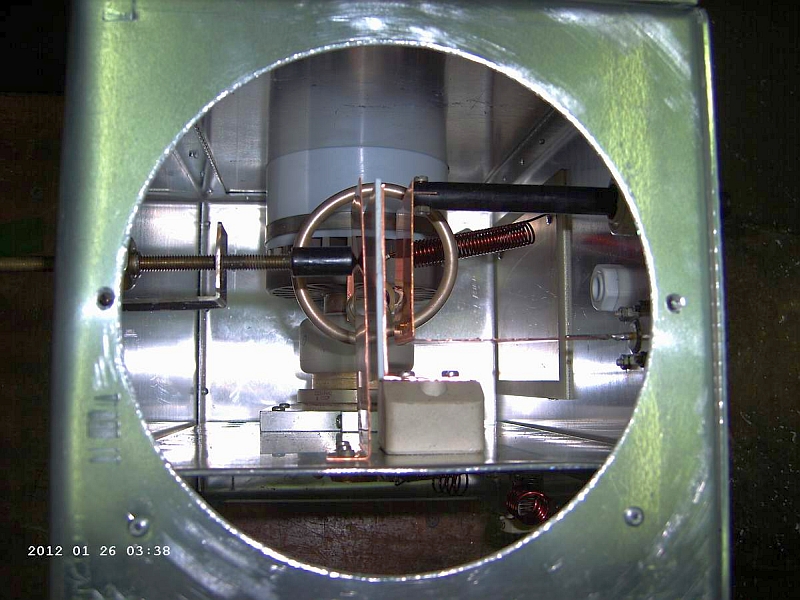

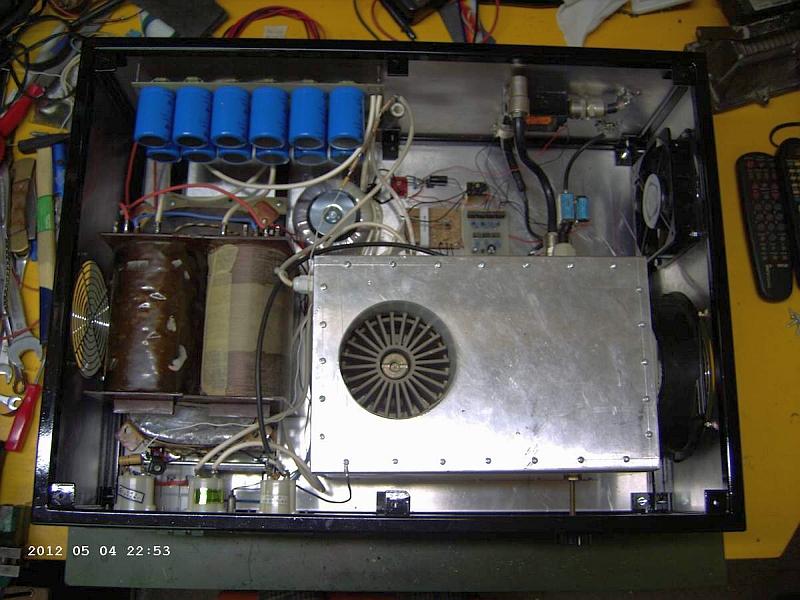

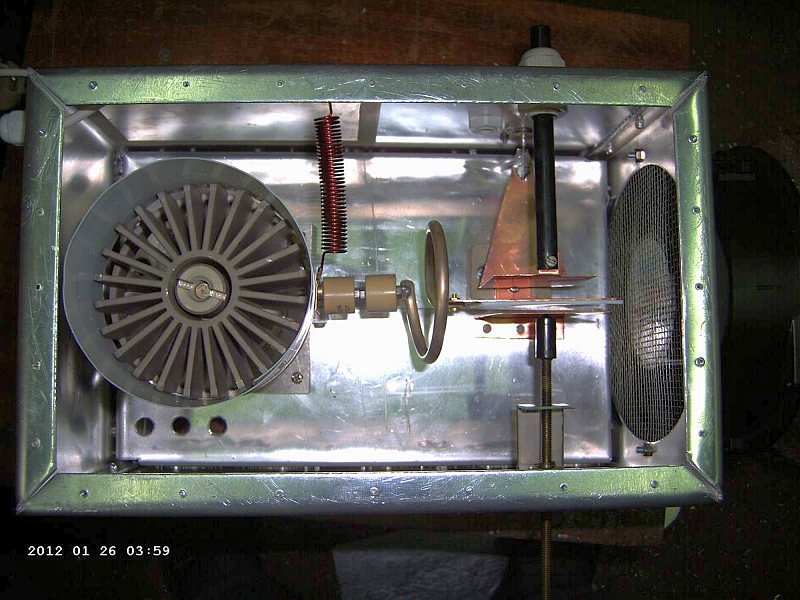

Built by Ljubiša, E73LM

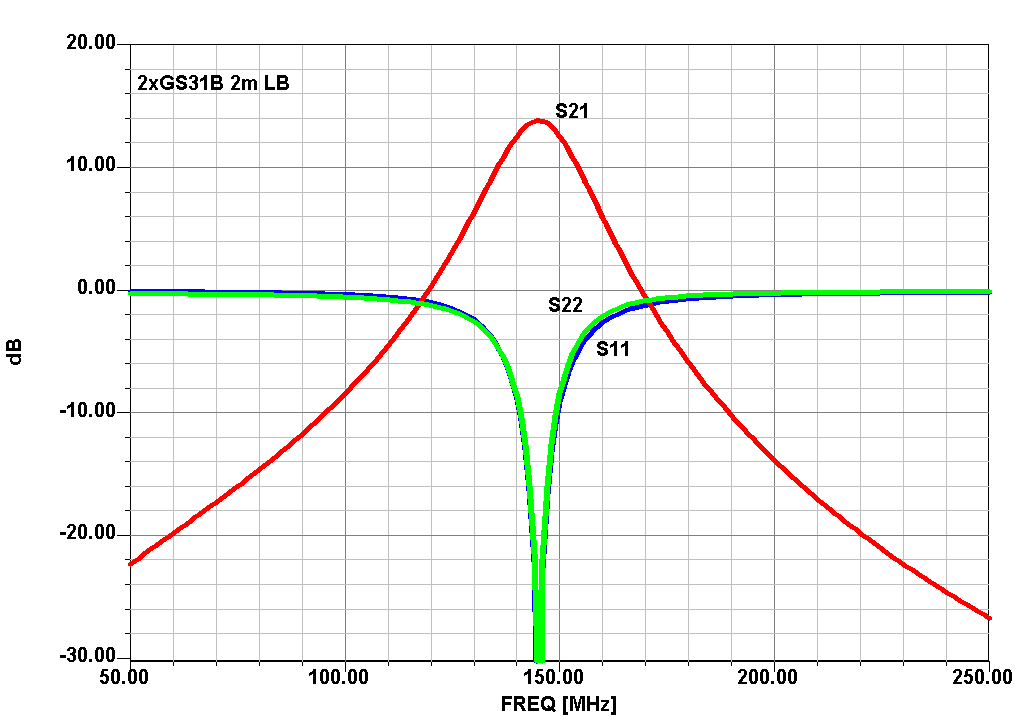

2xGS31B 2m Lazy Builders PA         1    2    3

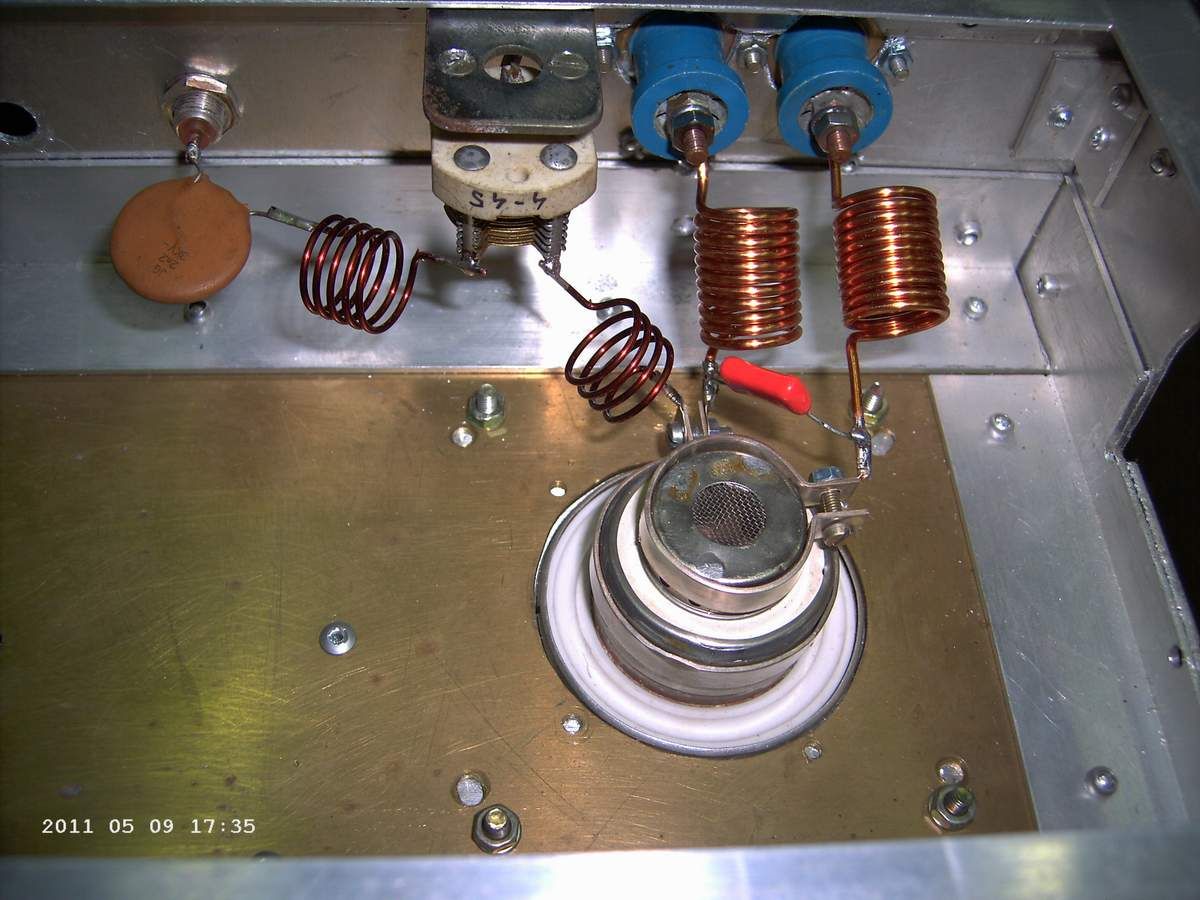

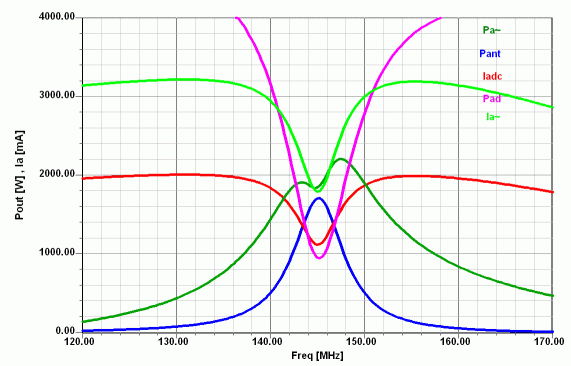

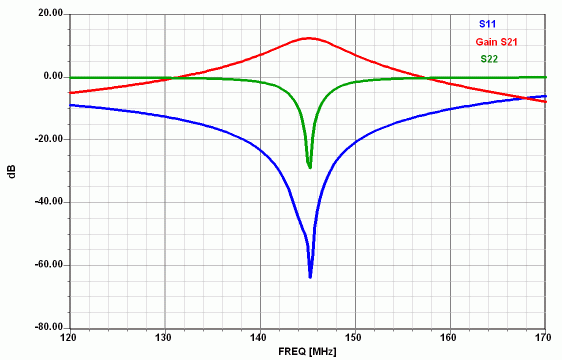

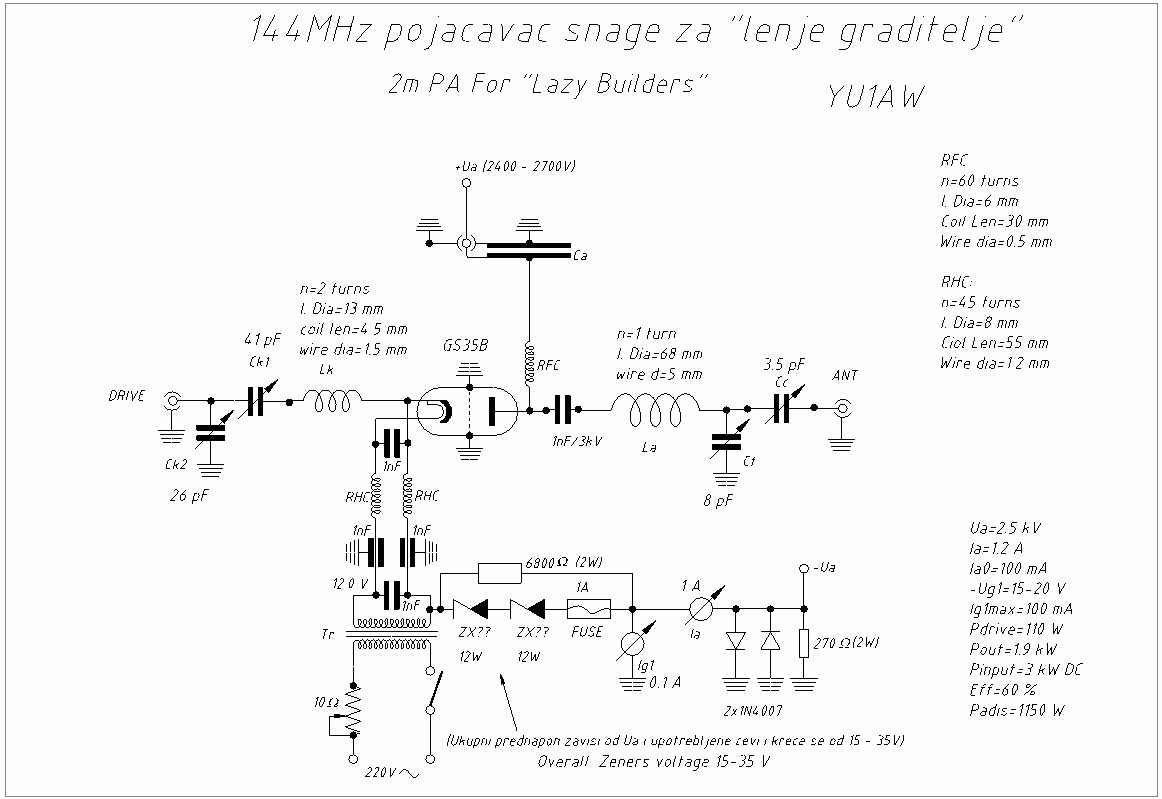

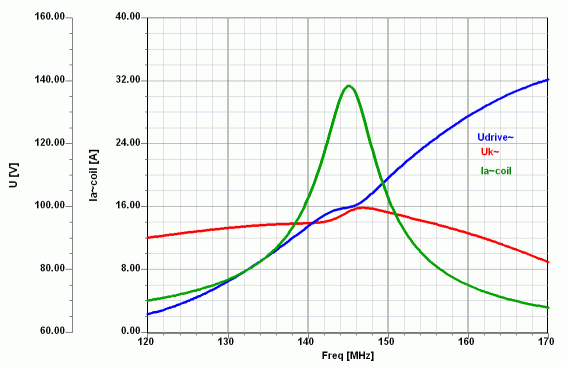

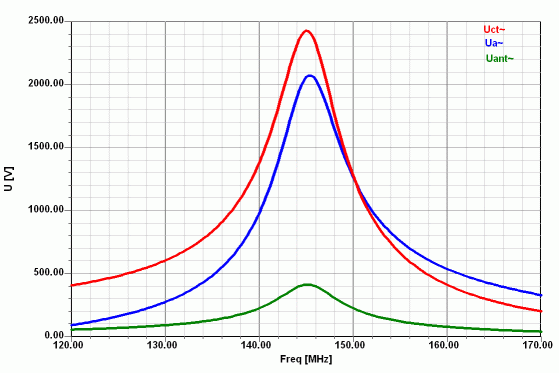

1xGS35B 2m Lazy Builders PA     New

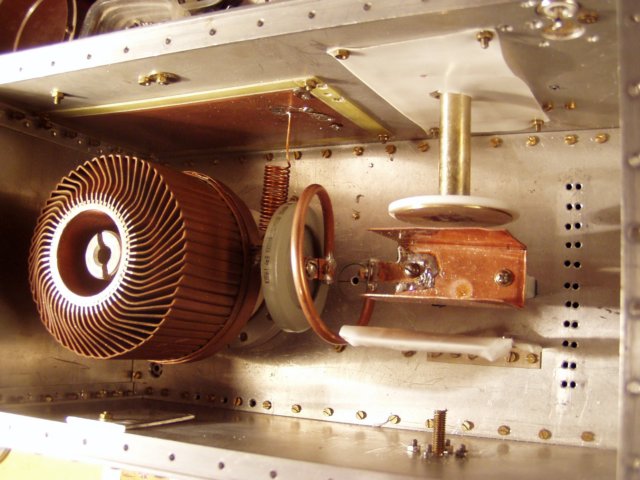

PA Buiding: gs35b ok1gth.PDF        PA Measurements: mereni2.pdf

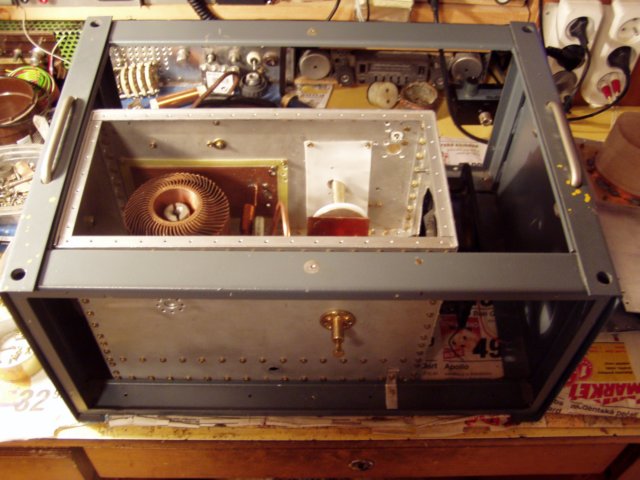

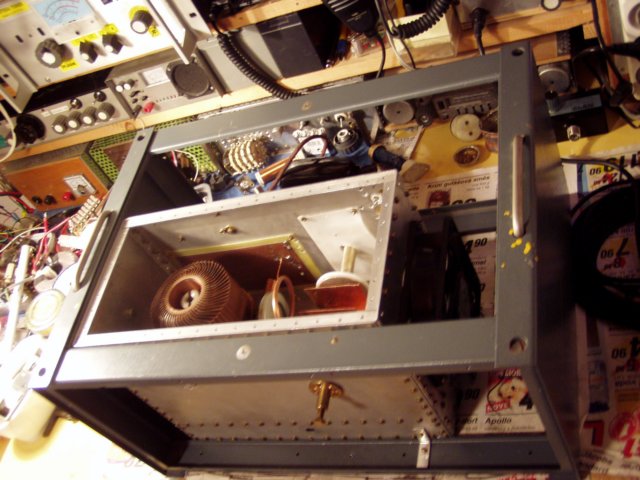

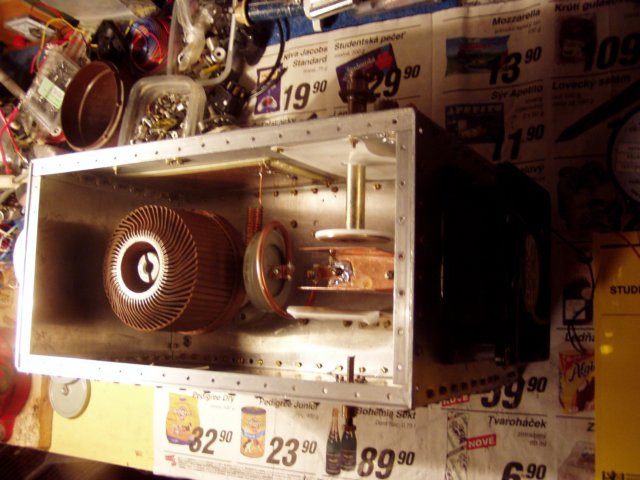

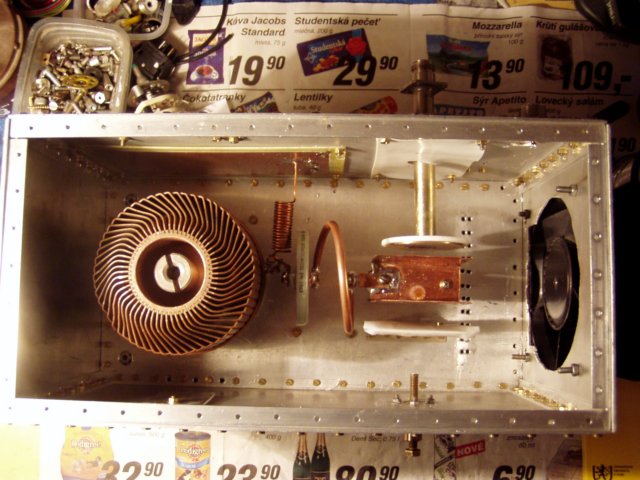

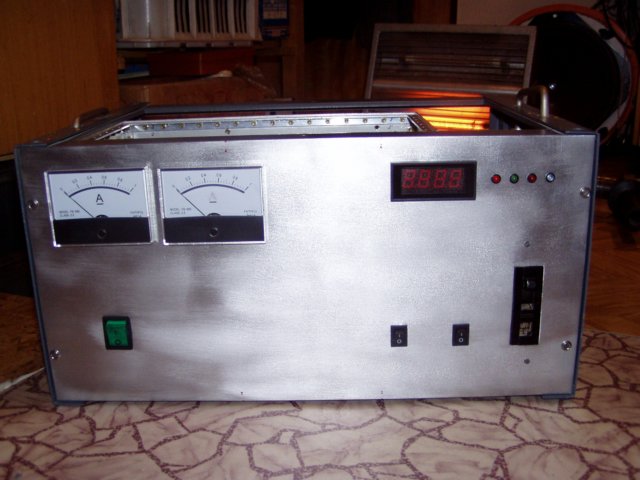

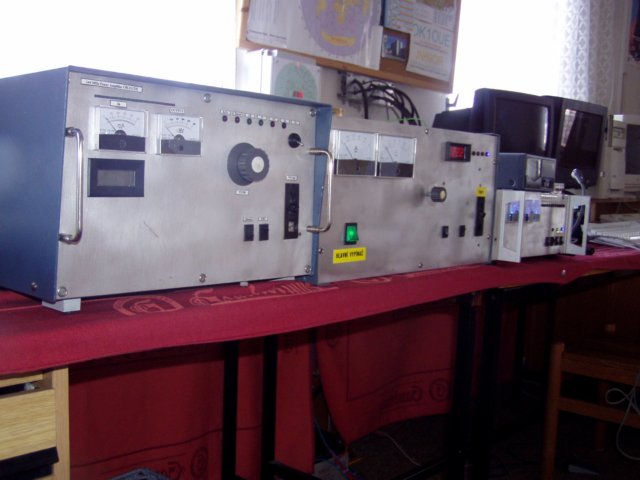

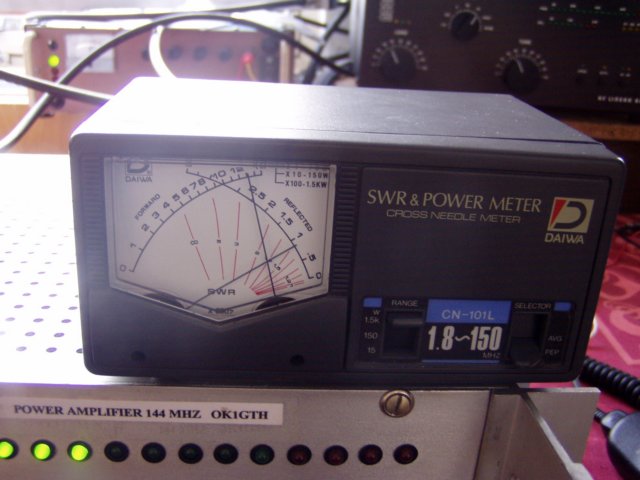

Built and measured by Tomáš, OK1GTH



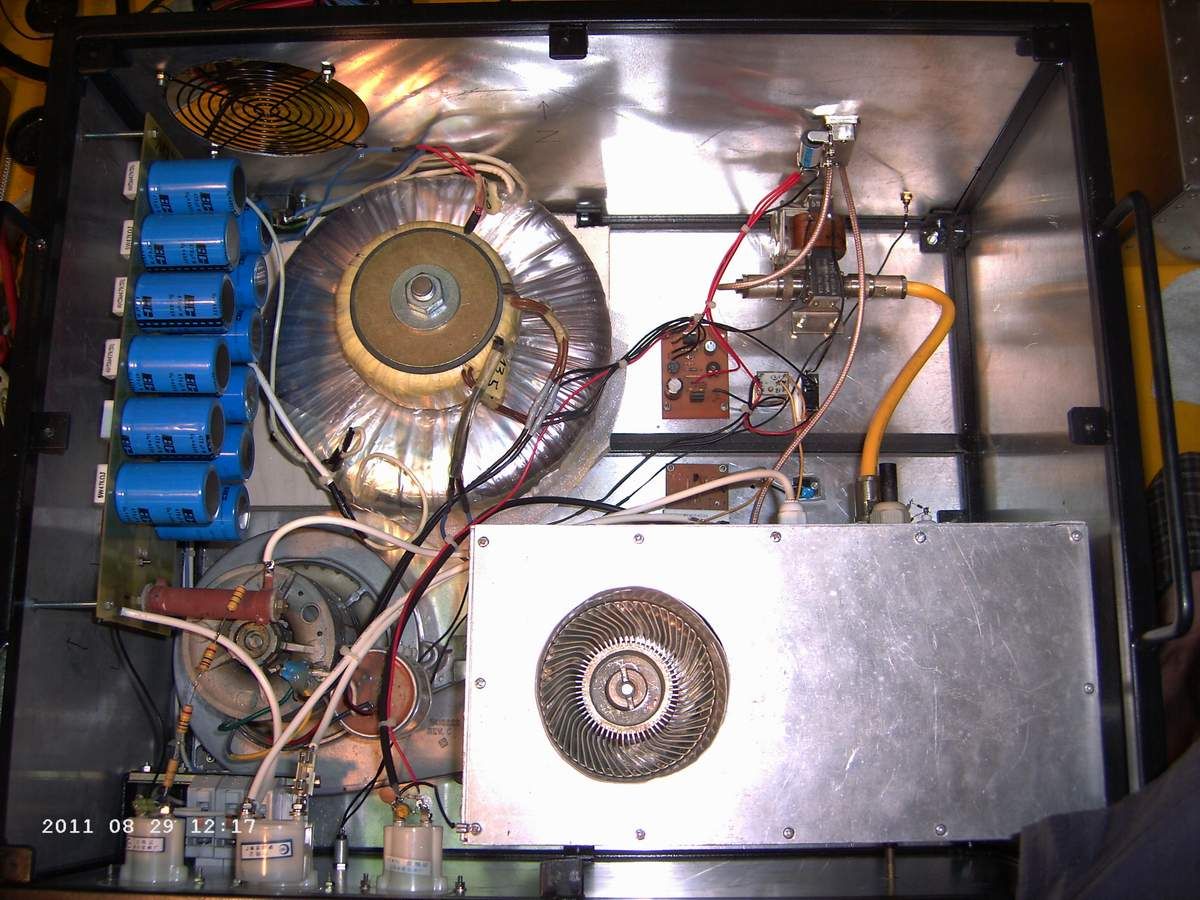

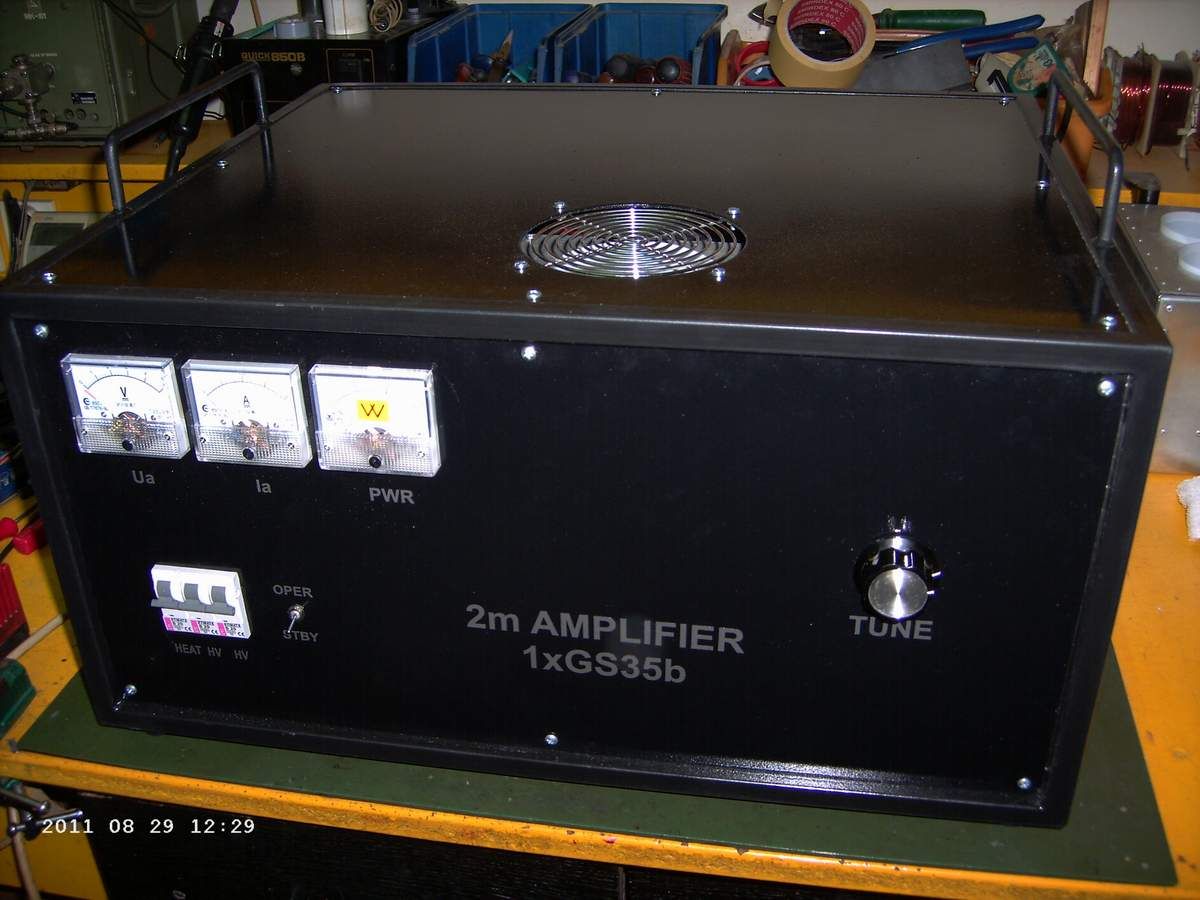

Built by Ljubiša, E73LM



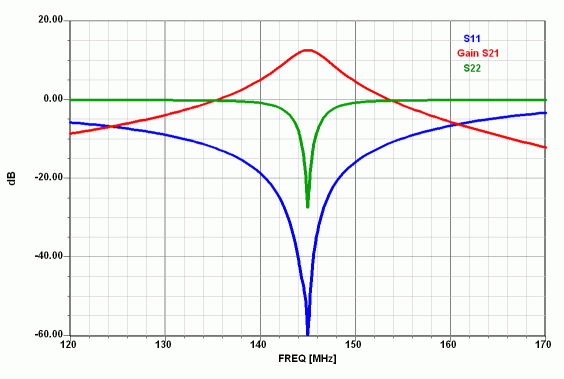

2xGS35B 2m Lazy Builders PA     New

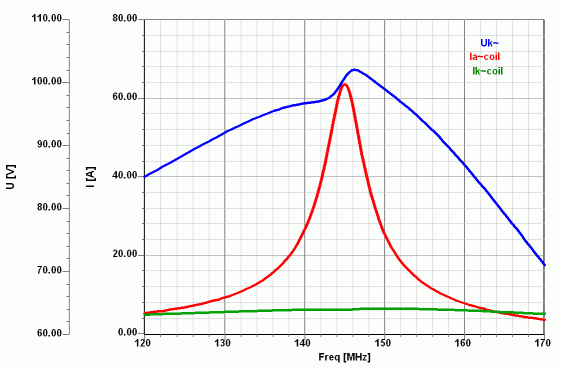

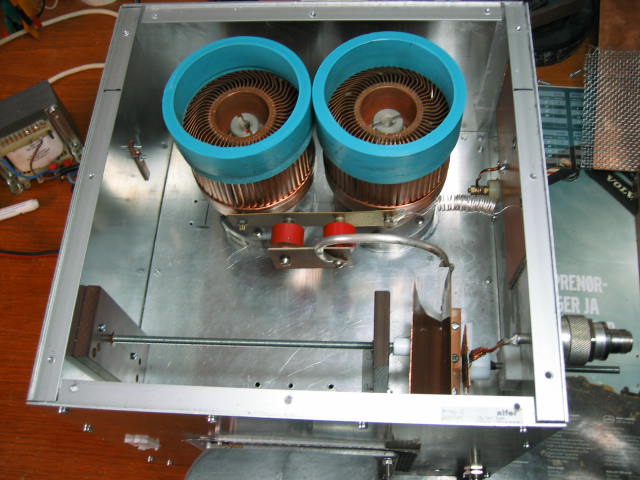

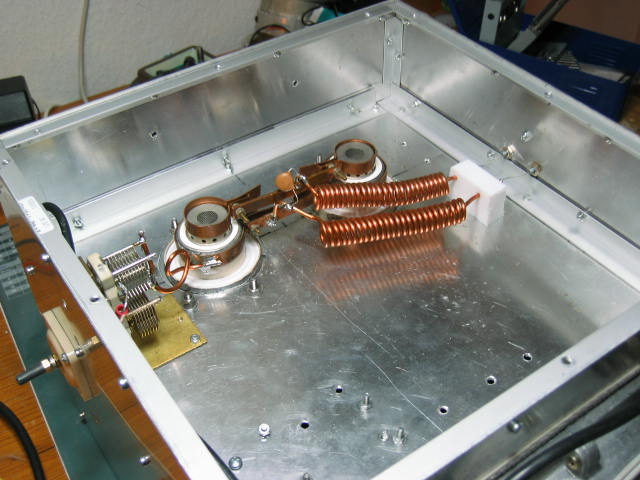

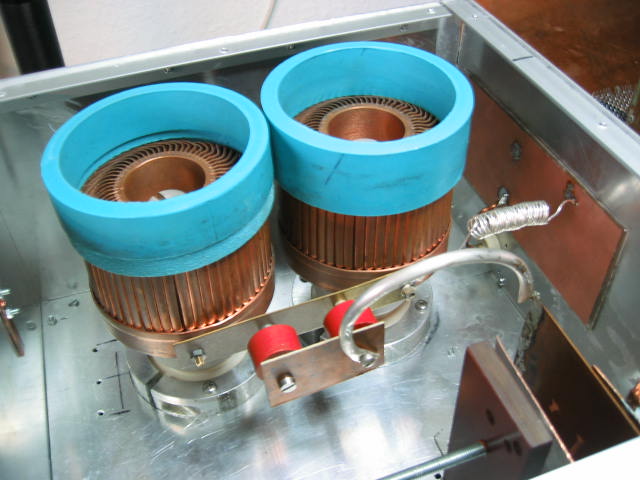

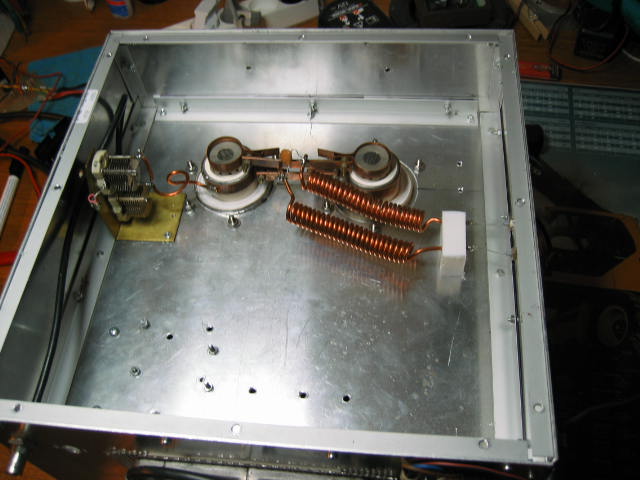

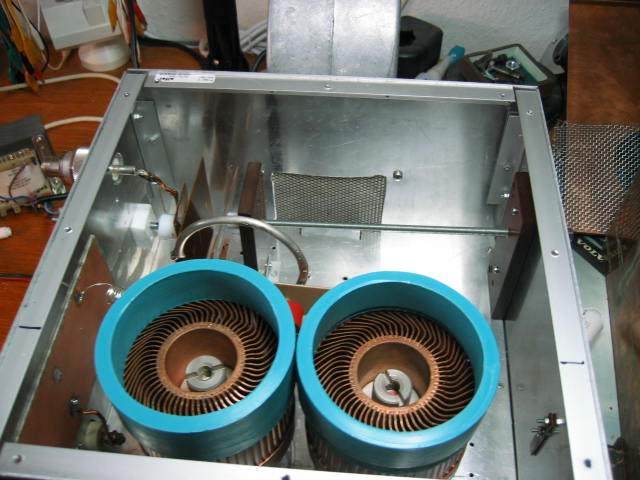

Built by Leif, OZ6ABA

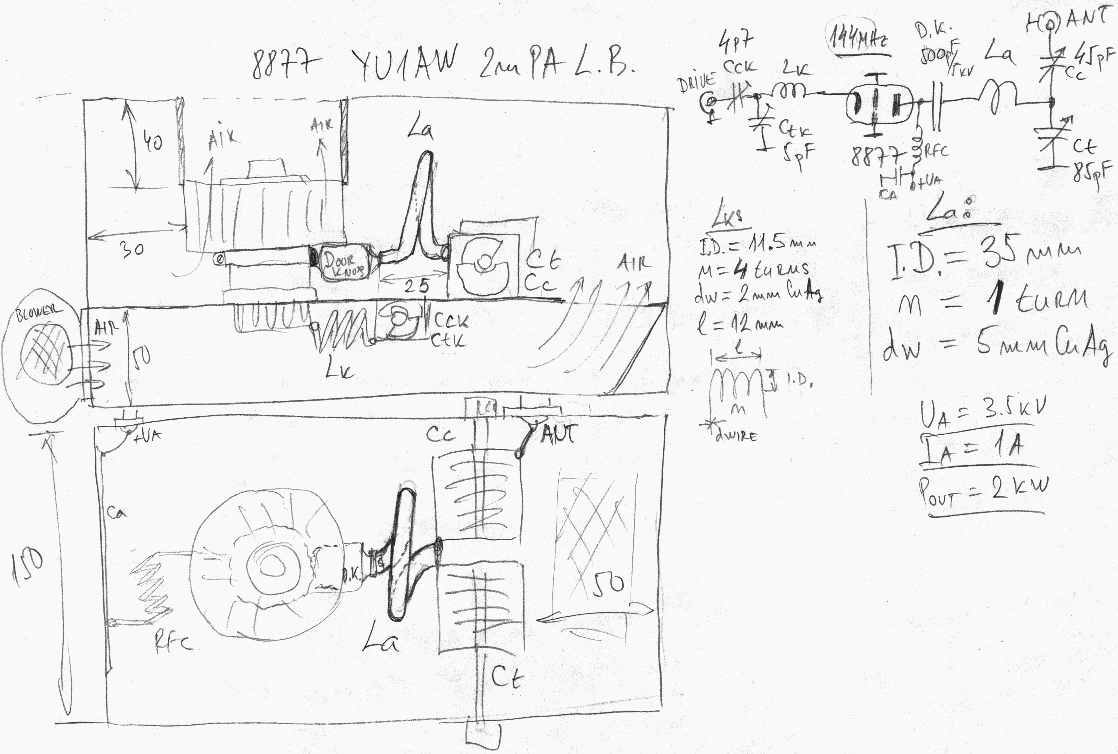

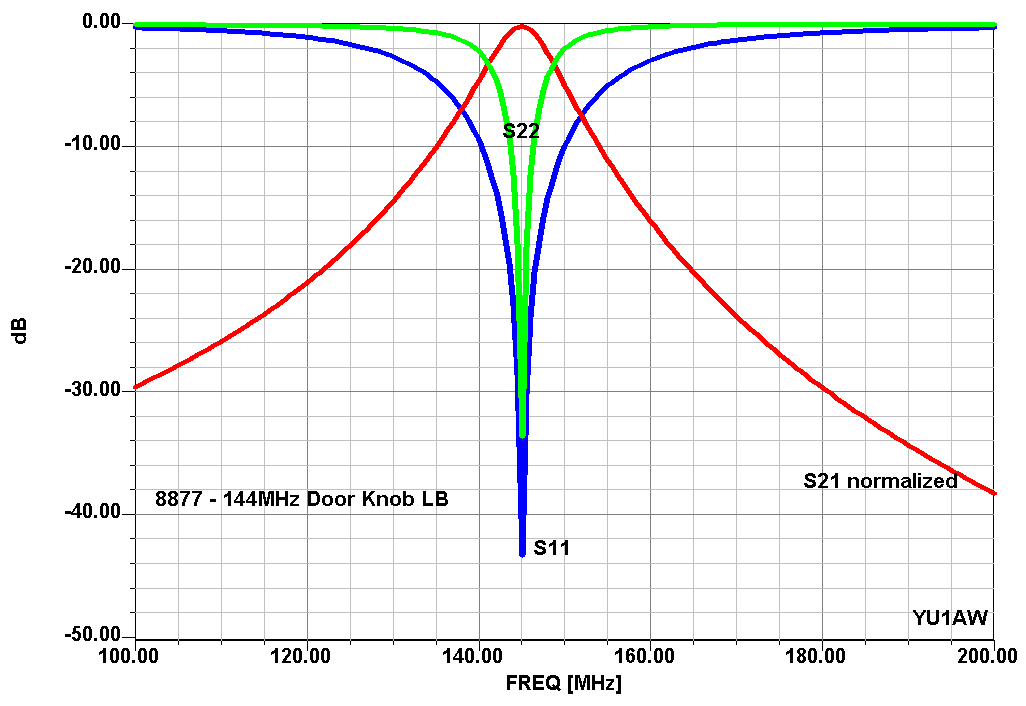

1x8877 2m Lazy Builders PA            1    2

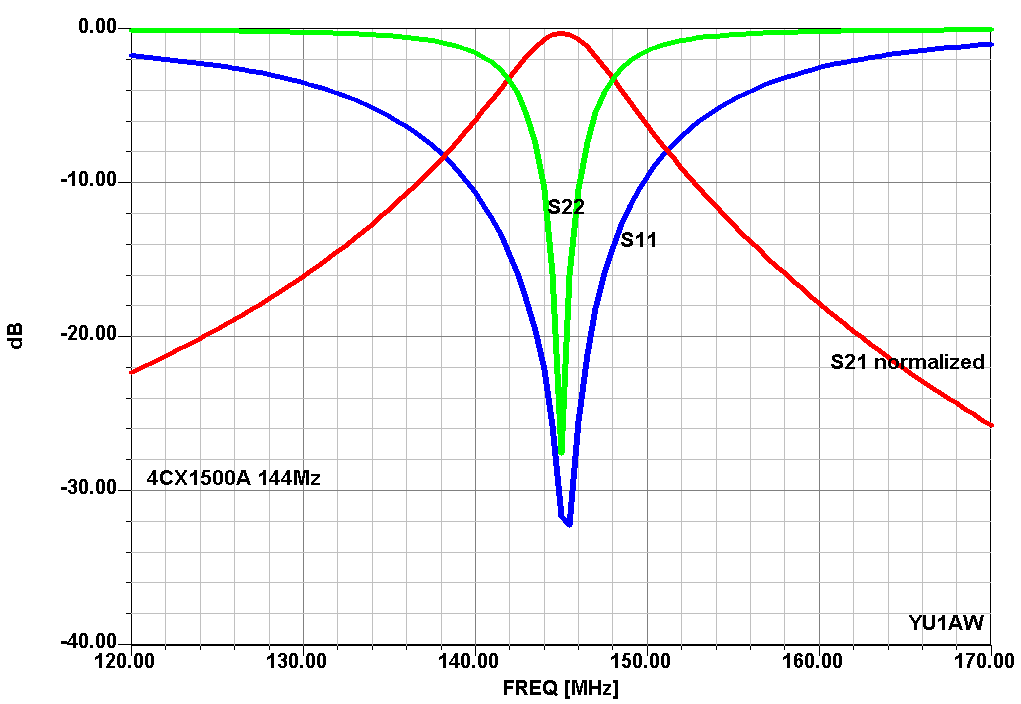

1x4CX1500A 2m Lazy Builders PA    1    2   3   New

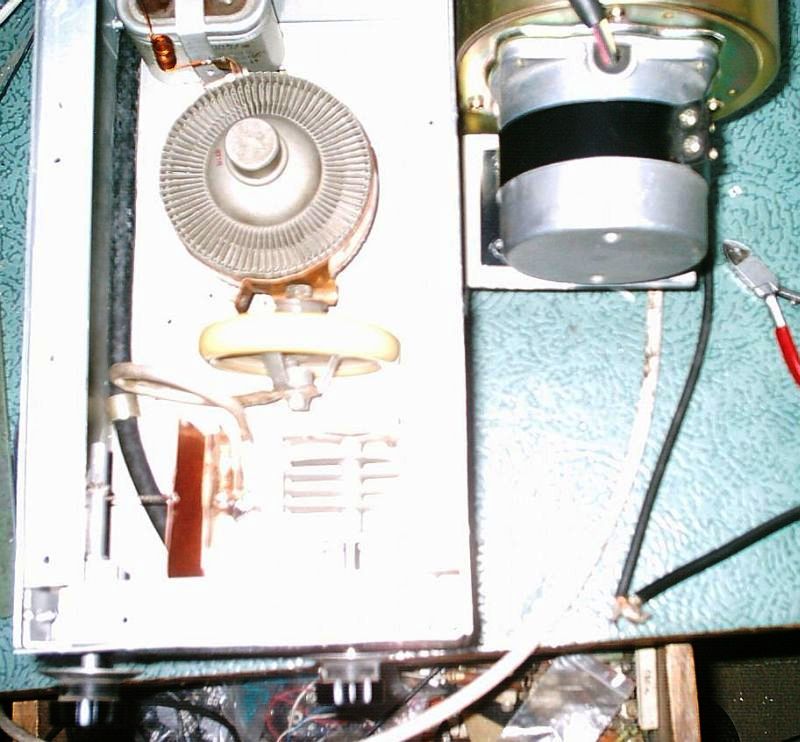

Built by Vlatko, 9A9R

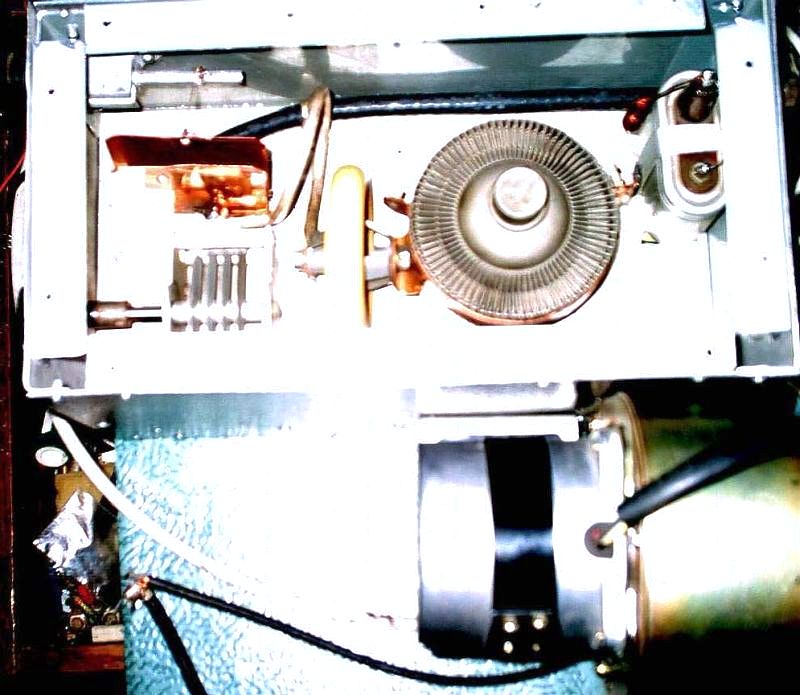

1x4CX1500B 2m Lazy Builders PA    1



Built by Željko, 9A3RU

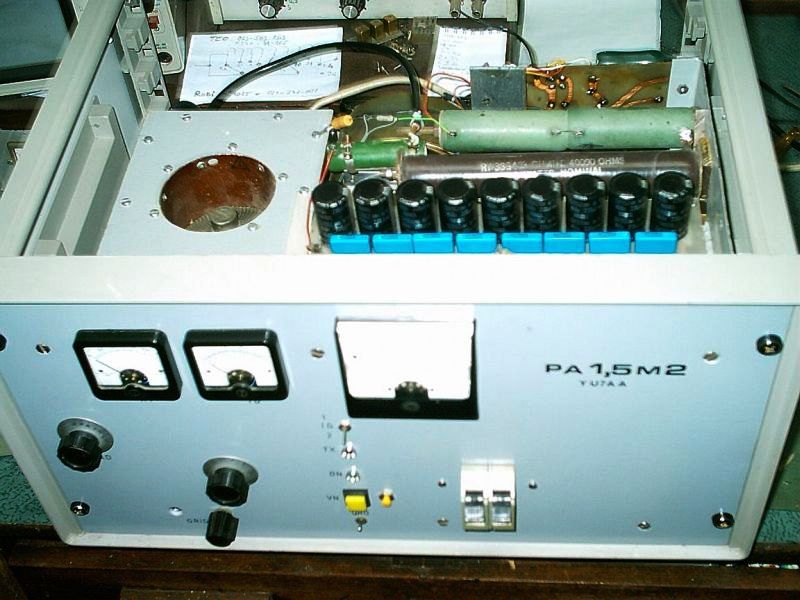

Built by Fica, YU7AA

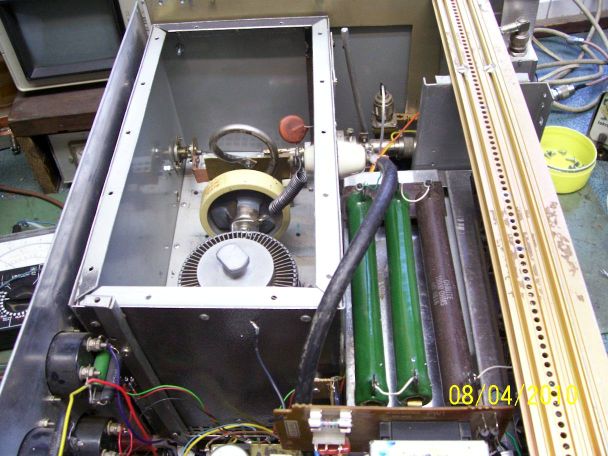

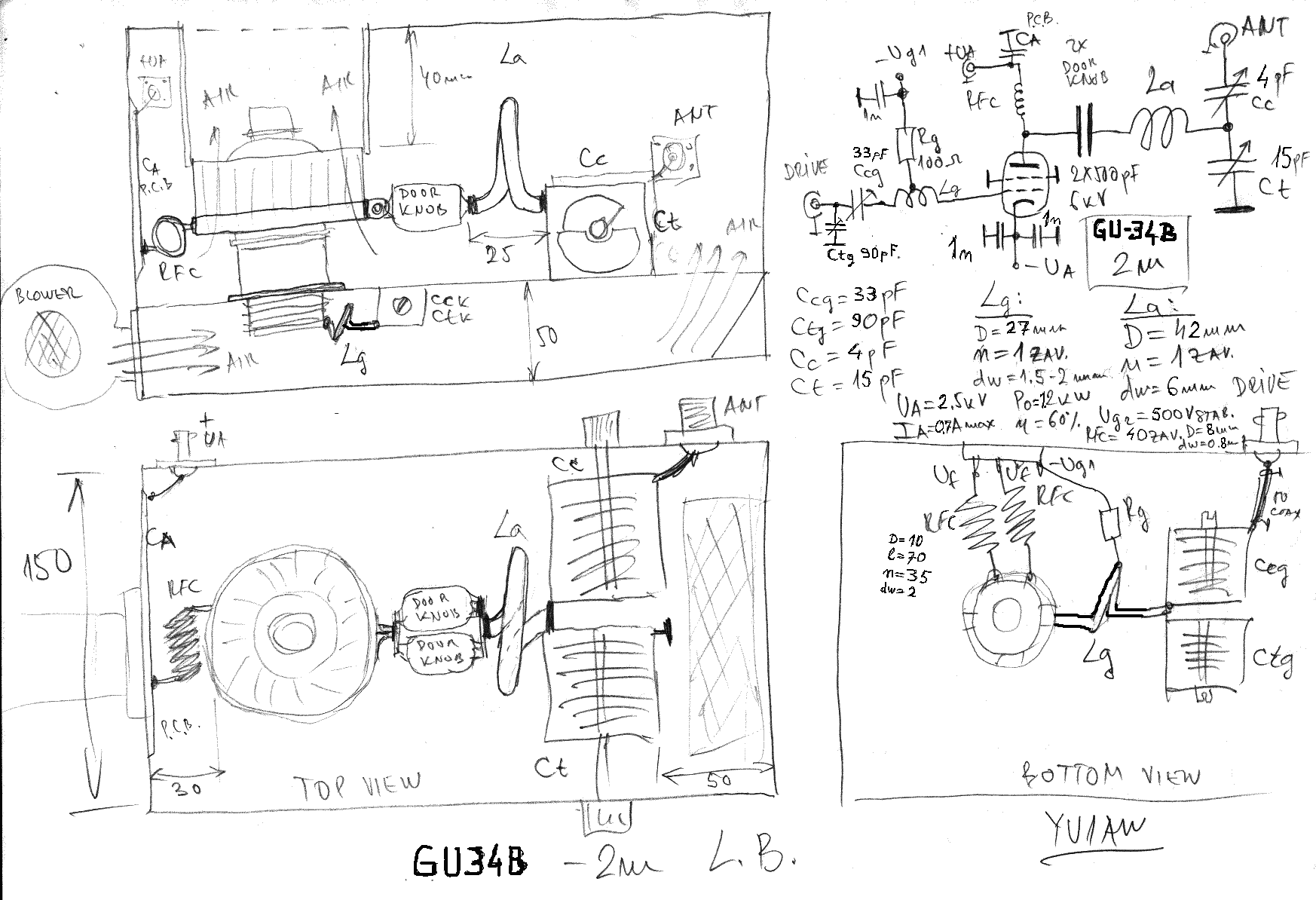

1xGU34B 2m Lazy Builders PA       New

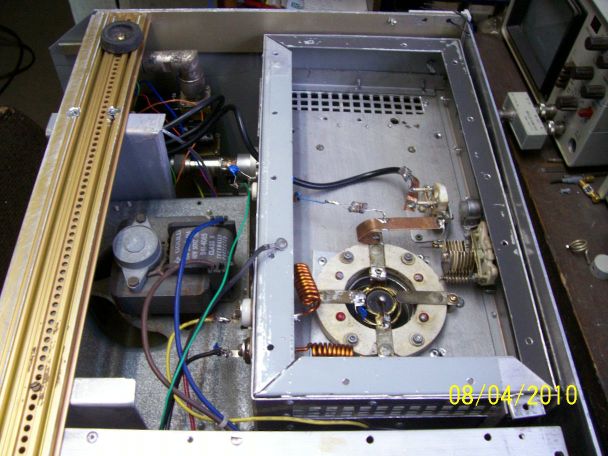

Built by Fica, YU7AA

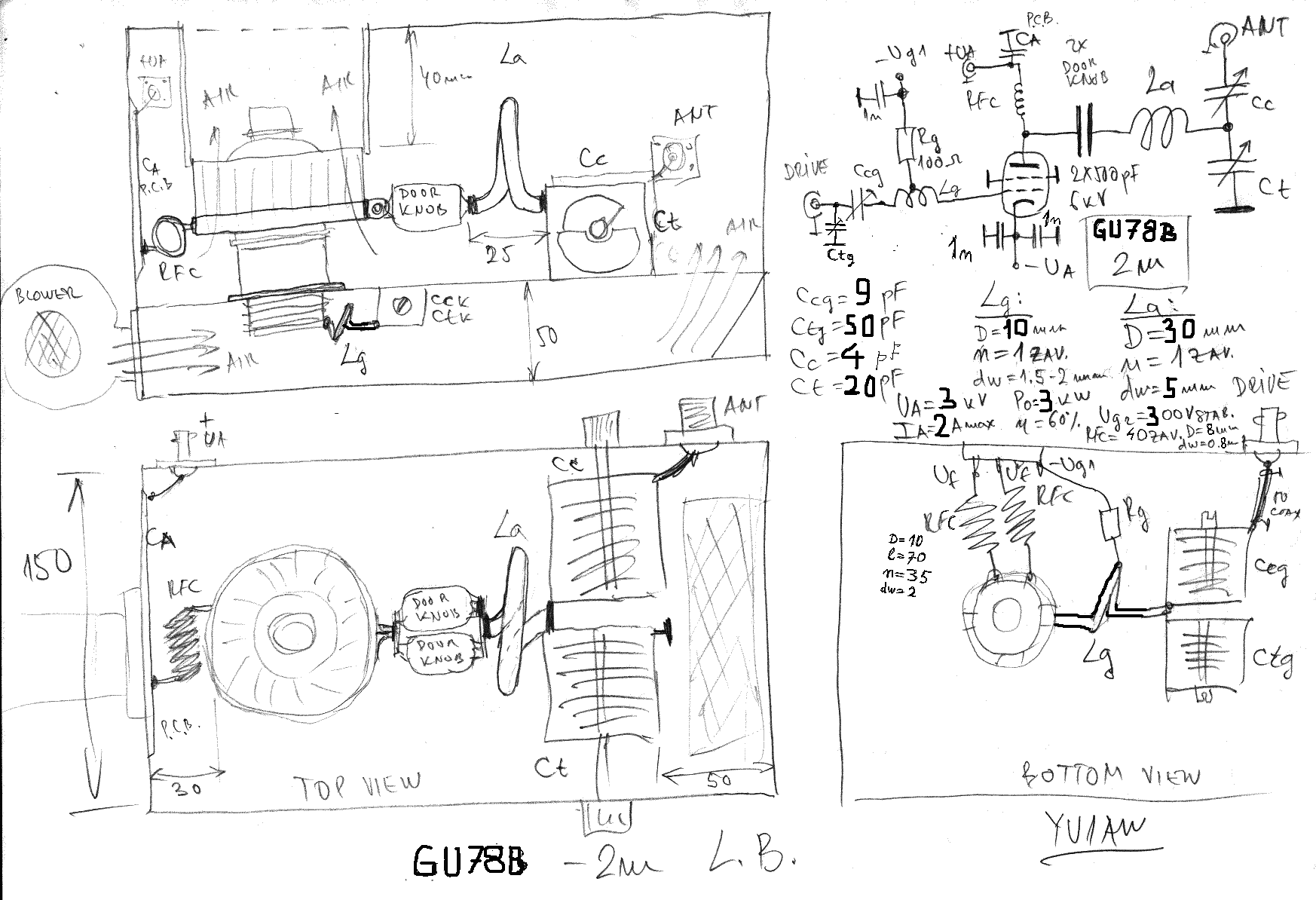

1xGU78B 2m Lazy Builders PA           New

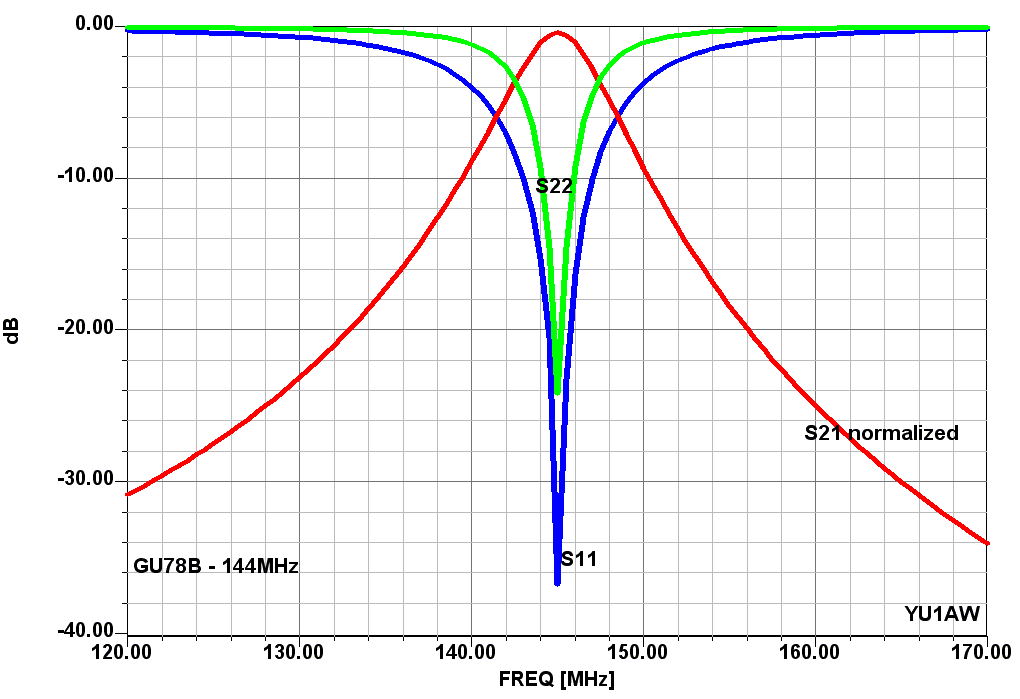

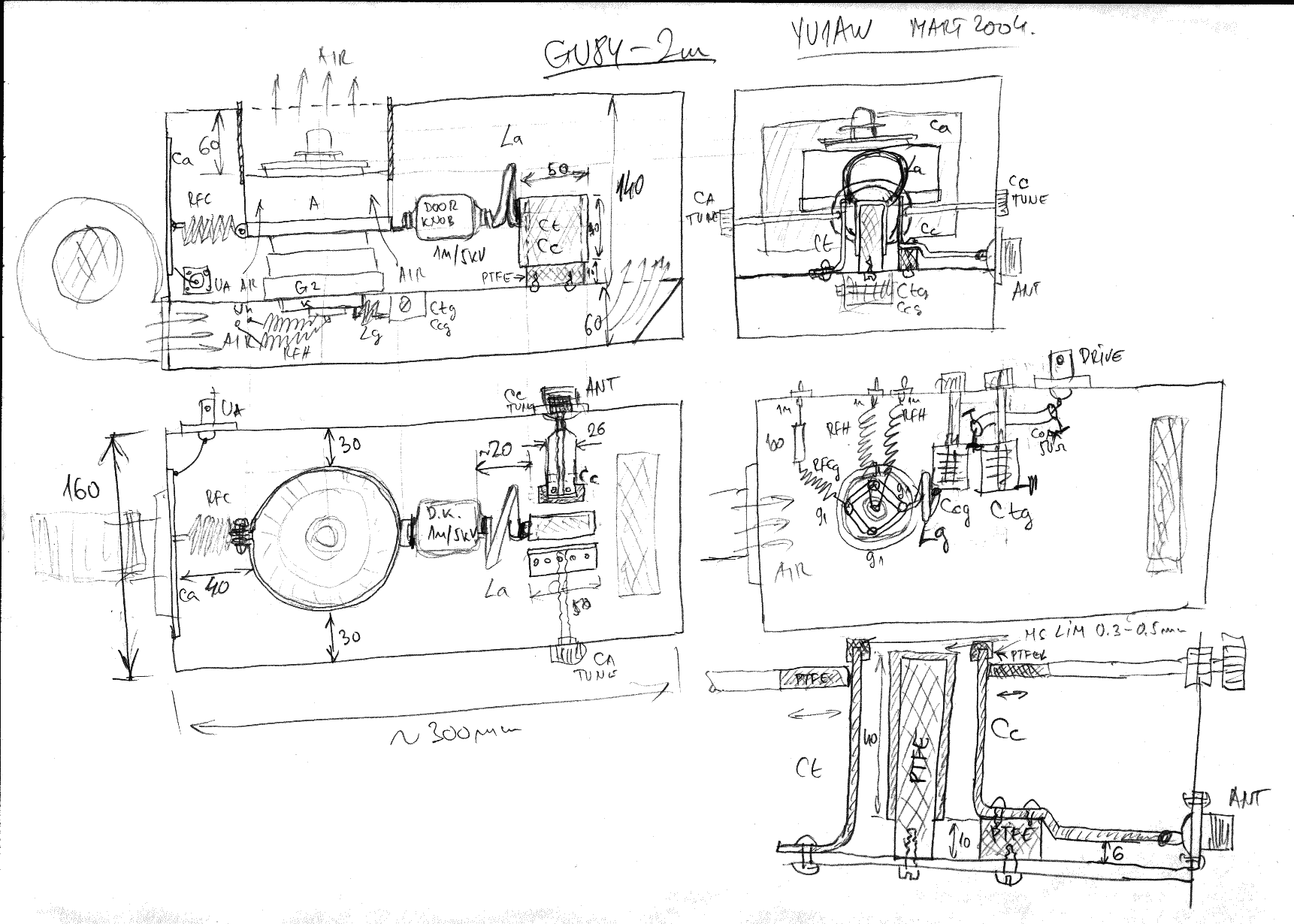

1xGU84B 2m Lazy Builders PA                New




50 MHz

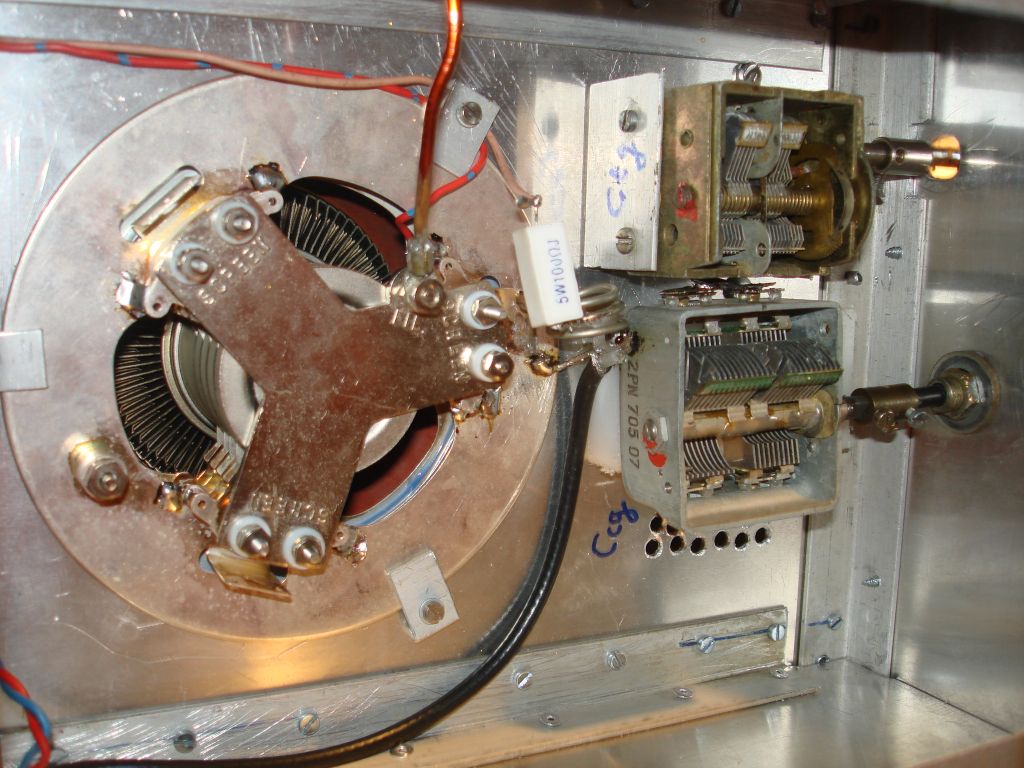

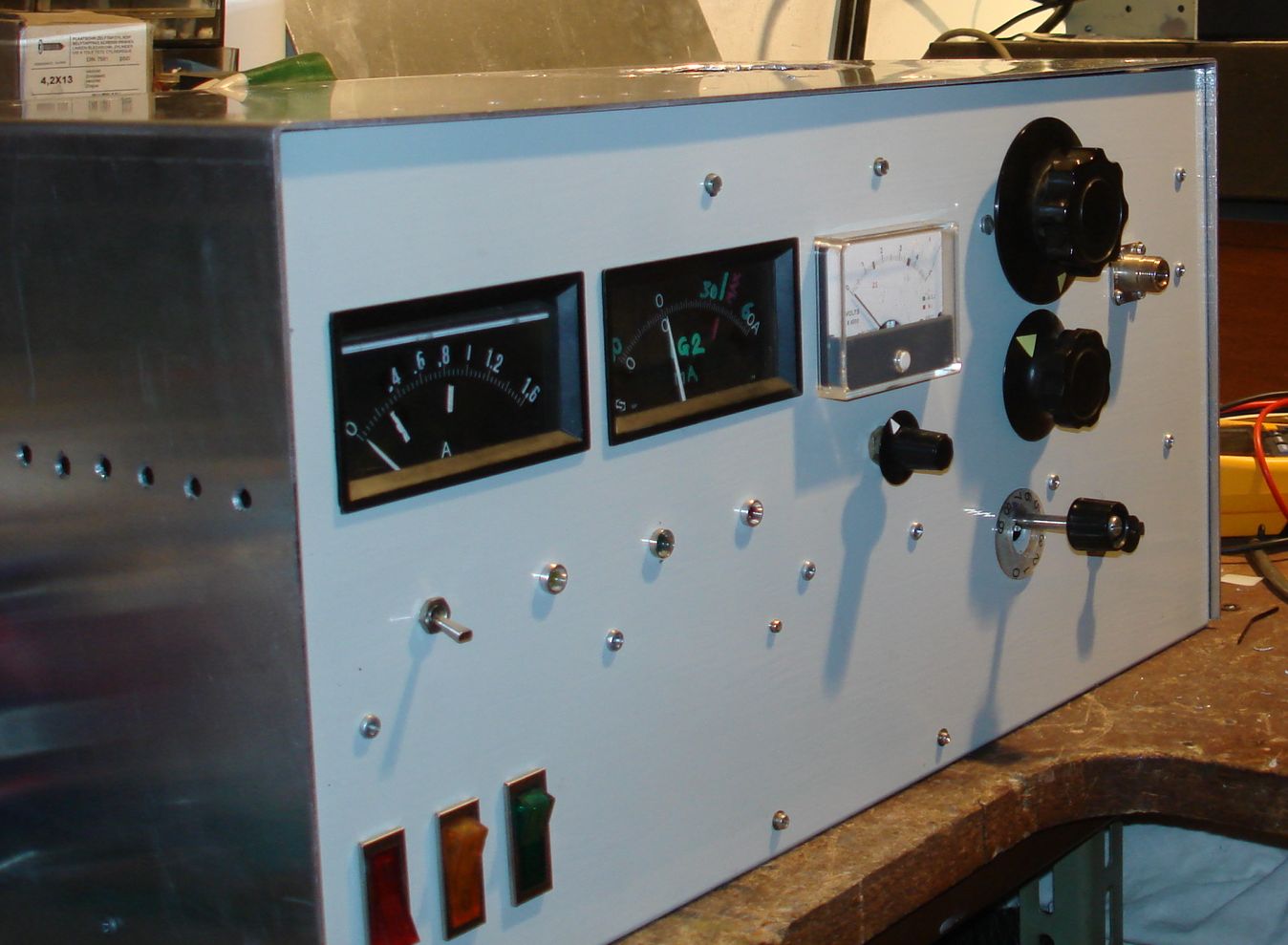

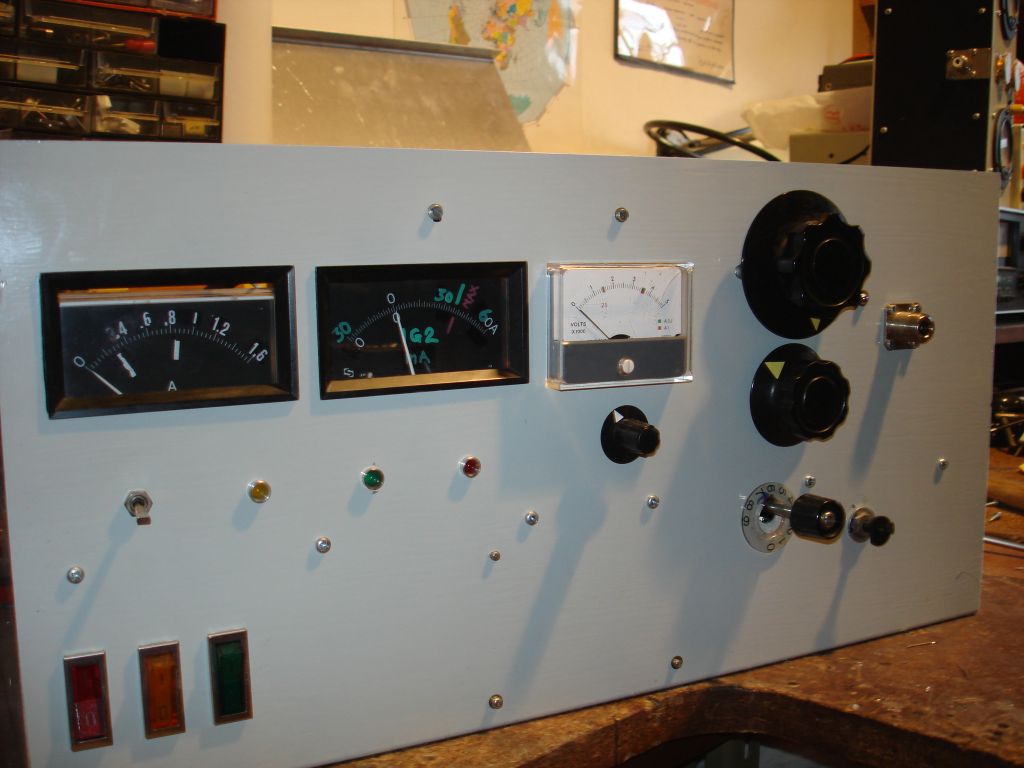

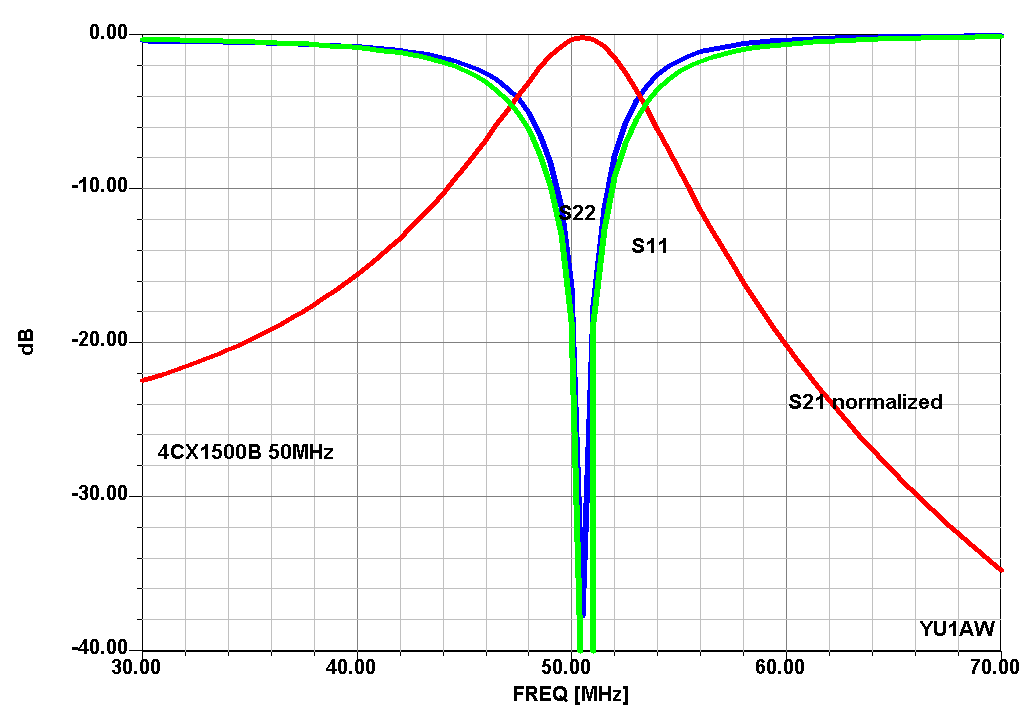

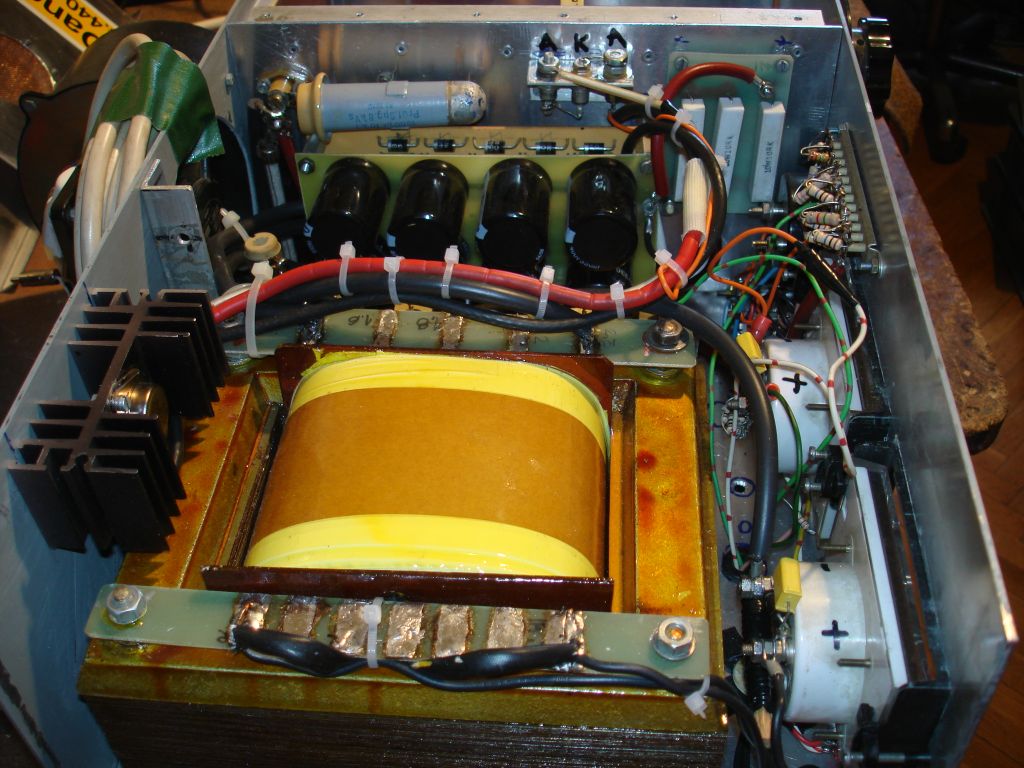

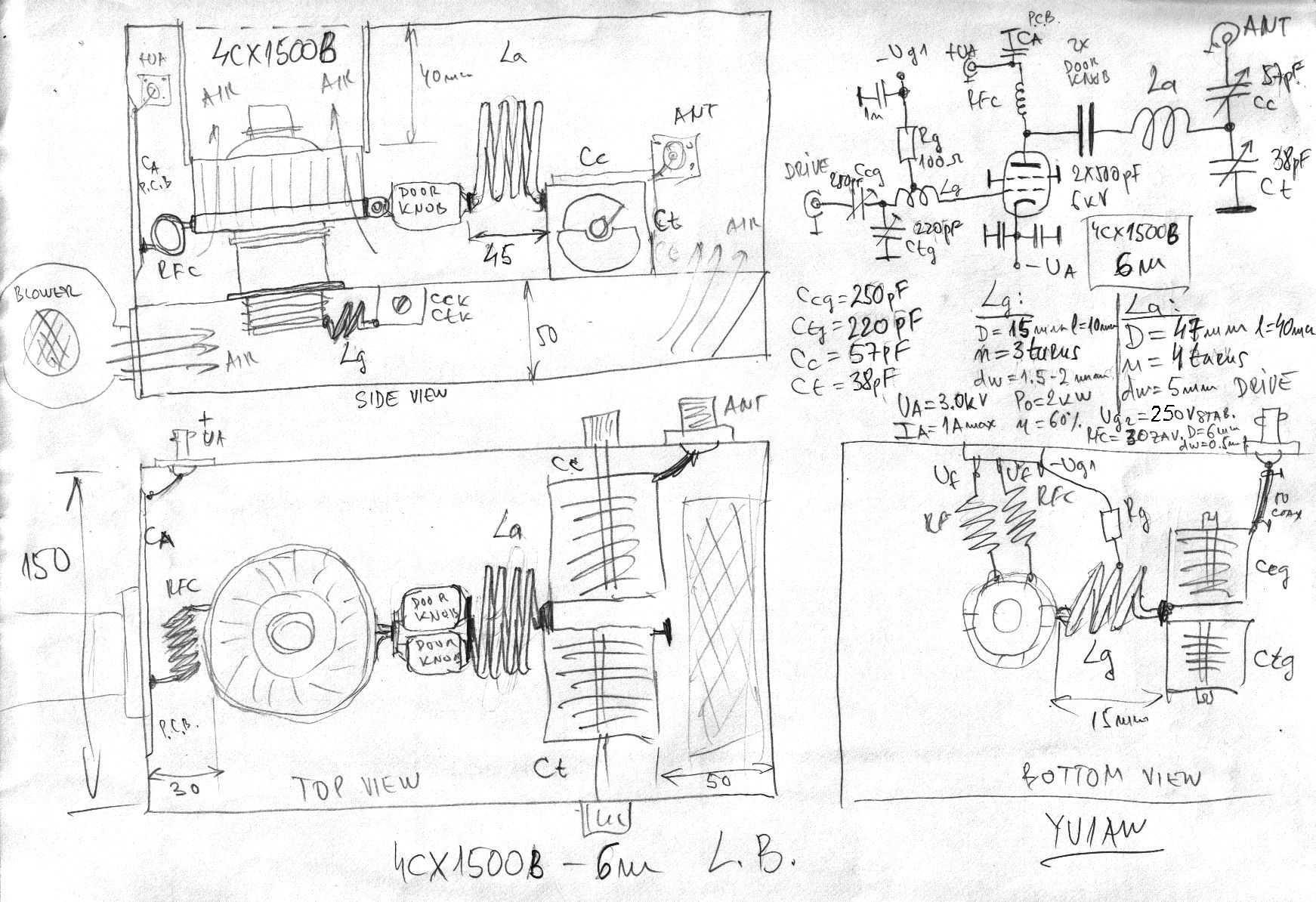

1x4CX1500B 6m Lazy Builders PA   1    2   3   New



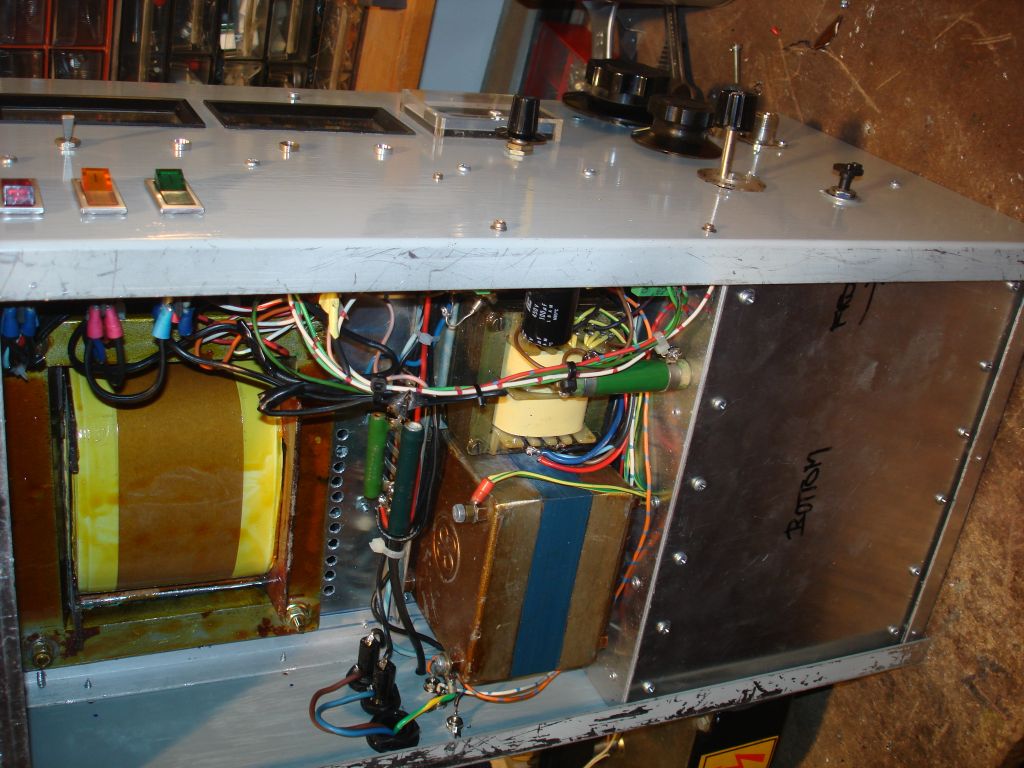

Built by: Vlatko, 9A9R




70 MHz

New

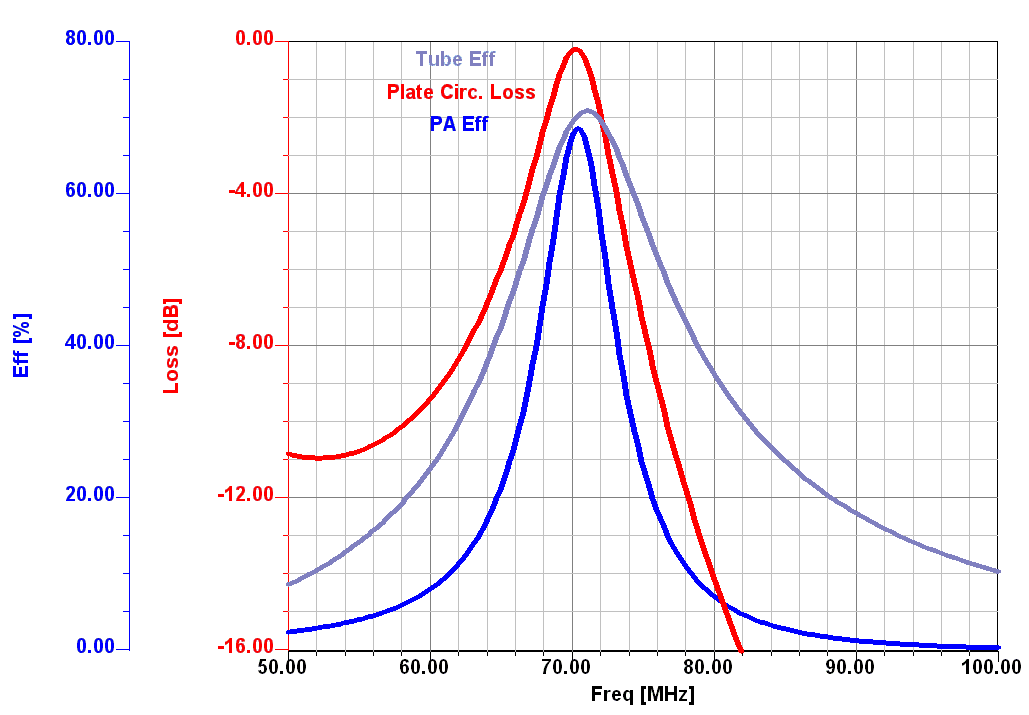

1xGS31B 2m Lazy Builders PA

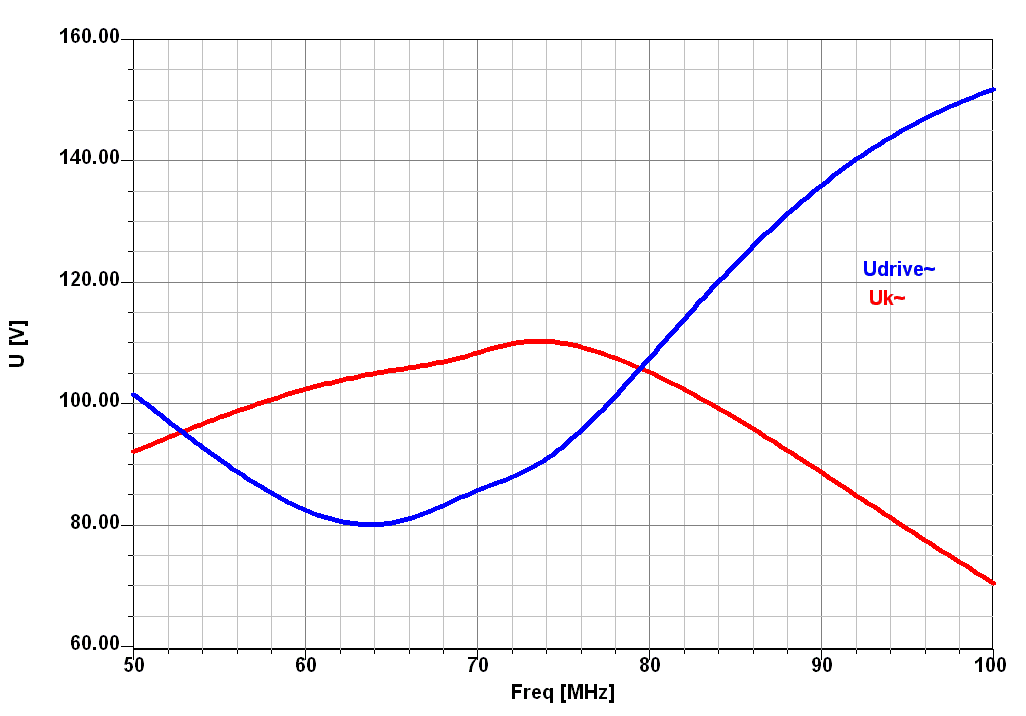

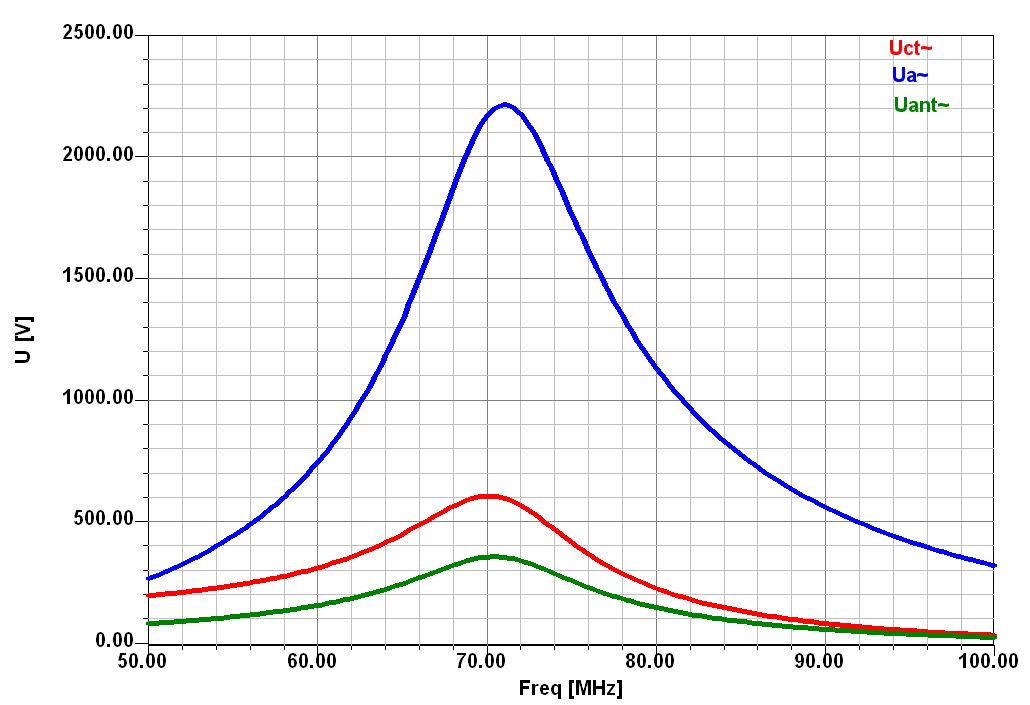

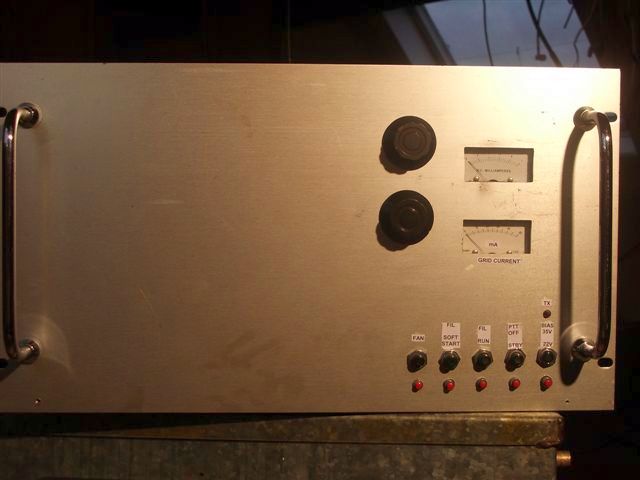

Built by Rhys, GW4RWR
