5-Element-12,5-Ohm-Yagi with 6m-Boom

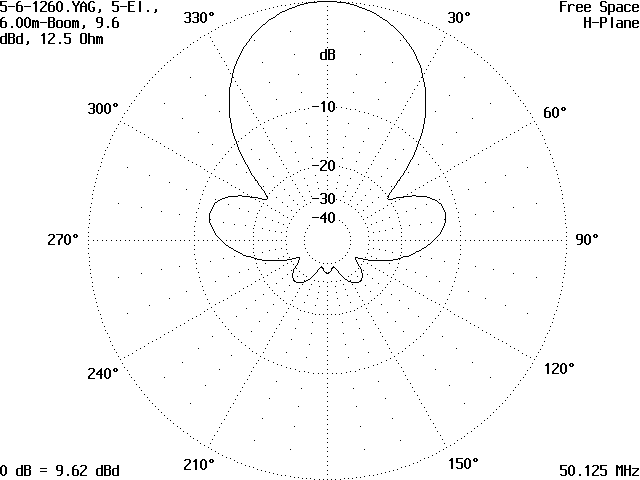

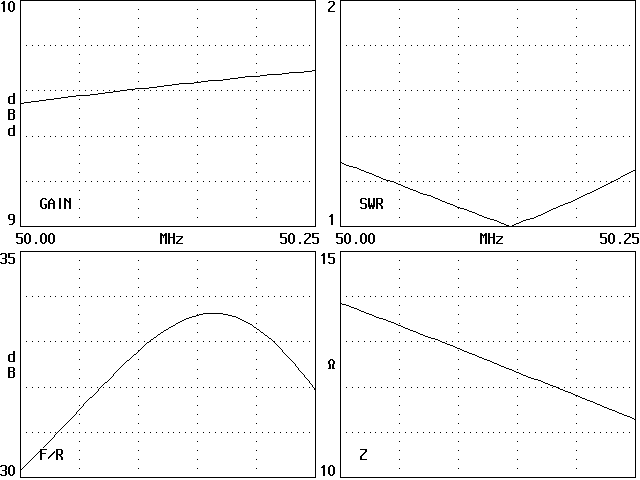

Short data: Gain 9.6dBd, F/R >28dB, bandwidth 300KHz (50.0-50.3 MHz) at SWR < 1.5
|
5-Element-12,5-Ohm-Yagi with 6m-Boom Short data: Gain 9.6dBd, F/R >28dB, bandwidth 300KHz (50.0-50.3 MHz) at SWR < 1.5
|
|
|
Element |
Element-position (mm) |
Element-length (mm) |
|
R |
0 |
2980 |
|
DE |
760 |
2860 |
|
D1 |
2140 |
2720 |
|
D2 |
4275 |
2700 |
|
D3 |
5970 |
2630 |
Match with 2xLambda/4 50-Ohm-coax in parallel to a grounded socket, feedpoint impedance 50Ohm.
An other construction for the radiator is a folded dipole with an impedance of 50Ohm (4x12.5Ohm). At the feedpoint use a toroid balun 1:1 (T 200-6) to match the symmetrical load to the coax-cable.
