Circuite non HAM

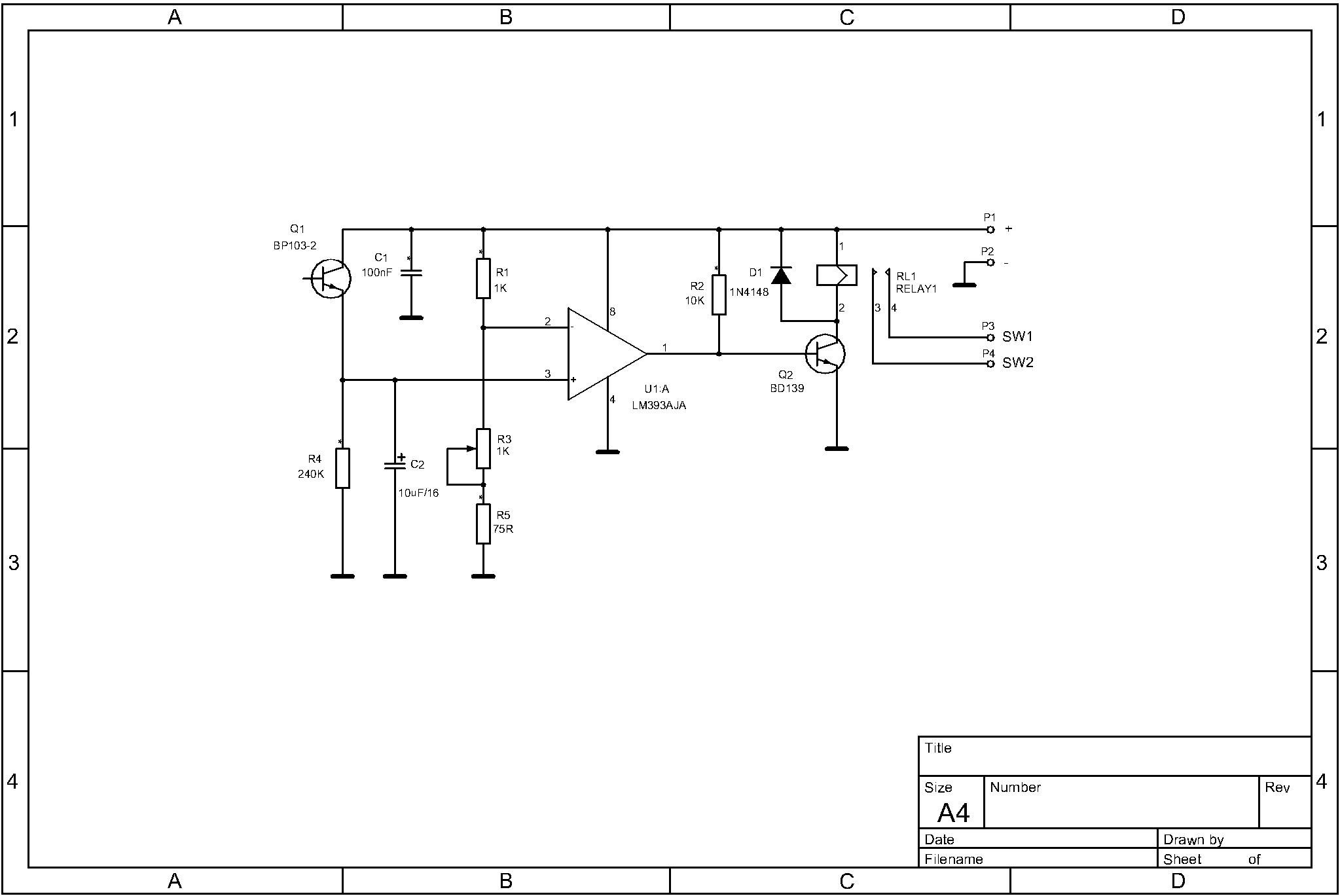

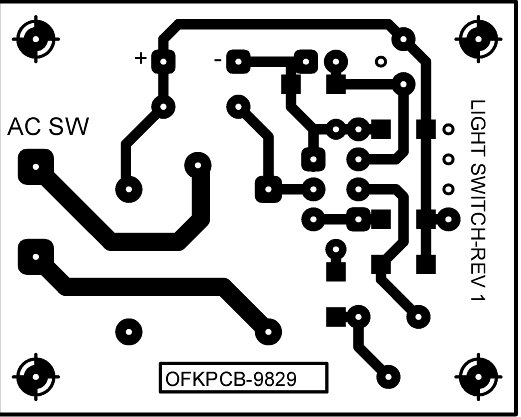

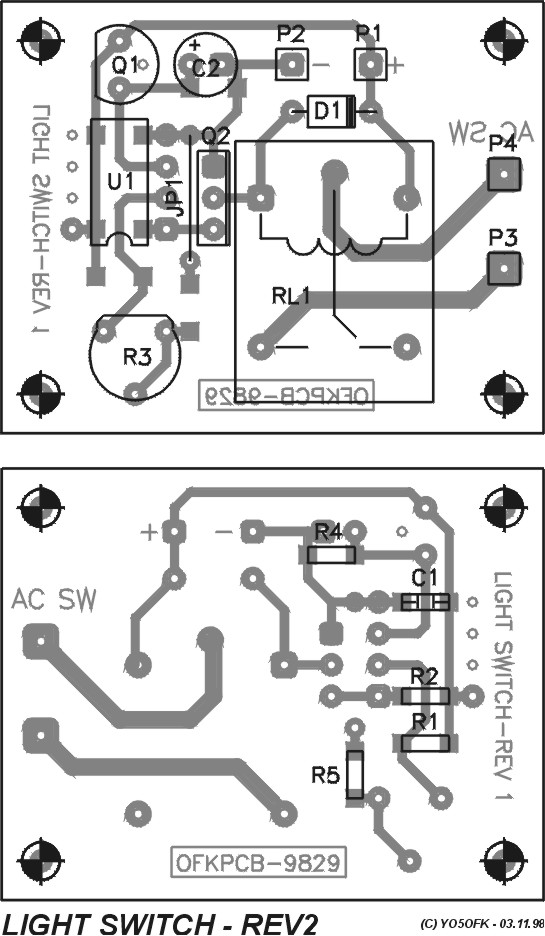

27. Comutator optic - YO5OFK design
    - Realizat: OK
    - Download: SCH, PCB, Desen de amplasare

TOP

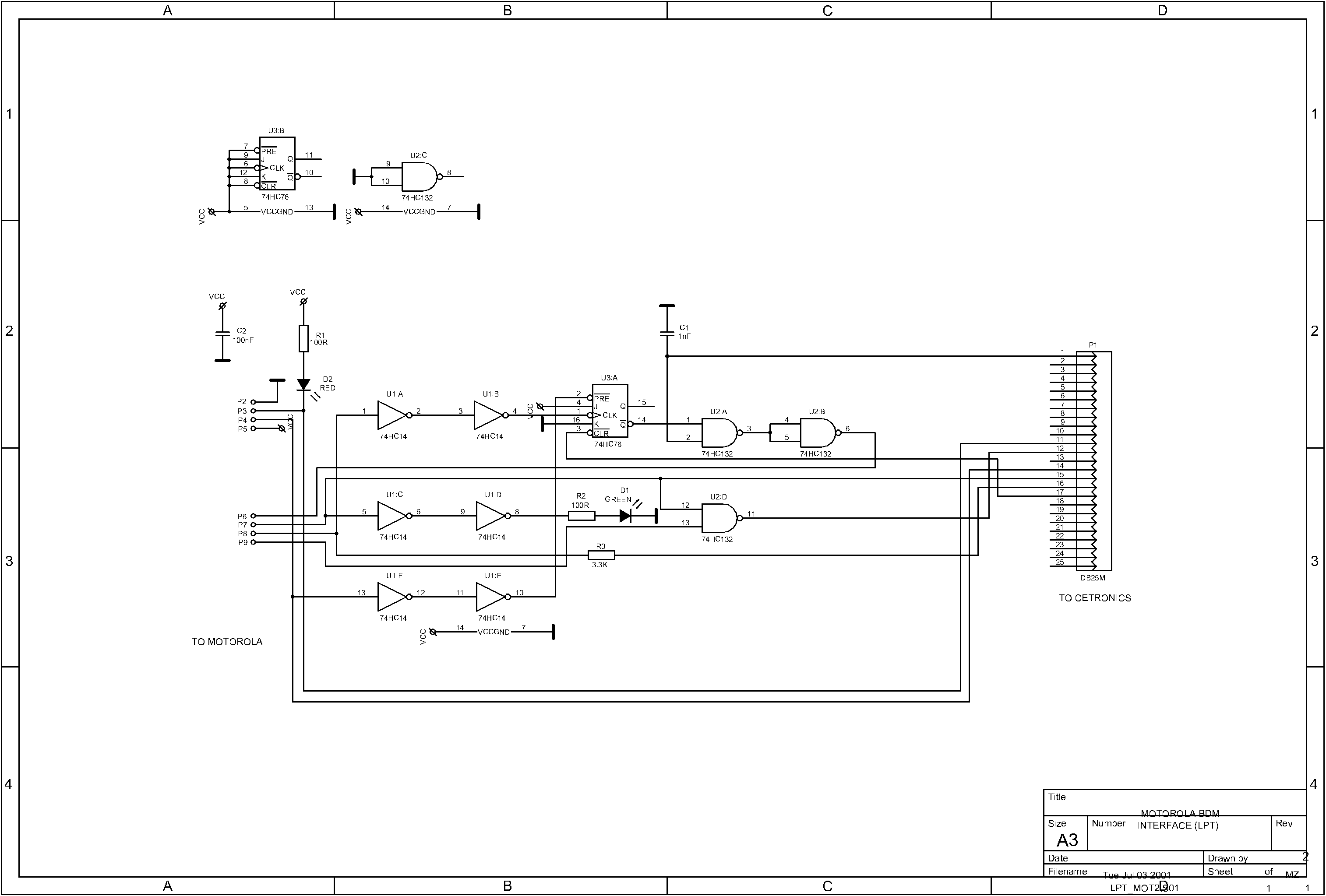

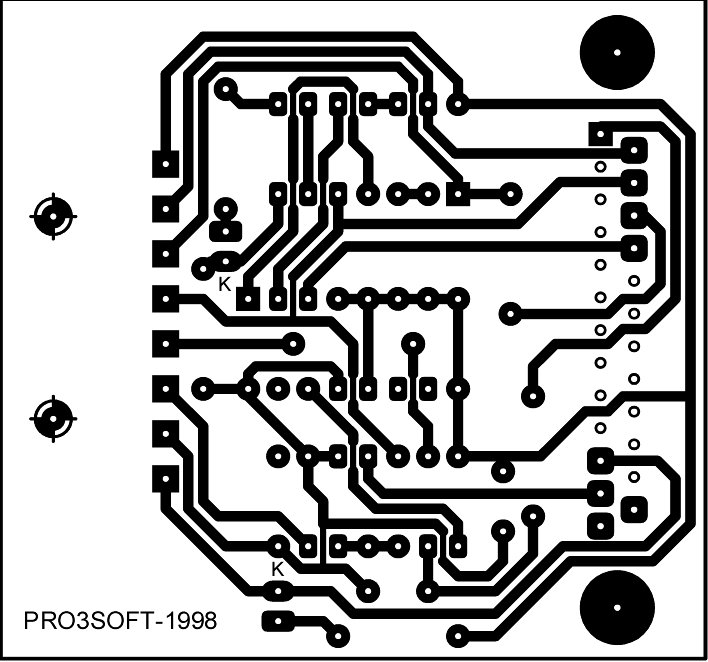

28. Interfata BDM - PCB de YO5OFK
    - Interfata pt. emulare microprocesor Motorola MC68HC16
    - Realizat: OK
    - Download: SCH, PCB, Desen de amplasare

TOP

29. Ceas digital cu alarma - YO5OFK design
    - Realizat: OK
    - Microelectronica MMC353
    - Download: SCH, PCB, Desen de amplasare: Fata componente, Fata lipituri

TOP

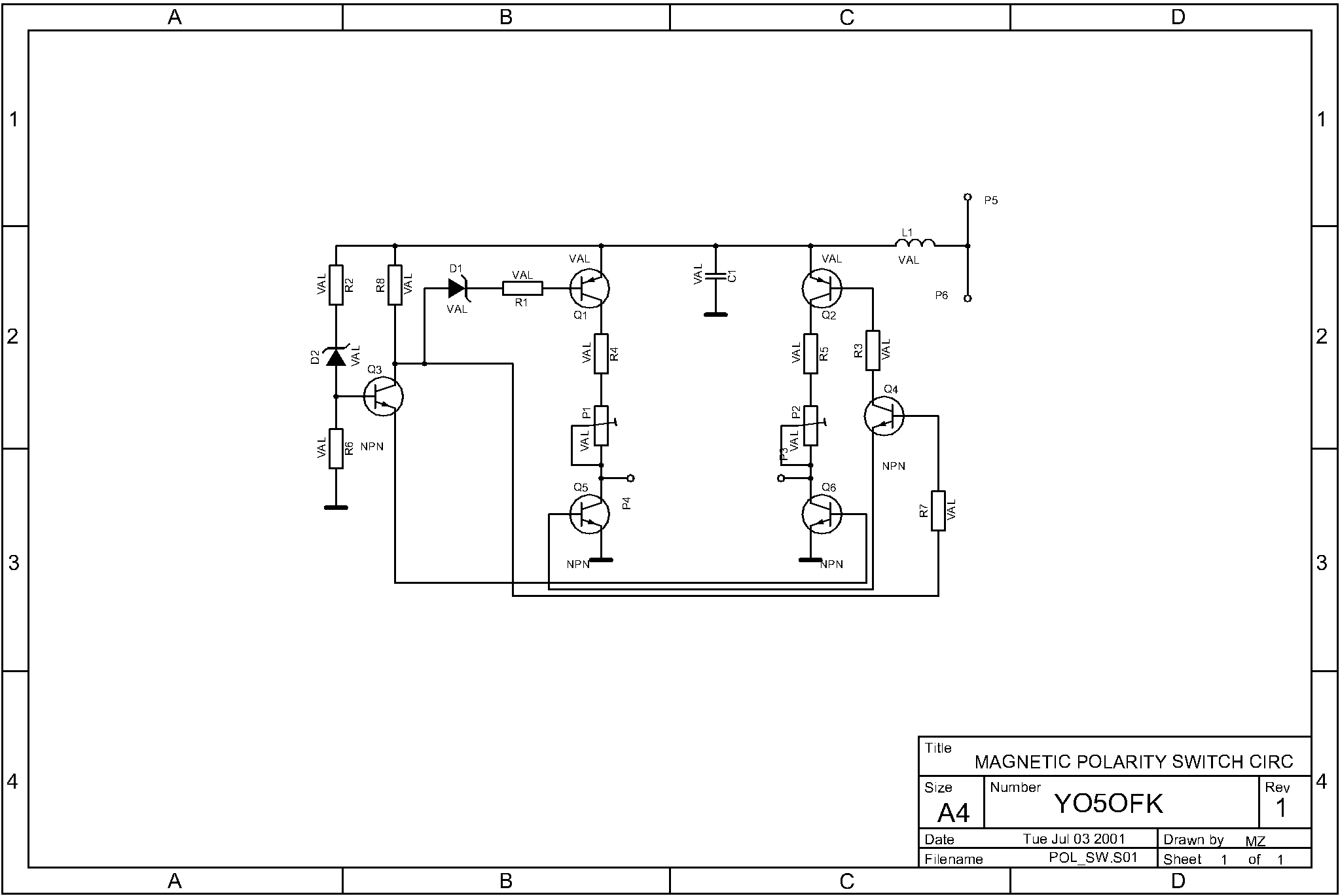

30. Comanda polarotor magnetic SAT - YO5OFK design
    - Realizat: OK
    - Download: SCH, PCB, Desen de amplasare

TOP

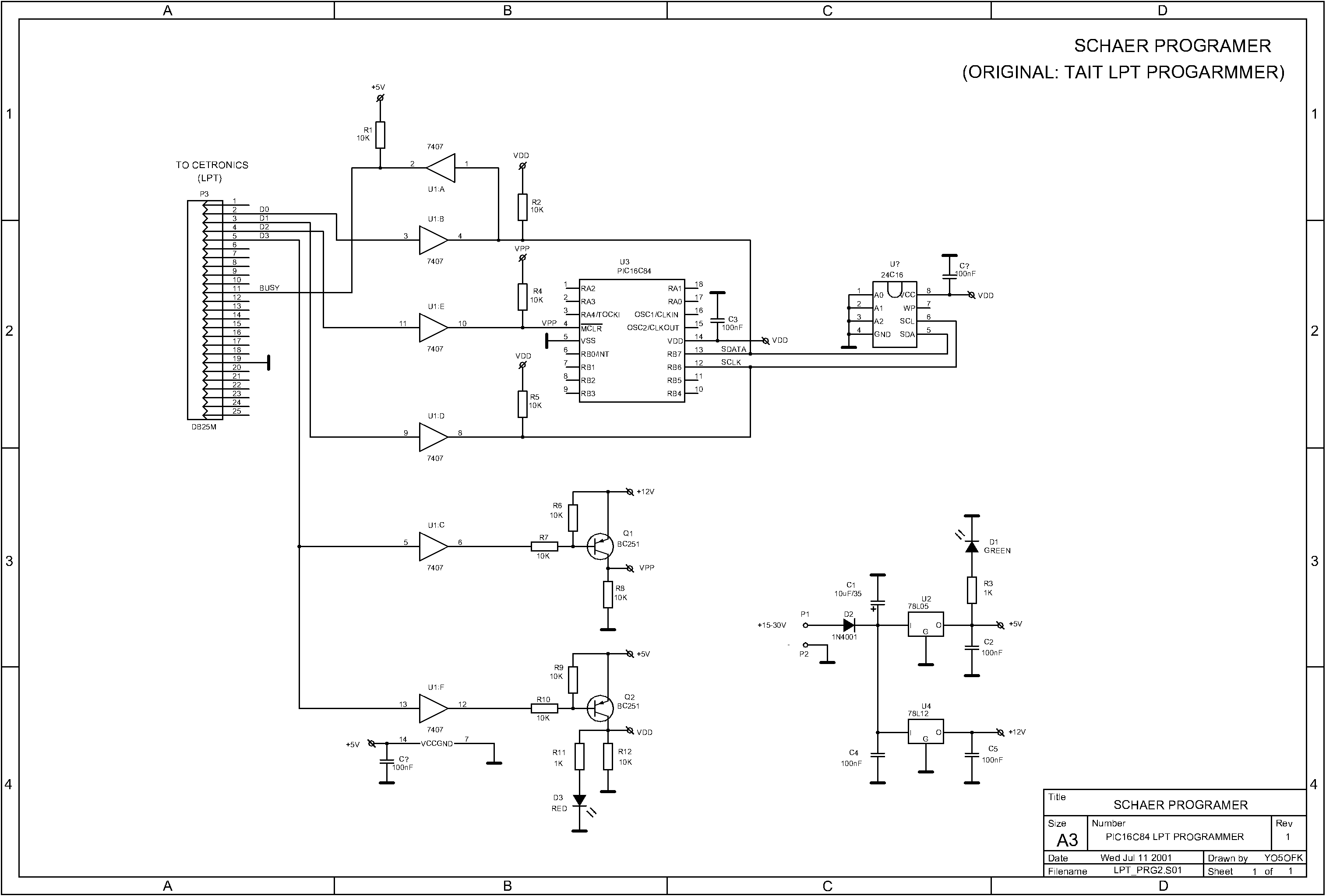

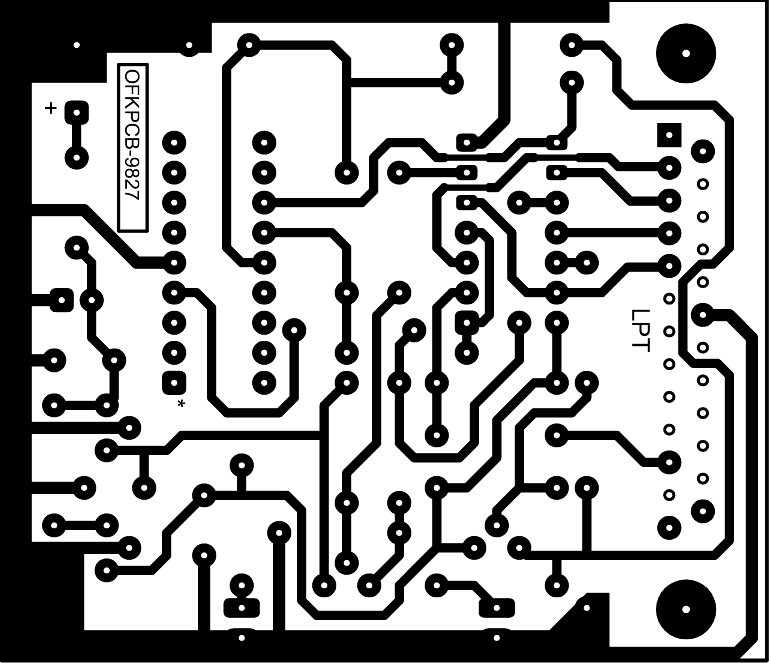

31. Programator PIC16F84 - PCB de YO5OFK
   - Port paralel PC, alimentare externa
    - Realizat: OK
    - Download: SCH, PCB - 65x56 mm, Desen de amplasare, Software PIX, Software IC-PROG, Documentatie ZIP(127kB), PDF (592kB)
    - Download: SCH varianta modificata pt. PIC si E2P

TOP

32. Programator memorie E2PROM I2C 24XX - PCB de YO5OFK
   - Port serial PC, "Ludipipo"
    - Realizat: OK
    - Download: SCH, PCB, Desen de amplasare, Software "Ludipipo"

TOP

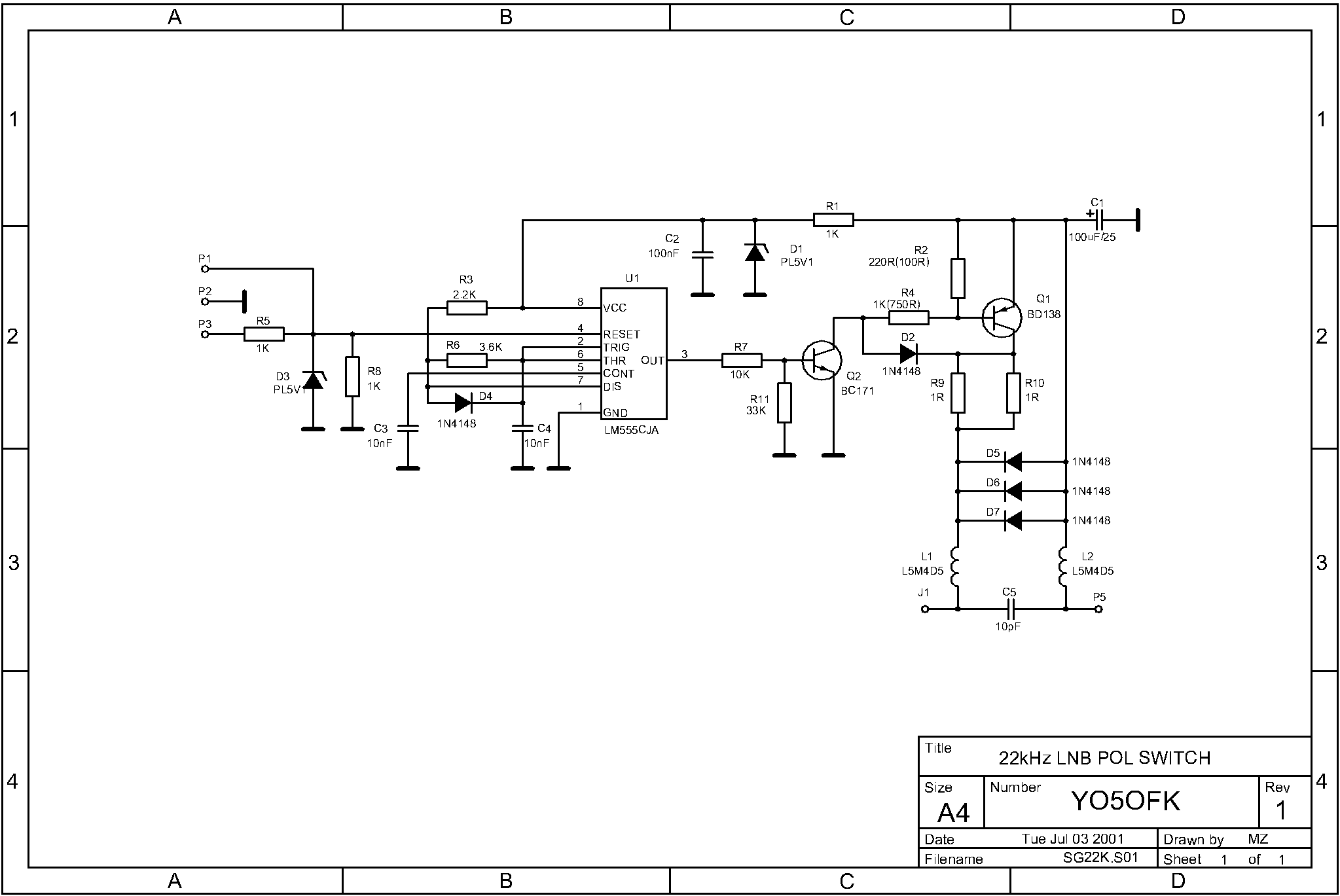

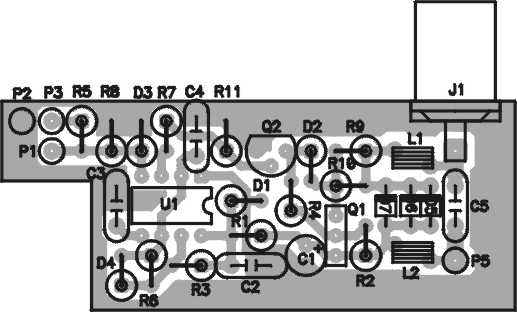

33. Comutator de polaritate SAT 22kHz - YO5OFK design
    - Realizat: OK
    - Download: SCH, PCB, Desen de amplasare

TOP
