Compass, Tilt/Roll and Temperature sensor applications with the TD-CMP modules.

Main Connections:

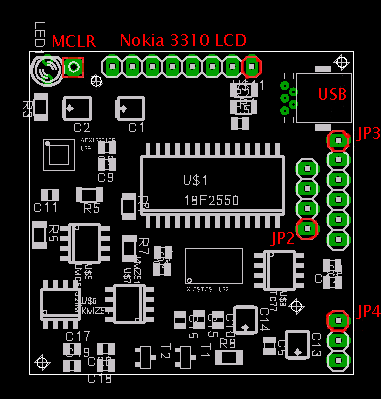

Module diagram	Header pinouts
	JP2 pins RS232   JP3 pins I²C / TEMP SENSOR   JP4 pins POWER SOURCE                     1 +5V   1 +5V   1 EXT (from JP3)   2 RX   2 SCL   2 COMMON   3 GND   3 SDA   3 USB   4 TX   4 GND / TEMP SENSOR -               5 ADJUST               6 TEMP SENSOR +                           * Note: pin 1 is marked by red in the diagram

Power Source: JP4: Connect pin 2 to pin 3 to power with the USB bus. Connect pin 1 to pin 2 when powered externally via JP3, pin 1.

LCD contrast Adjust: Connect pin 5, JP3 to +5V before powering up. Release when the desired the contrast is reached.

Tilt/Roll Calibration: (TD-CMP02 and TD-CMP03 only): First place the module on a completely flat surface, then apply +5V to ADJUST (pin 5, JP3)

Module RESET: apply GND to MCLR pin.

Temperature sensor: (TD-CMP03 only): The external LM335Z sensor connects to JP3 pin 4 and 6. No temperature will be displayed when the sensor is removed.

RS232 interface: JP2 provides the interface to connect to your COM port and hyper terminal. Also used for bootloading (module software update.) Check under the download section below for the latest version. Bootloading of the HEX-file can be done with Tiny Bootloader 1.91

I²C interface: JP3 allows us to connect to another µC. The module is the slave device on address 0xa0. It can be read via a simple EXT_EEPROM command. Download this I²C CCS C example to see how to connect I²C with a 18F452. Don't forget to change the POWER SOURCE (JP4) and connect pin 1 to pin 2.

Internal 8 bit registers are:

• i2c_buffer[7]= t_hi;                     // temperature high byte (unsigned int8)
  i2c_buffer[6]= t_lo;                     // "    "    "    "    low byte
• i2c_buffer[5]= adxl_y;                 // roll (signed int8)
  i2c_buffer[4]= adxl_x;                 // tilt " " " "
  i2c_buffer[3]= cmp_UMSB;
  i2c_buffer[2]= cmp_LMSB;
  i2c_buffer[1]= cmp_ULSB;         // compass 0..359
  i2c_buffer[0]= cmp_LLSB;         // " " " "

Reading the module (ccs c code):

• #include <2401.c>              // for I²C EXT.EEPROM emulation used by slave i²c TD-CMP modules
• ...
• int8 cmp_LLSB,cmp_ULSB;
• int16 compass_degrees;
• signed int8 adxl_x,tilt_degrees;
• signed int8 adxl_y,roll_degrees;
• ...
• init_ext_eeprom();             // init TD-CMP module as slave I²C ext.EEPROM
• ...
• cmp_LLSB = READ_EXT_EEPROM(0x00);     // read TD-CMP register 0 (cmp_LLSB)
• cmp_ULSB = READ_EXT_EEPROM(0x01);     // read TD-CMP register 1 (cmp_ULSB)
• adxl_x = READ_EXT_EEPROM(0x04);             // read TD-CMP register 4 (adxl_x) Tilt
• adxl_y = READ_EXT_EEPROM(0x05);             // read TD-CMP register 5 (adxl_y) Roll
• ...
• compass_degrees= ((int16)cmp_ULSB<<8)+cmp_LLSB;    // here's the data we needed
• tilt_degrees= adxl_x;
• roll_degrees= adxl_y;

USB interface: is HID (Human Interface Device) on PID=0461, VID= 1023 Each packet is 8 bits long (4 bytes address and 4 bytes data.)

• Address 0x01000004: cmp_UMSB,  cmp_LMSB, cmp_ULSB, cmp_LLSB (compass)
• Address 0x01000003: t_hi, t_lo (temperature), adxl_y (roll), adxl_x (tilt) signed int8

Low power LED: Will light up shortly when USB is connected and enumerated. Also the LED will blink several times, according to the capital direction it is facing:

• North: 1x
• East: 2x
• South: 3x
• West: 4x

Downloads: right-click & save as

WARNING: may not be duplicated for any commercial use whatsoever without explicit consent from the author (c) Michel Bavin, TechDesign Electronics.

Windows Example program setup: 023- TDCMP setup.msi  - September 25, 2006. Written in C# Visual Studio .NET Important Note: You need to have Microsoft .NET Framework 1.1 (or higher) installed to get the executable running.  I²C Connection CCS C Source Code: 023_i2c_v02_18F452.zip  - May 18, 2006. Connects a 18F452 to the TD-CMP module using I²C to read data.  TD-CMP02 Module HEX: 023_v28.HEX  - September 25, 2006. Can be bootloaded to the module through the RS232 port (JP2) and Tiny Bootloader 1.91

Module PIC CCS C Source Code, Schematics, C# code : not released, but you can buy a license on our Products page.

Info & datasheet:

Screenshots:

Tools:

The PIC code was made with the PCWH CCS compiler ($425,-); you can install Microchip's MPLAB IDE (click on the link and you can get it for free) with it to get things running smoothly.

Bootloading of the modules is done with the excellent Tiny PIC bootloader, through RS232 (JP2).

Eagle 4.11e was used for the schematic & PCB layout.
