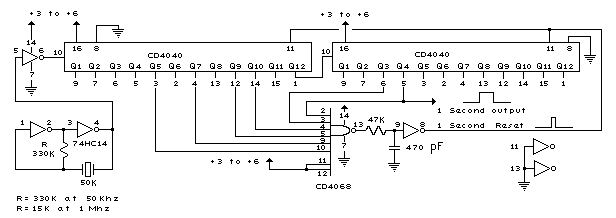

1 Second Time Base From Crystal Oscillator Original scheme edited by Bill Bowden, http://www.bowdenshobbycircuits.info   The schematic below illustrates dividing a crystal oscillator signal by the crystal frequency to obtain an accurate (0.01%) 1 second time base. Two cascaded 12 stage counters (CD4040) form a 24 stage binary counter and the appropriate bits are gated together to produce the desired division. Using a crystal of some even multiple of 2 is desirable so that one stage of the counter automatically toggles every second which eliminates the need for the NAND gate and reset circuitry, however the circuit below illustrates using a crystal which is not an even multiple of 2 and so requires additional components. Using a 50 Khz crystal, a count of 50000 is detected when the appropriate counter bits that add up to 50000 are all high. This corresponds to bits 15 (32768) + 14 (16384) + 9 (512) + 8 (256) + 6 (64) + 4 (16). Bits 14 and 15 are the 3rd and 4th stages of the second counter, bit 0 is the first stage of the first counter (Q1, pin 9). To use a 100 Khz crystal, each bit would be moved one to the right so the total would be (65536 + 32768 + 1024 + 512 + 128 + 32 = 100,000). Using a 1 Mhz crystal, the following bits would be needed: ```Bit 19 - Right counter - Q8 - pin 13 - Decimal value = 524288 18 7 4 262144 17 6 2 131072 16 5 3 65536 14 3 6 16384 9 - Left counter - 10 14 512 6 7 4 64 --------- 1,000,000 ``` At 1 Mhz, the 330K resistor in the oscillator circuit will need to be reduced proportionally to about 15K. When the terminal count is reached, a 7 uS reset pulse is generated by the Schmitt Trigger inverter stage that follows the NAND gate. The 47K resistor and 470 picofarad capacitor sustain the output so that the counters are reliably reset to zero. This is less than one clock cycle at 50Khz and does not introduce an error but would amount to 7 cycles at 1 MHz which would cause the counters to lose 7 microseconds of time per second. It's not much of an error (7 parts in a million) but it would be there. The minimum reset pulse width for the 4040 CMOS counters is about 1.5 uS, so the reset pulse cannot be made much shorter. Digital Electronic Lock The digital lock shown below uses 4 common logic ICs to allow controlling a relay by entering a 4 digit number on a keypad. The first 4 outputs from the CD4017 decade counter (pins 3,2,4,7) are gated together with 4 digits from a keypad so that as the keys are depressed in the correct order, the counter will advance. As each correct key is pressed, a low level appears at the output of the dual NAND gate producing a high level at the output of the 8 input NAND at pin 13. The momentary high level from pin 13 activates a one shot circuit which applies an approximate 80 millisecond positive going pulse to the clock line (pin 14) of the decade counter which advances it one count on the rising edge. A second monostable, one shot circuit is used to generate an approximate 40 millisecond positive going pulse which is applied to the common point of the keypad so that the appropriate NAND gate will see two logic high levels when the correct key is pressed (one from the counter and the other from the key). The inverted clock pulse (negative going) at pin 12 of the 74C14 and the positive going kepad pulse at pin 6 are gated together using two diodes as an AND gate (shown in lower right corner). The output at the junction of the diodes will be positive in the event a wrong key is pressed and will reset the counter. When a correct key is pressed, outputs will be present from both monostable circuits (clock and keypad) causing the reset line to remain low and allowing the counter to advance. However, since the keypad pulse begins slightly before the clock, a 0.1uF capacitor is connected to the reset line to delay the reset until the inverted clock arrives. The values are not critical and various other timing schemes could be used but the clock signal should be slightly longer than the keypad pulse so that the clock signal can mask out the keypad and avoid resetting the counter in the event the clock pulse ends before the keypad pulse. The fifth output of the counter is on pin 10, so that after four correct key entries have been made, pin 10 will move to a high level and can be used to activate a relay, illuminate an LED, ect. At this point, the lock can be reset simply by pressing any key. The circuit can be extended with additional gates (one more CD4011) to accept up to a 8 digit code. The 4017 counting order is 3 2 4 7 10 1 5 6 9 11 so that the first 8 outputs are connected to the NAND gates and pin 9 would be used to drive the relay or light. The 4 additional NAND gate outputs would connect to the 4 remaining inputs of the CD4068 (pins 9,10,11,12). The circuit will operate from 3 to 12 volts on 4000 series CMOS but only 6 volts or less if 74HC parts are used. The circuit draws very little current (about 165 microamps) so it could be powered for several months on 4 AA batteries assuming only intermittent use of the relay. Original scheme edited by Bill Bowden, http://www.bowdenshobbycircuits.info   Simple clock doubler ``` +-------+ | hc86 | +-----------| | clkin ----+ | +--- clkout = 2*clkin +-N-R-+-N---+ | | | | C +-------+ | gnd where N is a NOT gate (hc04?) R is a 10k resistor C is a 47pf capacitor. The circuit functions quite well and is stable. If the Not gates are omitted, however, it becomes unstable, and gives variable width pulses. Divide and Multiply ``` `The 2x trigger is a little involved, but here is a circuit that will do divide by two preserving pulse width.` ``` +5 ______ ______ o______| \ In o___________________________| \ | \ | | \ | NAND )O__________o out | | NAND )O_______| / | ________| / |______/ | | |______/ | ______ |_________________ |__| \ ___________ | | \ | | | | NAND )O___|\ clk | | +5 o____| / |/ Q |__| |______/ | | | _ | ____| D Q |__ | | | | | | | | | | D-type | | | | Flip-Flop | | | |___________| | |___________________|``` `You can use a 74LS00 for the NAND gates and a 74LS74 for the flip-flop. ` Critter Ridder - Ultrasonic Sound Generator ``` Legend: ) = No Connection + = Connection All capacitors are 16V or more. ``` ``` R2 same as R1 R1 1K to 10K +------------/\/\/\------------------+-----/\/\/\------+ | | | | C1 .0015 uF | | | || | | +--------||-------------+ | | | || | | | | | | | | +---+-----------+ +-------+ | | | | | | | | | | | | | | | | | \ | \ | | | +-> / R8 | R4 / | | | \ 25K | 10K \ | | | / | / | | | | | | | | | | | | \ | | V -------------------- / R5 | | +---/\/\/\---+ \ 2 - + 3 / \ 10K | | | | \ / / | | | R9 50K | \ 7 4 1 / | | +----)------------)------\4 op 7/--------)---------+ | | | \ amp / | | | | D4 D3 ----- \ / | | | ===== 1N \ / \ / | | | / \ 914 \ / \ / | | | / \ or ===== | | | | ----- 1N4148 | | | | | | see note | | | | | | | | | | | +------------+------------+------+------+ | | | | | D1 1N914 D2 | | | or 1N4148 | | | R6 1K | / | | / | | | +---/\/\/\----+--|< |-----|< |----+ | | | | \ | | \ | | | | | | | Q1 | | | 2N2222 or | | ------- 2N3904 R7 100 ohm | | E/ \ | +--------/ \----------+------/\/\/\------------+ | | | | | | | -------- | | +-----------| |----------+ | | ======== | | / \ | | /----------\ | | SPKR1 | | piezo tweeter | | | | - 9 - 12VDC + | ``` ``` Parts List C1 .0015Uf ceramic is ok. This cap determines frequency. C2 .1 uF 50 V ceramic bypass C3 100 uF 16V or more C4 .1 uF 50V or more D1 1N914 or 1N4148 Diode D2 1N914 or 1N4148 Diode D3 1N914 or 1N4148 Diode D4 1N914 or 1N4148 Diode Q1 2N3904 or 2N2222 or PN2222 NPN audio gen'l purp transistor R1 1K to 10K 5% 1/4W Just about any value will do, as long as R1 and R2 are the same. R2 same as R1 R3 1K 5% 1/4W R4 10K 5% 1/4W R5 10K 5% 1/4W R6 1K 5% 1/4W R7 100 ohm 5% 1/2W R8 25K potentiometer R9 50K potentiometer - trimmer is Ok if it is to remain set at a fixed value. Note: The diodes D1 and D2 are to drop enough voltage so that the 741's output voltage, which cannot go clear to ground, will still turn off Q1. The frequency is controlled by R8 the 25K pot. The R9, 50K pot controls the pulse width of the square wave. So this schematic illustrates how to control frequency and pulse width independently. R5 adds positive feedback. ``` ``` Enter your search terms Submit search form ```  Ham radio Data Center - free schematics | 73s.eu - Free Ham Radio Social Network | Free HAM Directory | About me | Acronyms  | CW | Data Sheets | Docs | Download | E-mail | HOME | Ham projects | Hobby circuits | Photo galery | PIC | QTH photos | Sign in my guestbook | View my guestbook ]   © 2001 - YO5OFH, Csaba Gajdos
