Yaesy FTL-2011 Programming

Yaesu(Vertex) FTL-2011, 1011, 7011
yaesuFTL2011

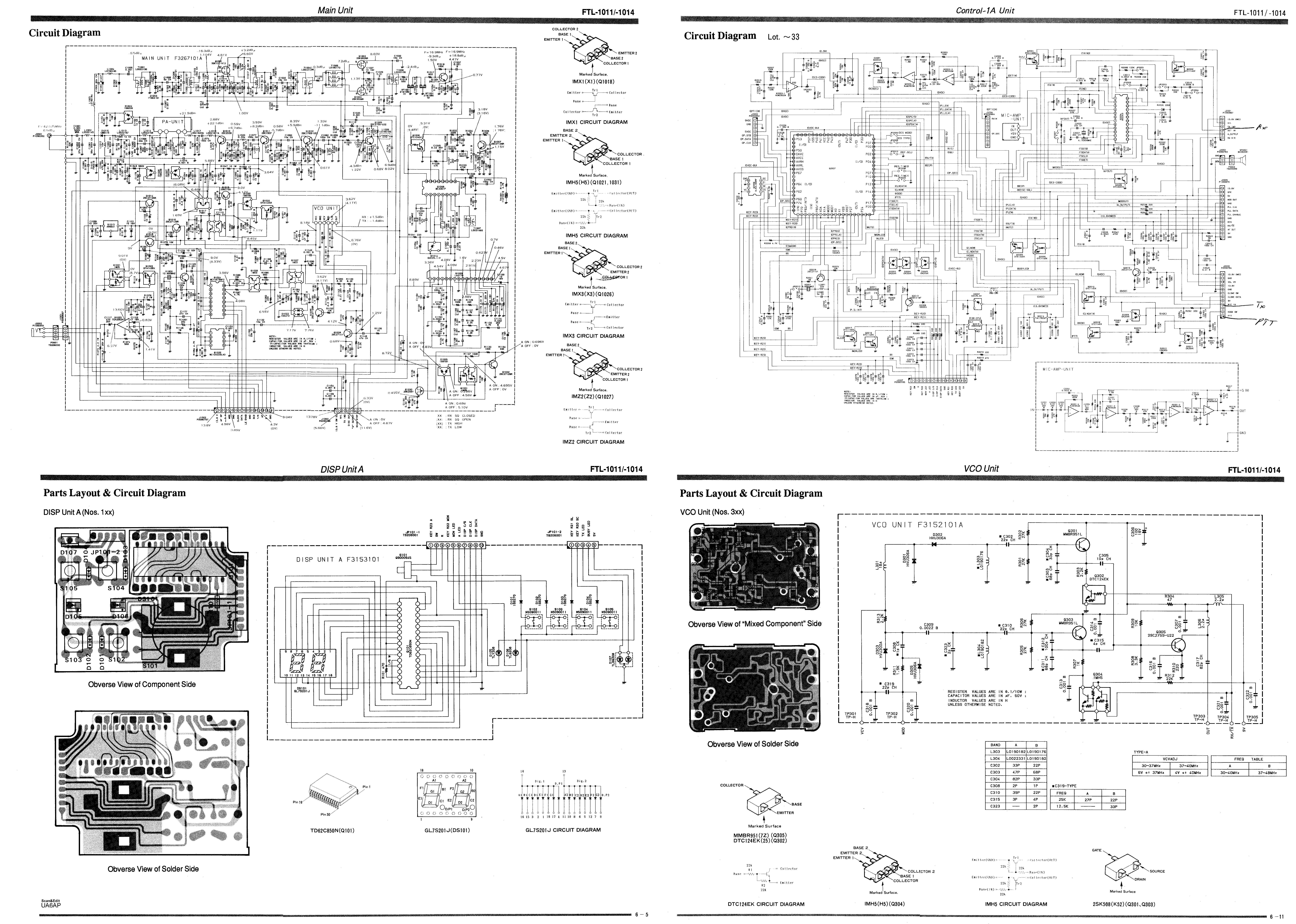

Schematic Download
Yaesu FTL-1011(bmp)
Yaesu FTL-2011(bmp)
Yaesu FTL-2011(pdf)

Operating  Manual
FTL-X011 Manual (pdf)

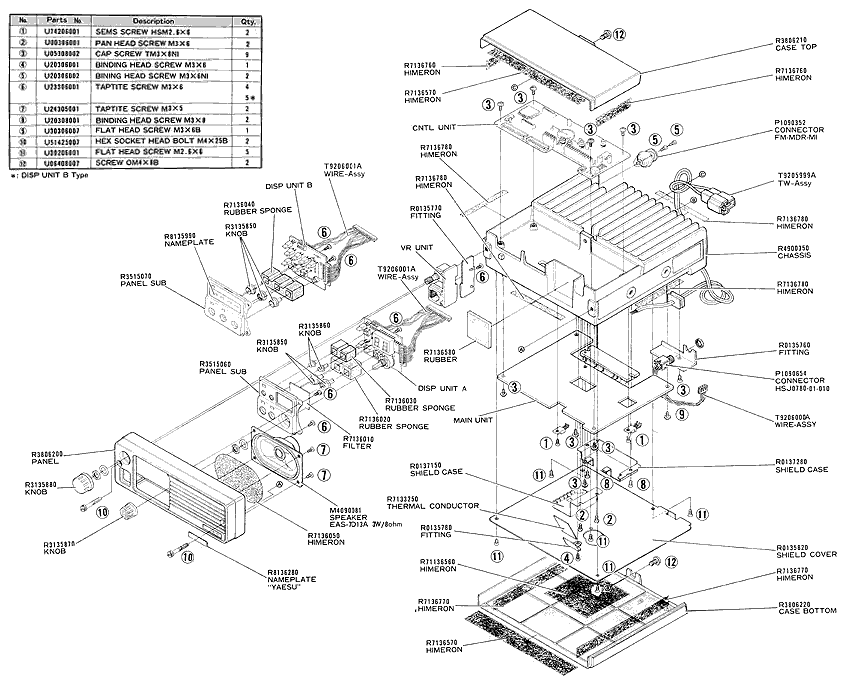

Explode view (gif)


Soft Download

For programming FTL-2011 use CE5.exe
PC must be 66-500MHz with SERIAL PORT RS-232.
MS-DOS 6.0/6.22/7.10(mouse support) operating system.
>>Soft Download VERTEX/YAESU<<
>>MS-DOS 7.10 Download (LINK)<< Burn .ISO image to disk and then install.

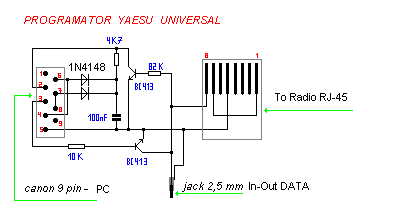

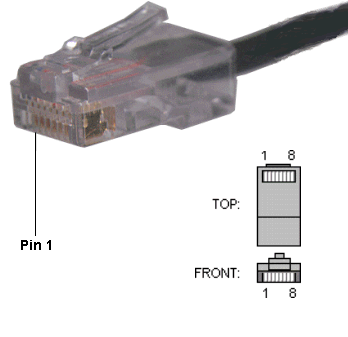

Interface PC<->RADIO
interface

 >>Download SCHEMATIC pdf<<
>>PCB 1:1 SMD 15X15mm<<
>>PCB COMP. POSITION<<



MODIFIED YAESU FTL-2011

For best rx sensitivity use BF981(BF998) preamplifier.After modification you should adjust the threshold SQ .
>>Download FTL-2011 preamplifier<<
