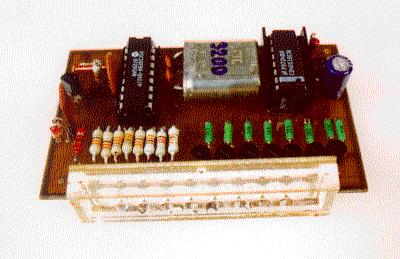

Digital scale and
frequency meter

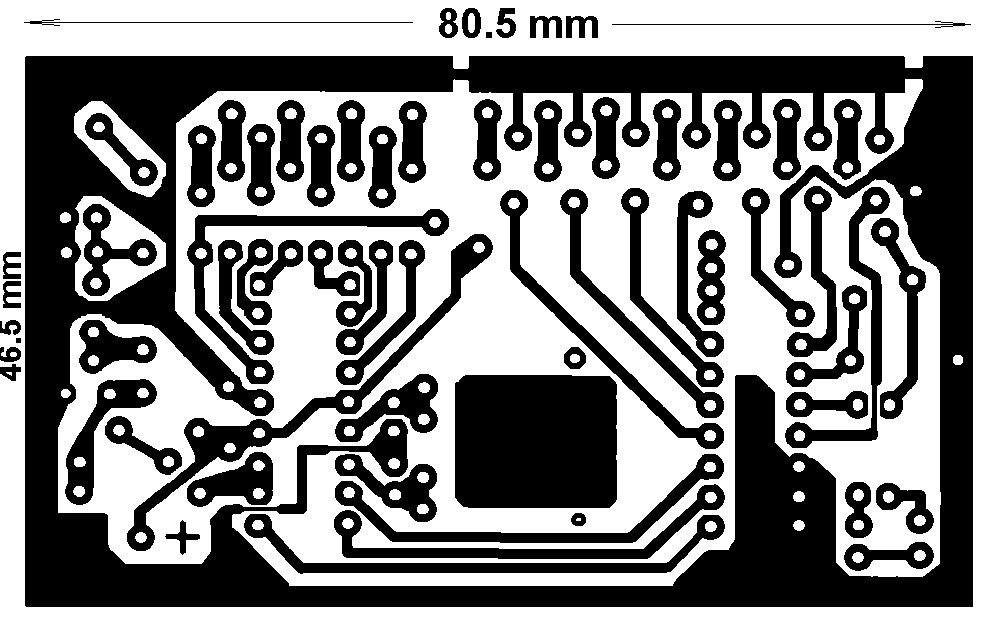

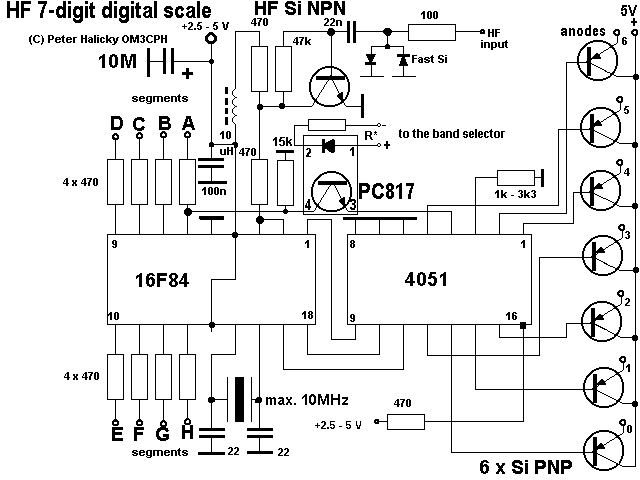

The circuit of a digital scale for LED indicators with the common anode:
The circuit of a digital scale for LED indicators with the common cathode:

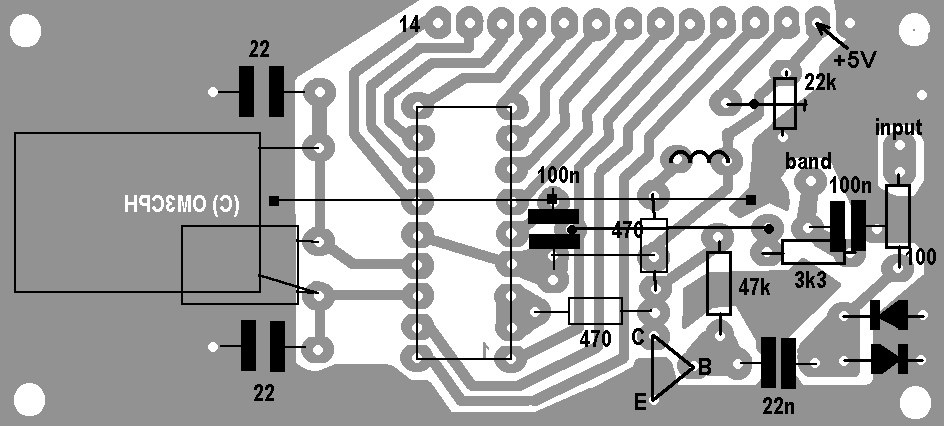

The circuit of a digital scale for LCD indicator:
The circuit of a frequency meter for LED indicators with the common anode:

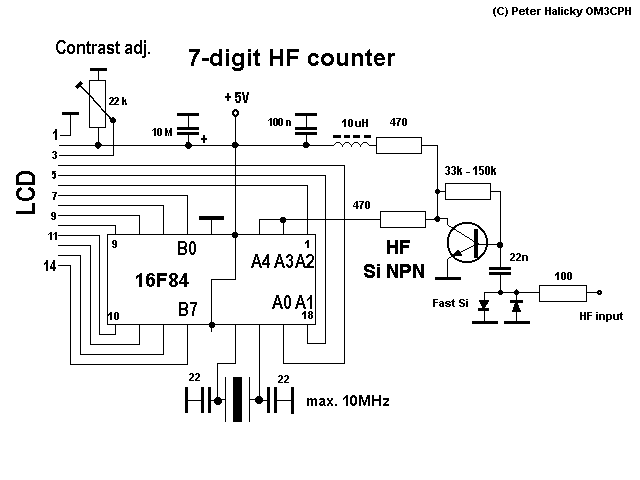

The circuit of a frequency meter for LCD indicator:
