XWARN NEW REPEATER

Pictures by Jim Simpson WB8QZZ

(Xenia Receive Site) Voter, Power Supply, Xenia Receiver and Link Transmit Radio.	(Xenia Receive Site) Incoming and Outgoing RF Lines.
(Xenia Receive Site) Our very own Mike Wolf.	(Xenia Transmit Site) Poly Phaser Lightning protection, 2-50 Amp Power Supplies, RC 850 Controller, 250 Watt Henry Amp and incoming Link Radio and logic circuits.
(Xenia Transmit Site) New GE Master III Repeater and Power Amp.	(Xenia Transmit Site) Rats Nest/Logic Lines we intend to correct when we replace the controller.

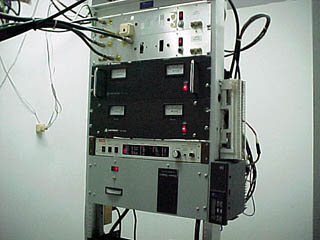

(Xenia Transmit Site) Close up of Power Supplies and RC850 Controller.	(Xenia Transmit Site) Close up of Link Receiver.
(Xenia Transmit Site) Close up of the New Master III Repeater.	(Xenia Transmit Site) New Tool and equipment storage.
(Xenia Trasmit Site) New Tools in storage box.	(Xenia Transmit Site) New Tools in storage box.
(Xenia Transmit Site) New Tools in storage box.	(Xenia Transmit Site) New Tools in storage box.
