Some notes about the BDARC repeater

The Beckley repeater's image and coverage map.
145.370 - (100.0)

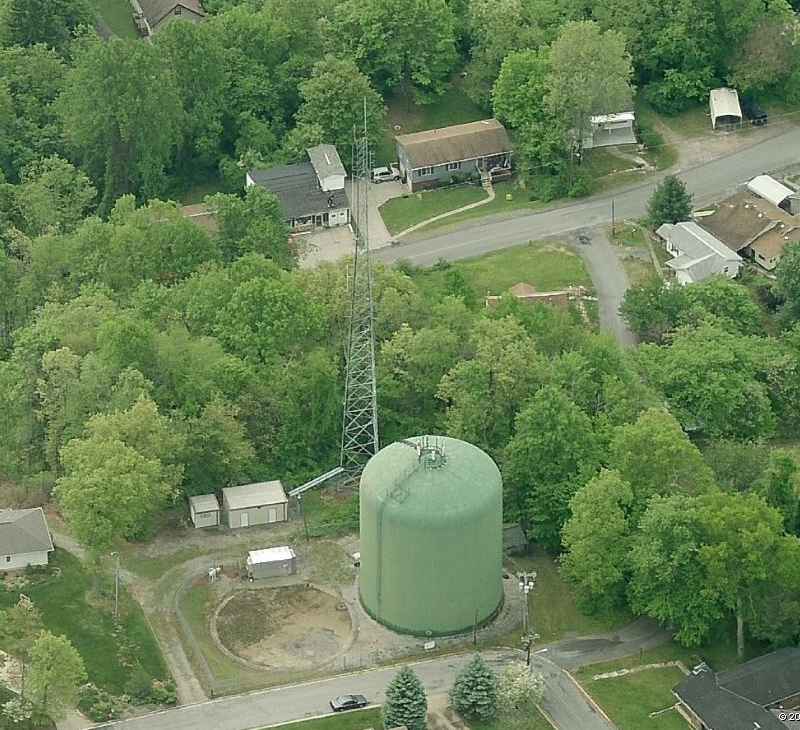

Here's an Ariel Photo of the Tower Site.


Driving on Harper Road you can see the Tower Site.
Here's an image of the Tower Site while driving on
Harper Road toward Raleigh general Hospital.
(Besure to click the image to see it bigger!)

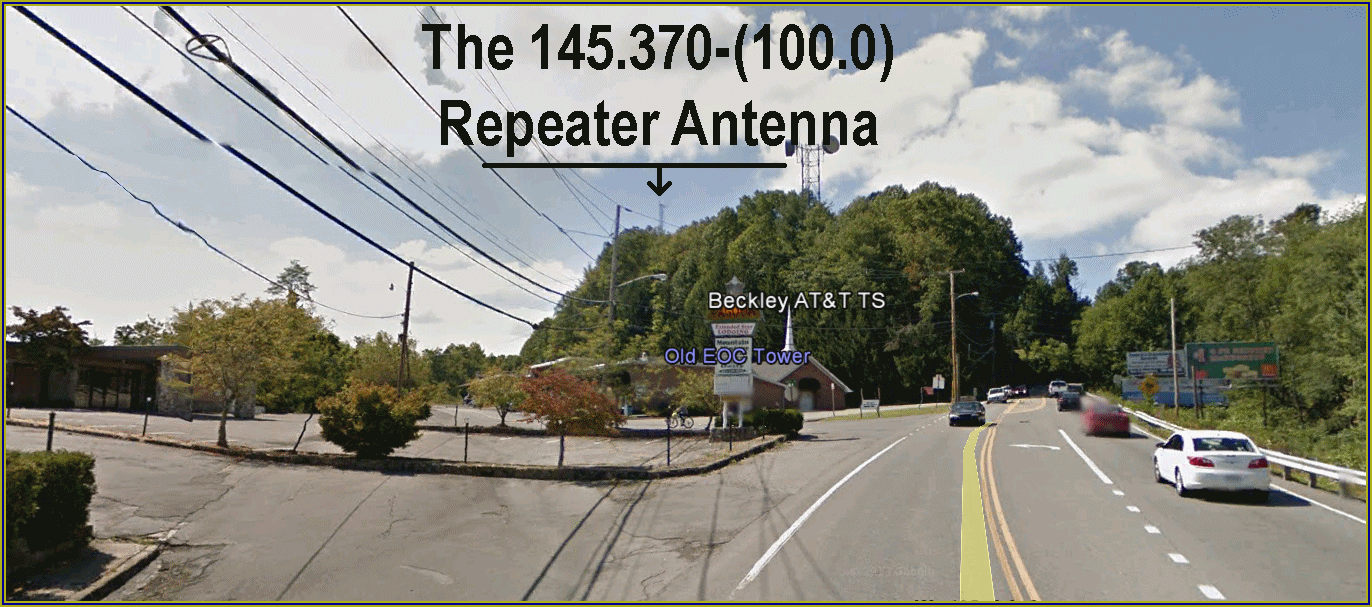

Here's another view of the Tower Site while driving on
Harper Road toward Downtown Beckley.

(Besure to click the image to see it bigger!)


Here are a couple different views.

Here's an image of the Tower Site from another street.

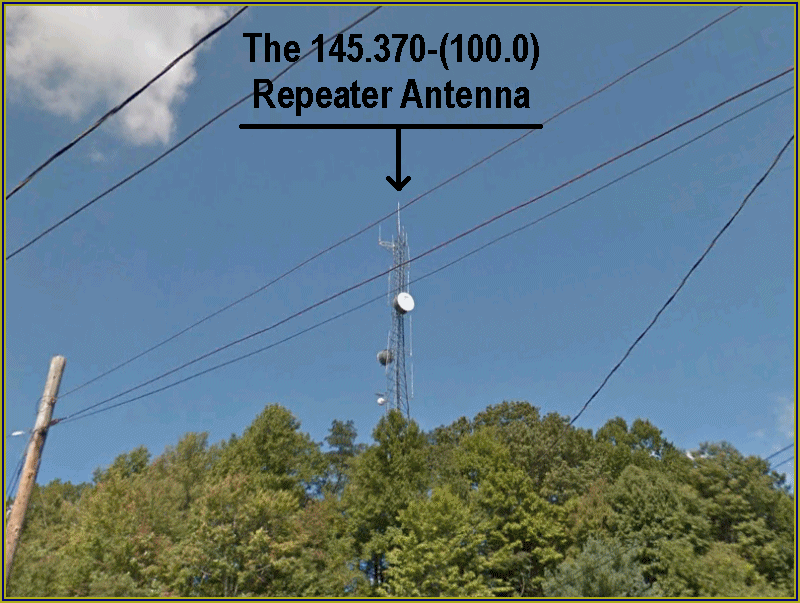

Here's a view of the 145.370-(100.0)'s antenna.
(I know it's blurry but I had a cheap camera. KB8QEU)

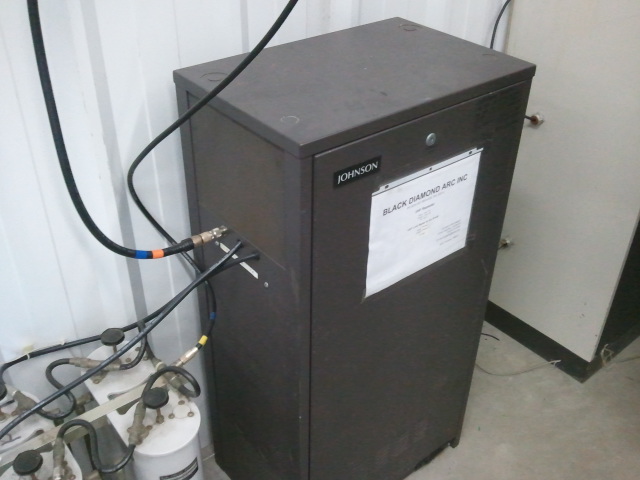

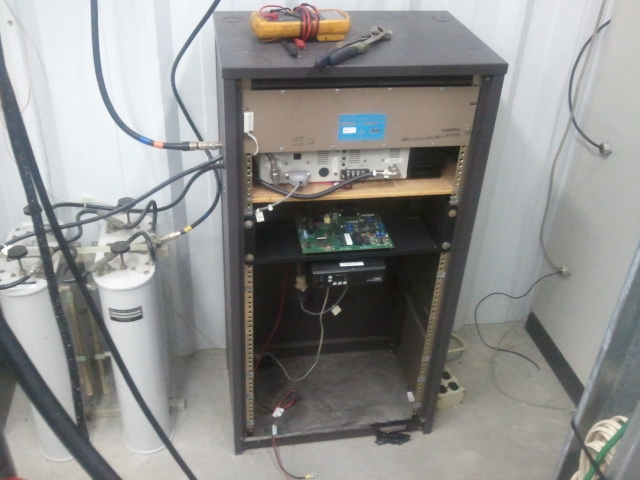

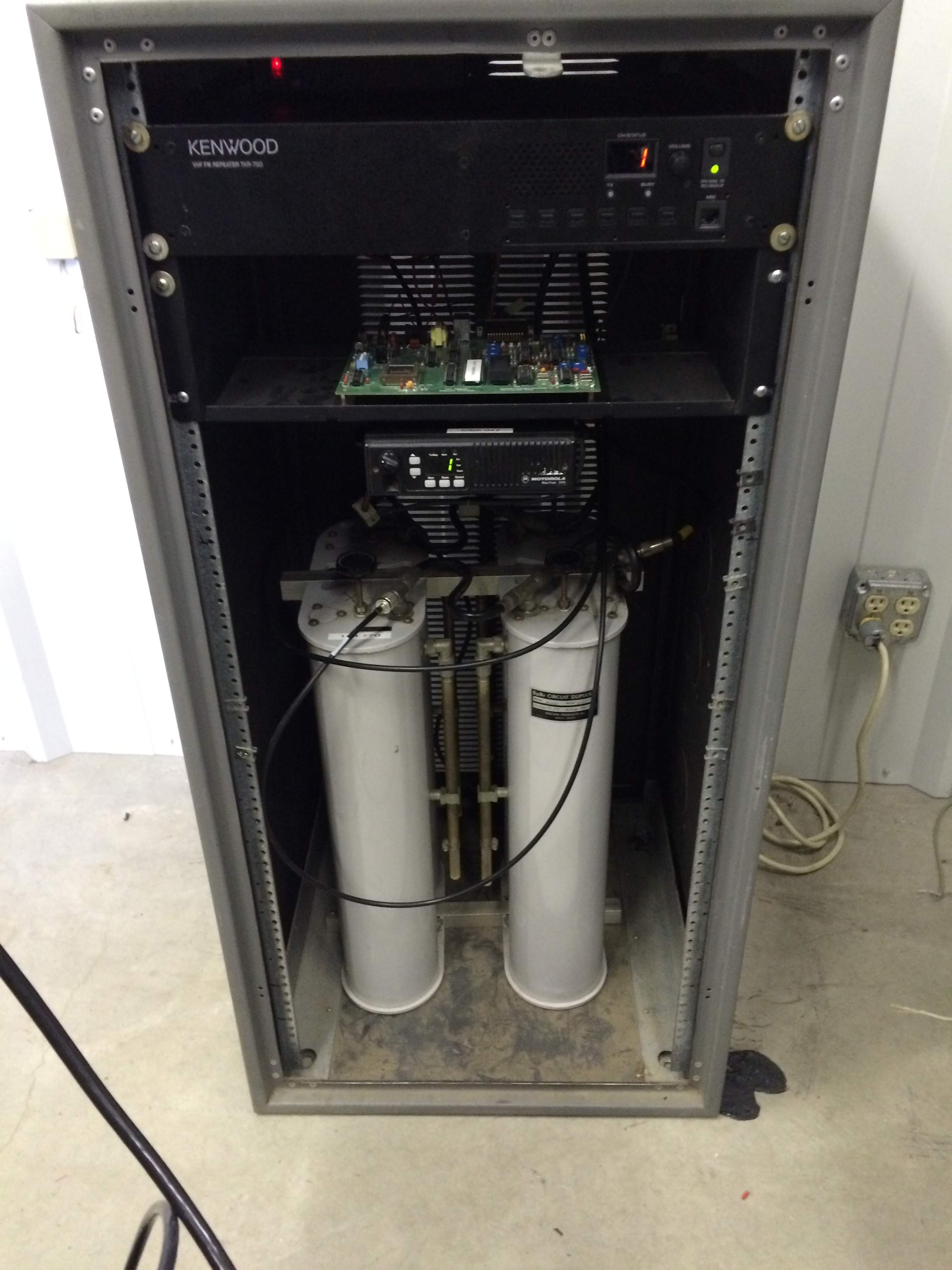

Here ate two photos of the older repeater from inside
the building.

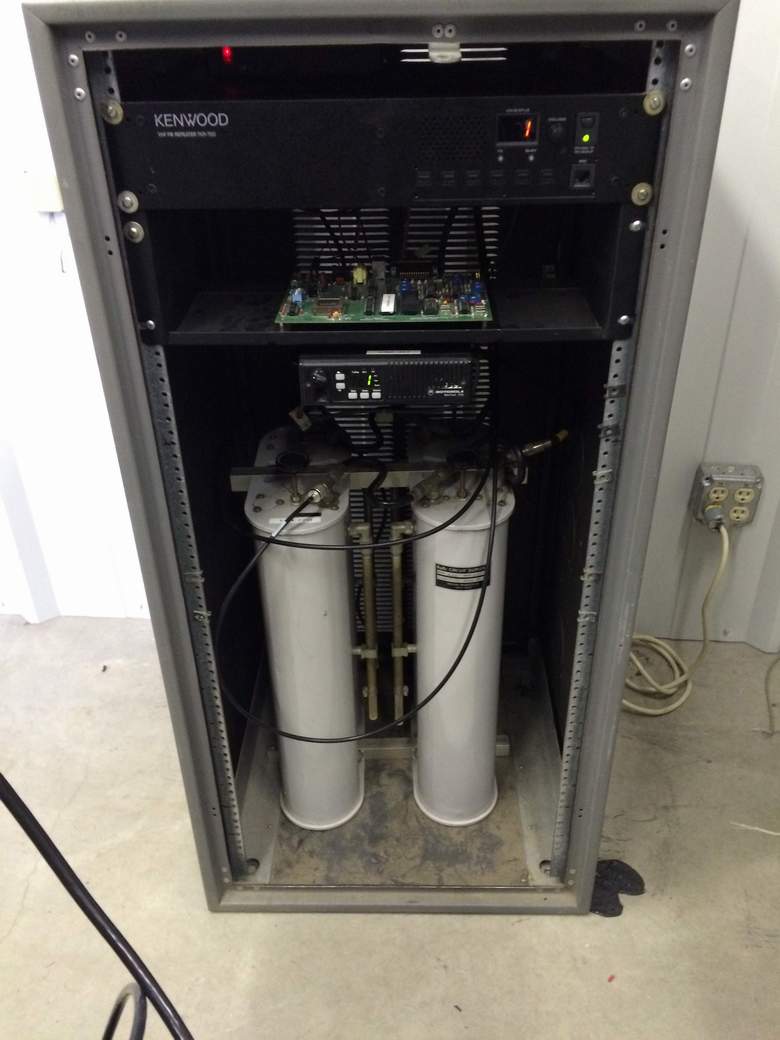

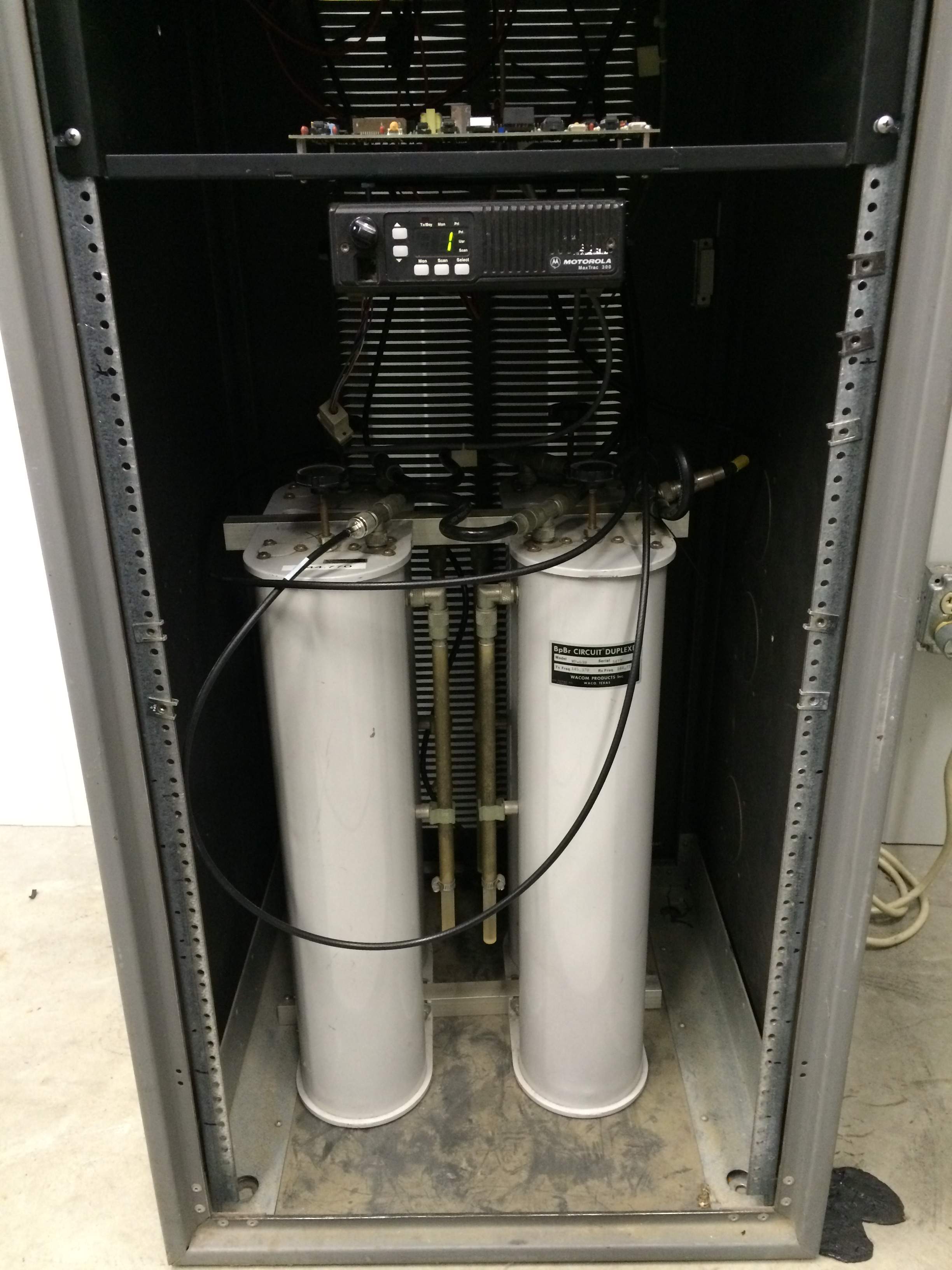

Here are two photos of the New Repeater.


It is a Kenwood 750.
50 watt VHF High Band.



The WV8BD's  145.370-(100.0) Repeater
Coverage Maps.

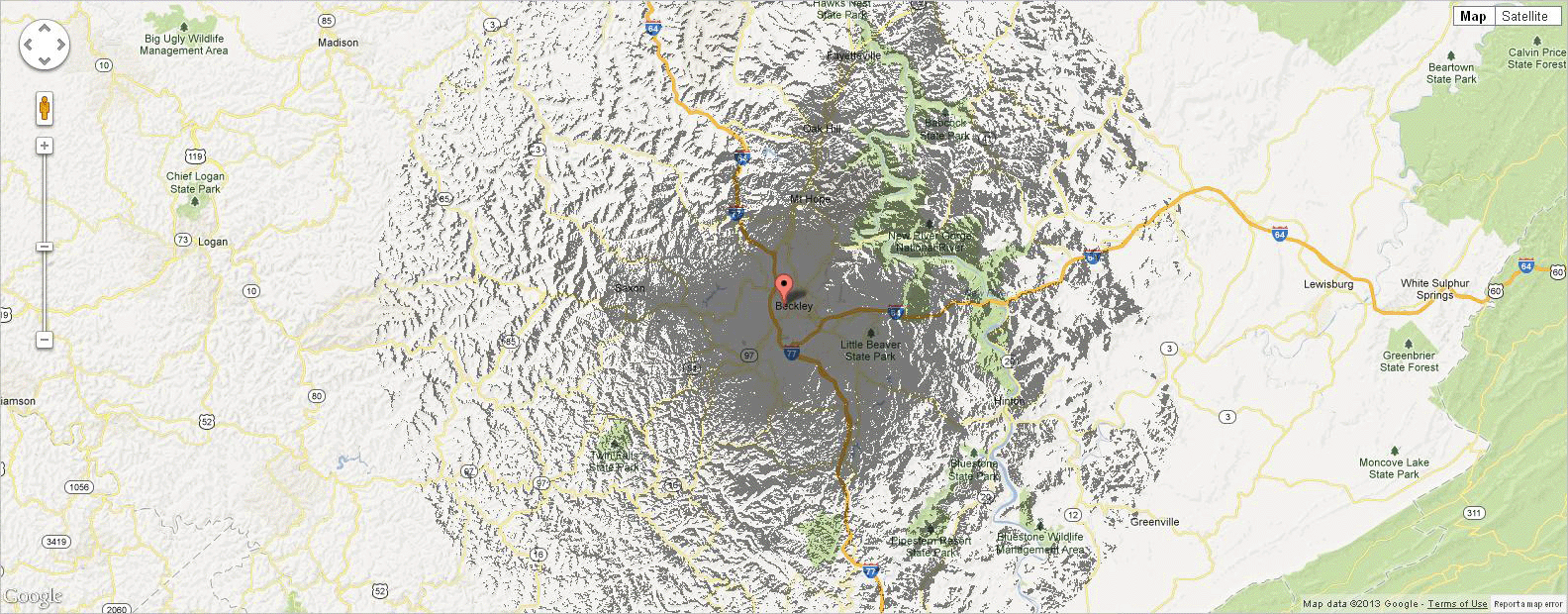

Below is a plot of the older Vertex 20 watt repeater.
It is plotted at 70% Reliability.

Click image to see full size image.

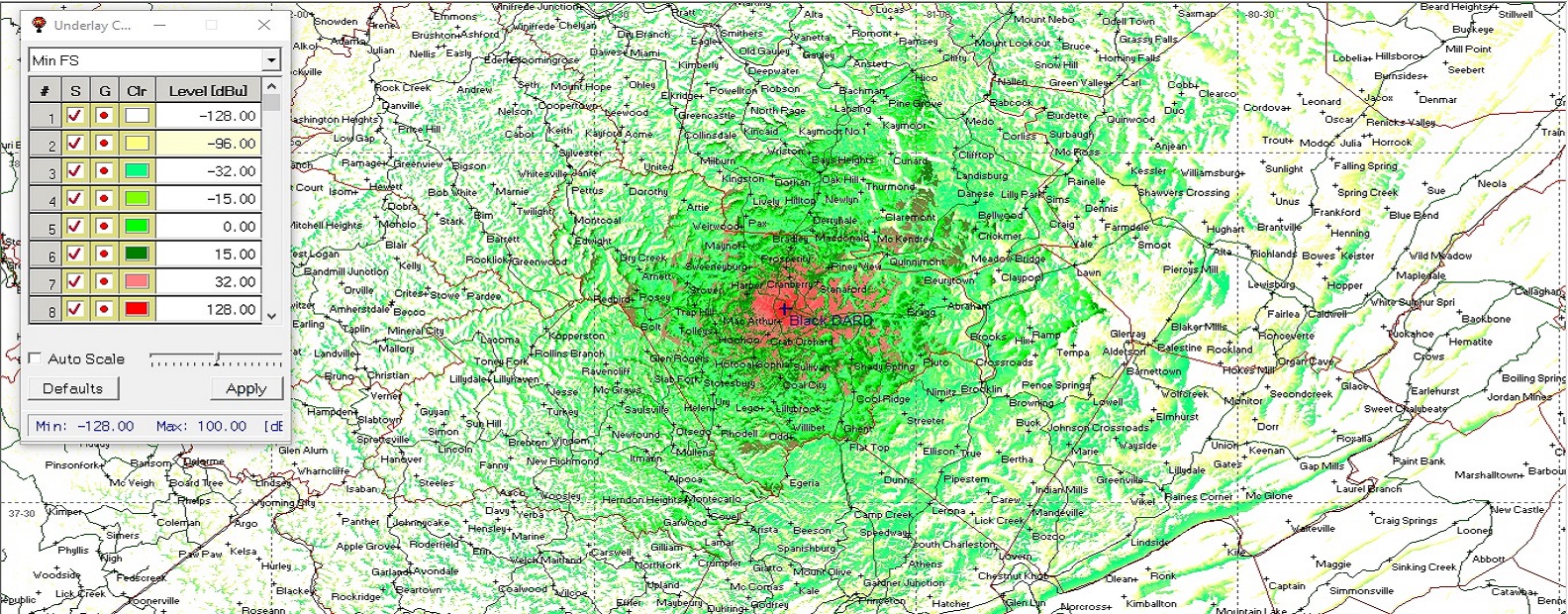

Here are the plots for the Kenwood 750 50 watt repeater.
They are thumbnailed for clicking to see full size imagery.

The First column depicts the plot ranges in Killmeters from
 the plot's center, and also shows the meters per pixel.
The Second on the right are at 70% reliability plots.
The Third on the right are at 99% reliability plots.


And now a word about "Reliability":


Reliability when pertaining to repeater coverages depicts what percent of the time are you to be able to connect to the repeater. So... at 99% reliability, you most definitely will connect to the repeater. At 70% reliability depicts that at that location, you are able to connect to the repeater almost all the time and in a mobile, whip-flutter will be heard. At a base, 70% means that when you do connect, that your signal may be heard with from very little to a high amount white noise along with your signal. Also, you may hear the same from the repeater.


70% Reliability Plots
99% Reliability Plots
300 KM
300m/px

200 KM
200m/px


100 KM
100m/px
50 KM
50m/px
25 KM
30m/px
